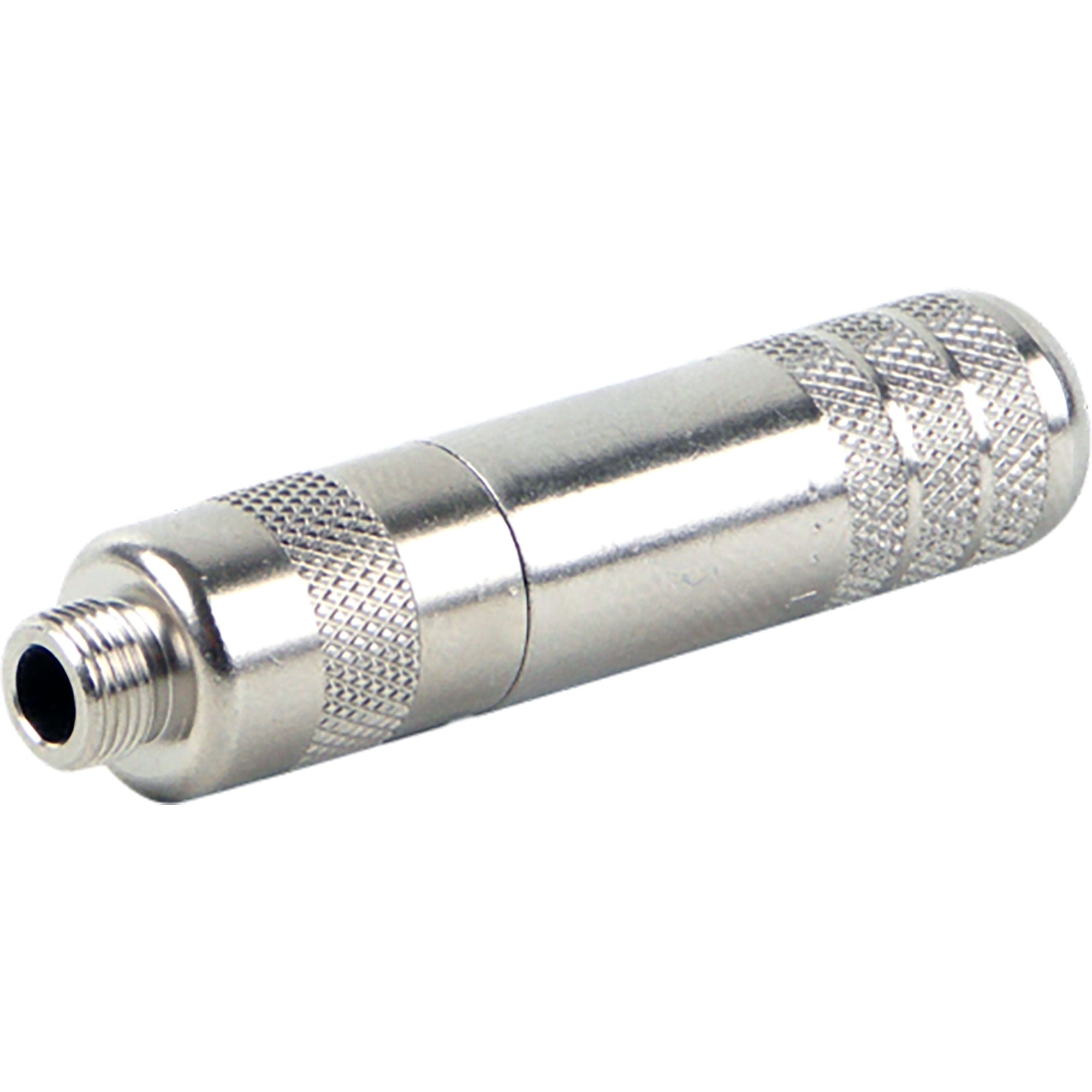

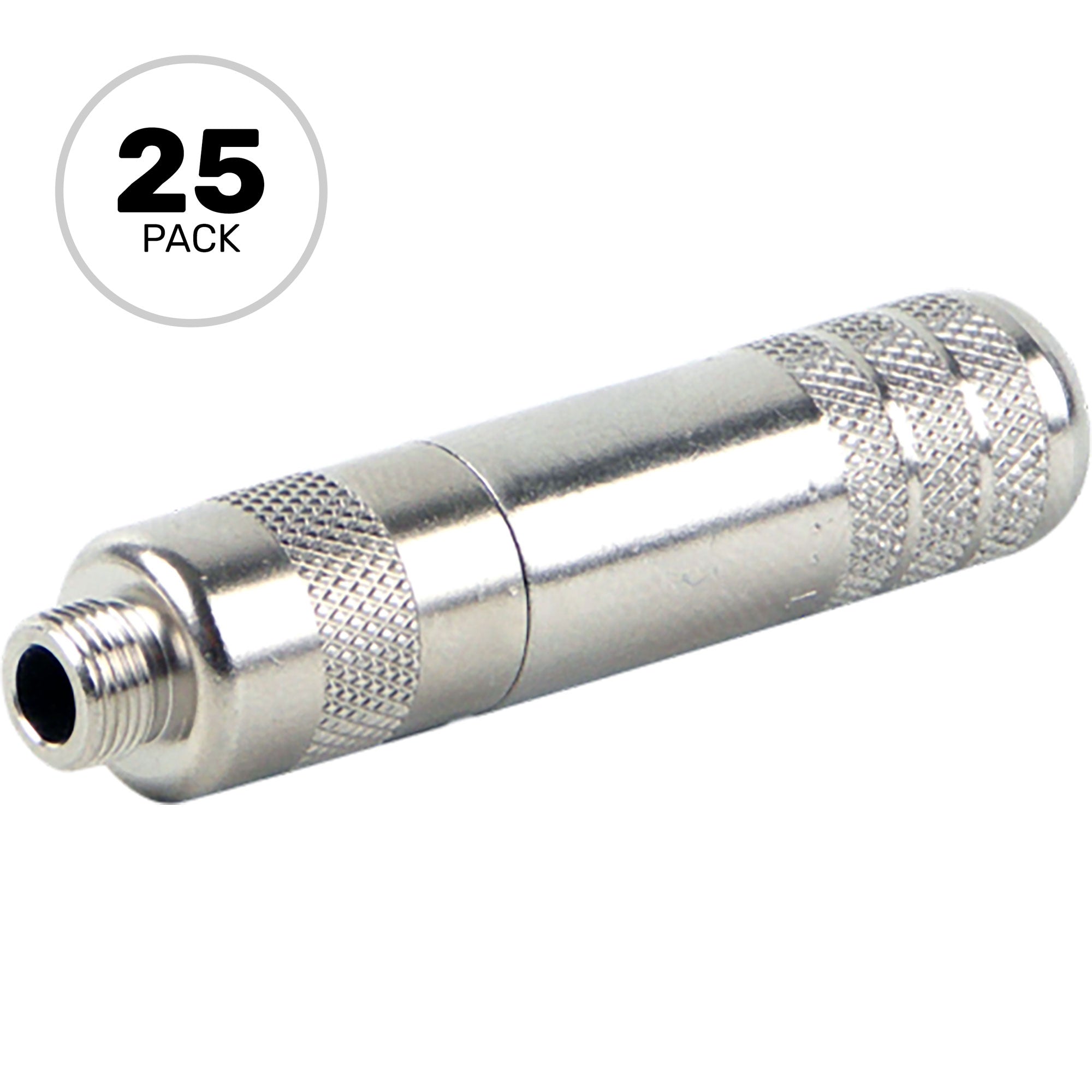

Switchcraft 35LJNAUS 3.5mm Stereo Locking Small Cable Mount Female Jack (Nickel/Gold, 25 Pack)

3.5mm Stereo Cable Mount Extension Jack - Nickel Body, Gold Contacts, .175" Opening - Package of 25 Connectors

3.5 mm inline jacks with sturdy solid metal housing. Rated to 5,000 insertion / withdrawal cycles. Two piece design simplifies terminations. Mates with 35HD series locking or non-locking plugs.

Features:

• Solid metal housing.
• Available with gold or silver contacts.

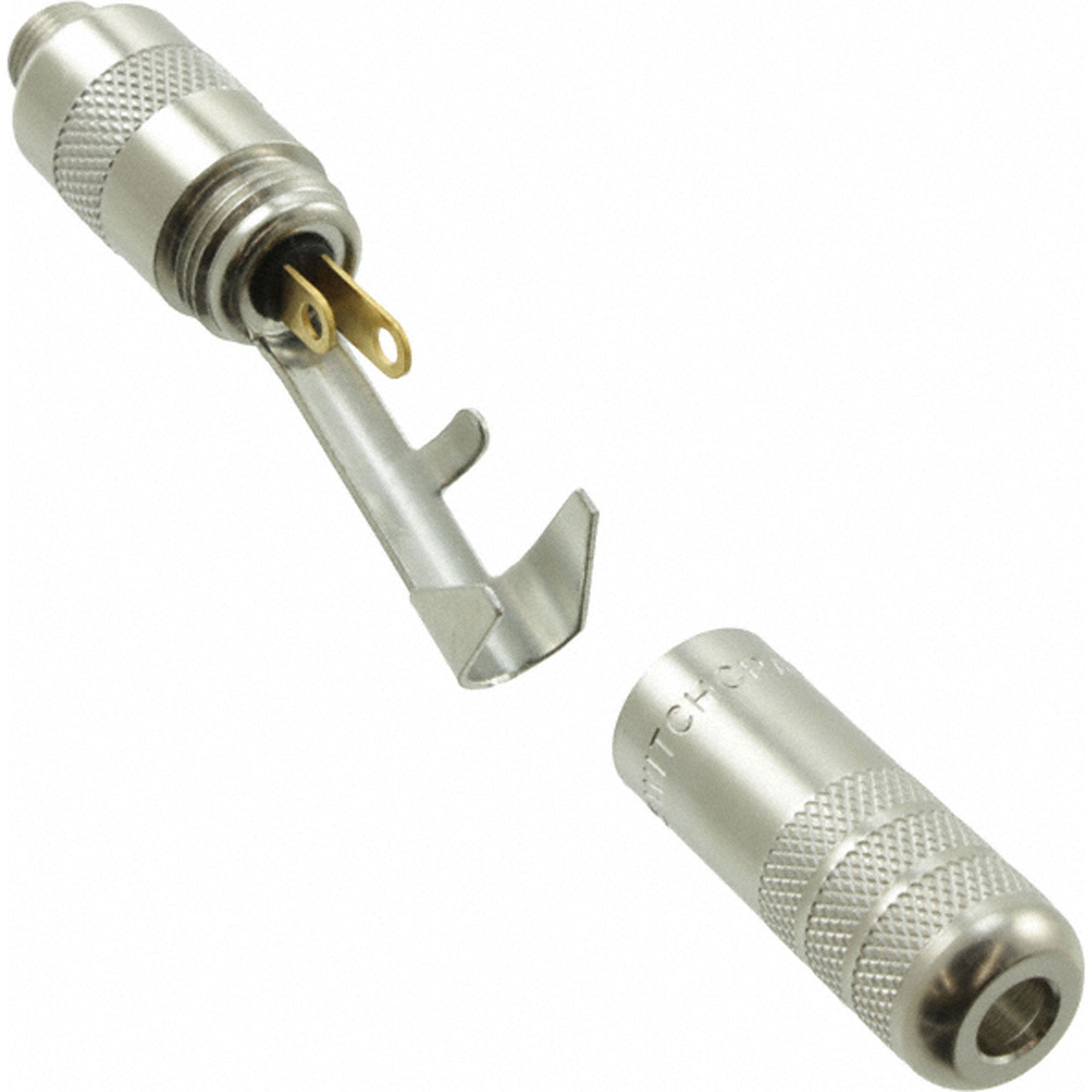

• Two piece design simplifies termination
• Rated to 5000 insertion/withdrawal cycles
• Mates with 35HD series locking or non-locking plugs

Specifications:

• Electrical Specifications
• Contact Resistance: 0.020 ohms
• Insulation Resistance: 2000 megohms
• Dielectric Withstand Voltage: 250VAC
• Mechanical Specifications
• Insertion Force: 8 lbs MAX
• Withdrawal Force: 1lbs MIN
• Life Cycles: 5,000 insertion/ withdrawal cycles
• Max Soldering Temp/Time: 800°F/10s or 700°F/20s
• Vibration per MIL-STD-202F Method 201
• Thermal Shock per MIL-STD-202F Method 107G
• Material Specifications
• Sleeve: Copper alloy, nickel
• Handle: Copper alloy, nickel
• Cable Clamp: C.R.S., tin-plated
• Solder Terminal: Copper alloy, silver or gold plated
• Insulator: Thermoplastic, black
