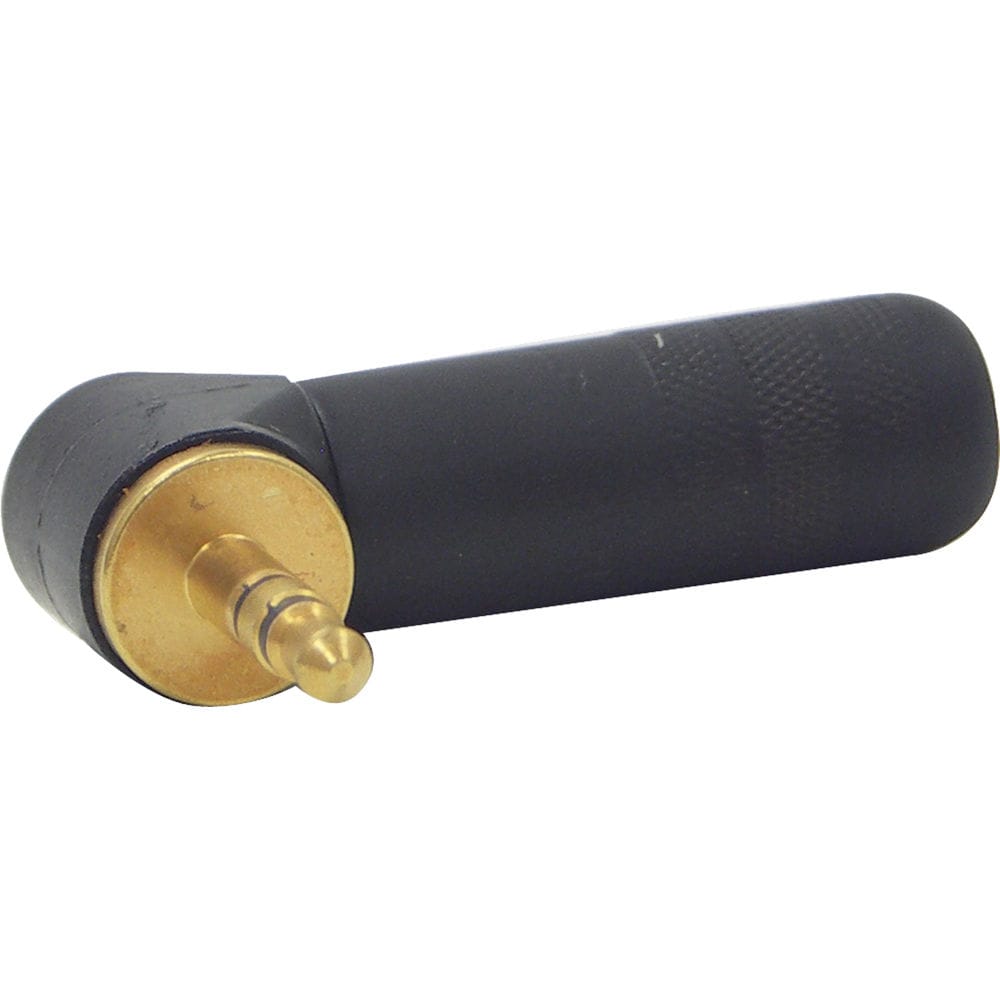

Switchcraft 35HDRABAU 3.5mm Stereo Right-Angle Cable Mount Plug (Black/Gold)

35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter (Black, Gold)

Switchcraft's 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter (Black, Gold) is a 3.5mm right angle plug with an insert molded plug finger. It has a longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. It also has a longer handle for improved gripping surface and easy plug withdrawal from jack.

Specifications:

• Contact Resistance: <0.020Ω
• Dielectric: Withstand Voltage: 250 VAC (min.)
• Insulation Resistance: @ 500 VDC: 2,000 MΩ (min.)
• Working Voltage: 250 VAC, 140 VDC
• Current Output: @ Working Voltage: 4 A
• Insertion Force: Typical 2.5 lb (1.13 kg)
• Withdrawal Force: Typical 2 lb (0.91 kg)
• Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
• Life: 5000 cycles
• Maximum Cable Size: 0.250" (0.64 cm) diameter

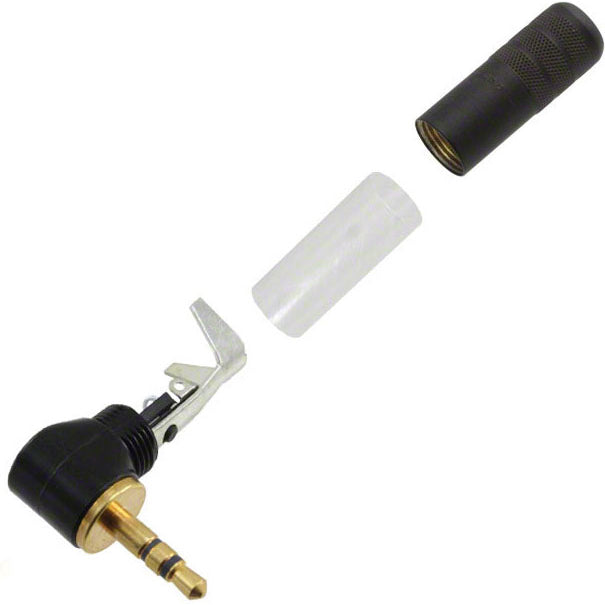

• Construction:
  Tip Rod: Copper alloy, tin, or gold-plated
  Ring: Copper alloy, nickel, or gold-plated
  Sleeve: Copper alloy, nickel, or gold-plated
  Handle: Copper alloy, nickel, or gold-plated
  Cable Clamp: C.R.S., tin-plated
  Solder Terminal: Copper alloy, tin-plated
  Tubular Insulator: Clear plastic
