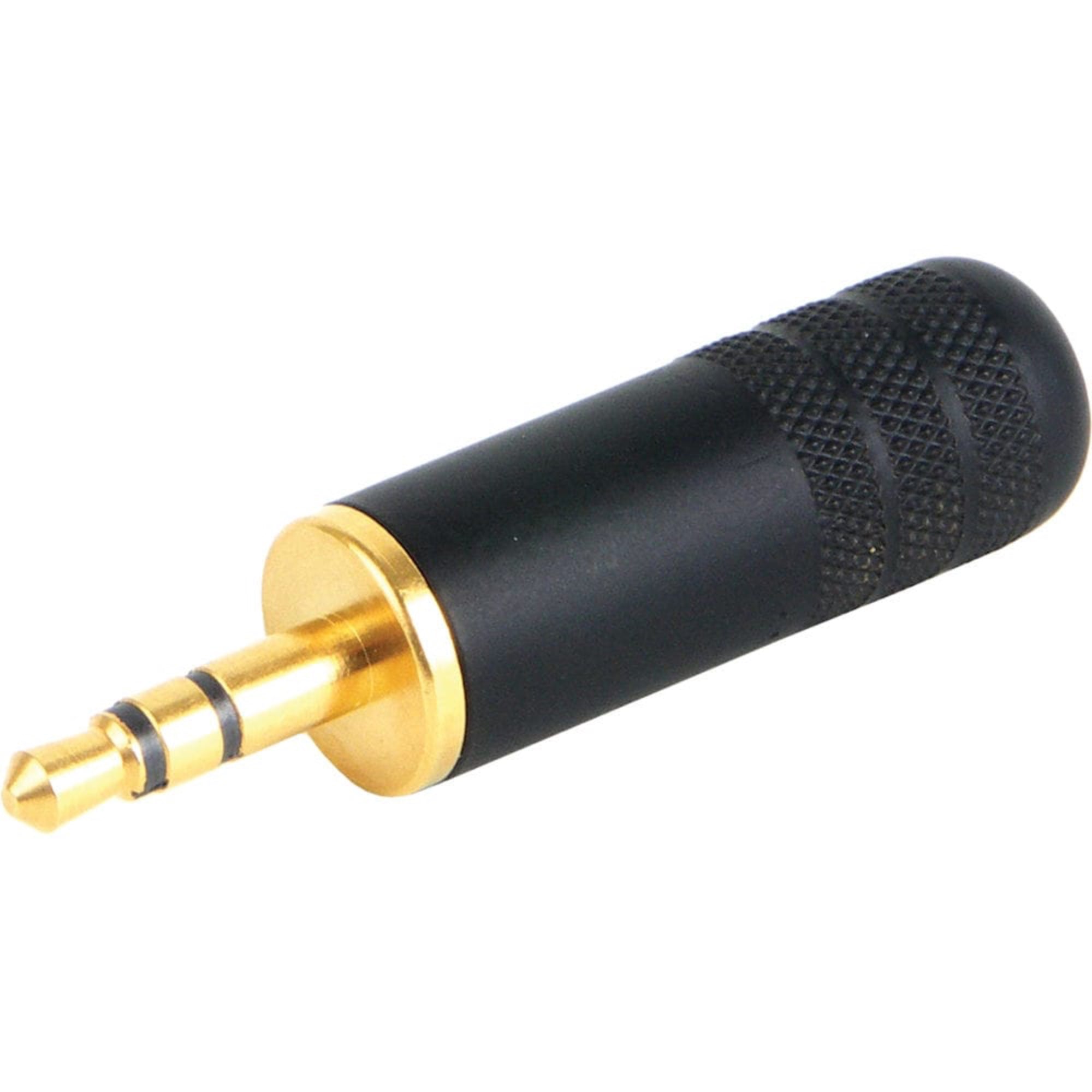

Switchcraft 35HDBAU 3.5mm Stereo Cable Mount Plug (Black/Gold)

3.5mm (1/8" Mini) Stereo Plug 0.290" Cable Diameter (Black Handle, Gold Finger)

Switchcraft's 3.5mm (1/8" Mini) Stereo Plug 0.290" Cable Diameter (Black Handle, Gold Finger) is a 3.5mm plug with an insert molded plug finger. It has a longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. It also has a longer handle for improved gripping surface and easy plug withdrawl from jack.

Specifications:

• Contact Resistance: <0.020 ohms
• Dielectric: Withstand Voltage: 250 VAC (min.)
• Insulation Resistance: @ 500 VDC: 2,000 megohms (min.)
• Working Voltage: 250 VAC, 140 VDC
• Current Output: @ Working Voltage: 4 AMPS
• Insertion Force: Typical 2.5 pounds
• Withdrawal Force: Typical 2 pounds
• Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
• Life: 5000 cycles
• Maximum Cable Length: 0.250" diameter

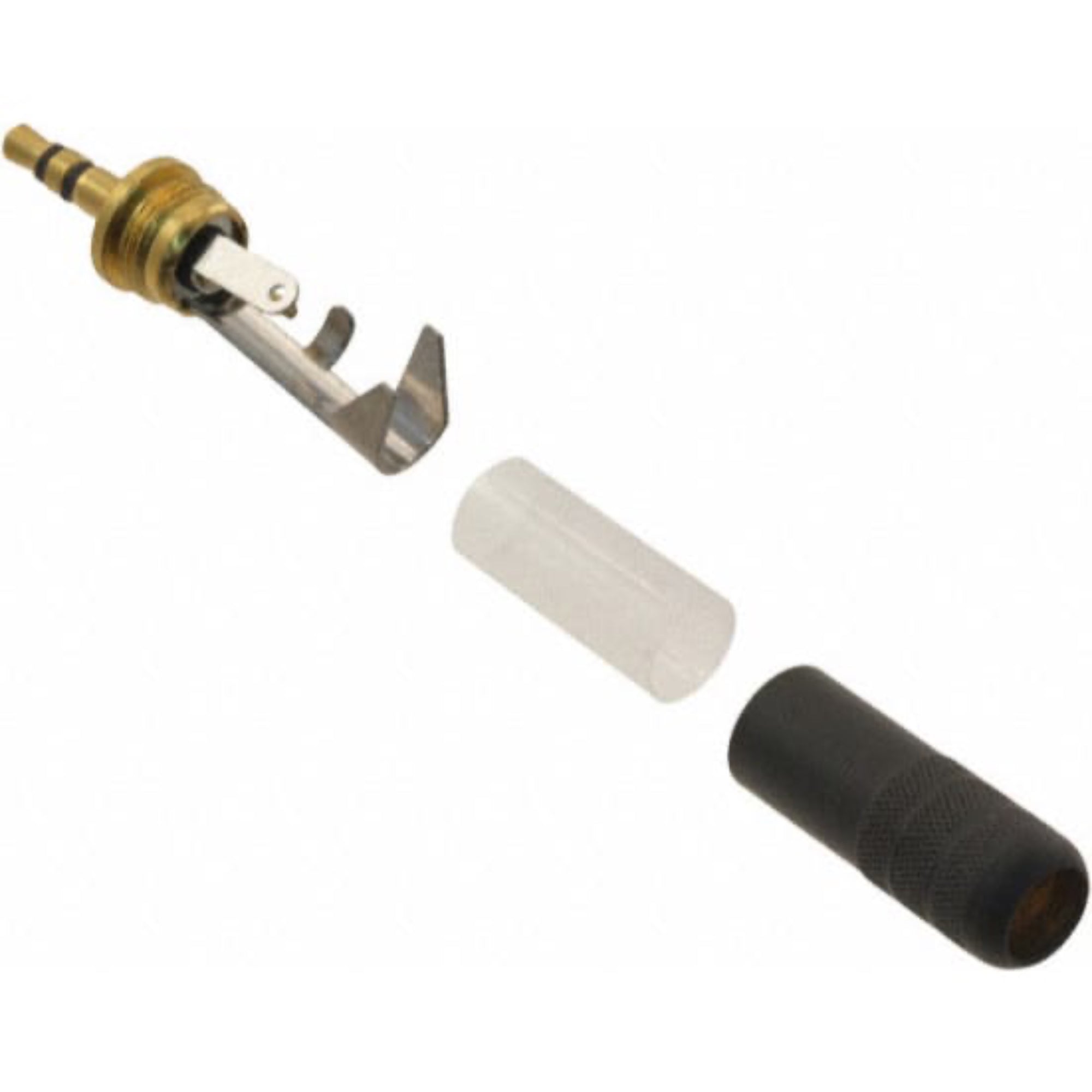

• Construction:
  Tip Rod: Copper alloy, tin, or gold-plated
  Ring: Copper alloy, nickel, or gold-plated
  Sleeve: Copper alloy, nickel, or gold-plated
  Handle: Copper alloy, nickel, or gold-plated
  Cable Clamp: C.R.S., tin-plated
  Solder Terminal: Copper alloy, tin-plated
  Tubular Insulator: Clear plastic
