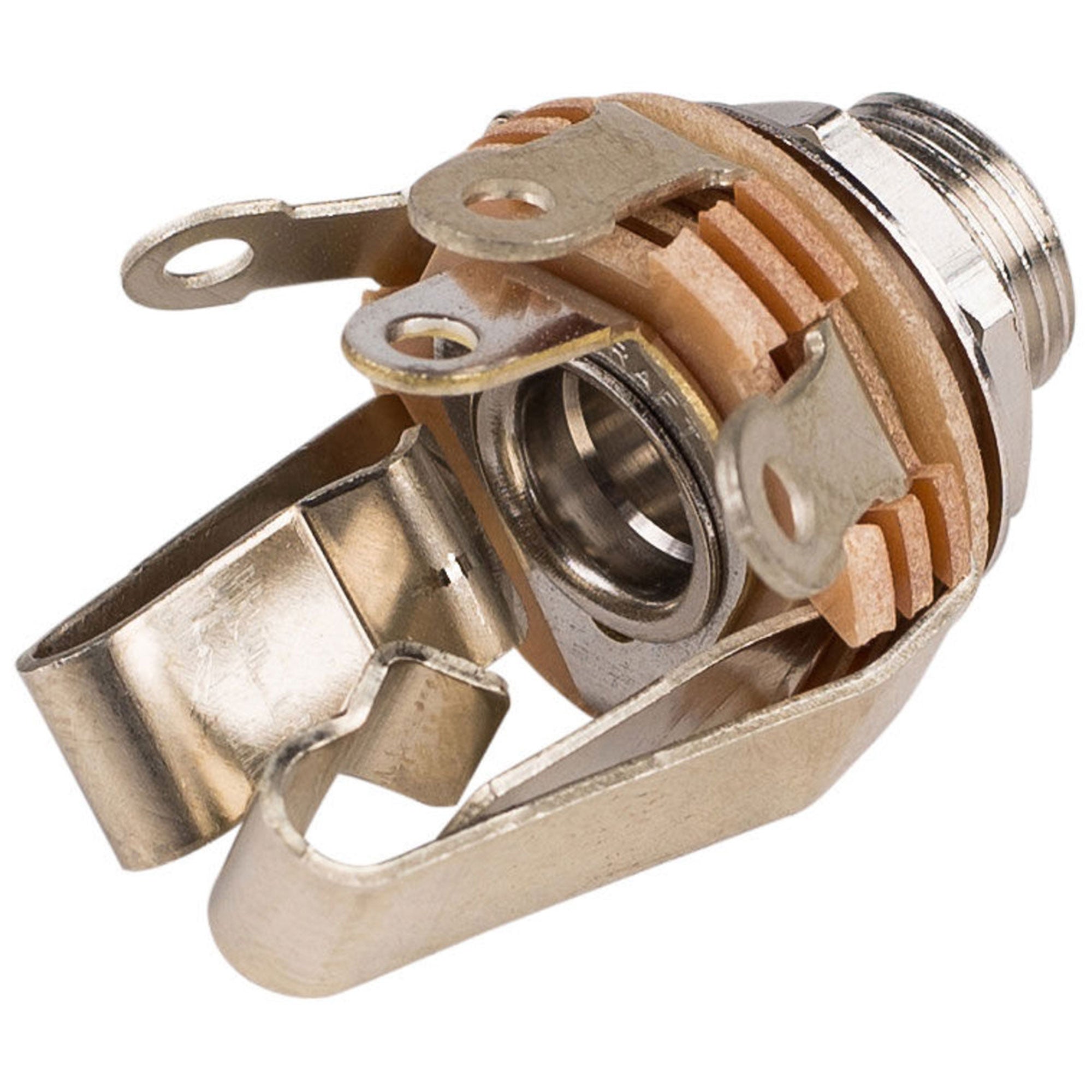

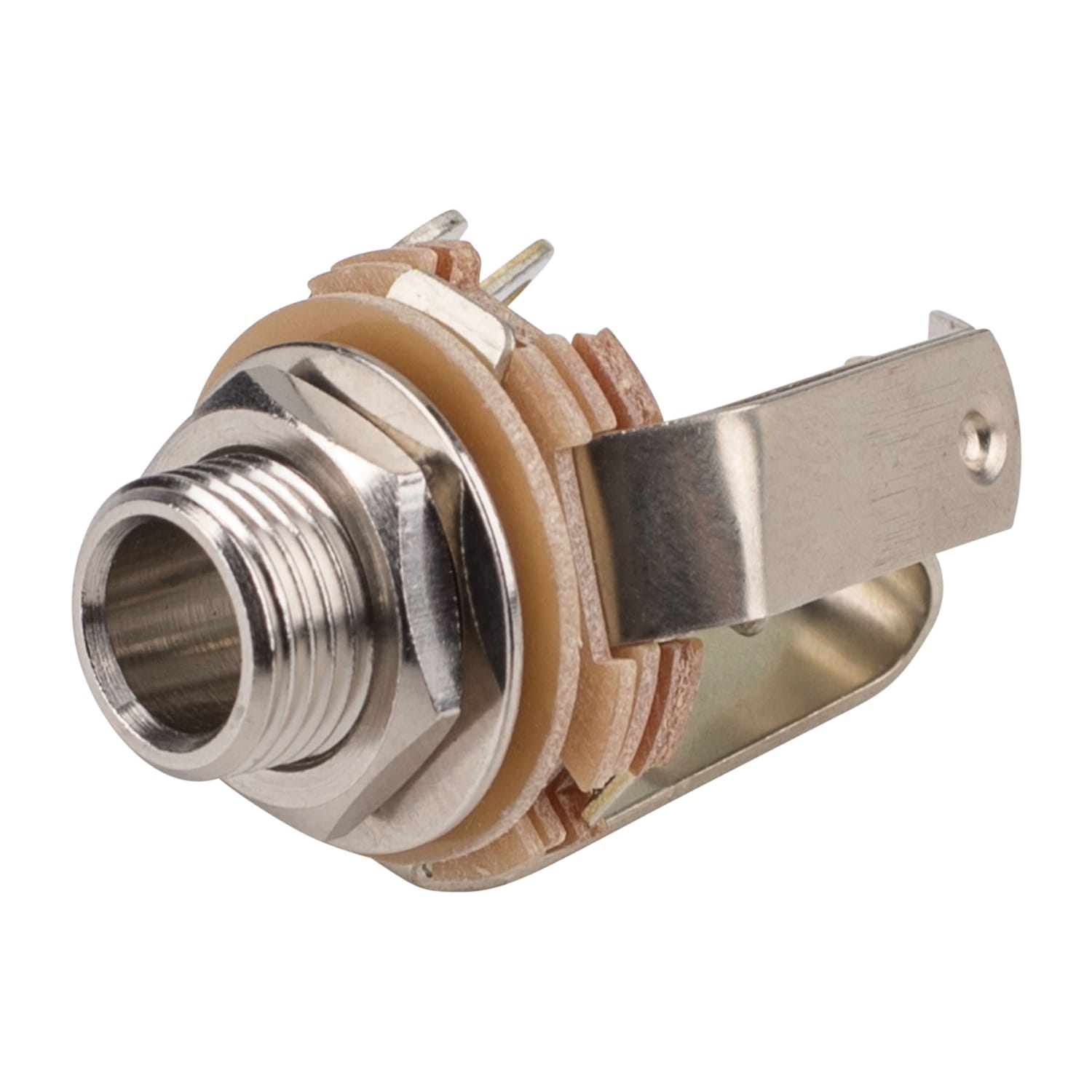

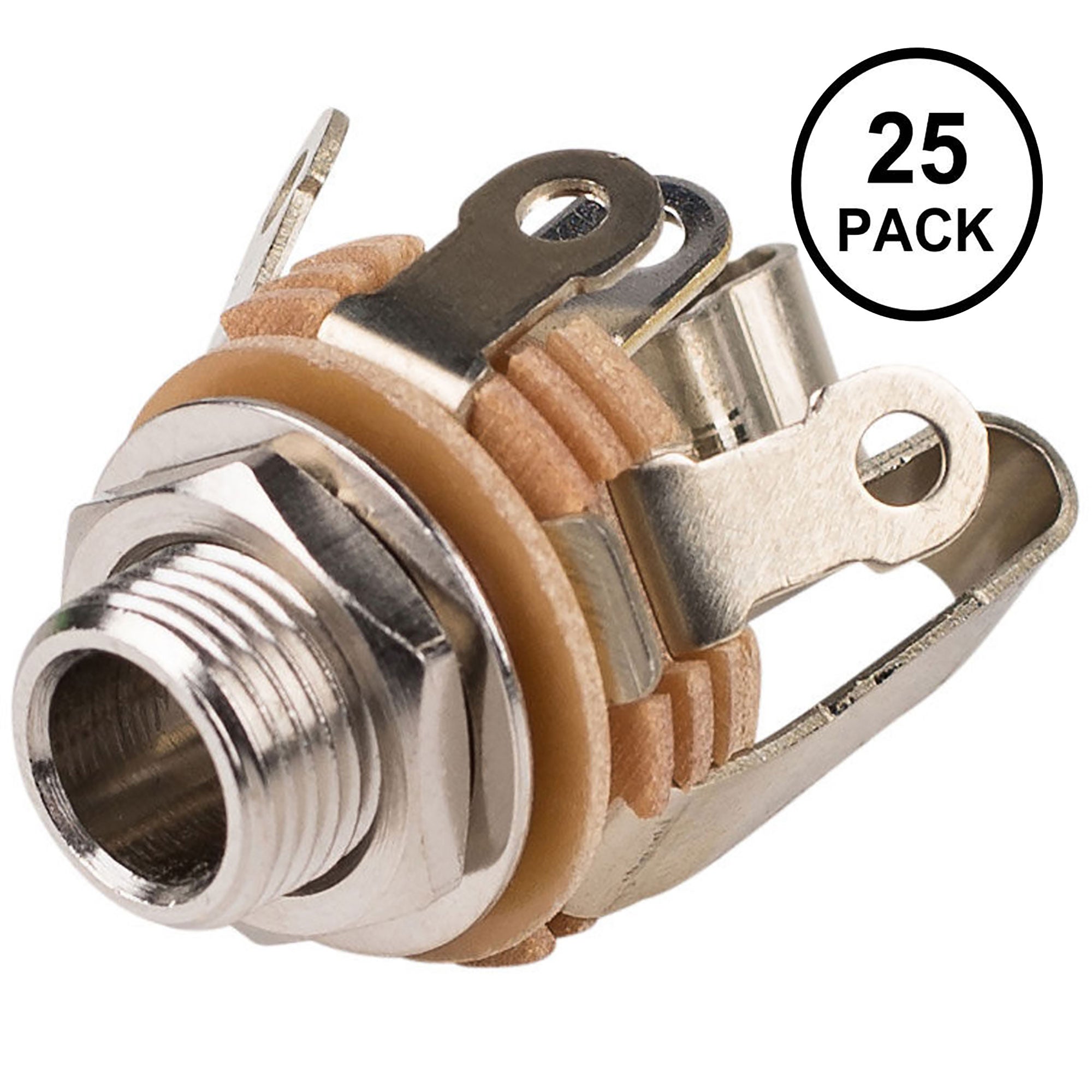

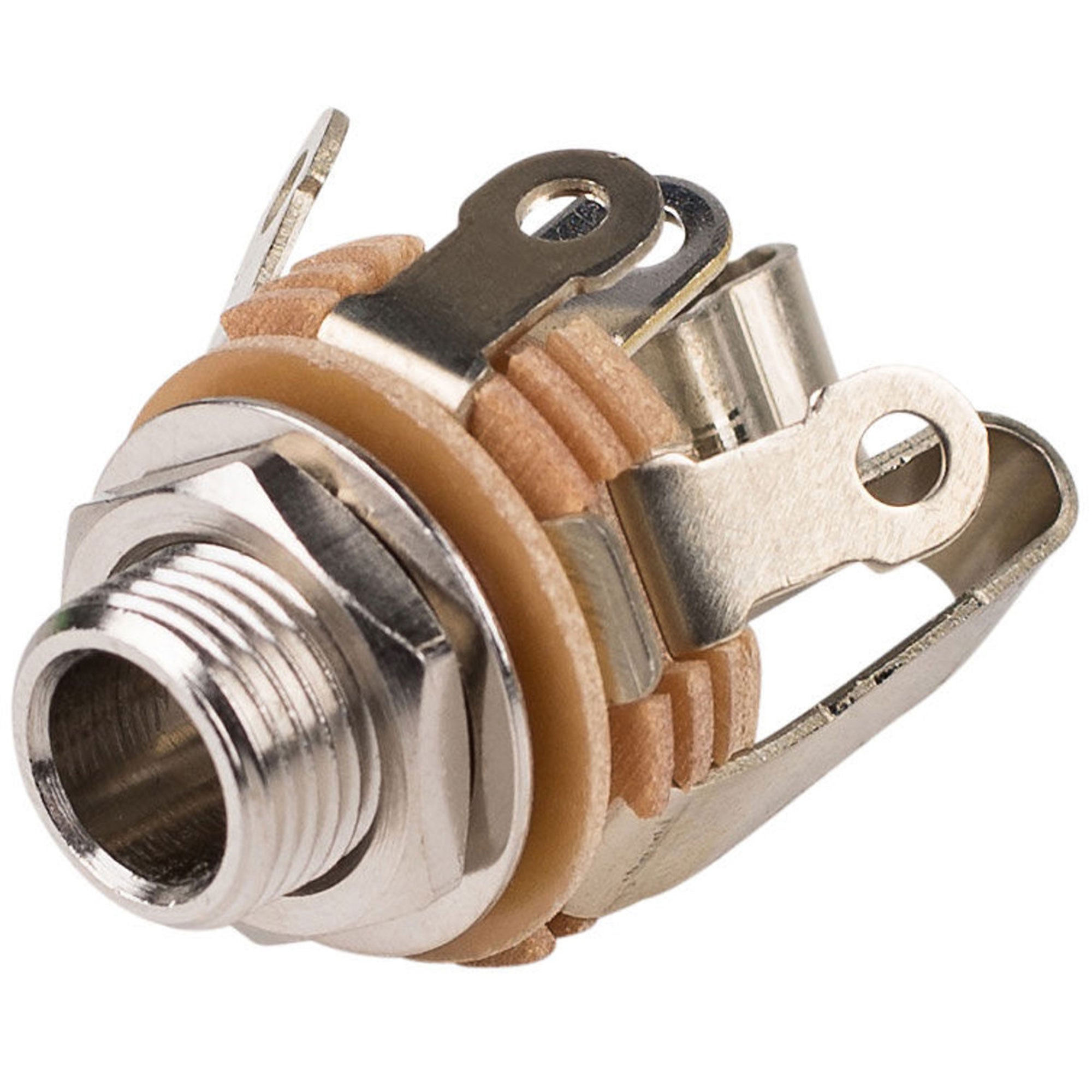

Switchcraft 13B 1/4" TRS Female Open Frame Jack (Tip is Shunt, 25 Pack)

1/4" Stereo 3 Conductor Jack Connector (Tip is Shunt) - Package of 25 Connectors

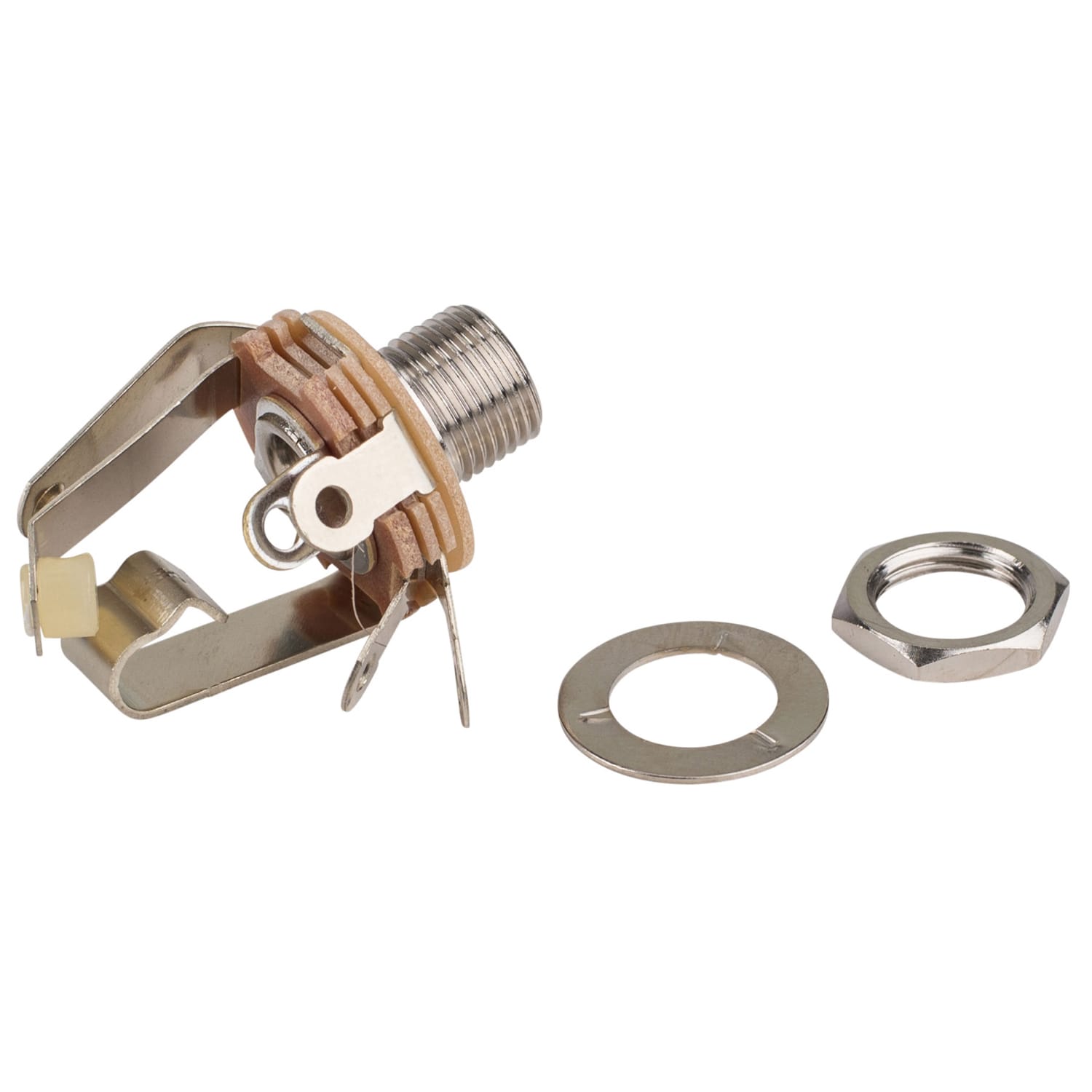

Switchcraft's 1/4" Stereo 3 Conductor Jack (Tip is Shunt) mates with standard commercial phone plugs and is available with .25 inch inside diameter bushings. A nut and a washer is included.

Specifications:

• Mechanical
• Life: 10,000 insertion/withdrawal cycles, minimum
• Electrical
• Contact Resistance: .030 ohms maximum (initial), .050 ohms maximum (after humidity, durability exposure). Per MIL-STD-202E
• Insulation Resistance: 10,000 M(omega) minimum (initial), 1,000 M(omega) minimum (after humidity)
• Dielectric Withstanding Voltage: 500 V, 60 Hz (rms) AC
• Contact Rating: 1 A, 25 V DC
• Environmental
• Thermal Range: -55°C to +85°C (non-operating); -20°C to +65°C (operating)
• Thermal Shock: Per MIL-STD 202, method 107
• Humidity: Per MIL-STD 202, method 106
• Salt Spray: Per MIL-STD 202, method 101
• Material
• Mounting Bushing: Nickel-plated copper alloy
• Insulation: Rigid plastic
• Springs: Special copper alloy. Integral contacts are standard in the isolated switching circuits; fine silver contacts in C12A switching circuit
• Sleeve Terminal: Copper alloy

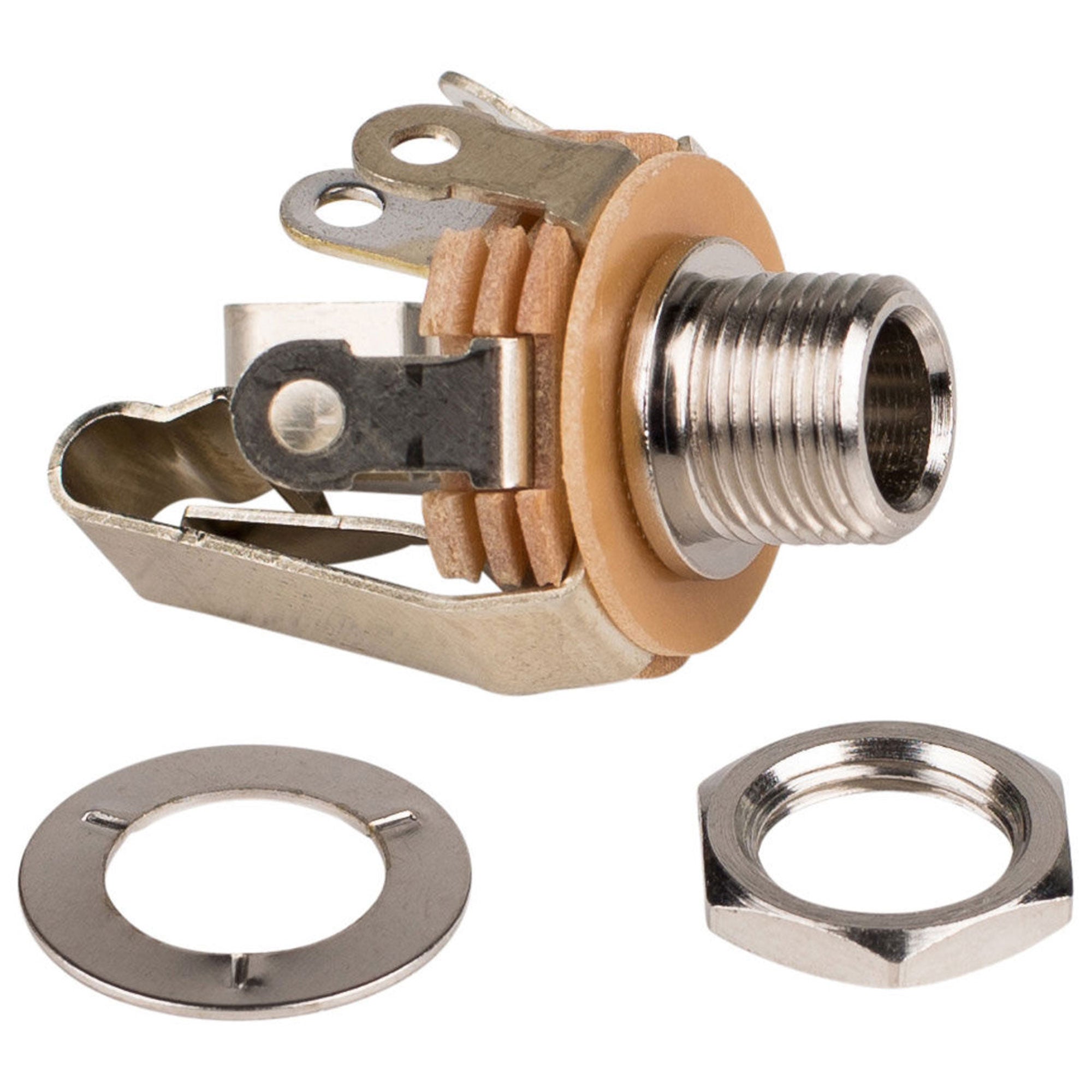

• Hardware: Supplied with one Number P10001 copper alloy nickel-plated hex nut, and one Number S1022 steel nickel-plated washer - except copper alloy nickel-plated washer Number S10451 supplied on C11, C12A and C12B
• Note: this jack features integral contacts. Integral contacts should not be used where low contact resistance is a requirement.
