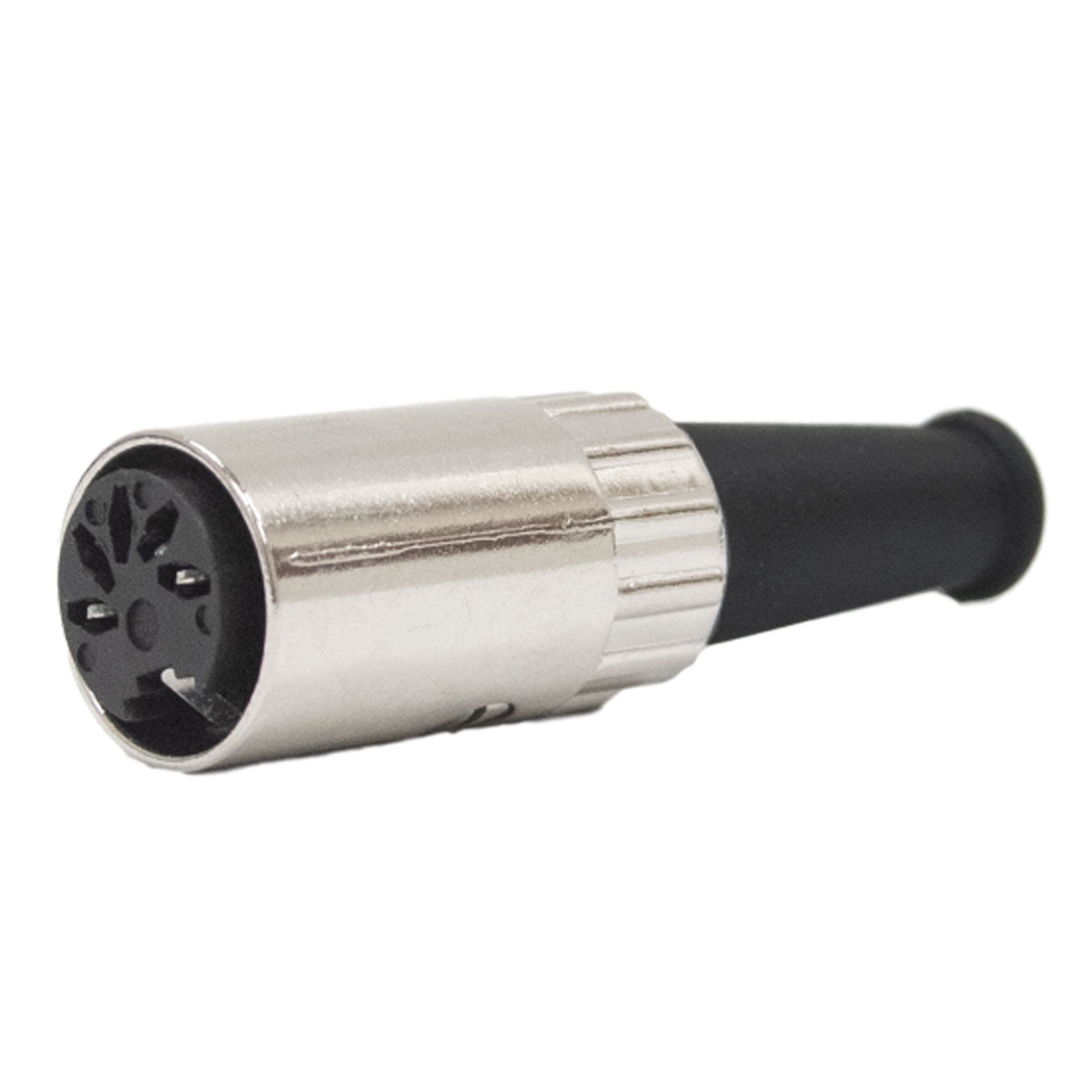

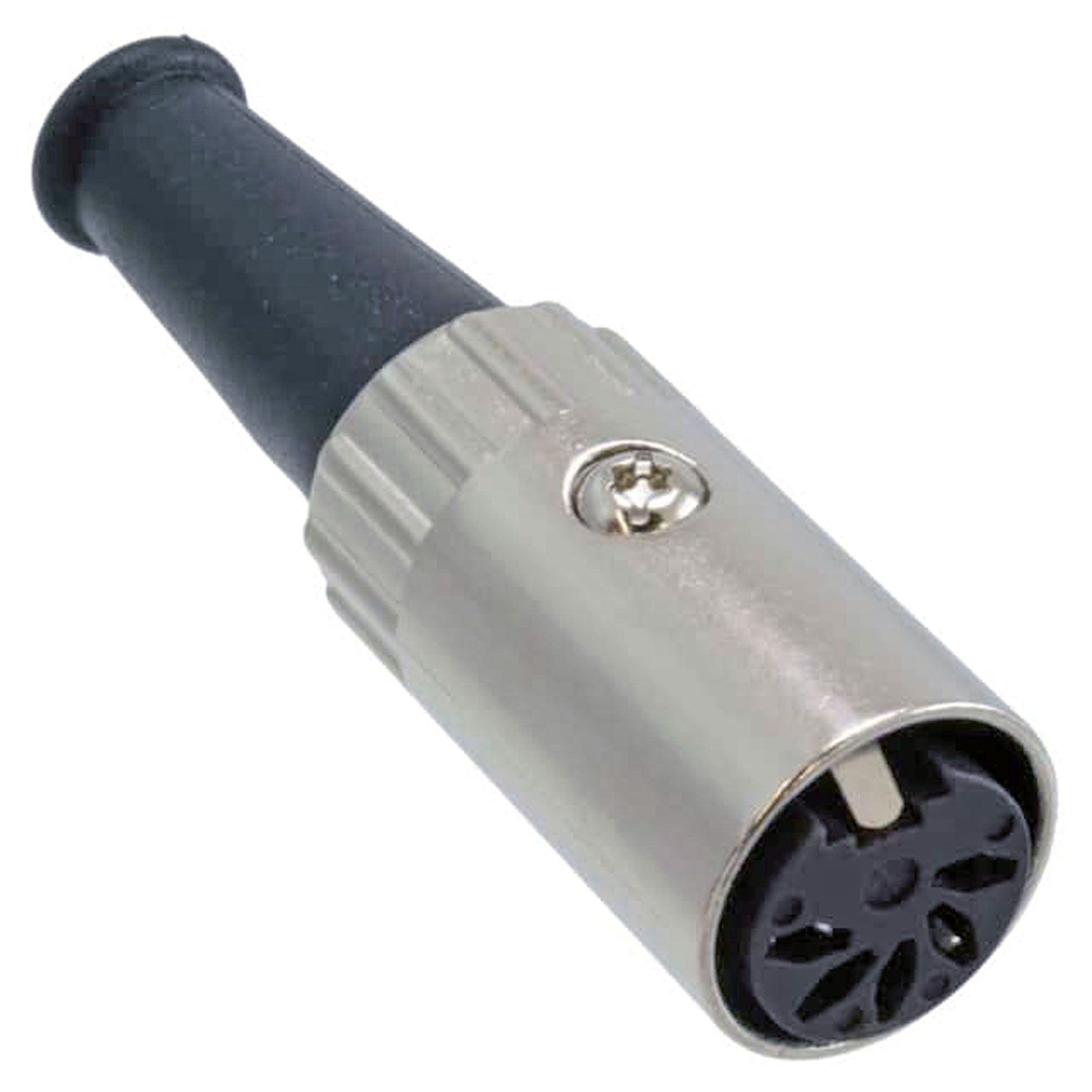

Switchcraft 06AL5FX 5 Pin DIN Female MIDI Cable Connector

DIN Cable Mount Connector for MIDI Cables, Female Receptacle with Ground Contact, 5 Pins at 180°

Type 15GM7M - typical: Male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel's special metal tab locks the shell in place. Standard color of plastic shell is gray. All-purpose cable clamp.

Specifications:

• ELECTRICAL
• Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
• Dielectric Withstanding Voltage: 500 V (rms)
• Contact Rating: 5-pin; 3A, 34 V DC
• Leakage Resistance: 105M (ohm)
• Recommended Wire Size: 22 wire gauge maximum
