Studio Technologies Model 5132 Party-Line Interface Module (SMPTE)

Party-Line Interface Module - SMPTE-Compatible Audio Level Version

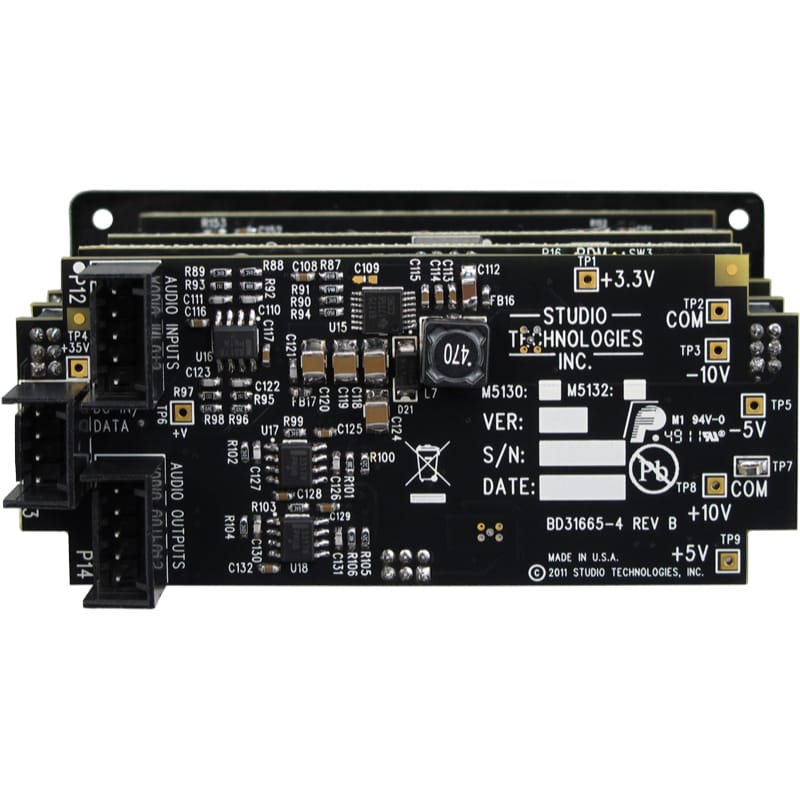

The Model 5132 Party-Line Interface Module is a compact, self-contained unit for use in custom broadcast, live-performance, and general party-line intercom applications. The module provides a high-quality 2-channel party-line to analog line-level ("4-wire") audio signal interface in an easy to use yet technically sophisticated package. The module's basic functions include two channels of 2-wire-to-4-wire conversion with auto-null capability, input and output level metering, a +28 volt DC party-line power source with two channels of 200 ohm intercom audio termination, and DC output control and status monitoring. With the internal party-line power source enabled, beltpack user devices can be directly connected. Alternatively, the Model 5132 can be connected into an existing party-line system that includes a power source and intercom audio terminations. Two analog inputs and two analog outputs interface the Model 5132 with a variety of external audio transport, matrix intercom, and infrastructure equipment. Module operation requires only an externally-provided source of 12 volts DC. Advanced features include remote control and monitoring capability when installed with a Studio Technologies' Model 5190 Remote Access Module.

Applications for the Model 5132 include sports broadcasting booth packages, remote news gathering "fly packs," stadium audio/video interface (I/O) locations, and government/corporate/performance space/aerospace test infrastructure projects. The number of Model 5132 modules used in a project can vary widely-from one to dozens. And in each case the performance will be completely "pro" with audio quality, reliability, and installation flexibility matching that of larger-scale products. Typical applications will find the Model 5132's 4-wire audio inputs and outputs being interfaced with fiber-optical transport modules, matrix intercom systems, and audio/video routers. The flexibility of the Model 5132's party-line intercom interface allows direct connection to either intercom beltpack devices or an existing party-line intercom system.

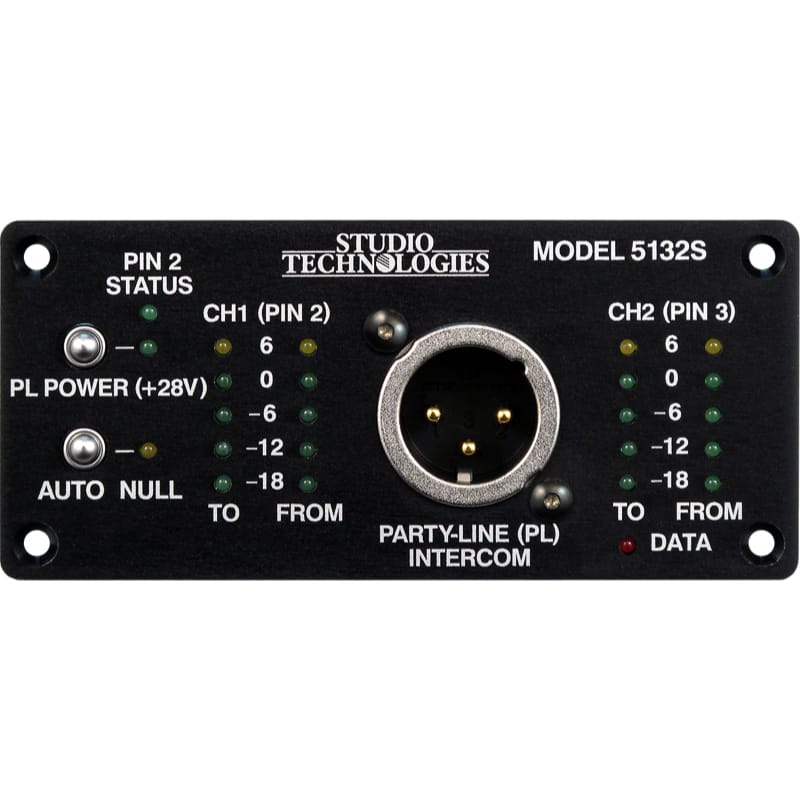

The Model 5132 provides a full-featured 2-channel interface which includes two 2-wire-to-4-wire hybrid circuits with automatic nulling capability. The analog hybrid circuitry provides excellent audio quality and high return-loss. Audio level meters provide confirmation of system performance during setup and operation. The Model 5132's party-line interface is accessible using a 3-pin male XLR connector. This allows industry-standard party-line intercom user beltpacks to be directly interfaced. With a maximum output current of 180 milliamperes, up to three of the popular RTS BP325 devices can be directly connected. Devices from Clear-Com are also compatible.

The Model 5132 is directly compatible for applications with an existing party-line intercom system. The internal power source and 200 ohm terminations can be disabled by selecting the appropriate operating mode by way of a pushbutton switch on the Model 5132's front panel.

The 4-wire audio inputs and outputs were carefully designed for use in permanent as well as field applications. Filtering on the inputs minimizes the chance that radio frequency (RF) energy will interfere with the audio input sources. Other components were included to address ESD ("static") and DC over-voltage conditions. The party-line power source is monitored for protection against damage due to fault conditions. In addition, the DC power input is protected from accidental polarity reversal.
