Key Features
- 25% Shorter Than Standard XLR
- True Heavy Duty Construction
- Knurled Shoulders for Maximum Grip
- Quick and Easy Assembly
- Chuck Type Strain Relief
- Color Coding: Yes with Optional Screws
Description

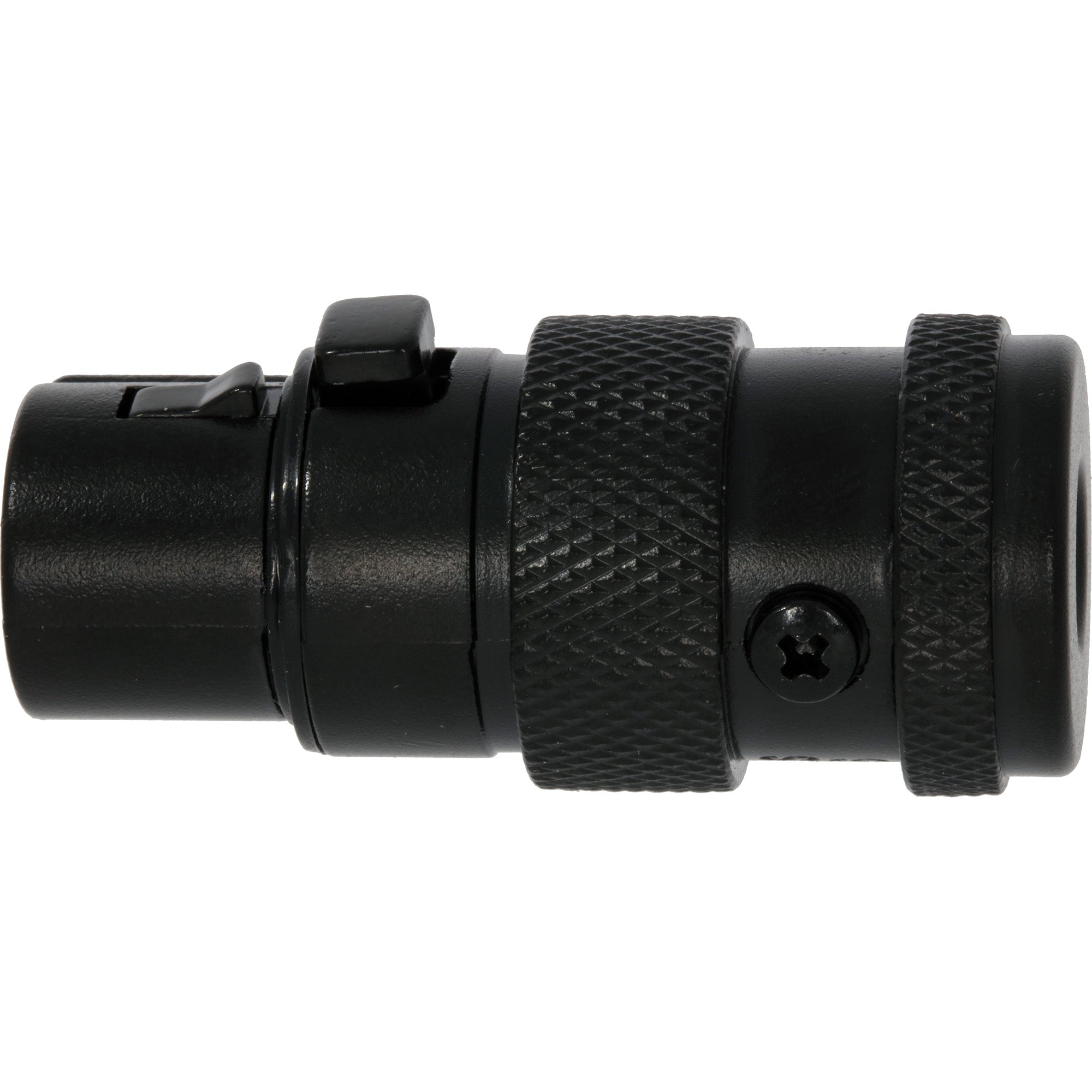

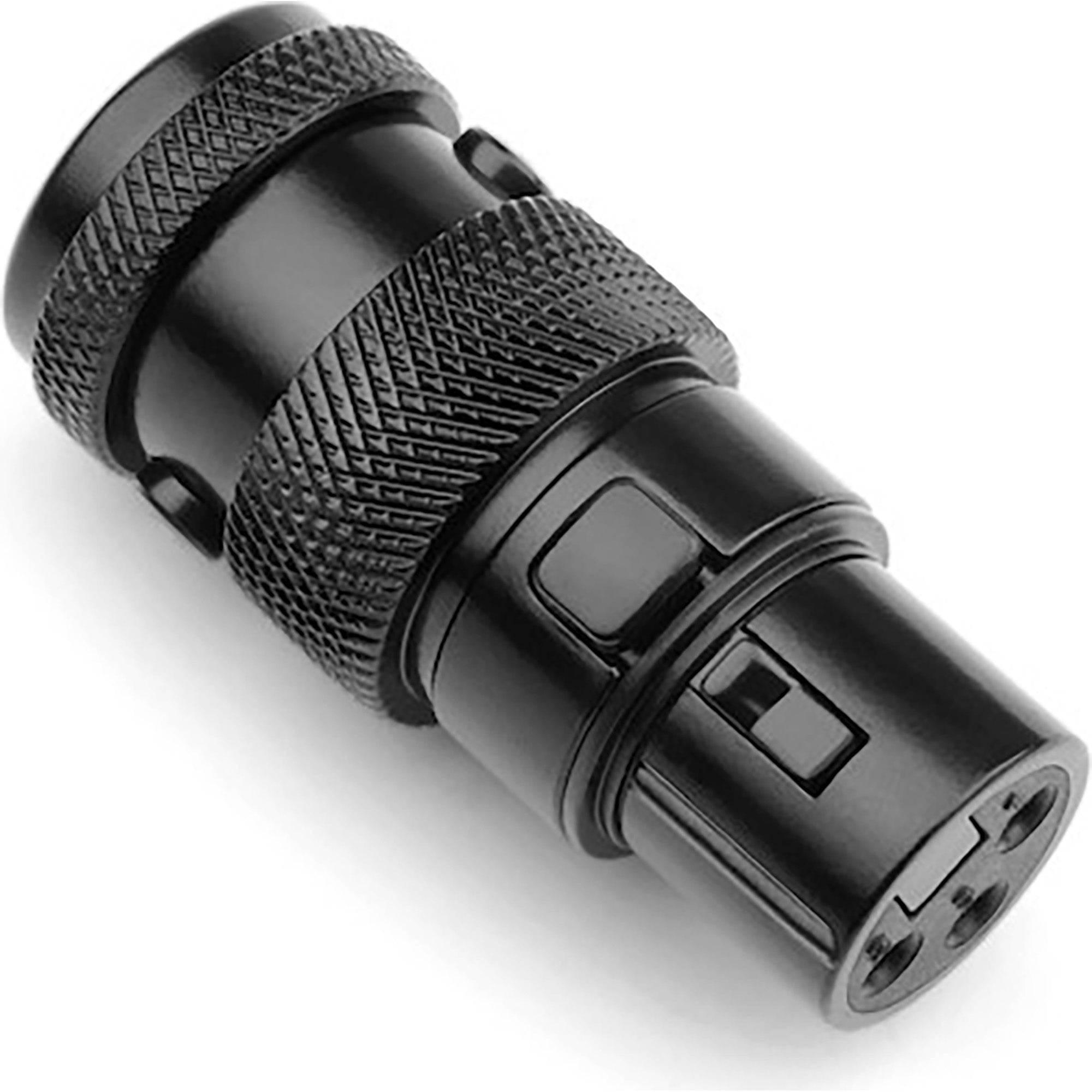

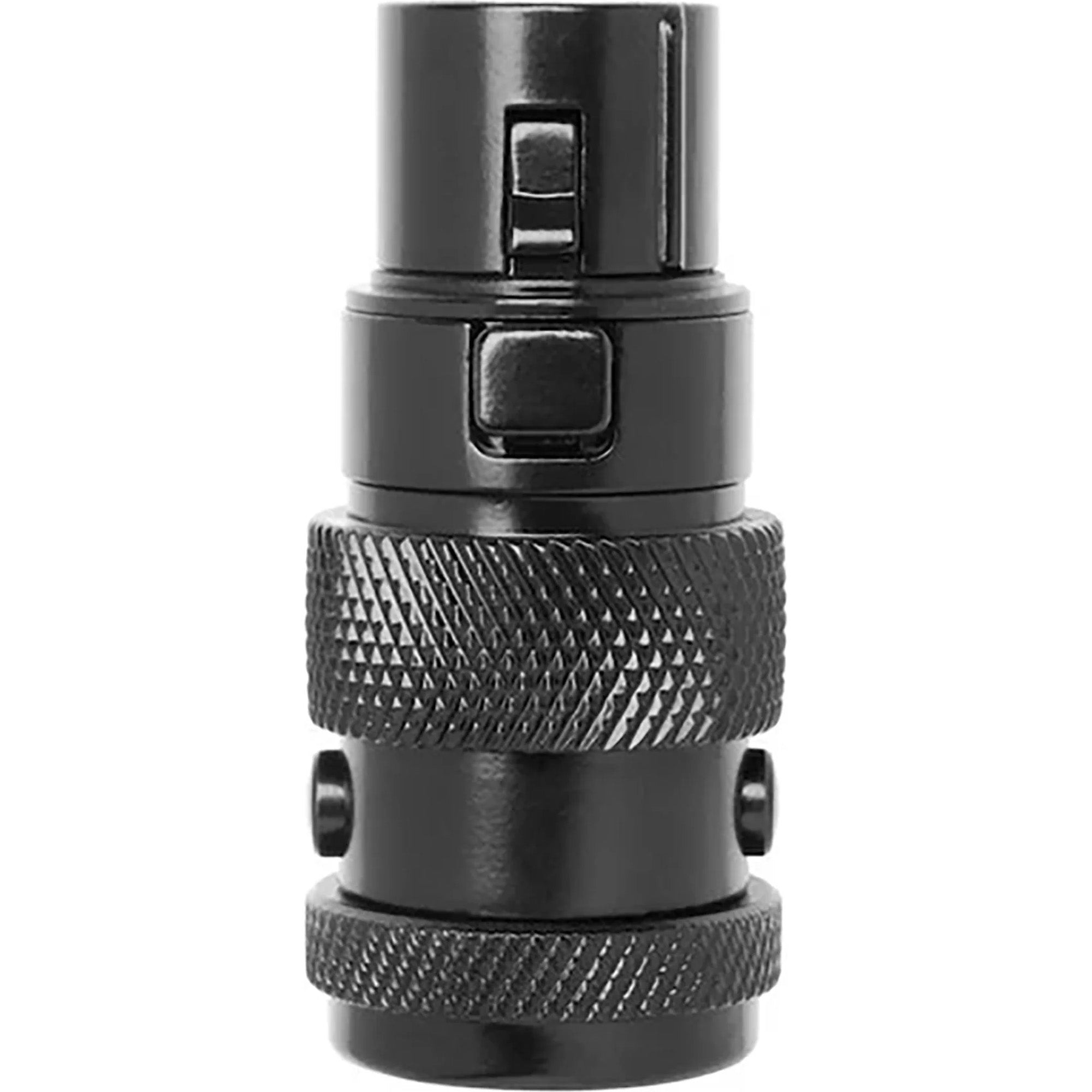

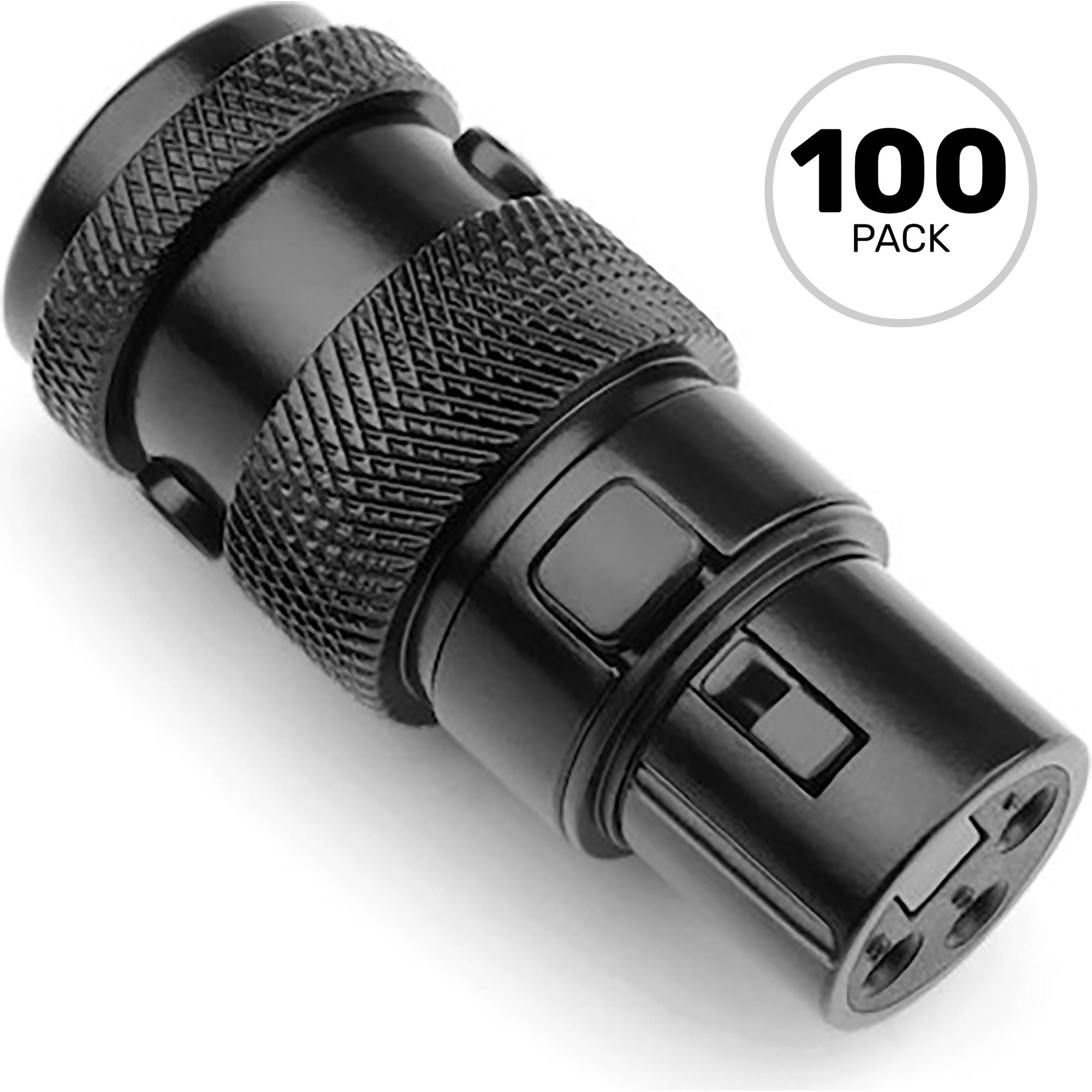

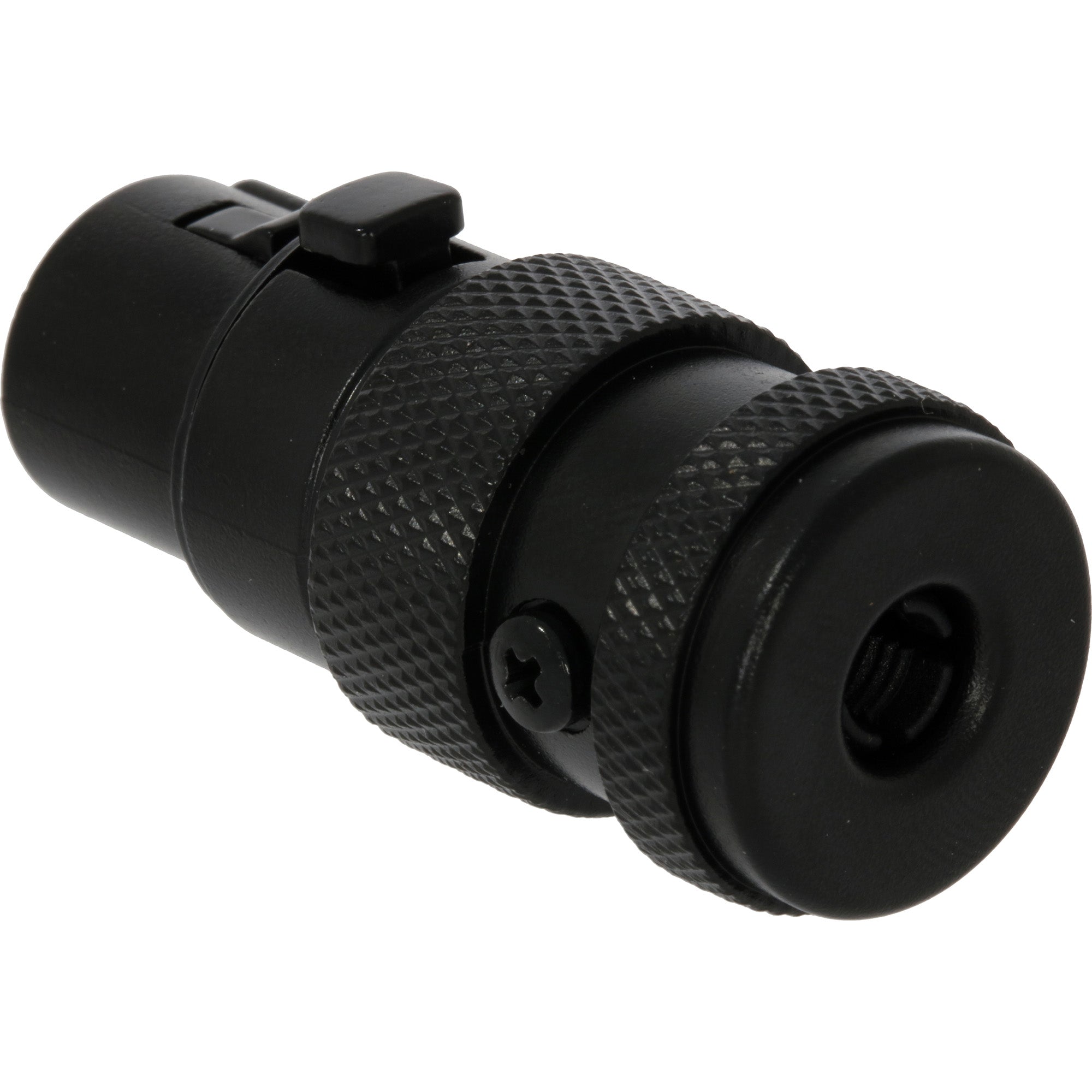

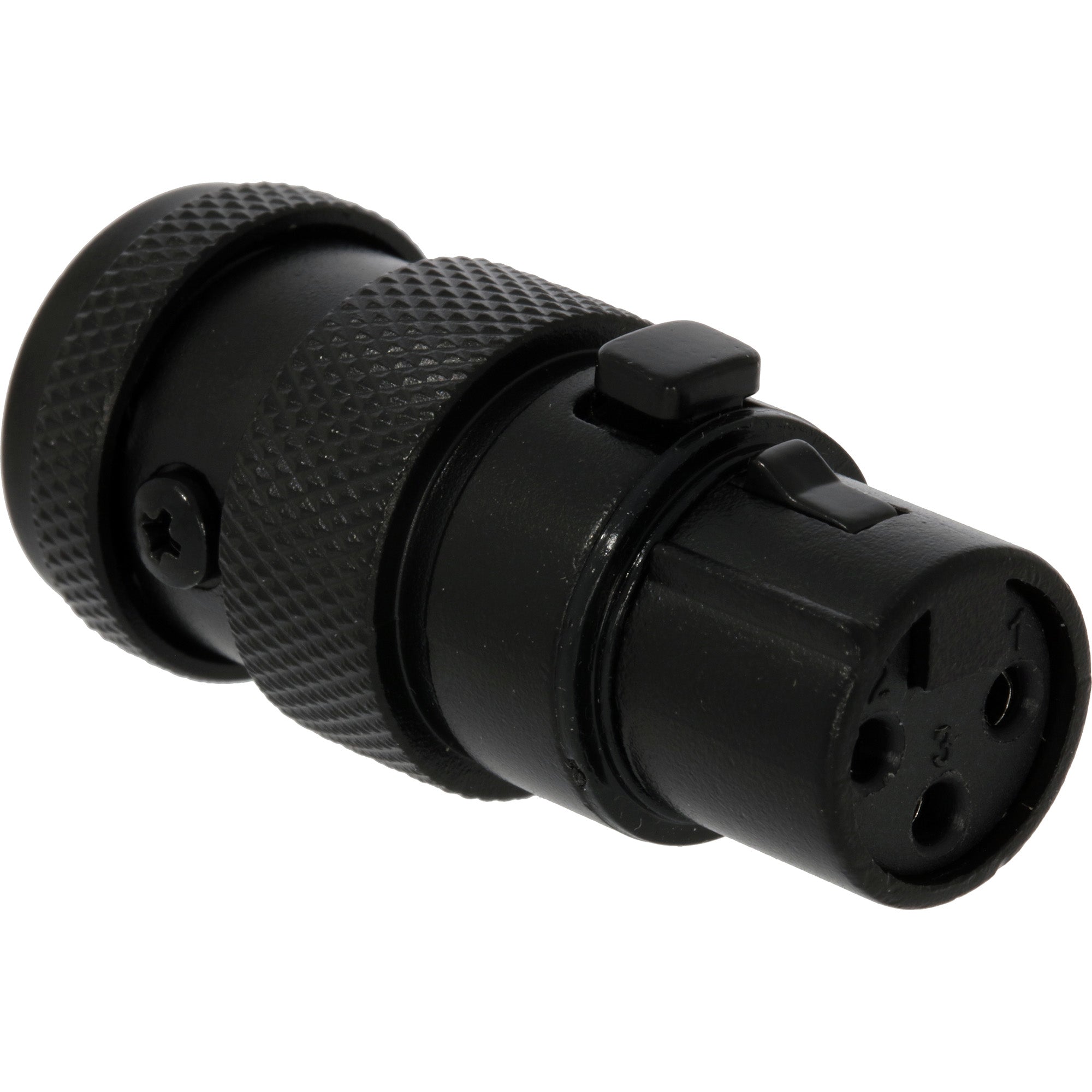

True Heavy Duty Compact 3-Pin Female XLR Cable End Connector for Cables up to 7.0mm OD - Black - Full Box of 100
SPX SERIES - Low Profile Heavy Duty 3-Pin XLR Straight Connectors
SPX-FBK is a 3-PIN Female XLR connector unlike anything else on the market. Built equally for studio and stage applications, SPX-FBK is designed to deliver high performance, maximum reliability and unmatched functionality in a small package. It's the perfect solution for low clearance situations and/or when a true heavy duty connector is required.
SquarePlugs are protected by domestic and foreign patents.
Matching Male Plugs
- SquarePlug SPX-MBK Straight
- SquarePlug SPXA-MBK Angled
SquarePlug SPX-FBK Pairs Great with These Cables
- Mogami W2534
- Mogami W2549
- Mogami W2552
- Mogami W2792
- Canare L-2T2S
- Canare L-4E6S
- RapcoHorizon MIC1.K
SquarePlug SPX-FBK Features:
- Up to 30% shorter than the generic XLR design → Straight XLRs.
- Prominent knurled shoulders for superior structural integrity and maximum grip → Straight + Angled XLRs.
- Secure cable clamping provided by a chuck-type strain relief that allows higher pull-out force → Straight XLRs.
- Proprietary cable clamping system that provides effective strain relief for cables ranging between 2.5mm OD and 6.3mm OD → Angled XLRs.

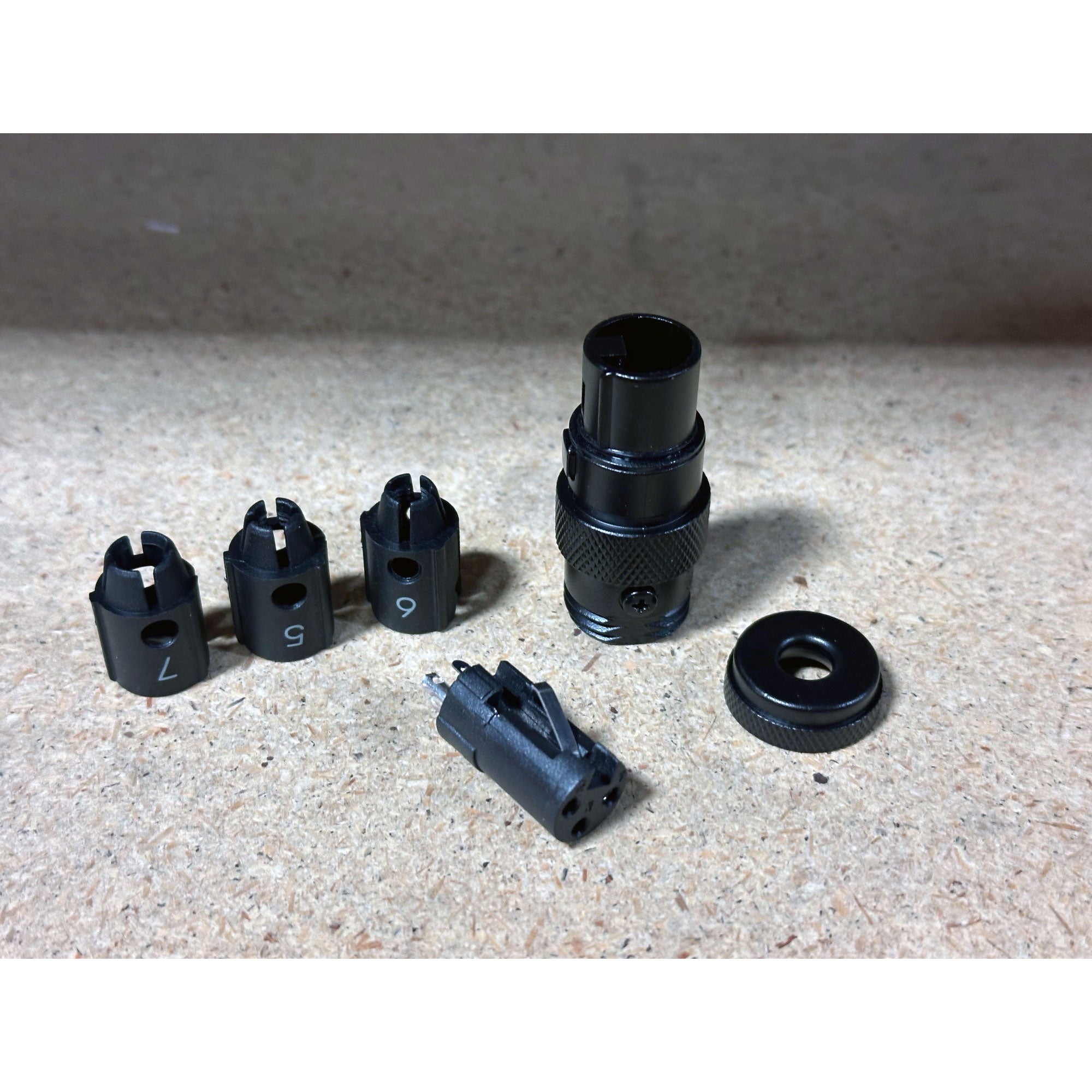

- Easy assembly process using just 4 parts and no screws. Side screws for color code only → Straight XLRs.
- Easy assembly process using just 5 parts → Angled XLRs.
- Serviceable, Heavy Duty all-metal construction with no external plastic parts → Straight + Angled XLRs.
- Available only in all-black finish → Straight + Angled XLRs.
SquarePlug SPX-FBK Specifications:
- Designation: Low Profile Heavy Duty Female 3-Pin XLR Connector
- Diameter: 0.86" (22mm)
- Length: 1.9" (48.5mm)
- Protrudes By When Connected: 1.35" (34.5mm)
- Strain Relief: Yes
- Color Coding: Yes with Optional Screws
- Finish: Black (Body + Cover + Screws)
- Fits Cables: 0.18" (4.5mm) each to 0.27" (7.0mm) OD
- 3 Solder Tabs: Yes
Details
- Manufacturer: SquarePlug
- MPN: SPX-FBK-100
- Model Number: SPX-FBK-100
