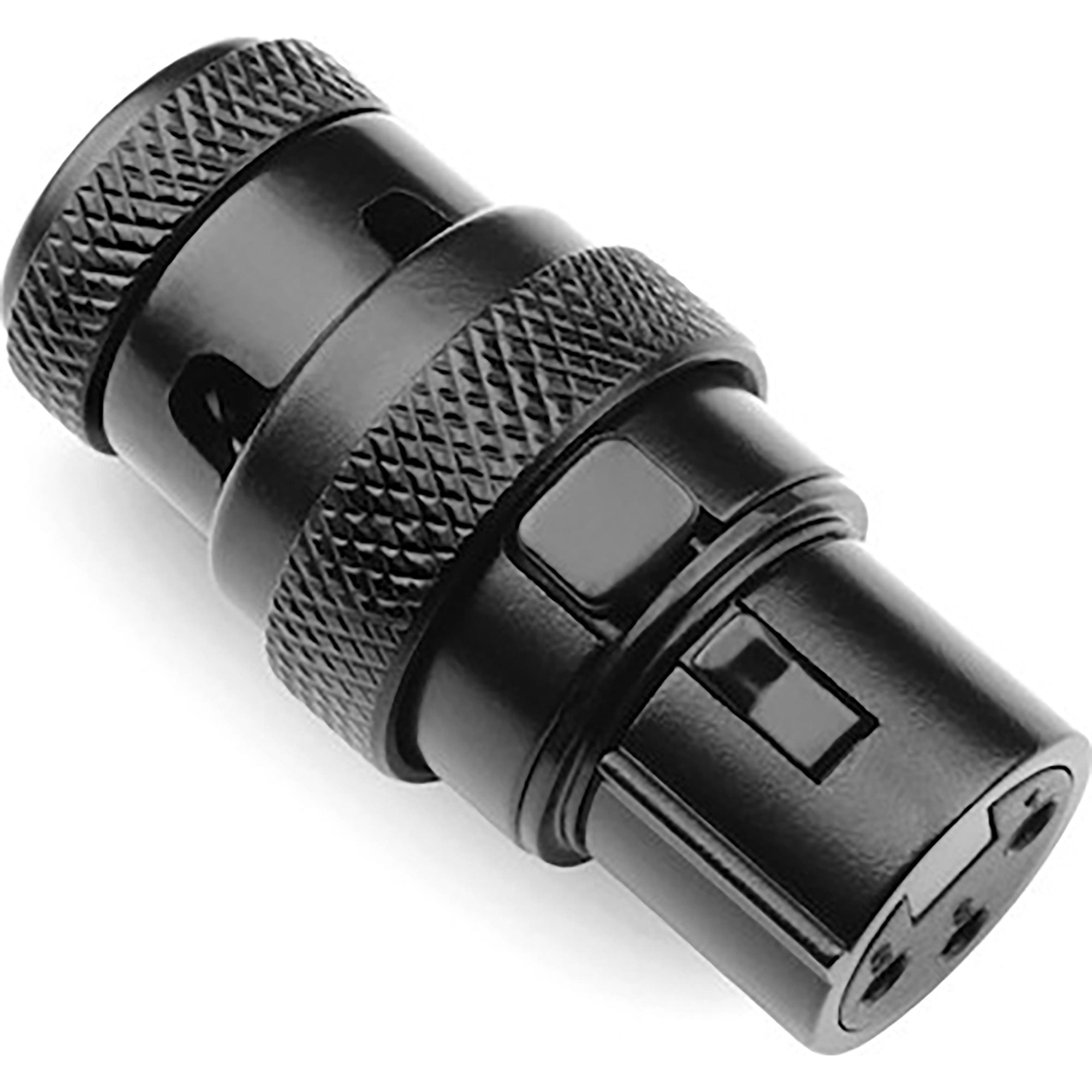

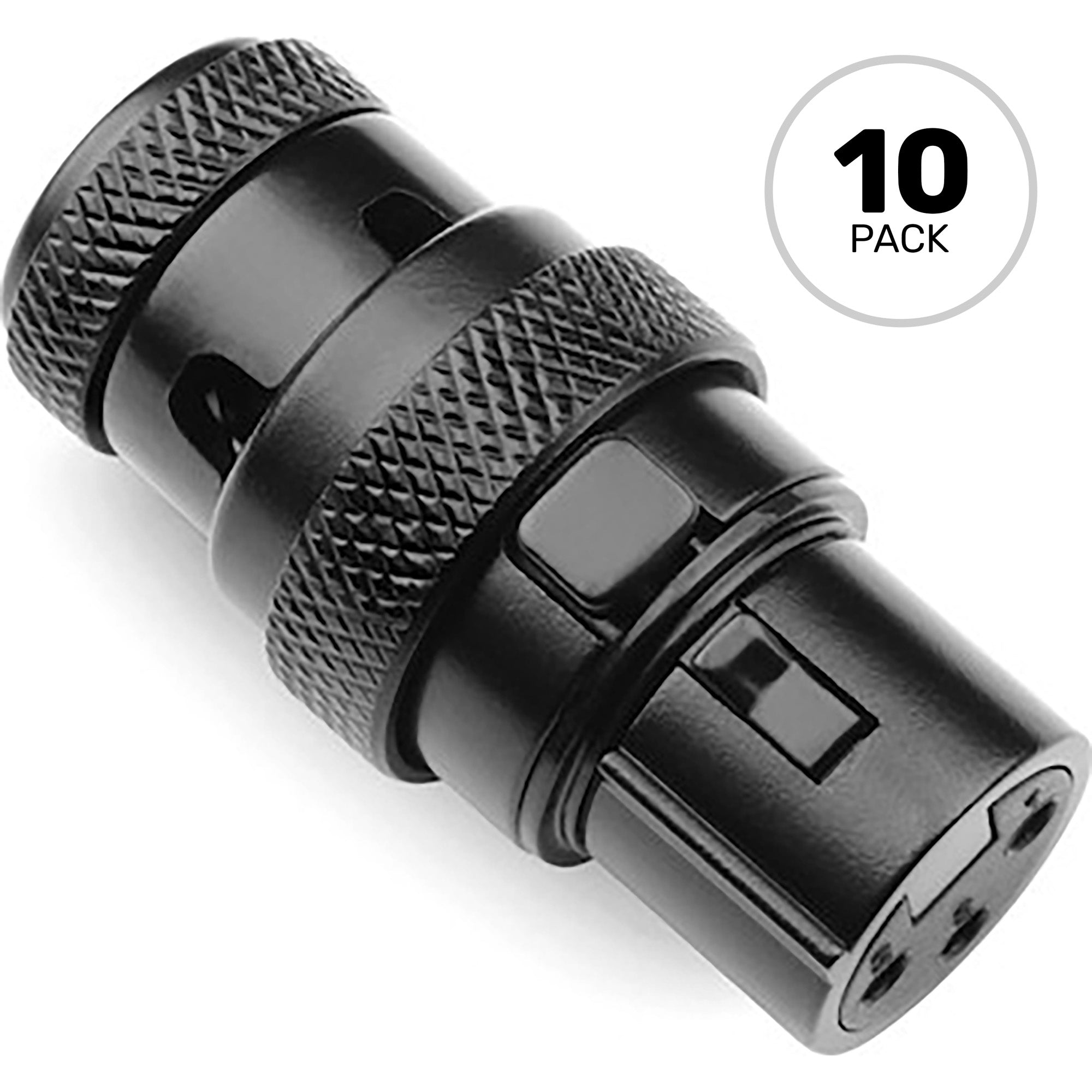

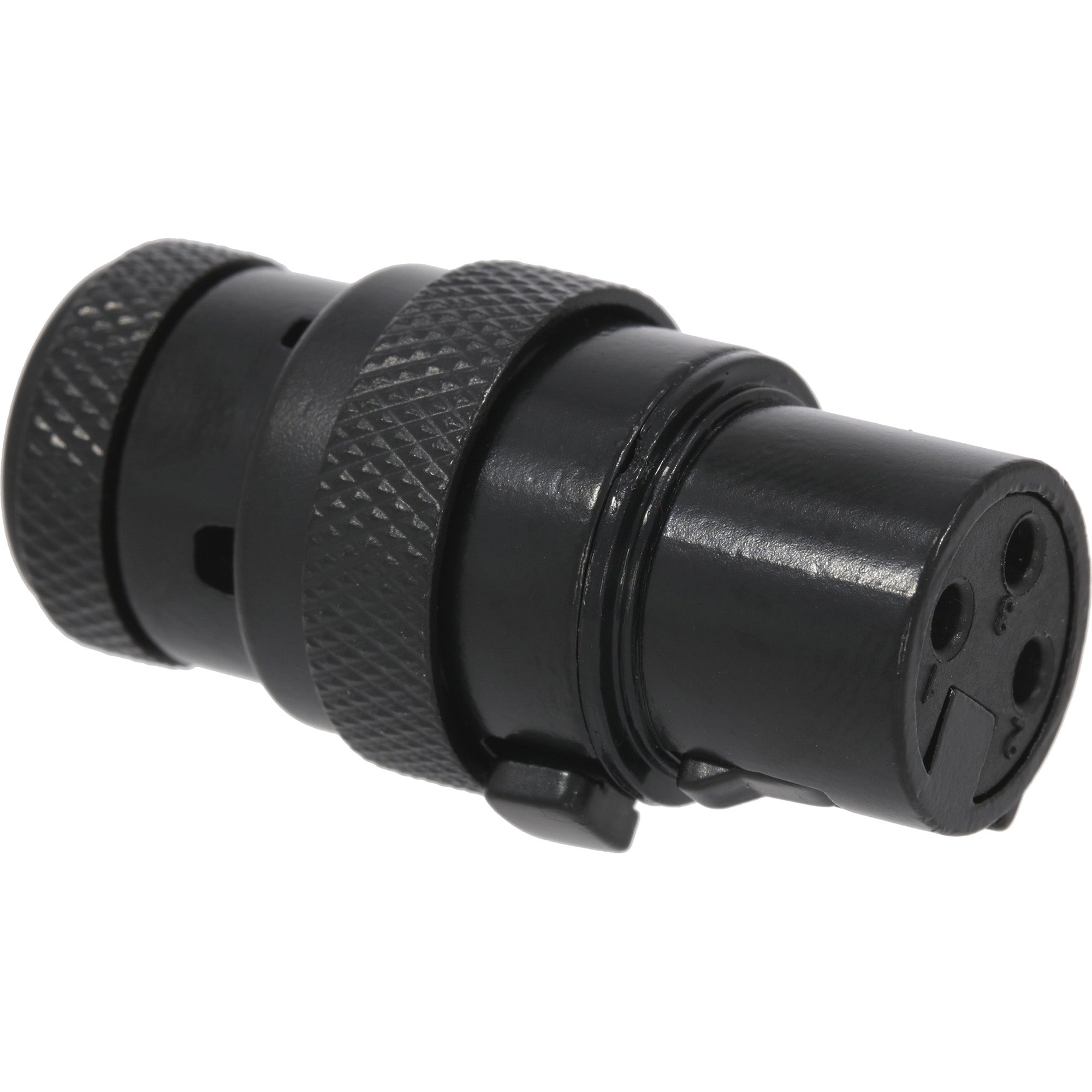

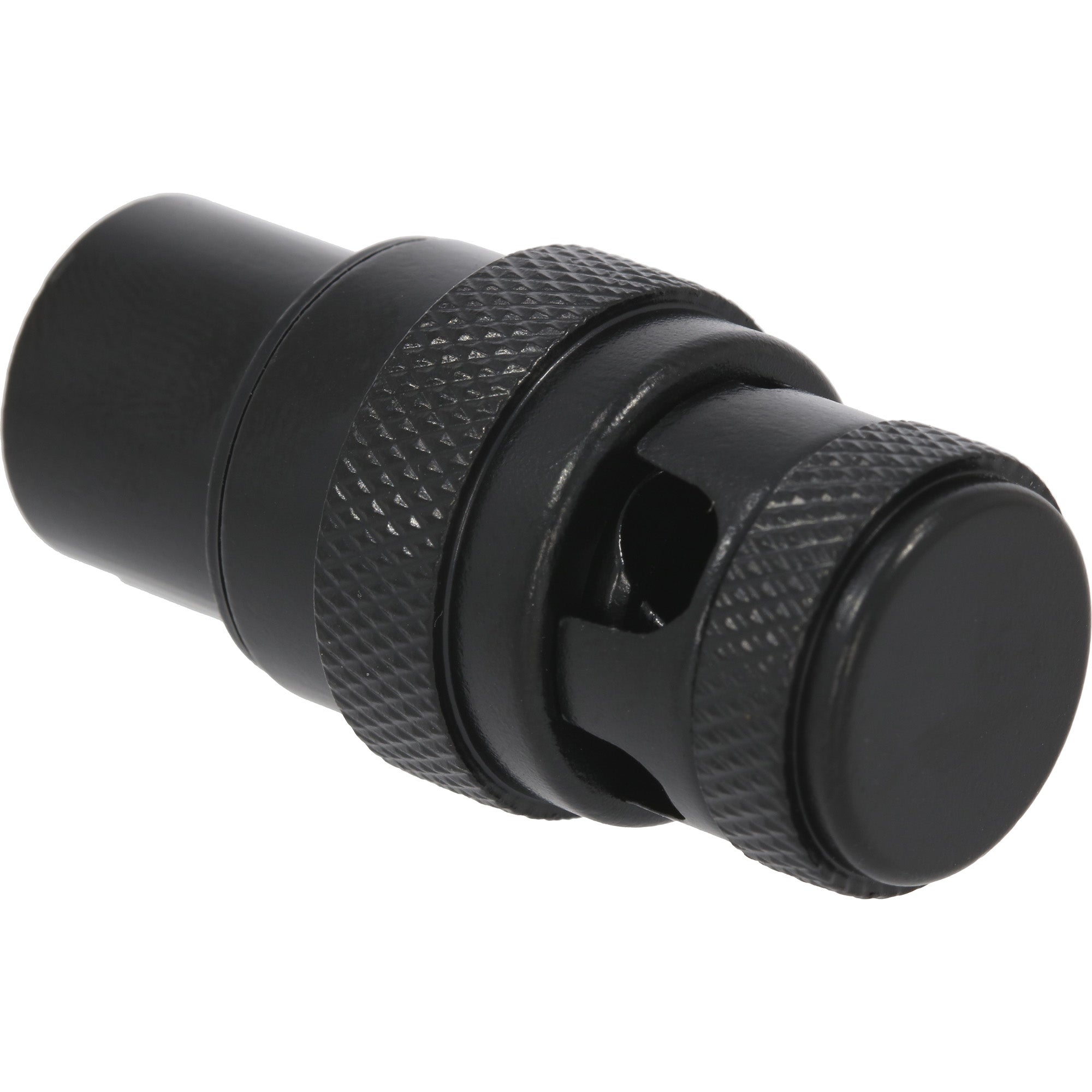

SquarePlug SPXA-FBK Low-Profile 90° Heavy-Duty Metal 3-Pin Female XLR Connectors (Black, 10 Pack)

True Heavy Duty Compact Right-Angle 90° 3-Pin Female XLR Cable End Connector for Cables up to 6.5mm OD - Black - Package of 10

SPX SERIES - Low Profile Heavy Duty 3-Pin XLR Straight Connectors

SPXA-FBK is our take on a low profile angled XLR connector. It feature the same heavy duty construction approach as the straight XLRs and all other SquarePlug connectors. Our proprietary cable clamping mechanism provides effective strain relief action to cables ranging from 2.5mm OD to 6.5mm OD! It is the only low profile angled XLR connector on the market that's capable of being used across a whole range of audio applications (stage, studio, install, field recording, broadcast, system integration etc.). Cables can exit radially at 8 different angles (every 45°).

SquarePlugs are protected by domestic and foreign patents.

Matching Male Plugs

• SquarePlug SPX-MBK Straight
• SquarePlug SPXA-MBK Angled

SquarePlug SPXA-FBK Pairs Great with These Cables

• Mogami W2534
• Mogami W2549
• Mogami W2552
• Mogami W2792
• Canare L-2T2S
• Canare L-4E6S
• RapcoHorizon MIC1.K

SquarePlug SPXA-FBK Features:

• Up to 30% shorter than the generic XLR design → Straight XLRs.
• Prominent knurled shoulders for superior structural integrity and maximum grip → Straight + Angled XLRs.
• Secure cable clamping provided by a chuck-type strain relief that allows higher pull-out force → Straight XLRs.
• Proprietary cable clamping system that provides effective strain relief for cables ranging between 2.5mm OD and 6.3mm OD → Angled XLRs.
• Easy assembly process using just 4 parts and no screws. Side screws for color code only → Straight XLRs.
• Easy assembly process using just 5 parts → Angled XLRs.
• Serviceable, Heavy Duty all-metal construction with no external plastic parts → Straight + Angled XLRs.
• Available only in all-black finish → Straight + Angled XLRs.

SquarePlug SPXA-FBK Specifications:

• Designation: Low Profile Heavy Duty Angled Female 3-Pin XLR Connector
• Diameter: 0.86" (22mm)
• Length: 1.69" (43mm)
• Protrudes By When Connected: 1.14" (29mm)
• Strain Relief: Yes
• Color Coding: NO
• Finish: Black
• Fits Cables: 0.09" (2.5mm) each to 0.25" (6.5mm) OD
• 3 Solder Tabs: Yes
