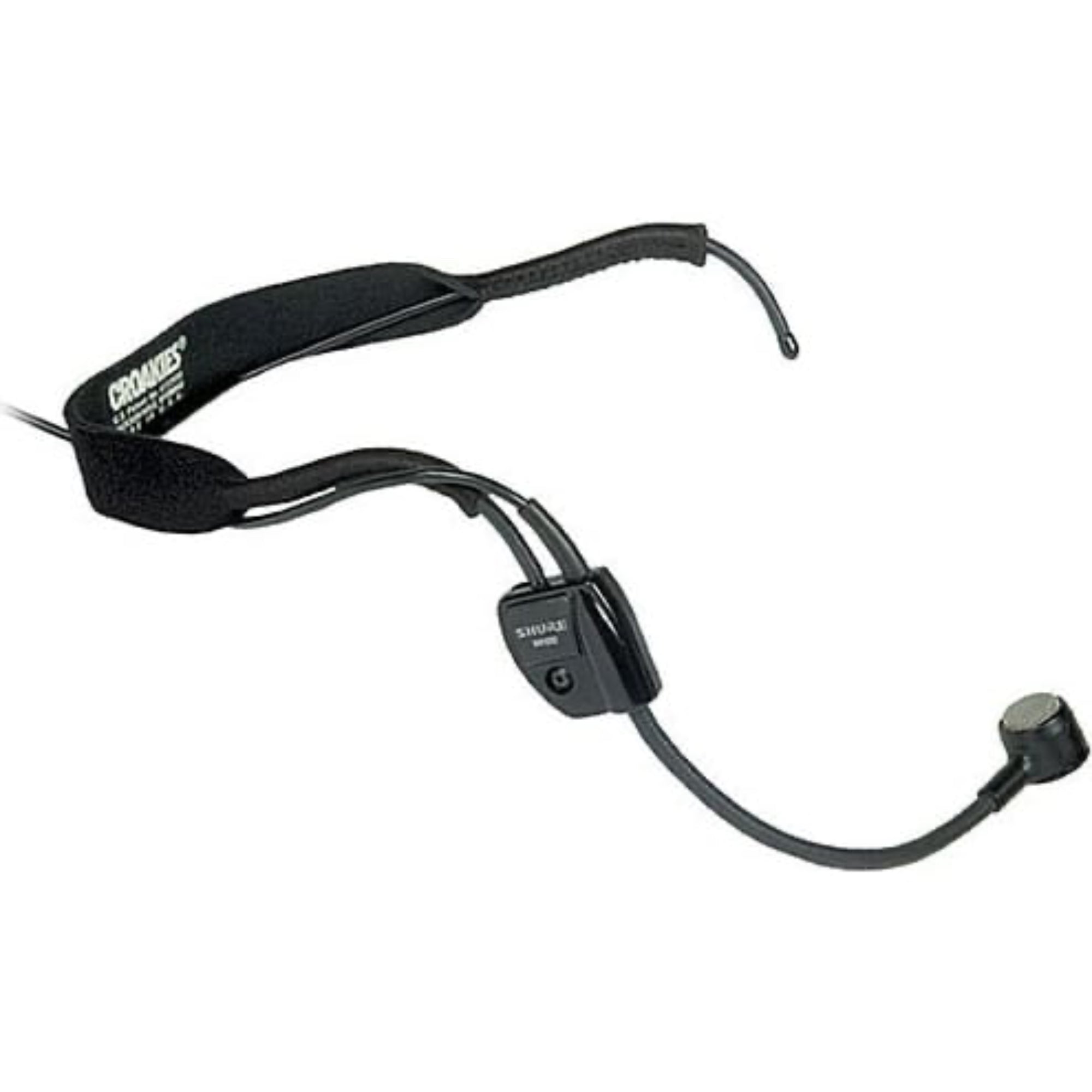

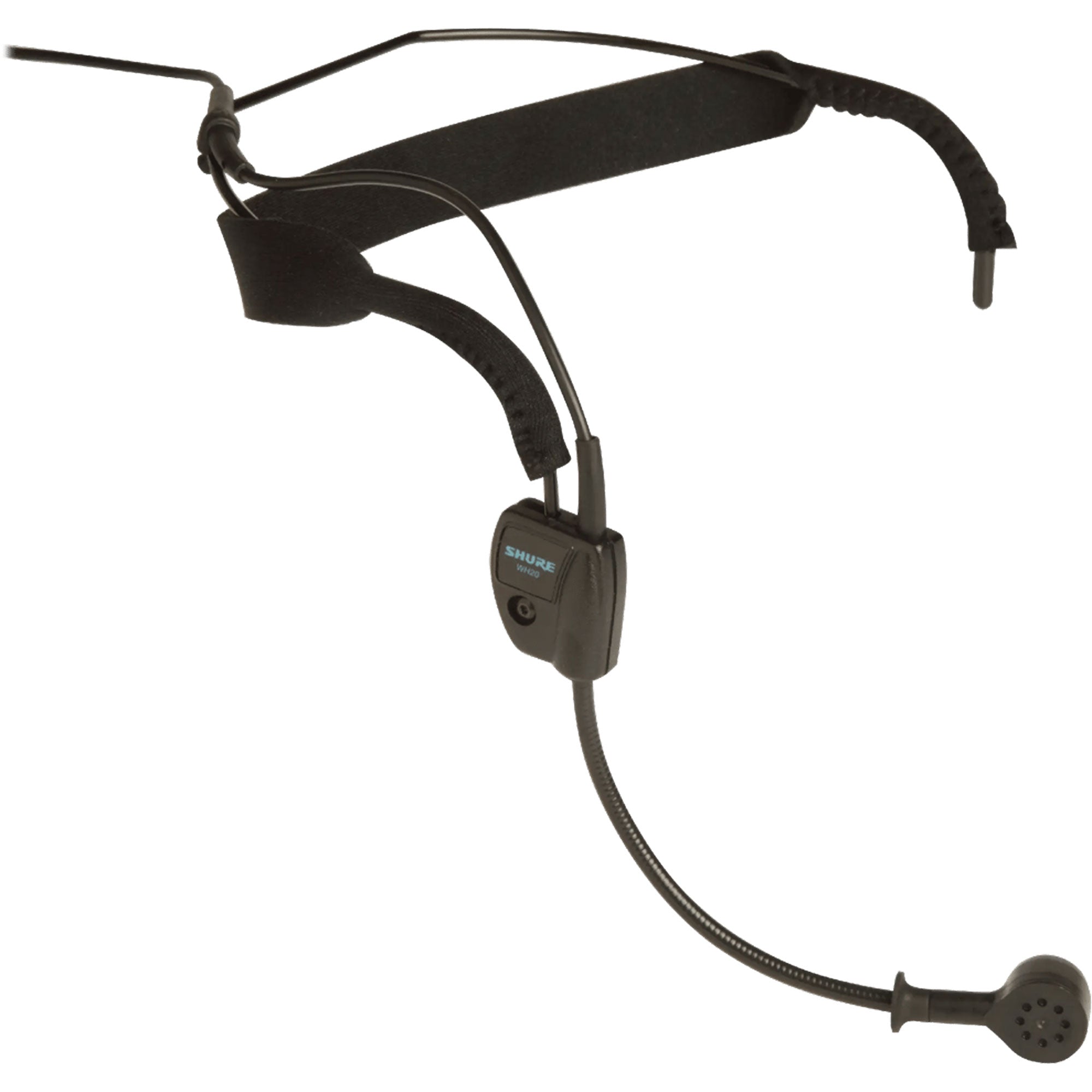

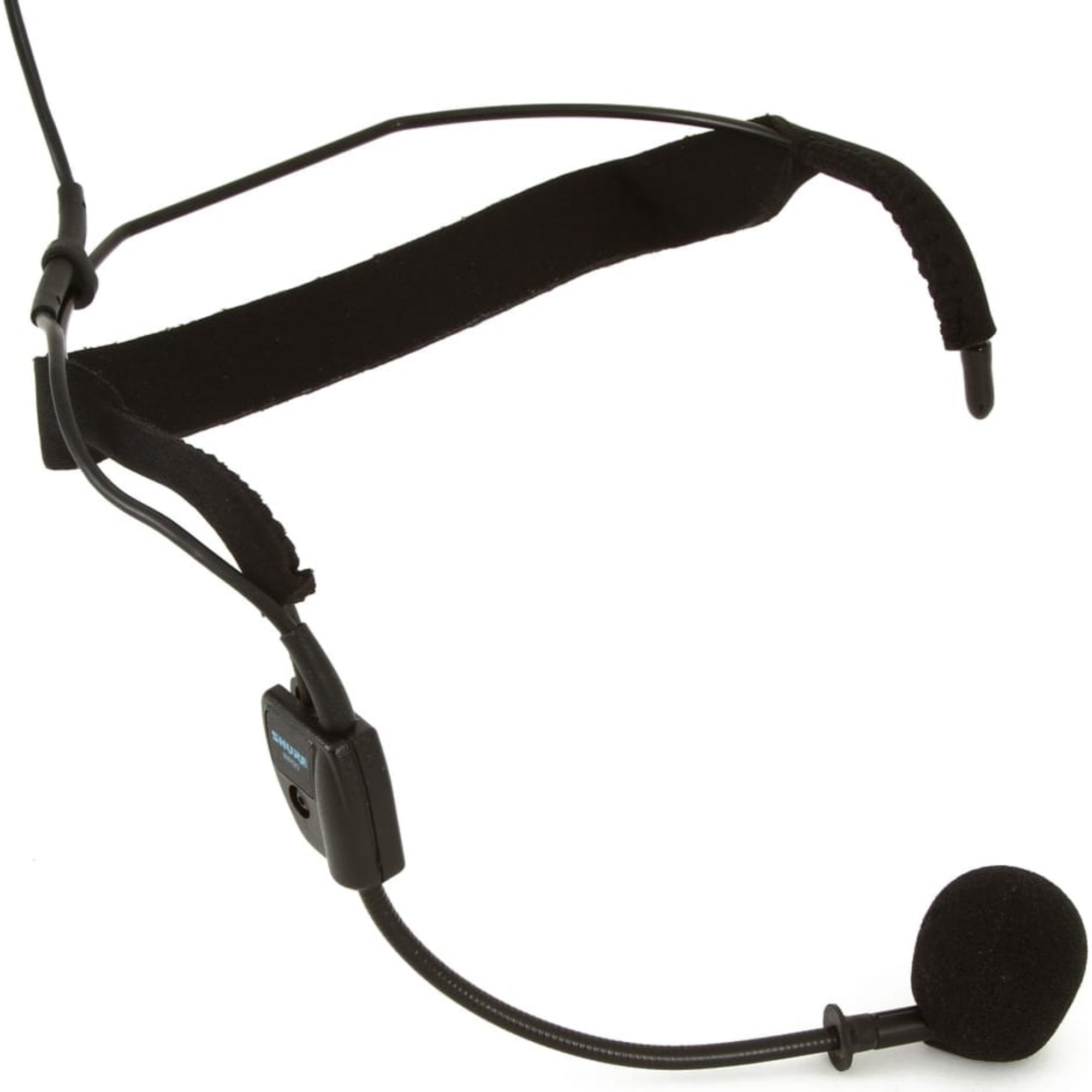

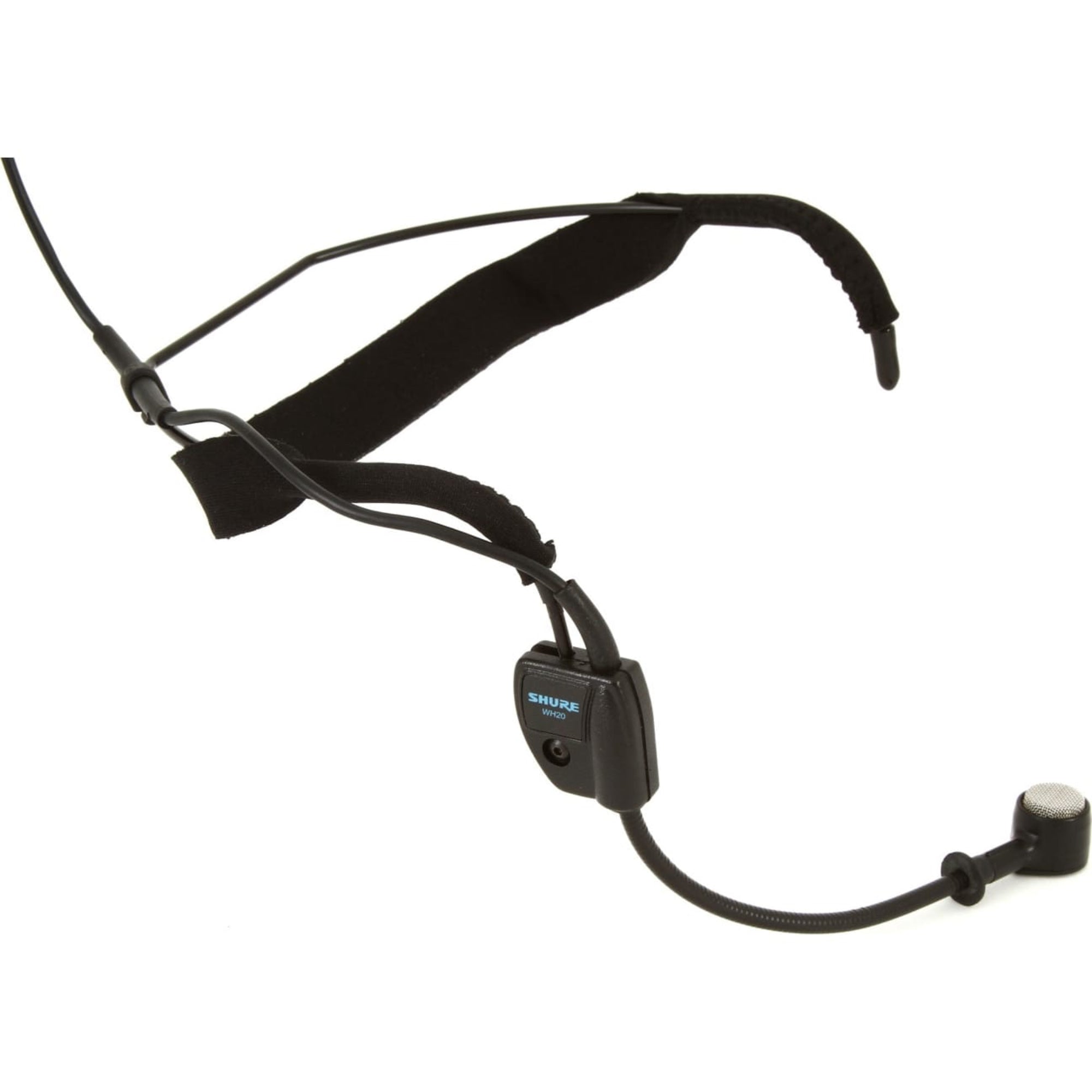

Shure WH20 Dynamic Cardioid Headset Microphone (TA4F Connector)

Dynamic Cardioid Headworn Microphone with 4-Pin Mini Connector (TA4F)

The Shure WH20 is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances.

The cardioid (unidirectional) pickup pattern provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll-off to compensate for the proximity effect inherent in cardioid mics during close-talk operation.

Available Options
WH20QTR: Includes right-angle 1/4" phone plug for unbalanced mic input
WH20TQG: Includes miniature 4-pin female connector for Shure bodypack transmitters
WH20XLR: (Wired) Includes 3-pin male XLR connector w/ detachable belt clip

Features:

• Lightweight wireframe and elastic headband adjust for a secure, comfortable fit
• Extra-strong, small-diameter attached microphone cable resists breakage
• Collapsible microphone boom for easy storage and transportation
• Smooth, natural frequency response comparable to high-quality dynamic hand-held vocal microphones
• High input clipping level eliminates overload distortion
• Reliable at temperature and humidity extremes
• Supplied foam windscreen and clothing clip

Specifications:

• Transducer: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz - 15 kHz Measured @ 5/16" (8mm)
• Power Requirements: Dynamic, (Requires NO Phantom Power)
• Output Impedance: 150 Ohms (200 Ohms actual)
• Output Connectors: Tini Q-G Female (TA4F) Connector
