Key Features
- Half-Rack Design
- Patent-Pending CueMode Technology
- Scan and Sync IR Link
- RF Mute Switch
- XLR/TRS Combo Inputs
- Headphone and Loop Outputs
- Input Gain Control with LED Meters
Description
PSM900 Wireless Transmitter - G6: 470 to 506 MHz
The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM900 Wireless Personal Monitor System.
It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.

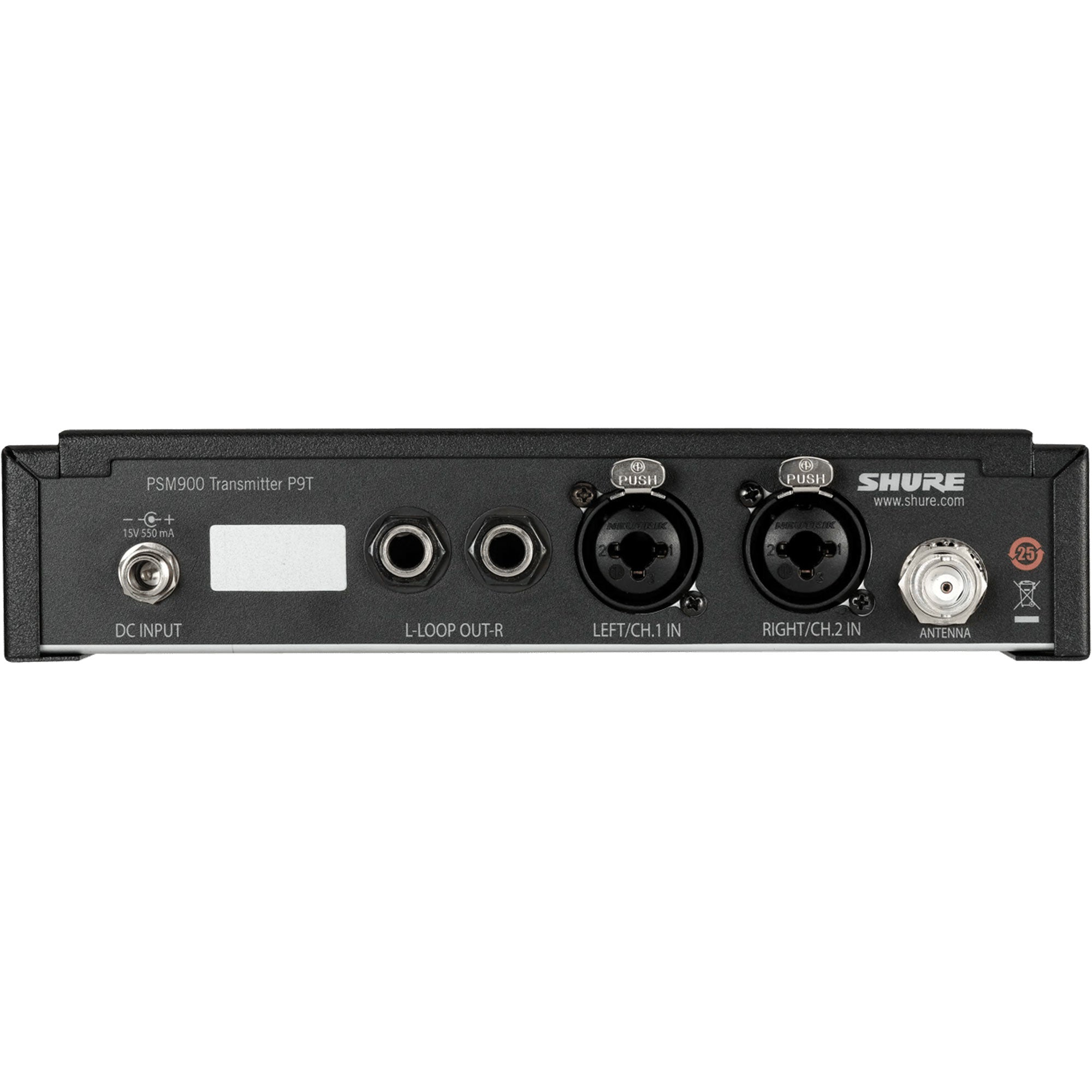

Connections include balanced 1/4" and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Features:
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync

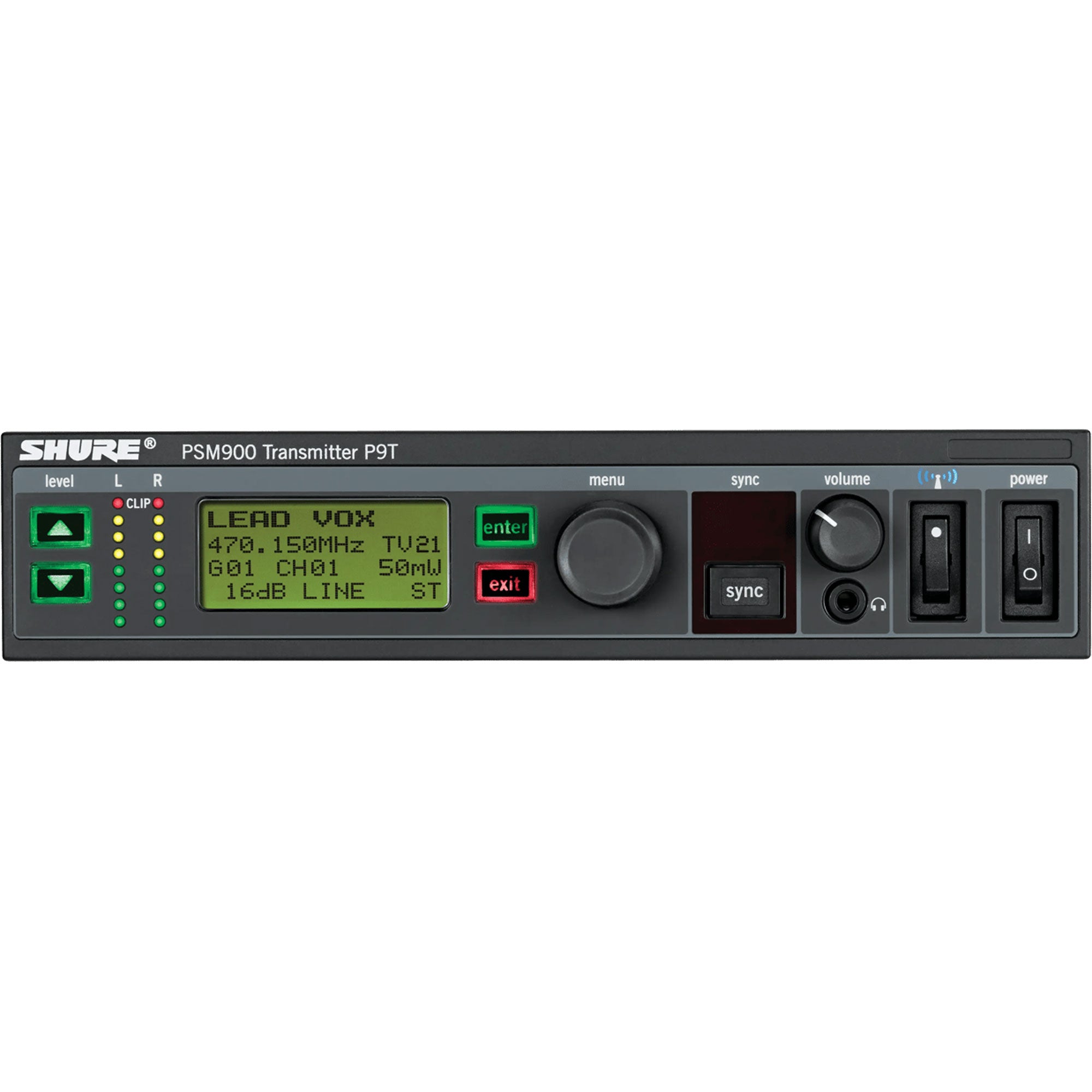

- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421SWB and PA821SWB antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4" and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8" headphone out on the front panel for easy monitoring
Specifications:
- RF Output Power
- selectable: 10, 50, 100 mW (+20 dBm) (regionally dependent)
- RF Output Impedance
- 50 Ω (typical)
- Net Weight
- 850 g
- Dimensions
- 197 mm x 166 mm x 42 mm
- Power Requirement (RF on, 100 mW power mode, no audio)
- 415 mA, typical
Details
- Manufacturer: Shure
- MPN: P9T=-G6
- Model Number: P9T-G6
- UPC: 042406170154
