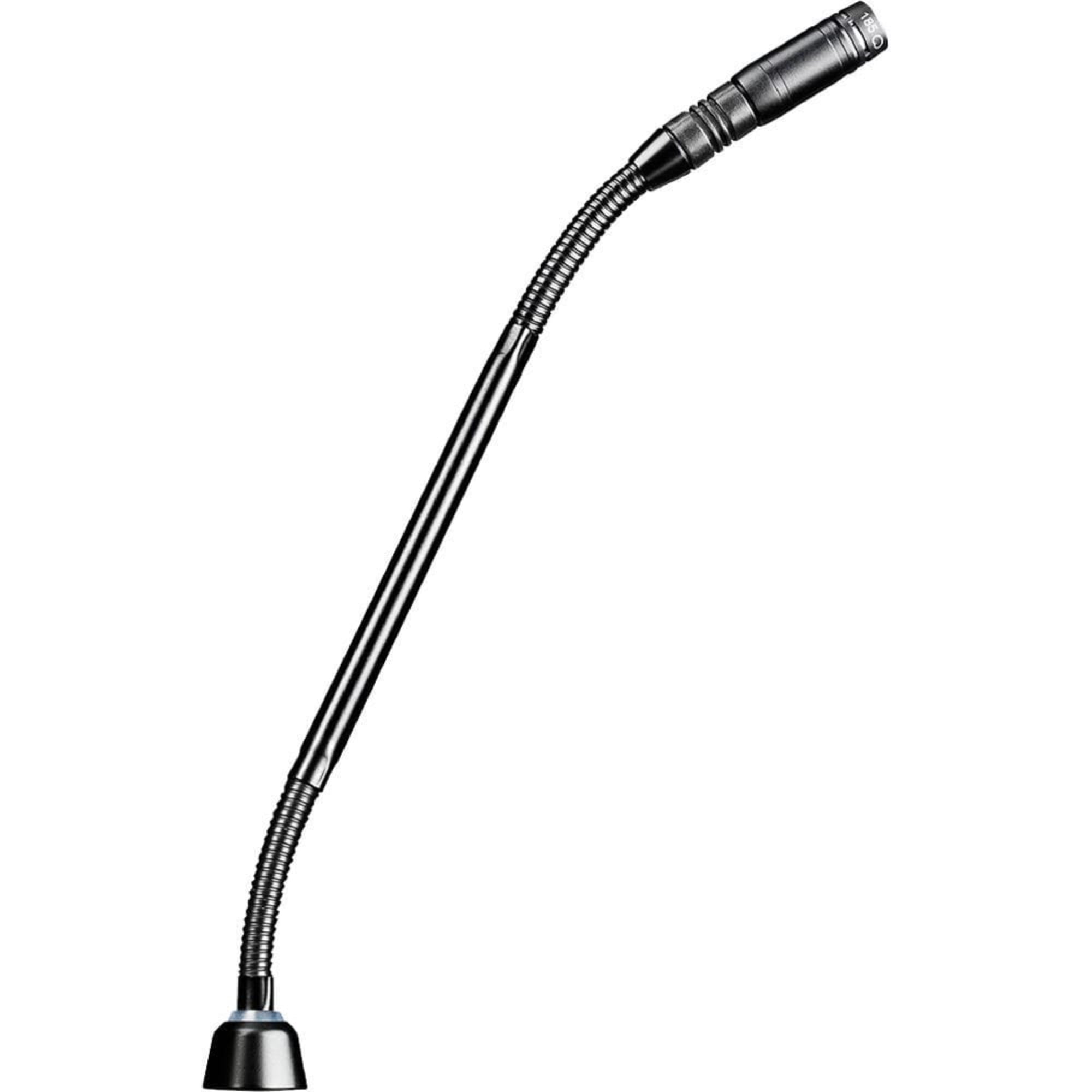

Shure MX410 10" Dualflex Gooseneck Mic with LED Ring, No Preamp (Black, Cardioid)

10" Cardioid Dualflex Gooseneck Microphone with Red Light Ring

Microflex Dualflex Gooseneck Microphones deliver unsurpassed style, control, and performance for meetings and conferences. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, Microflex Dualflex microphones make it easy to get the perfect fit for your conferencing installation.

Fully compatible with ULX-D and QLX-D Digital Wireless Systems when used with the ULXD8 Gooseneck Base Transmitter.

Features:

• Available in 10" (25.4 cm) and 15" (38.1 cm) lengths
• Cardioid and supercardioid polar patterns
• Bi-color status indicator or single color light ring
• Surface-mount and wired or wireless desktop base options
• CommShield Technology for improved RF filtering

Specifications:

• Cartridge Type: Electret Condenser
• Frequency Response: 50-17000 Hz
• Polar Pattern:
  MX405/C, MX410/C, MX415/C: Cardioid
  MX405/S, MX410/S, MX415/S: Supercardioid
• Output Impedance: 170 Ω
• Output Configuration: Active Balanced
• Sensitivity: @ 1 kHz, open circuit voltage
  Cardioid: -35 dBV/Pa (18 mV)
  Supercardioid: -34 dBV/Pa (21 mV)
  1 Pa=94 dB SPL
• Maximum SPL: 1 kHz at 1% THD, 1 kΩ load
  Cardioid: 121 dB
  Supercardioid: 120 dB
• Equivalent Output Noise: A-weighted
  Cardioid: 28 dB SPL
  Supercardioid: 27 dB SPL
• Signal-to-Noise Ratio: Ref. 94 dB SPL at 1 kHz
  Cardioid: 66 dB
  Supercardioid: 68 dB
• Dynamic Range: 1 kΩ load, @ 1 kHz
  93 dB
• Common Mode Rejection: 10 to 100,000 kHz
  45 dB, minimum
• Preamplifier Output Clipping Level: at 1% THD
  -8 dBV (0.4 V)
• Polarity:
  3-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  5-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
• Net Weight:
  MX405: 0.054 kg (0.119 lbs)
  MX410: 0.068 kg (0.150 lbs)
  MX415: 0.07 kg (0.154 lbs)
  MX400DP: 0.516 kg (1.138 lbs)
  MX400SMP: 0.125 kg (0.275 lbs)
• Logic Connections:
  LED IN: Active low (<=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
  LOGIC OUT: Active low (<=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
• Mute Switch Attenuation: -50 dB minimum
• Cable: MX400DP
  6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
• Environmental Conditions:
  Operating Temperature: -18-57°C (0-135°F)
  Storage Temperature: -29-74°C (-20-165°F)
  Relative Humidity: 0-95%
• Power Requirements: Phantom Power
  48-52 V DC, 8.0 mA
