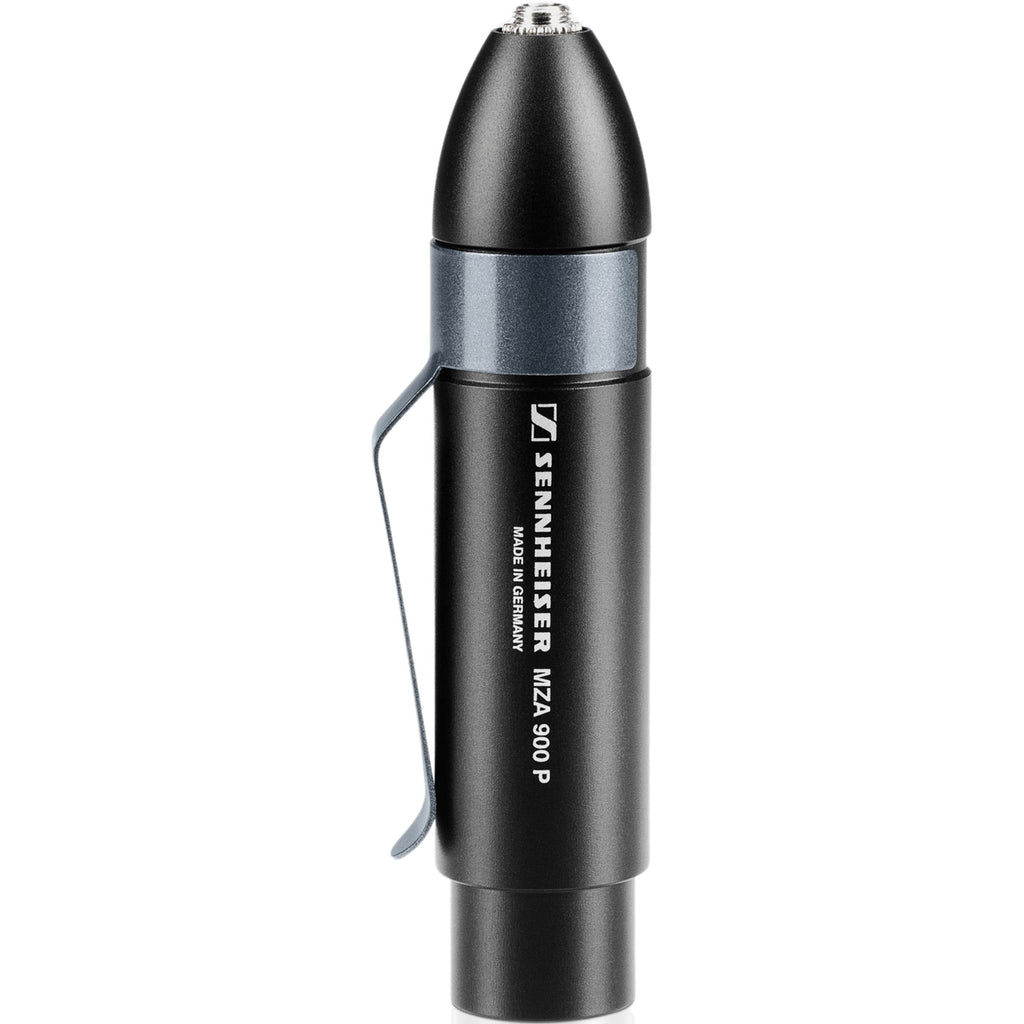

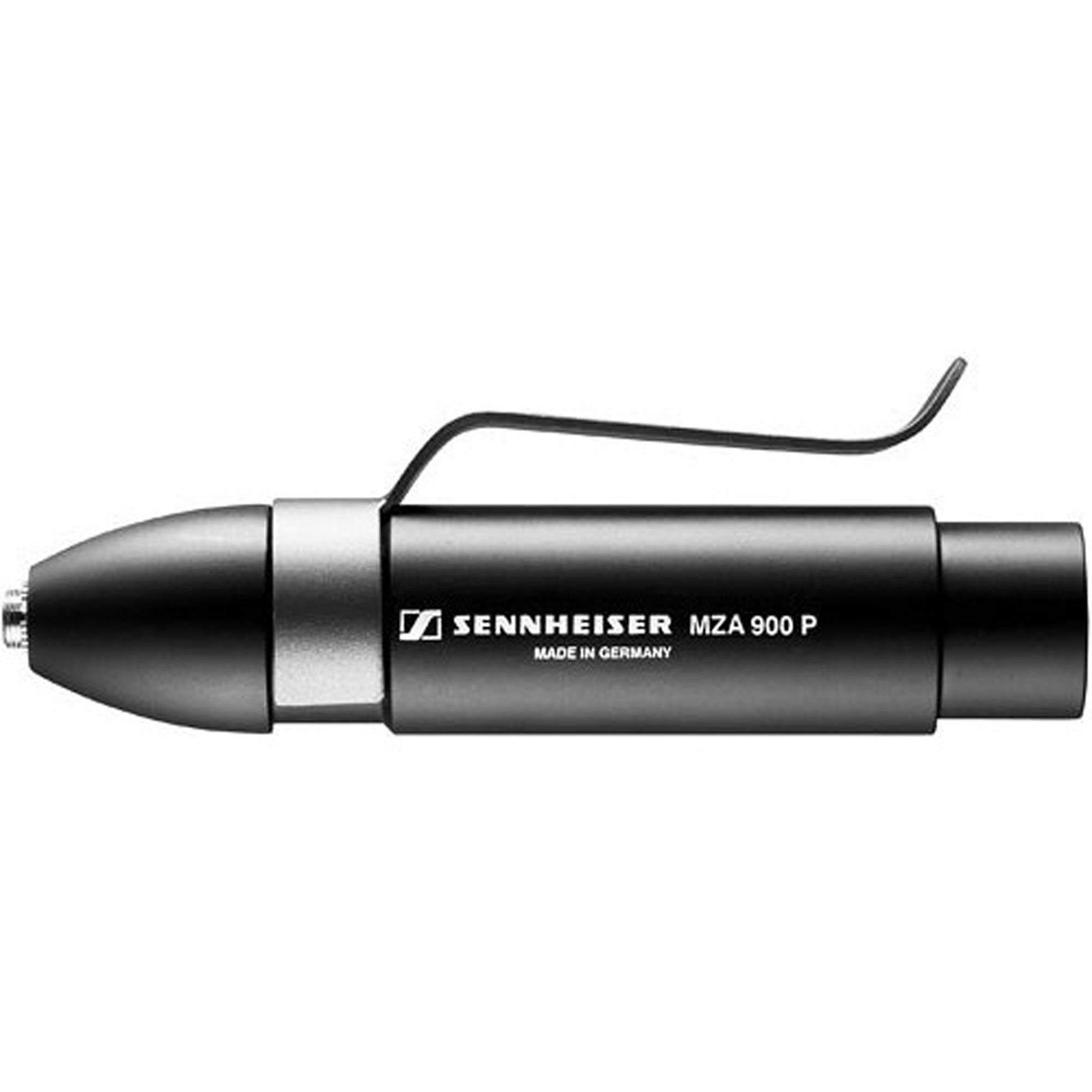

Sennheiser MZA900P In-Line Preamplifier (Locking 1/8" Connector)

Phantom Power Adapter with Lockable 3.5mm Jack Socket (Evolution Wireless)

The MZA900P phantom power adapter is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adapter.

The phantom power adapter is available in two different versions:

MZA900P with lockable 3.5 mm jack socket (as evolution wireless)
MZA900P-4 with lockable 3-pin special socket

The adapter is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA900P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA900P can also be used as a cable tester for XLR microphone cables.

Features:

• Robust metal chassis

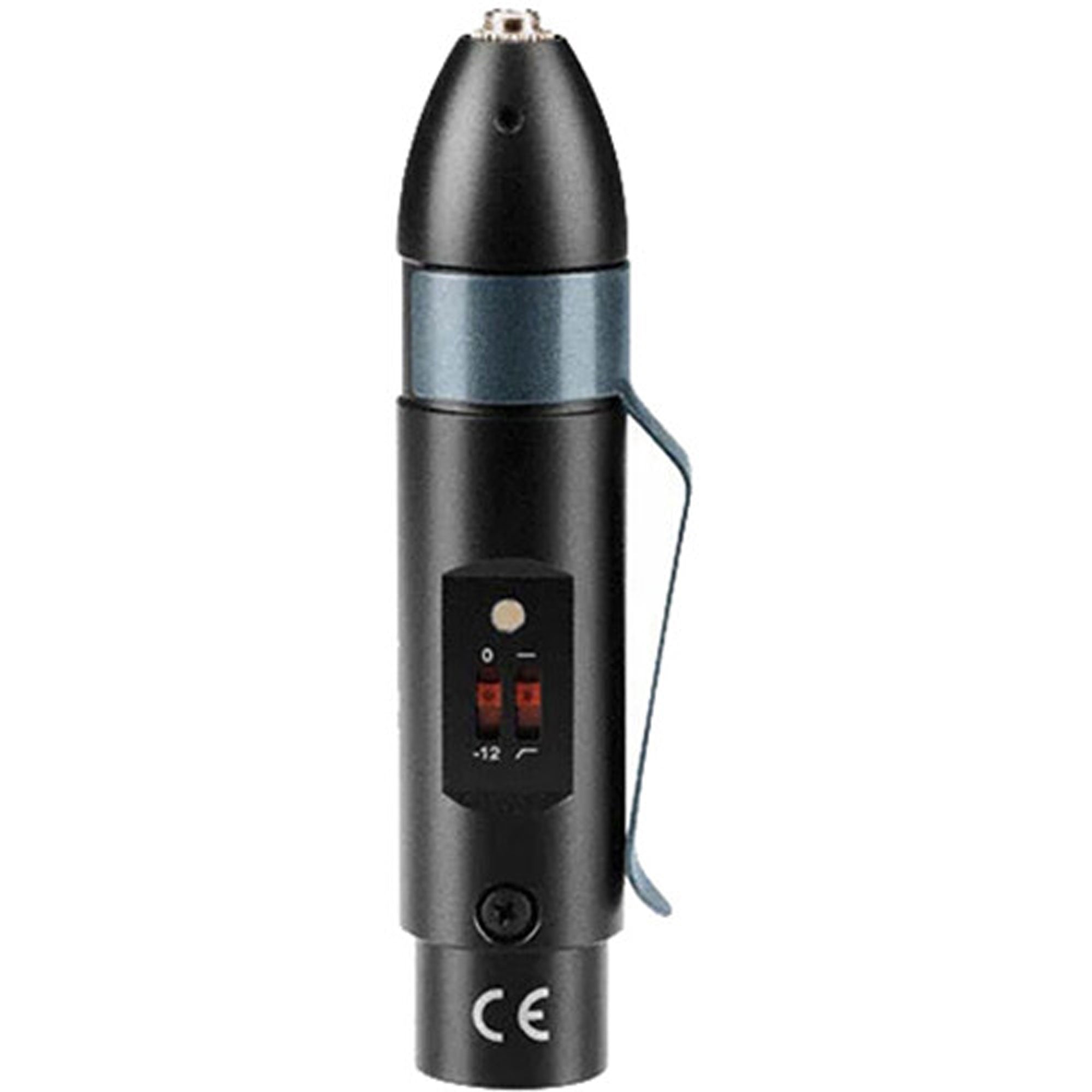

• Switchable gain (0/-12dB)
• Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
• Two-color control LED (phantom power, audio peak)
• Input 3.5 mm stereo jack socket, lockable
• Output XLR-3M

Specifications:

• Dimensions: diameter 19/22 mm, L 100 mm
• Frequency response: 20 - 20,000 Hz (-1 dB)
• Gain: 0/-12 dB
• Min. terminating impedance: 5 kΩ (P12 - P48) @ 0dB gain; 2 kΩ (P12 - P48) @ -12dB gain
• Operating temperature: -20 - +60C
• Output impedance: 100 Ω
• Output voltage: 1.8 V (P48), 0.6 V (P12) @ 0dB gain
• Phantom powering: P12 - P48, 10 - 52V, 2.6 - 2.8mA
• Weight: 2.1 oz (60 g)

Includes:

• MZA900P with belt clip
• Instructions for use
• Warranty certificate
