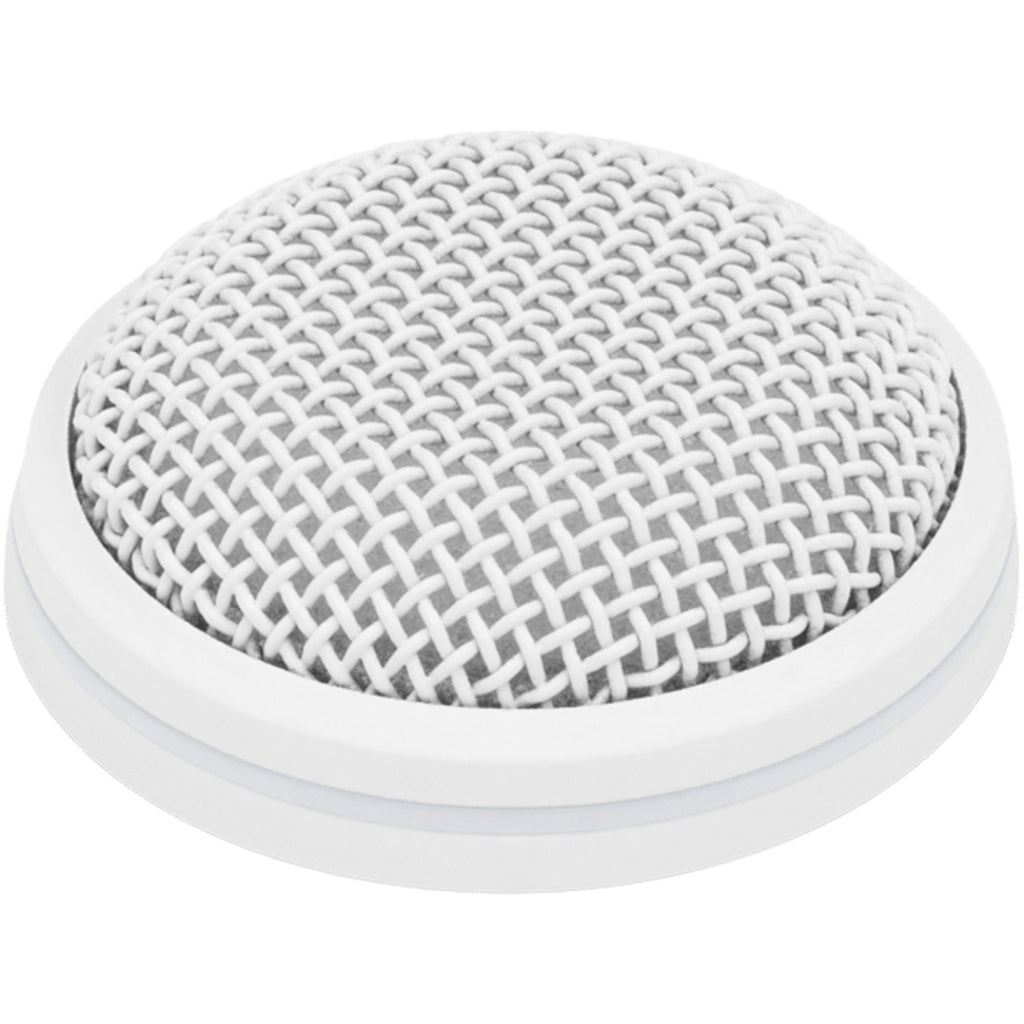

Sennheiser MEB102 Omnidirectional Boundary Microphone (White)

Speechline Install Omnidirectional Boundary Microphone - White

The unobtrusive MEB 102 omnidirectional boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 102-L with a bi-color LED for status indication and programmable button for for On, On/Off, PTT, PTM modes.

Specifications:

• Connector:
  MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = -
  MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = - (Mic -), 4 = LED green (trigger signal), 5 = LED red (default):
  Current consumption: MEB 102: 3 mA
  MEB 102-L: 6 mA
• Dimensions: Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
• Frequency response: 40 Hz - 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 2.05 oz
• Pick-up pattern: Omnidirectional
• Nominal impedance: 200 Ohm
• Phantom powering: P 24 - P 48
• Operating temperature: 32 °to 104 ° F
• Equivalent noise level: 21 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104 dB (A)
• Sensitivity: 16 mV/Pa
• Thread: M 20

Includes:

• MEB 102
• Mounting hardware
• Quick guide
