Key Features
- Videography, Filmmaking, Newsgathering
- Compatible with EW-D Transmitters
- Single-Channel, Camera-Mount Design
- Pro Features with Fast & Easy Setup
- True-Diversity Reception
- 56 MHz Bandwidth, 2240 Frequencies
- 134 dB of Dynamic Range, 24-Bit Audio
- Setup/Operate from Phone via Bluetooth
- 7-Hour Rechargeable Battery + USB Power
- Expandable to 58 Mic Channels/330' Range
Description

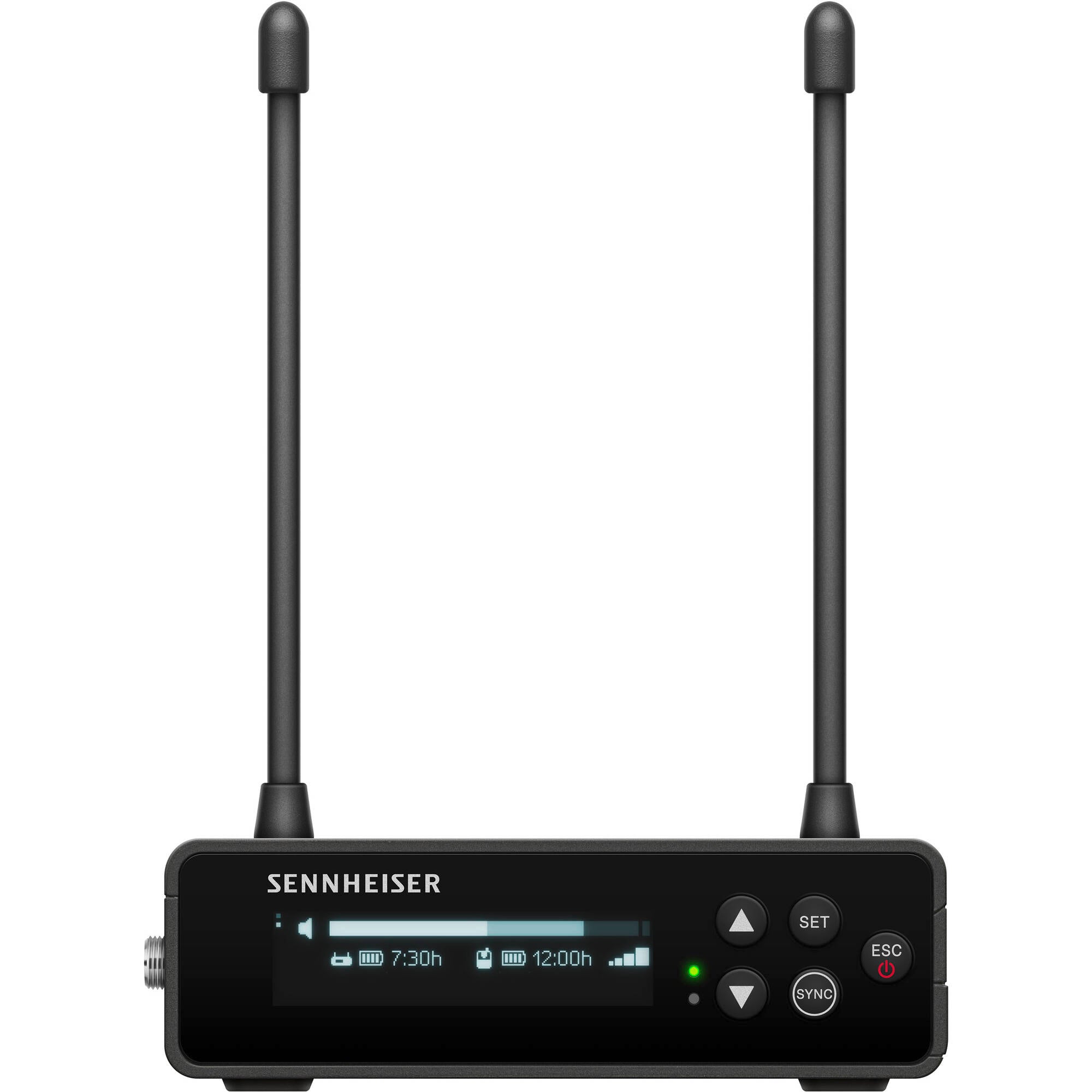

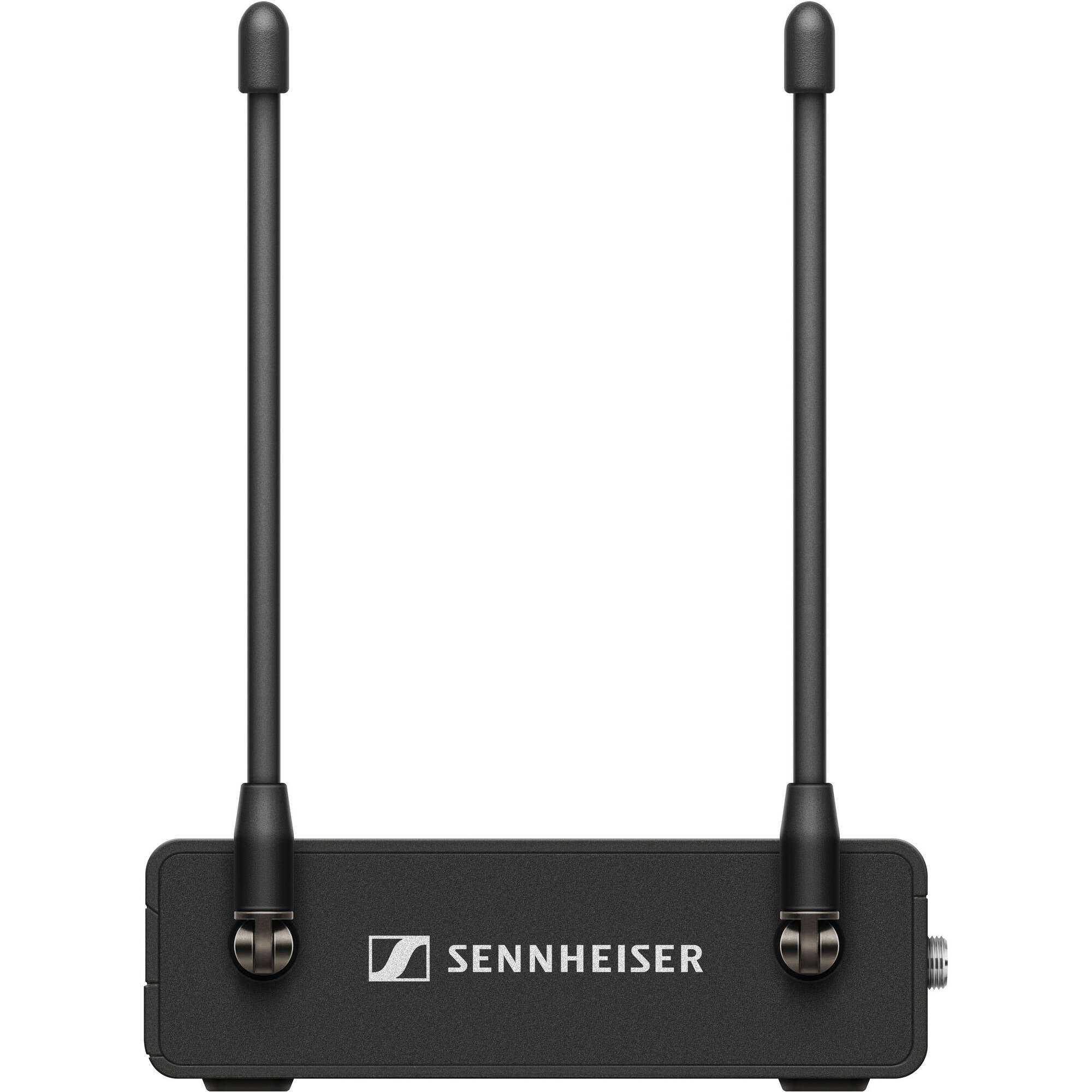

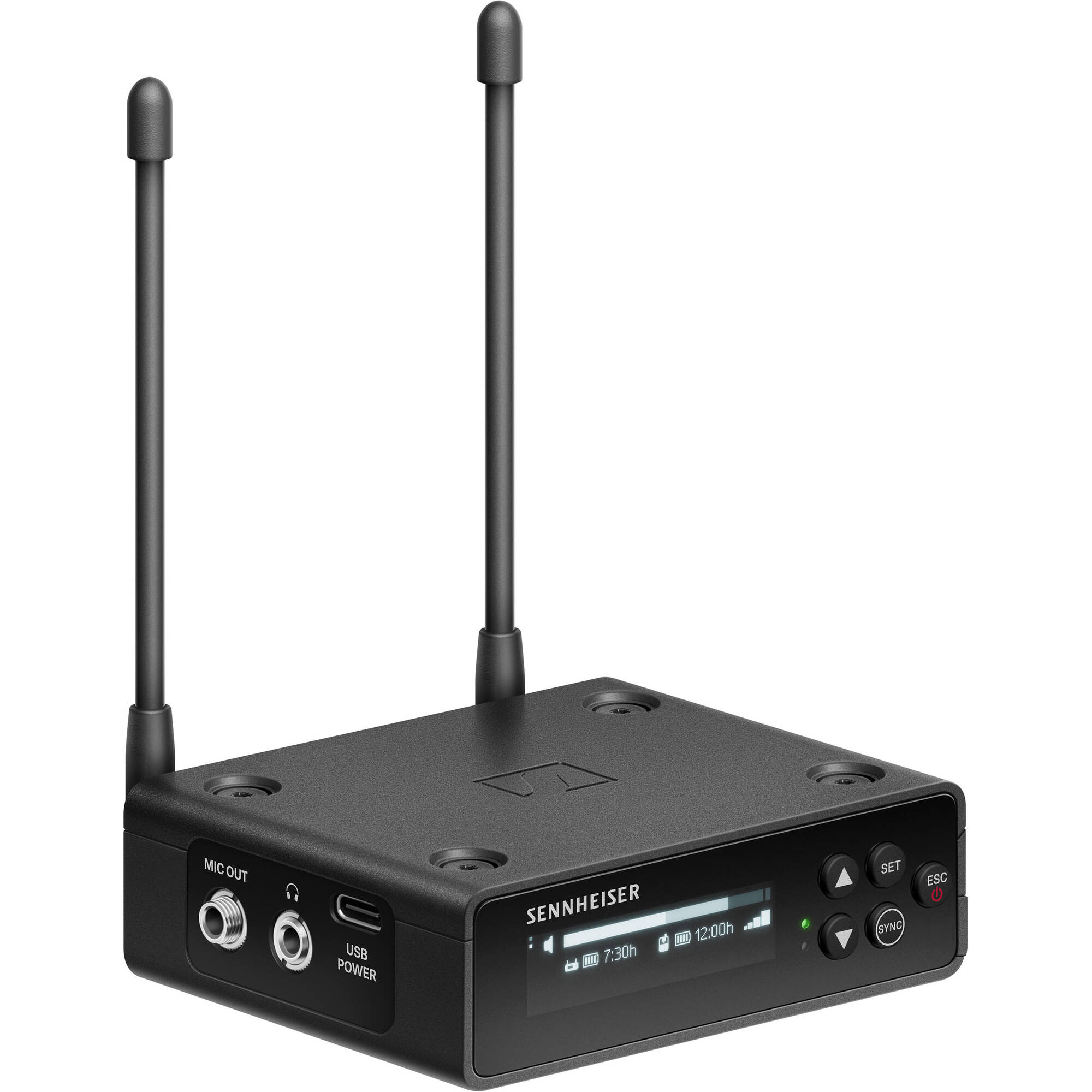

EW-DP Portable Wireless Receiver with OLED Display, Remote Bluetooth Synchronization, Rechargeable Battery, and Magnetic Mounting Kit - Q1-6 Band (470-526MHz)
Portable digital UHF receiver for use with EW-D SK bodypack, EW-D SKM-S handheld, or EW-DP SKP plug-on transmitters.
Specifications:
- Input voltage: ~ 1.8 - 4.35 V
- Input Current:
Typ. < 250 mA / Max. < 400 mA (BA 70)
Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
< 300 mA@5 V (USB-C standalone) - Power supply:
2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
5V / 1500mA
9V / 900mA
12V / 700mA - Transmit power (radiated): BLE: max. 10 mW EIRP
- Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
- Headphone Output: < 50 mW into 16 Ohms
- Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
- Weight (without antennas and power supply): approx. 140g (0.31 lbs)
What's in the Box:
- EW-DP EK digital portable single channel receiver
- Mounting kit (cheeseplate, cold shoe, belt clip & screws)
- BA 70 li-ion battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
Details
- Manufacturer: Sennheiser
- MPN: 700050
- Model Number: EW-DP EK (Q1-6)
- UPC: 615104375796
