Key Features
- For Presenters, Performers, Lecturers
- Pro Features with Fast & Easy Set Up
- ME 4 Cardioid Lav Mic
- Lightweight Bodypack Transmitter
- Intelligent Diversity Rackmount Receiver
- 134 dB of Dynamic Range, 24-Bit Audio
- 2240 Frequencies on Equidistant Grid
- Set Up/Operate from Phone via Bluetooth
- 8-Hour AA /12-Hour Rechargeable Battery
- Expandable to 90 Mic Channels/330' Range
Description

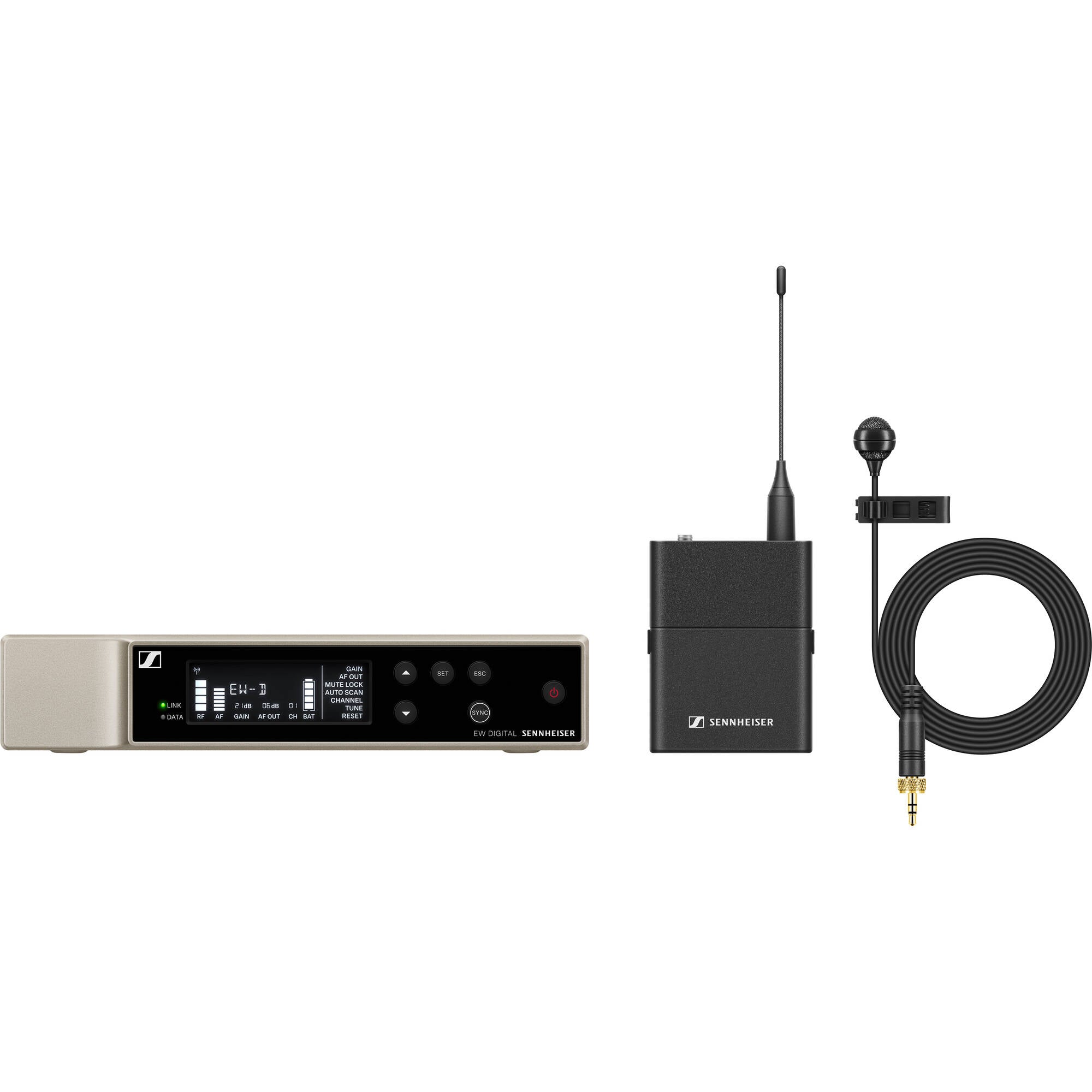

Evolution Wireless Digital Lavalier System with Cardioid Microphone, Bodypack Transmitter, Receiver, Rack Kit, and Accessories - R1-R6 (520-576MHz)
All-in-one digital wireless lavalier set for those who speak featuring Sennheiser's renowned ME 4 cardioid clip-on microphone.
Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it's easy to see why this wireless system is in a class of its own.
Equidistant Spacing - simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system's scalability and impressively high channel count.
An engineer in your pocket
The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
Specifications:
- Frequency range:
- 470.2 - 526 MHz
- 520 - 576 MHz
- 552 - 607.8 MHz
- 606.2 - 662 MHz
- 630 - 662 MHz
- 662 - 693.8 MHz
- 925.2 - 937.3 MHz
- 1785.2 - 1799.8 MHz
- 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Operating relative humidity: 5 - 95 % (non-condensing)
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- System Latency: 1.9 ms
- EW-D EM
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)
- Audio output level: 18 dBu max.
- Transmission power: BLE: max. 10 mW EIRP
- Input voltage range: 11 - 13 V ⎓
- Current consumption: ≤ 300 mA
- EW-D SK
- Dimensions: 63 x 80 x 20 mm (without antenna)
- Weight: approx. 120 g
- Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Current consumption: < 300 mA
- Input voltage range: 2.0 - 4.35 V
- Transmission power:
- Audio link: 10 mW
- ERP (Range Y1-3): 12 mW ERP
- BLE: max. 10 mW EIRP
- ME 4
- Connector: 3.5 mm jack
- Frequency response: 50 to 18,000 Hz
- Max. sound pressure level: 120 dB
- Cable length: approx. 1.60 m
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: cardioid
- Sensitivity in free field, no load (1kHz): 40 mV/Pa
- Equivalent noise level: 31 dB
- Power supply: 7.5 V
What's in the Box:
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- ME 4 lavalier microphone (cardioid)
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
- Manufacturer: Sennheiser
- MPN: EW-D ME4 SET (R1-6)
- Model Number: EW-D ME4 SET (R1-6)
- UPC: 615104334847
