Key Features
- For EM3731 & EM3732 Receivers
- Up to 15dB Amplification
- BNC Connector
- LED Indicator
Description

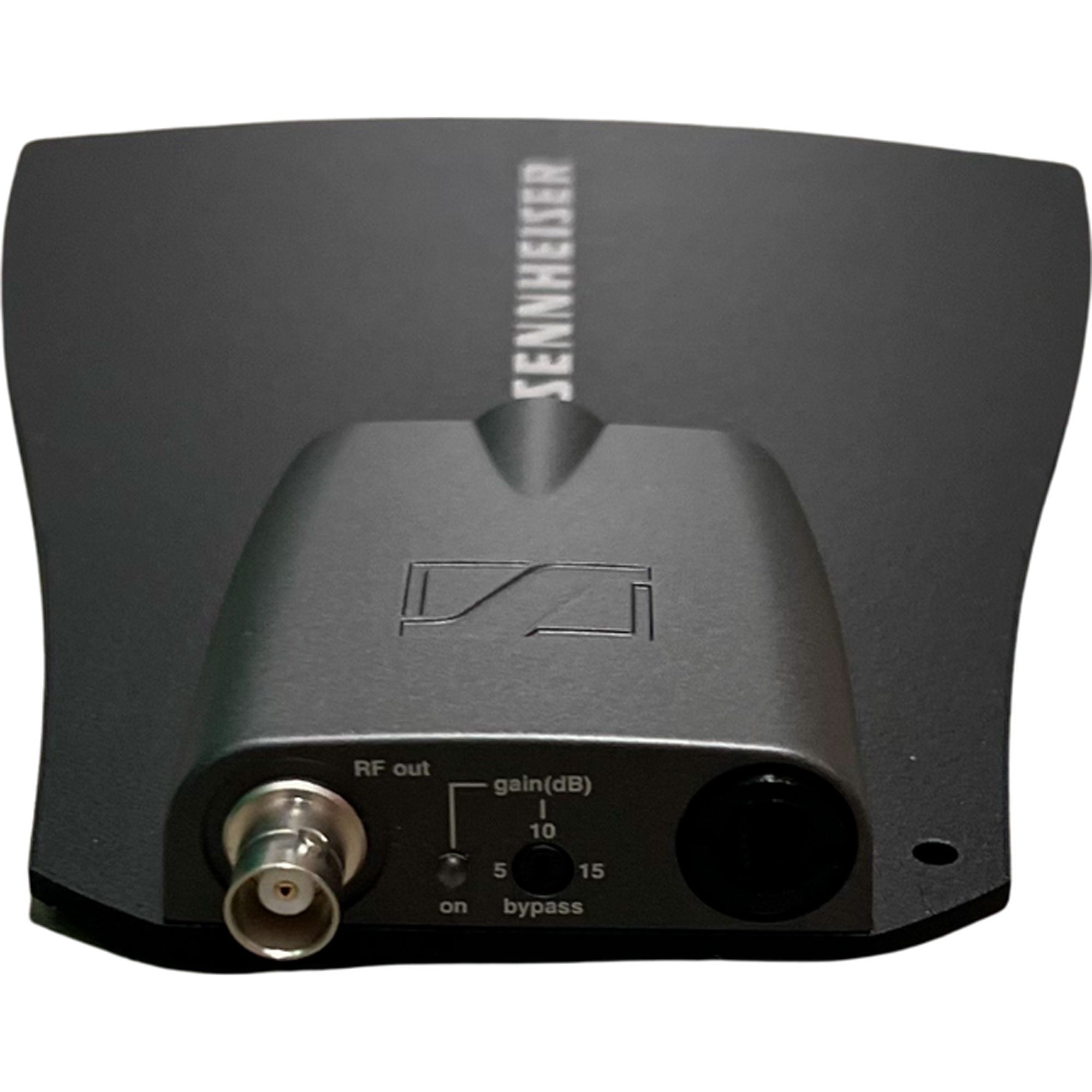

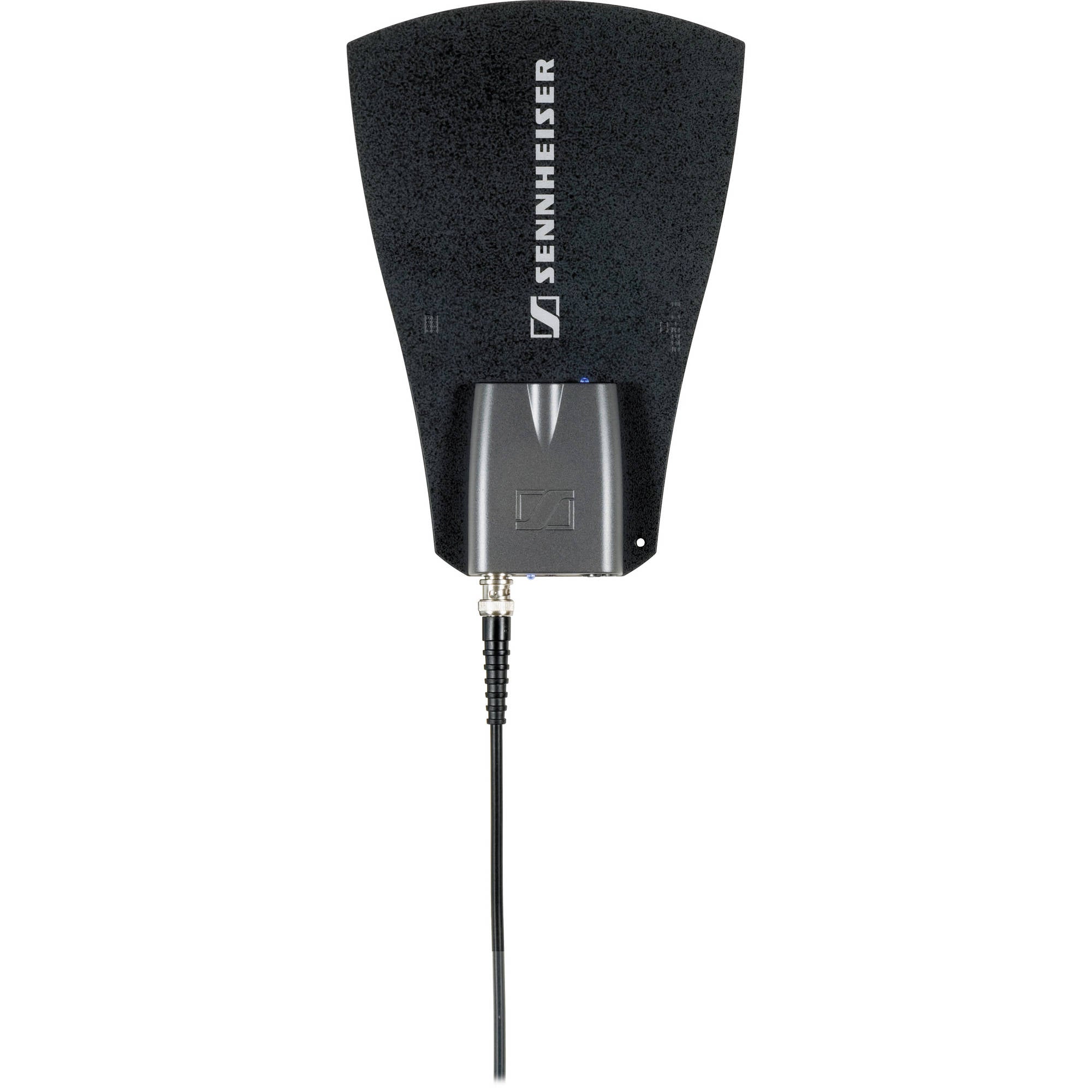

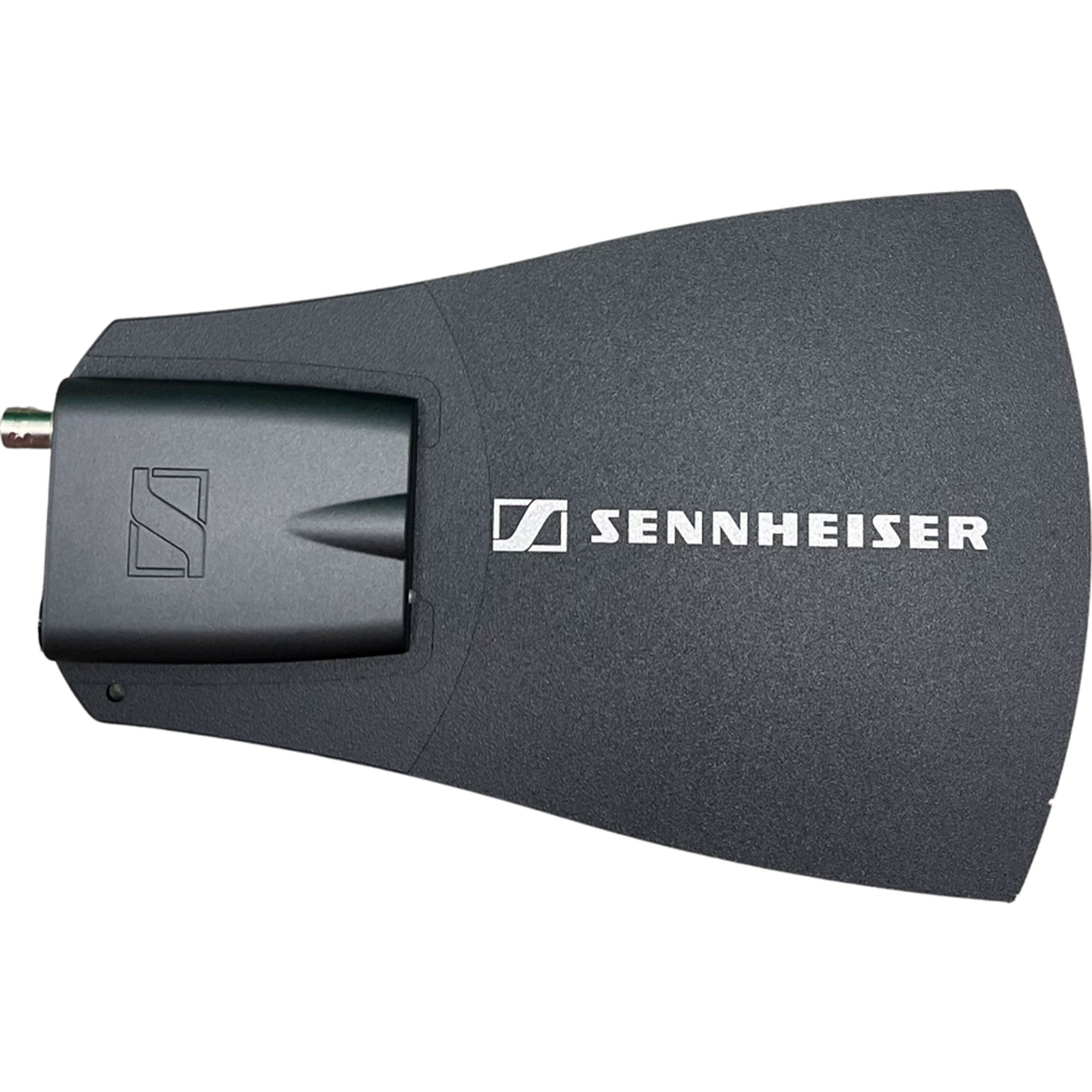

Omnidirectional Antenna with Integrated AB3700 Booster for EM37XX Receiver Only
The Sennheiser A 3700 Omnidirectional Antenna with Booster is an RF antenna for the Sennheiser EM3731, EM3732 and EM3732 Command receivers. The antenna significantly boosts RF strength and gain during long BNC cable runs. The A 3700 features up to 15dB of amplification.
Specifications:
- Frequency Range: 470-866 MHz
- Polar Pattern: Omnidirectional
- Gain:
typ: bypass (-3 dB), 5dB, 10dB, 15dB adjustable
Without remote power suply: -6dB - Impedance:
50 Ohms
OIP3: > = 32dBm - Connections: 1 x BNC
- Power Supply: 9-15 V DC / 160-100 mA
- Thread: 3/8" or 5/8"
- Dimensions: 9.84 x 6.49 x 0.90" (250 x 165 x 23mm)
- Weight: 13.75 oz (390 g)
Details
- Manufacturer: Sennheiser
- MPN: 502195
- Model Number: A 3700
- UPC: 615104136755
