Key Features
- Designed for Installation
- Mono or Stereo Operation
- Mono Input to 8 Outputs
- Stereo Input to 4 Stereo Outputs
- +20 dB Gain Switch
- Screw Terminal I/O
Description

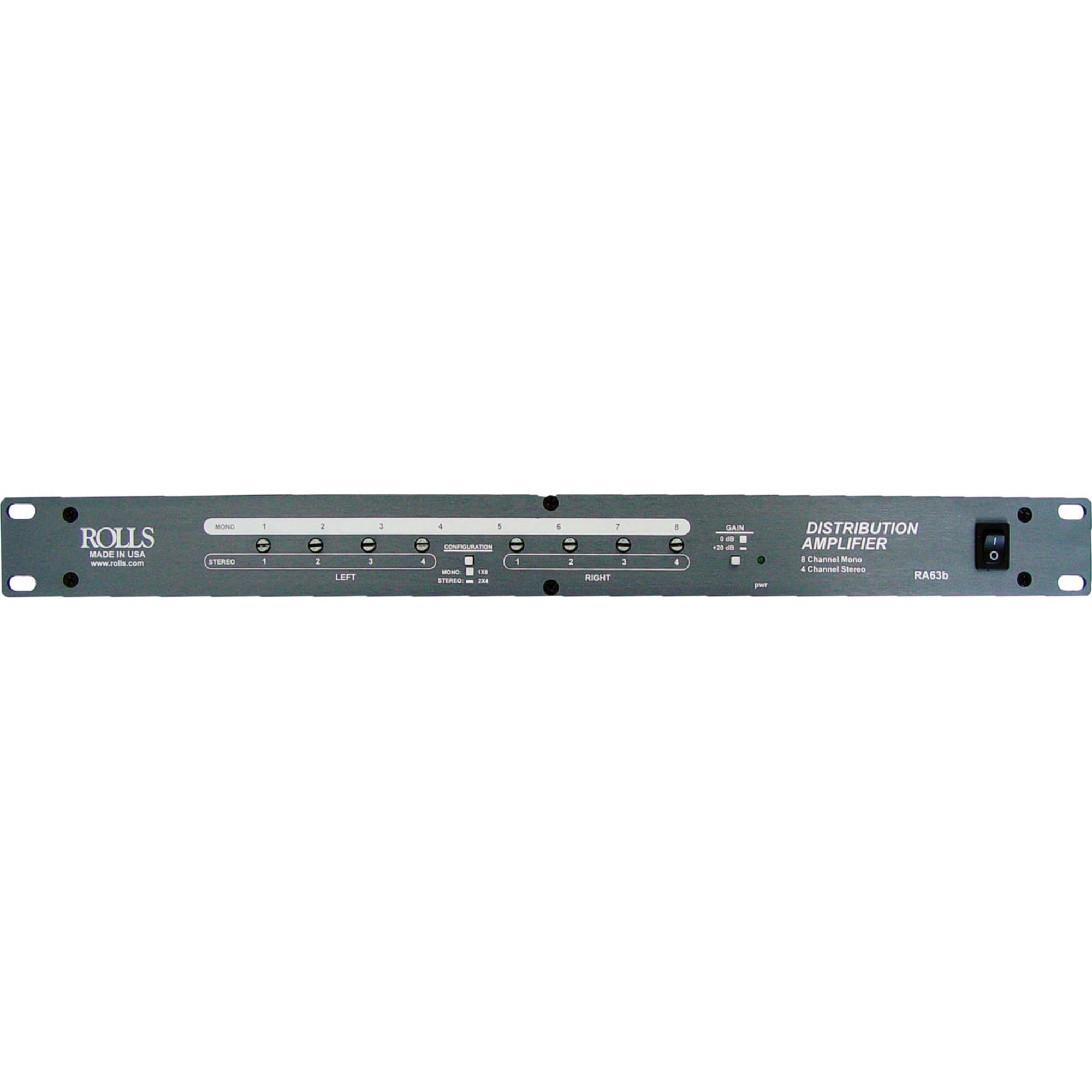

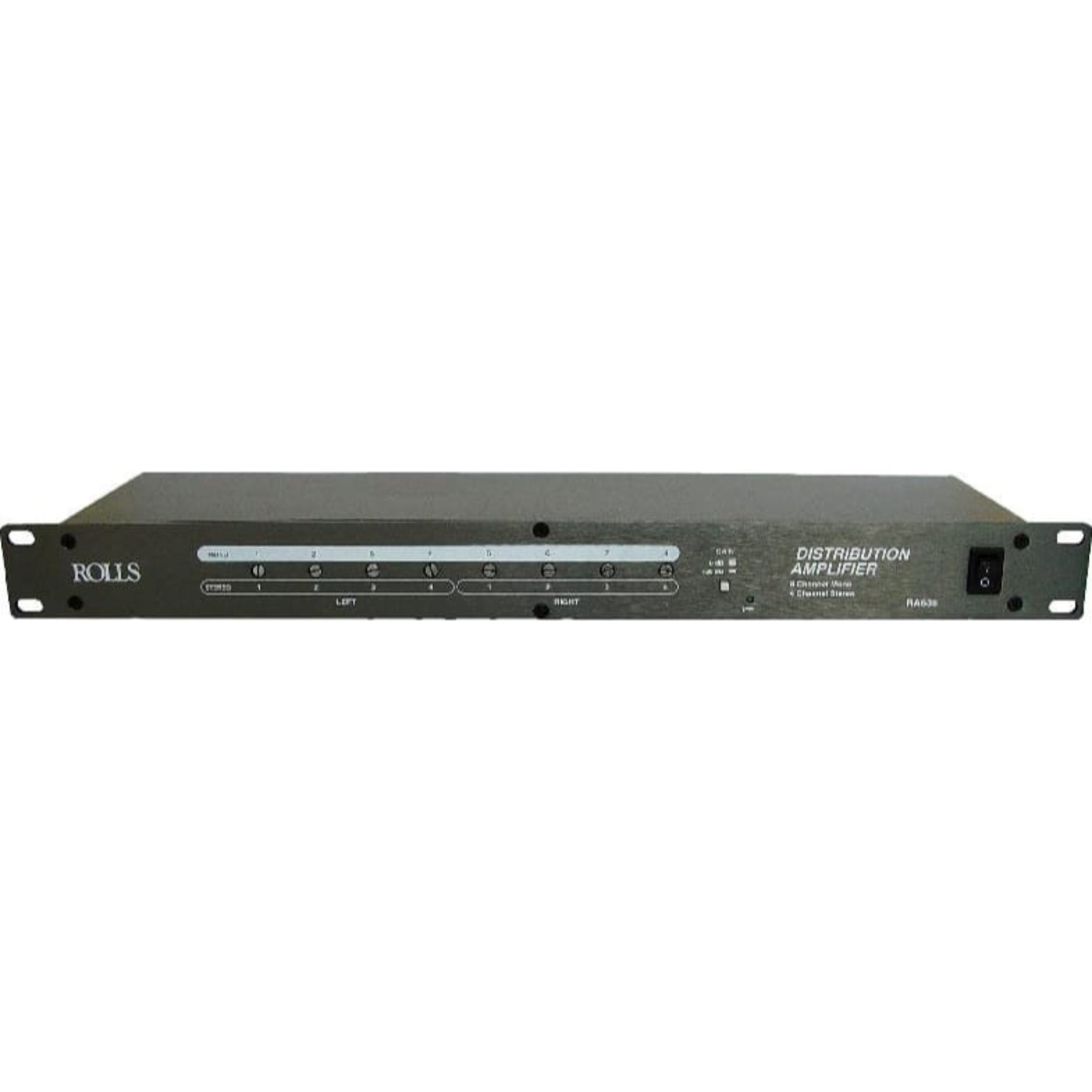

8 Channel Mono/4 Channel Stereo Distribution Amplifier, 1 Rack Space

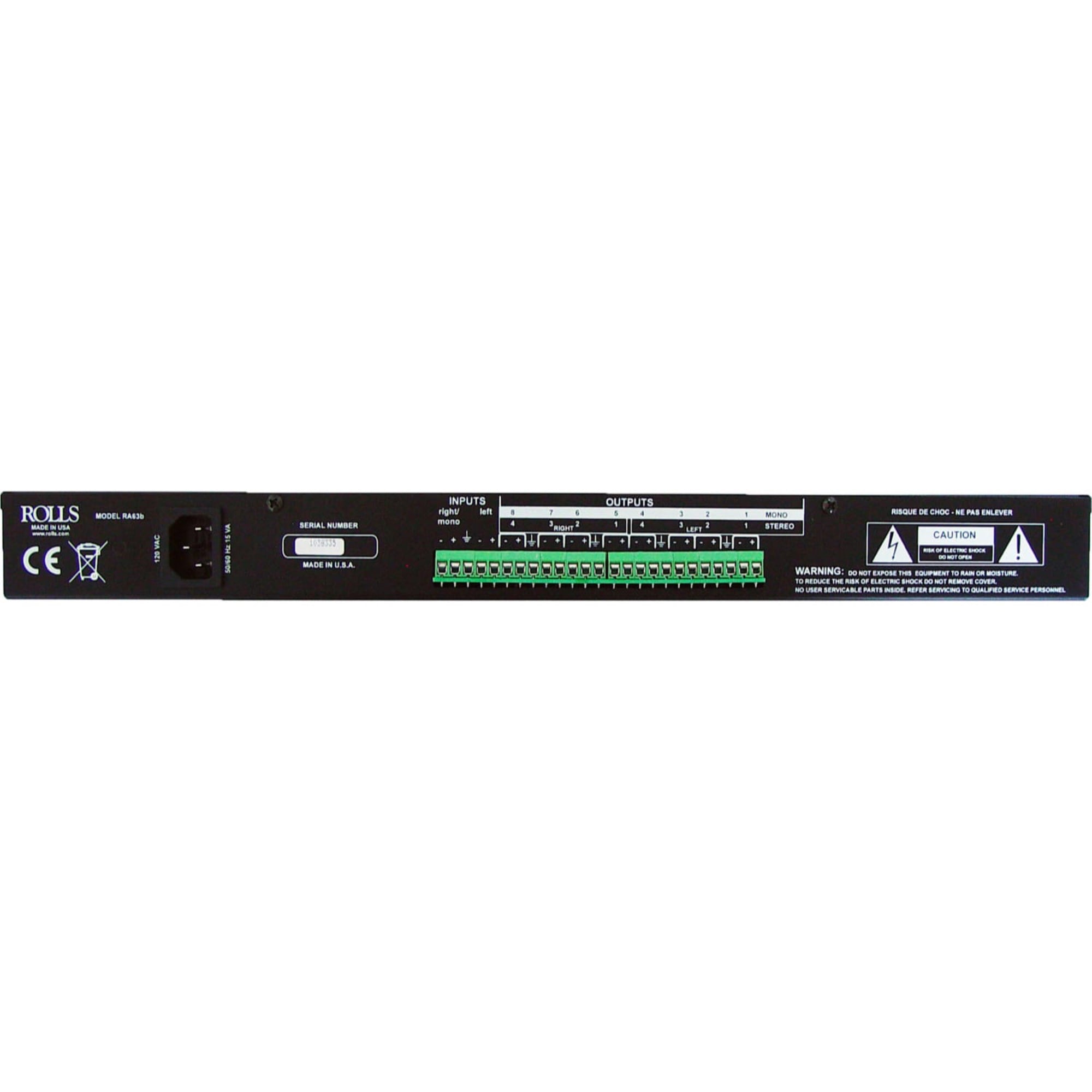

The RA63b is an eight channel mono, or four channel stereo distribution amplifier designed for the contractor / install market. The outputs are designed to drive high-level balanced lines in a sound distribution system. The screw terminals on the rear panel are for input and output, and each output may power more than one line.
Features:
- Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs.
- +20 dB Gain switch.
- Screw Terminal inputs and outputs.
Specifications:
- Input Impedance: 100 K Ohms balanced
- Max Input Level: +22 dBV
- I/O Connectors: Screw terminal; + -, and ground
- Output Impedance: 50 Ohms balanced
- Max Output Level: +24 dB
- Max Gain: 20 dB
- S/N Ratio: >90 dB
- Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
- THD: <.008%
- Power: 120 VAC 50-60 Hz, 15VA
- Size: 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm)
- Weight: 7 lbs. (3 kg)
Details
- Manufacturer: Rolls
- MPN: RA63B
- Model Number: RA63b
- UPC: 675889006315
