Key Features
- Lots of Gain
- 1/4", RCA & XLR Inputs
- 1/4" & 1/8" Outputs
- Inserts on Two Channels
- Link 2 Units Together
- Includes Power Adapter
Description

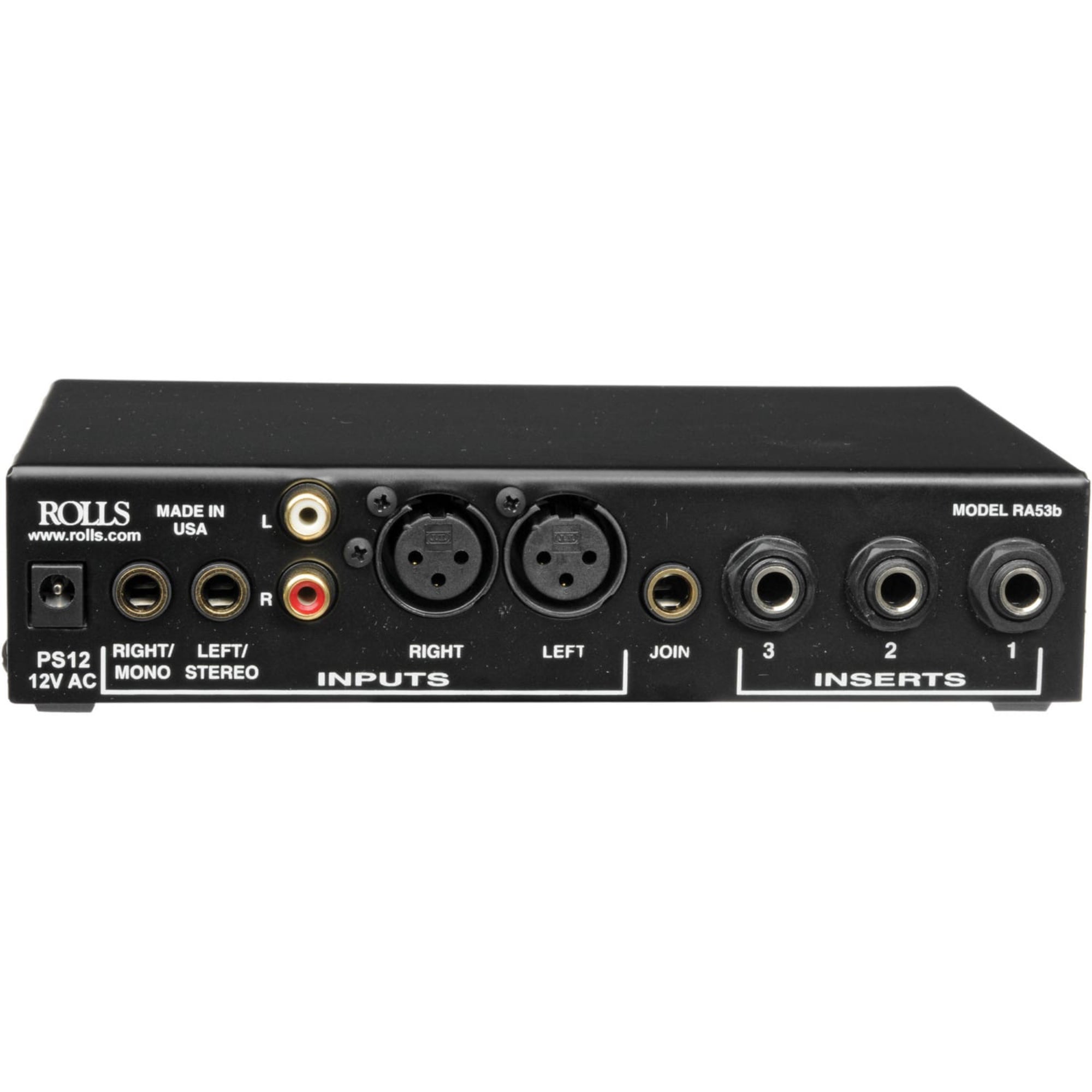

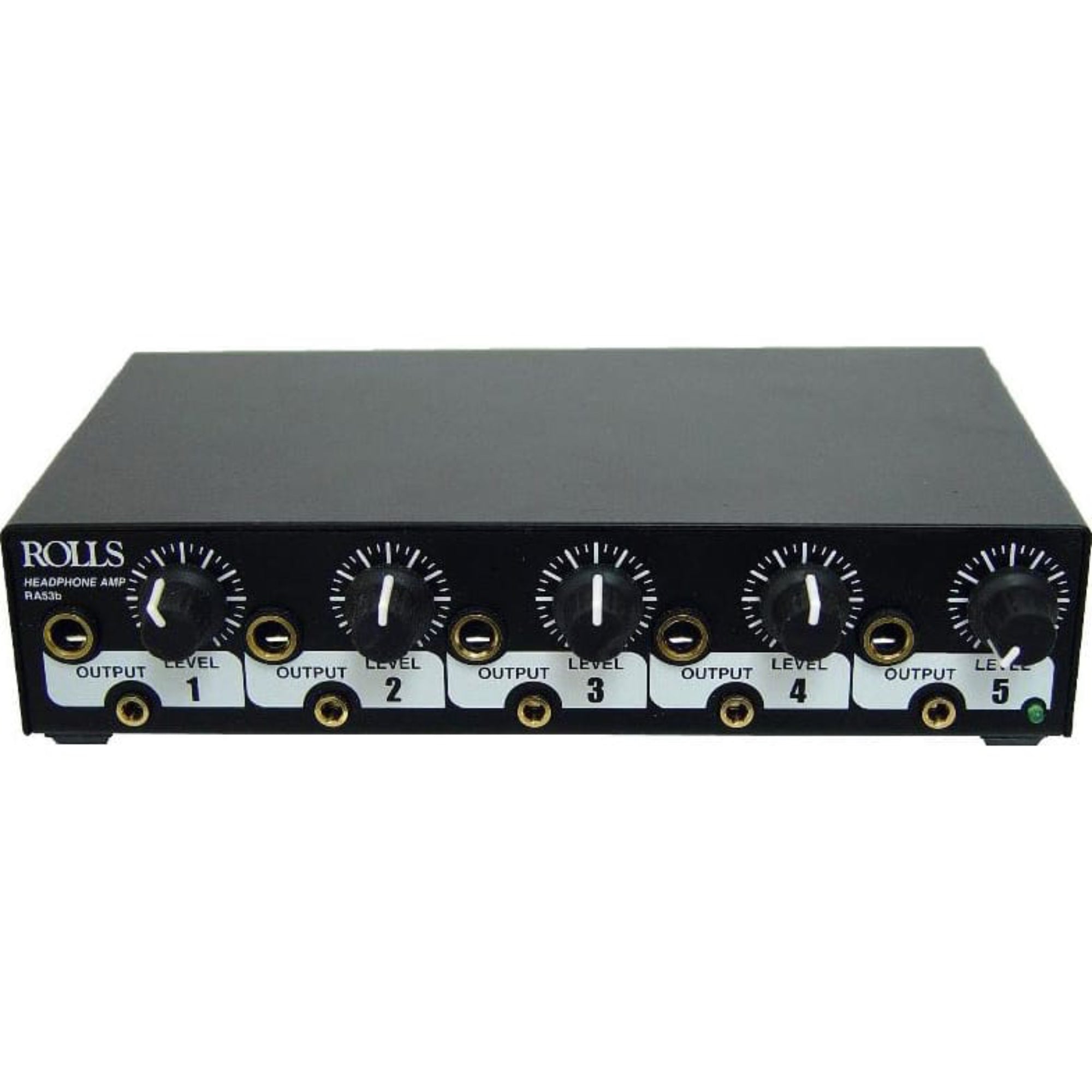

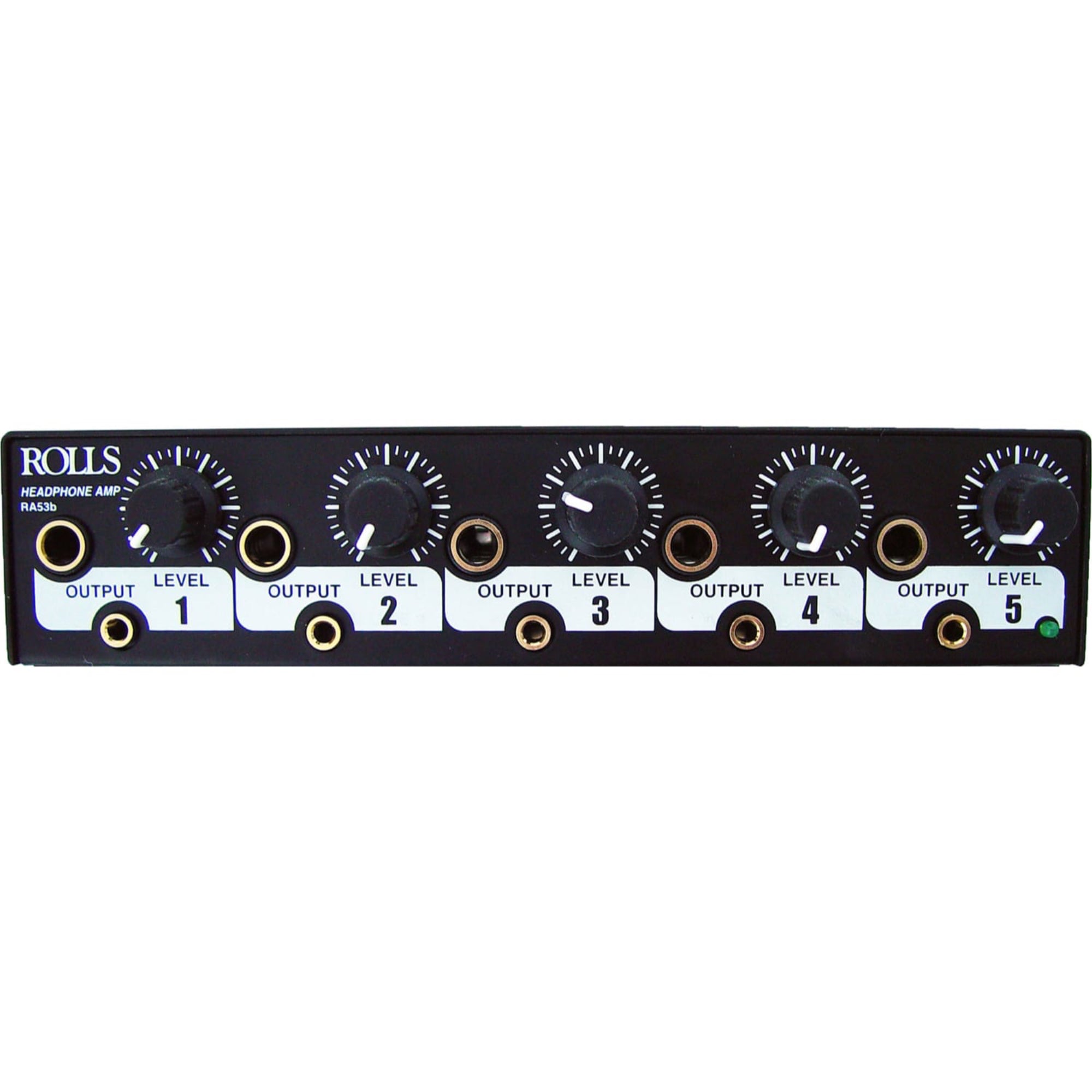

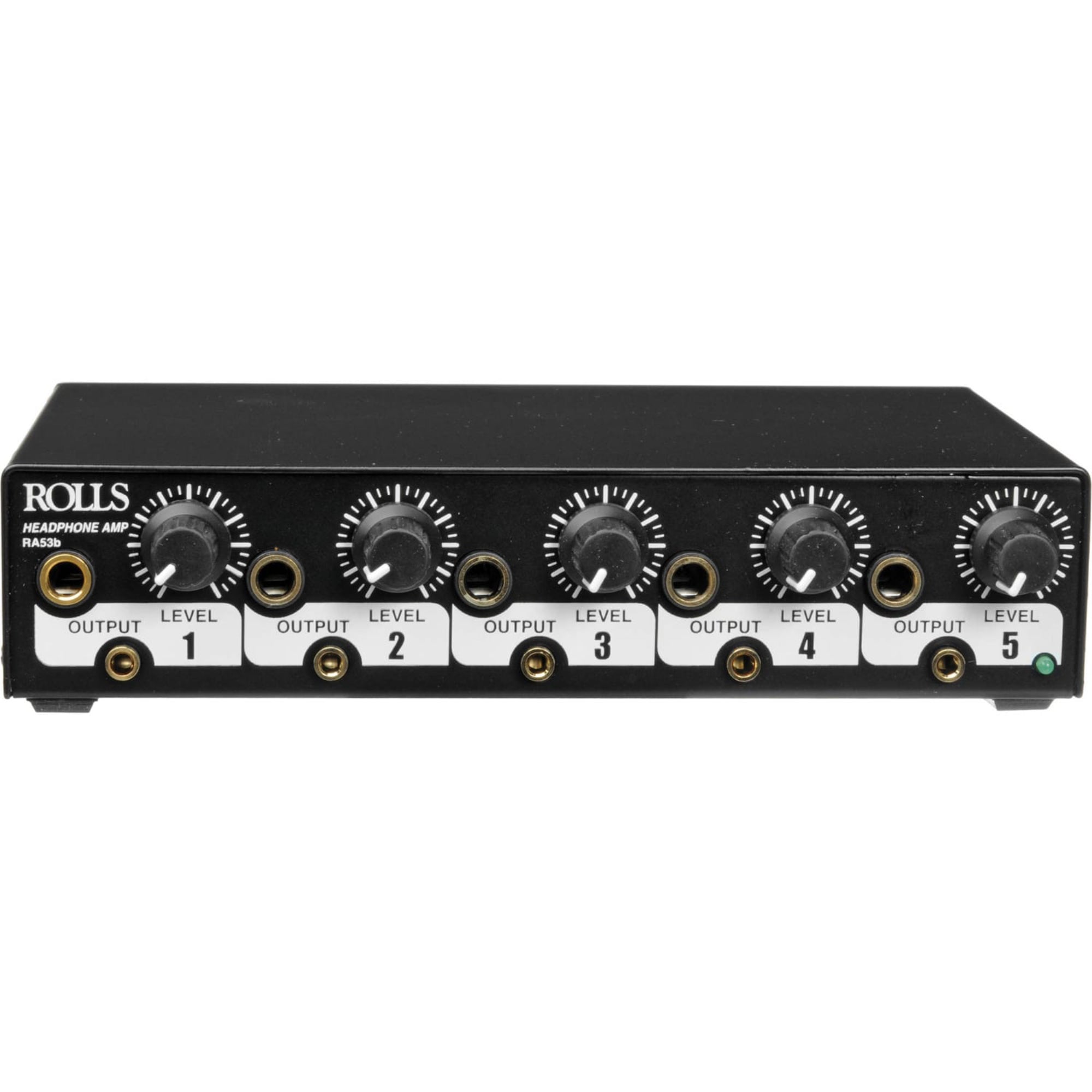

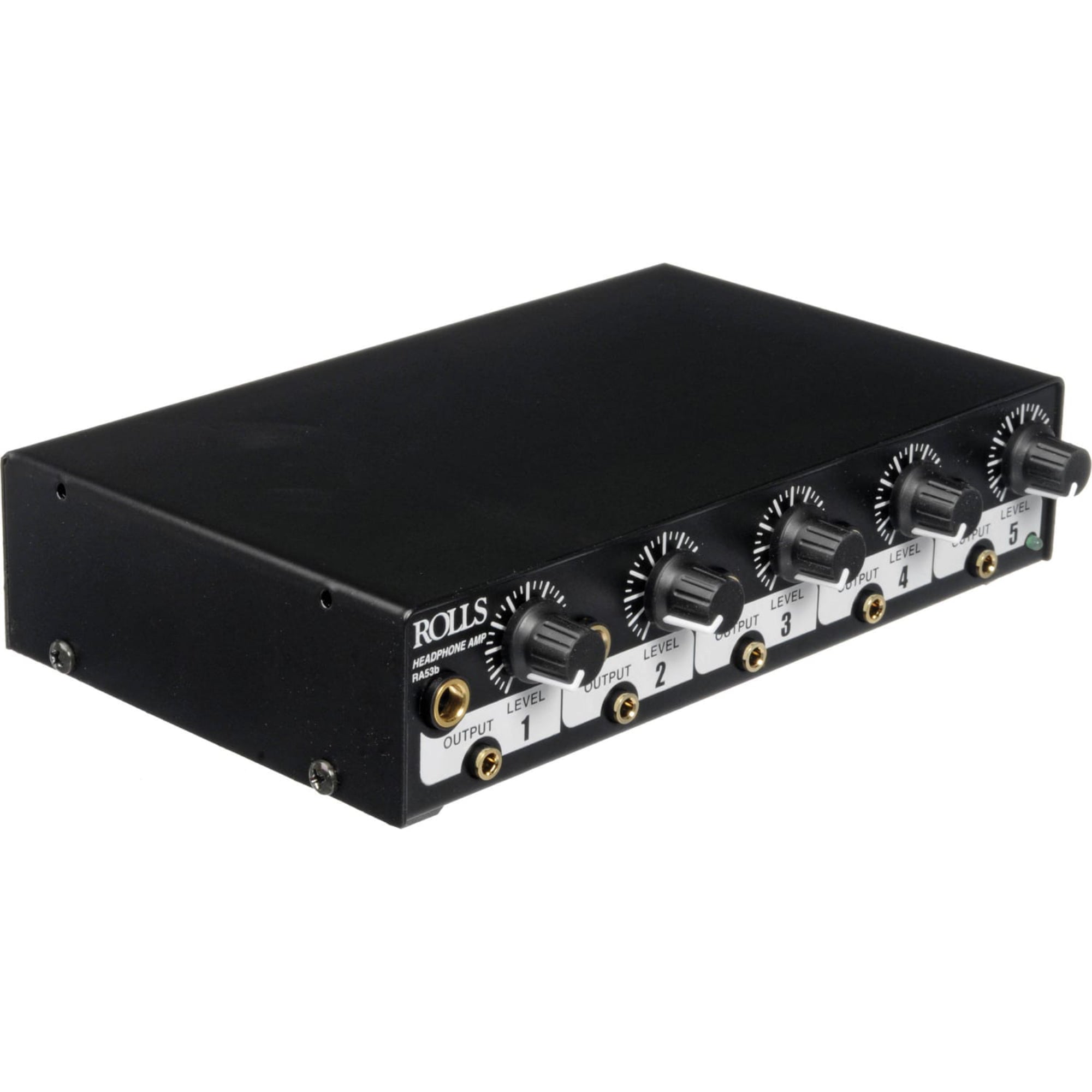

5 Channel Headphone Amplifier, 1/2 Rack Space
The RA53b is a high powered headphone amplifier with five 1/4" and 1/8" (3.5mm) headphone and earphone outs. Two RA53b units may be linked together and mounted side-by-side in a universal rack tray for a total of 10 outputs.
Features:
- # 5: 1/4" TRS Headphone Outputs with Level Control.
- Lots of Gain.
- 1/4" and RCA Right and Left Inputs.
- Inserts on Two Channels.
- 1/4" TRS Stereo Input, 1/4" Mono Input.
- Link Input/Output for Connecting Two Units Together.
Specifications:
- Input Impedance: 10 K Ohms
- Maximum Input Level: +18 dBV
- Max Gain: 26 dB per channel
- Maximum Output Power: 200 mW per side, 400 mW per channel (@ 16 Ohms)
- Output Impedance: 10 Ohms
- S/N Ratio: >90 dB
- THD: <.08%
- IMD (SMPTE): <.08%
- Power: 12 VAC (Adapter provided)
- Size: 8.4 x 1.7 x 5" (21.3 x 4.3 x 13 cm)
- Weight: 2.5 LBS (1.14 kg)
Details
- Manufacturer: Rolls
- MPN: RA53B
- Model Number: RA53b
- UPC: 675889005318
