Key Features
- 10-Channels with Level Control
- 1/4" Phone Rear Outputs
- 1/8" (3.5mm) Mini Front Outputs
- Balanced XLR Inputs
- Single 19-Inch Rack Space
- Link Inputs and Outputs
Description
10-Channel Expandable Headphone Amplifier, 1 Rack Space

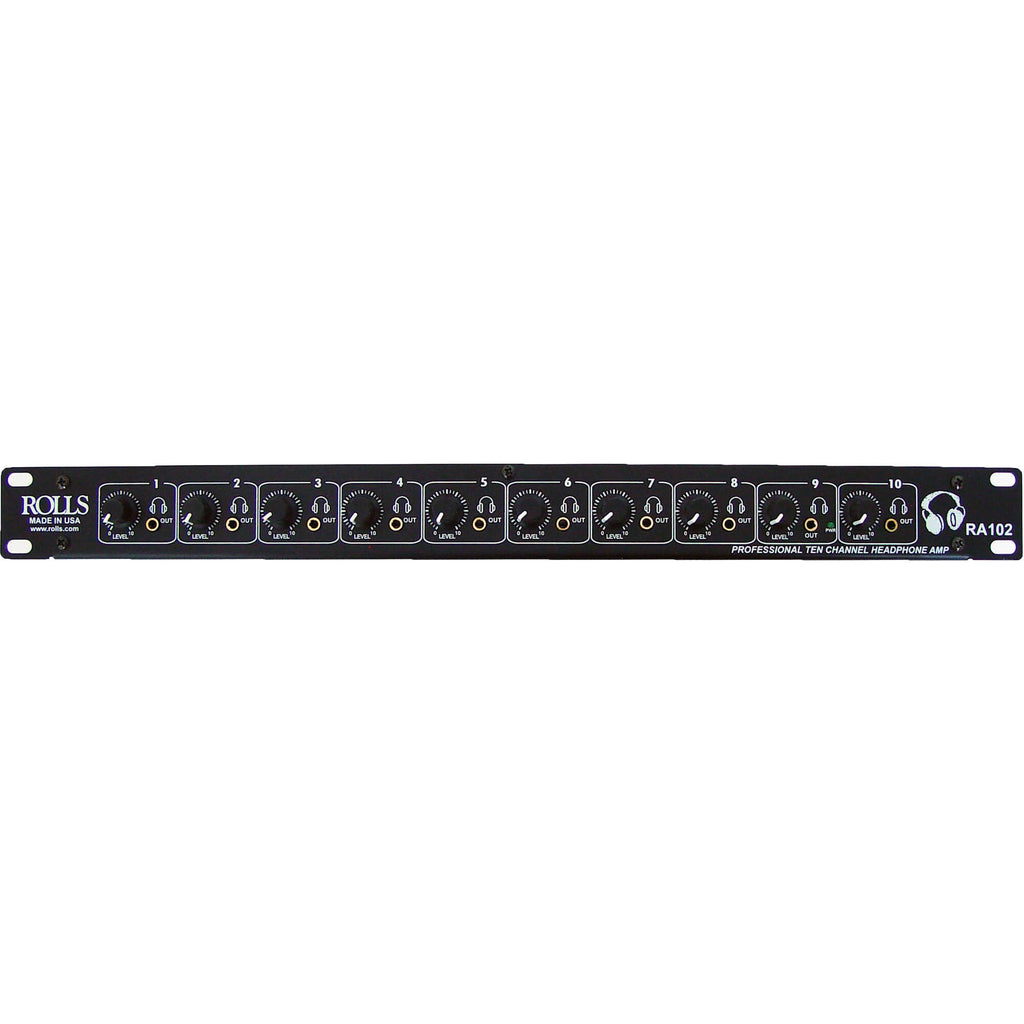

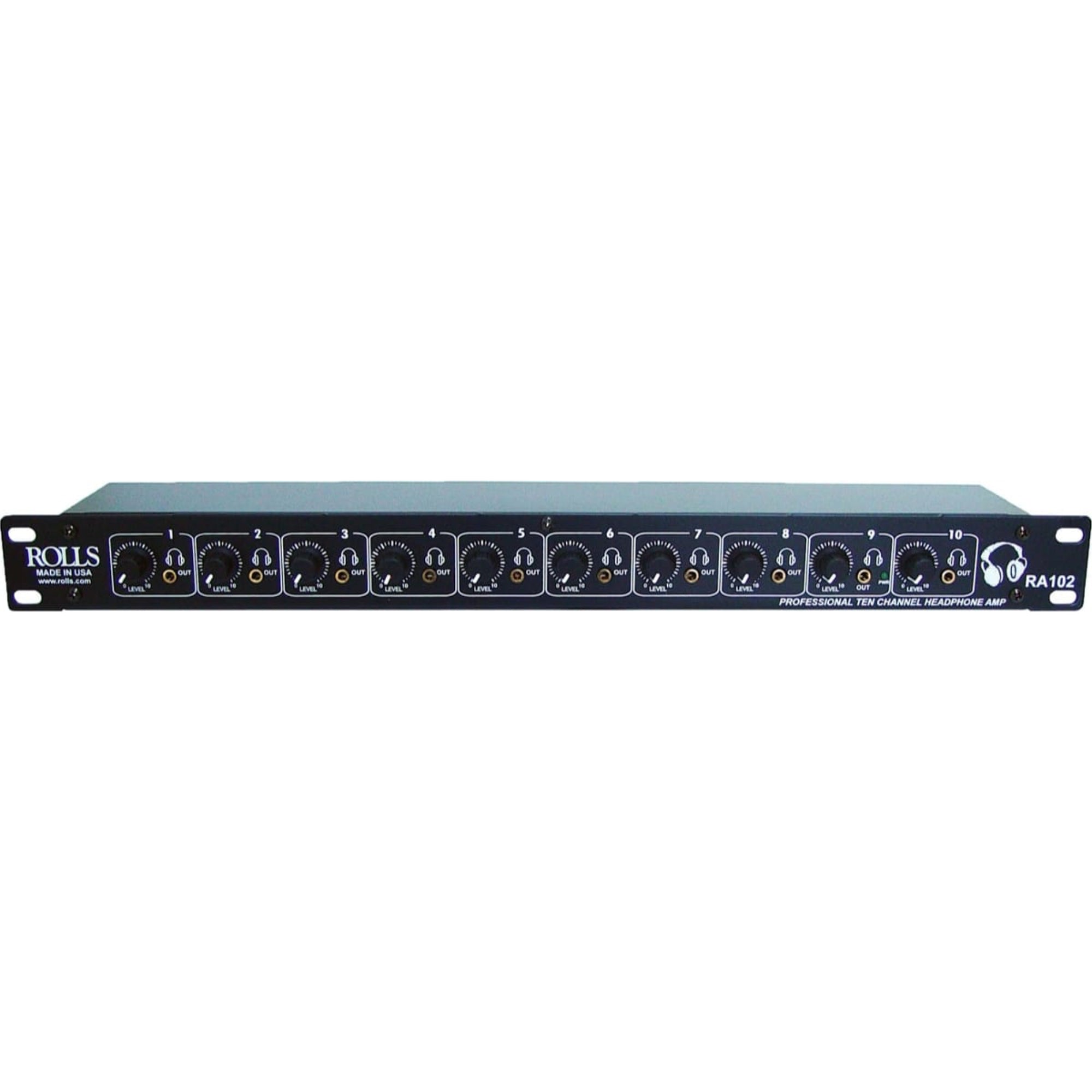

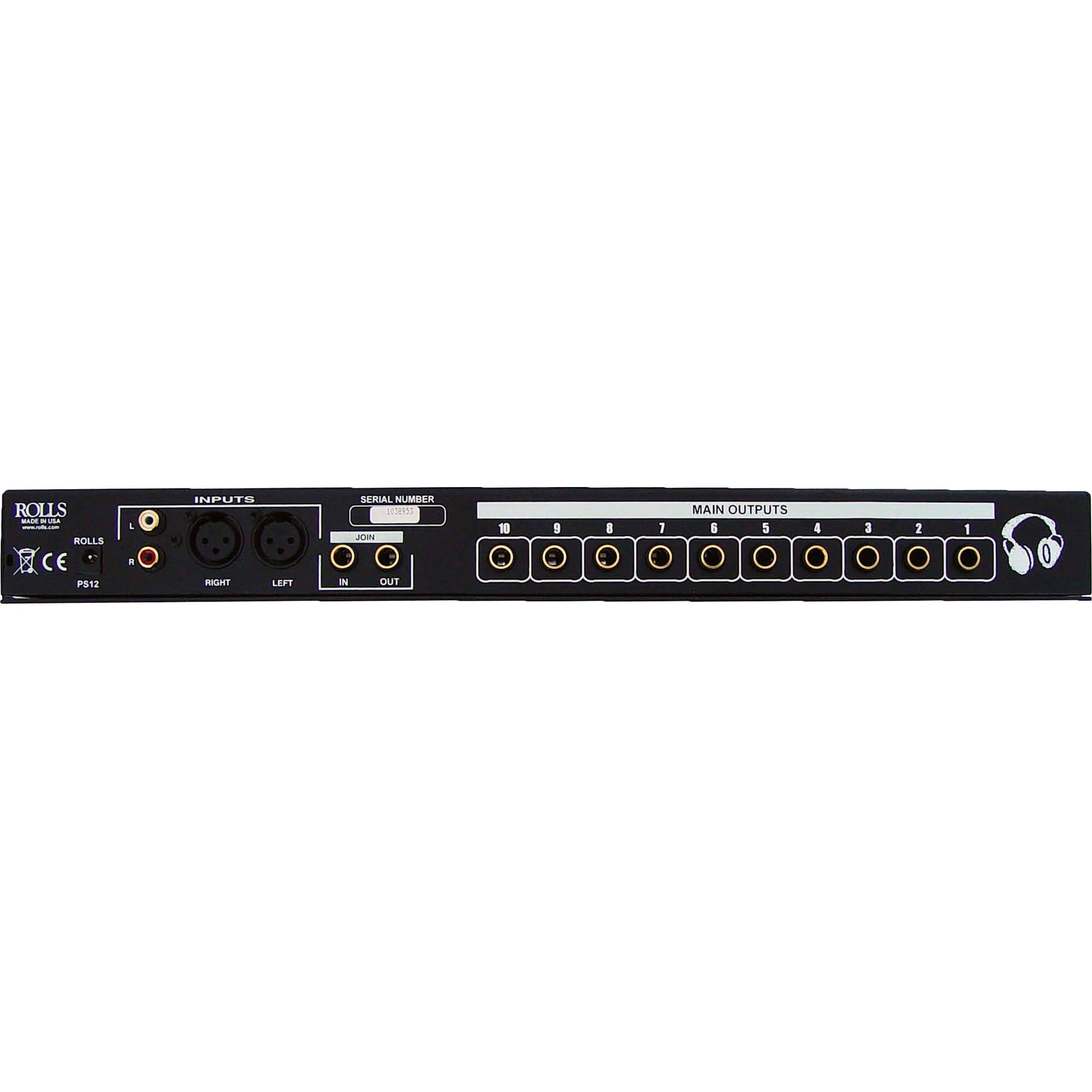

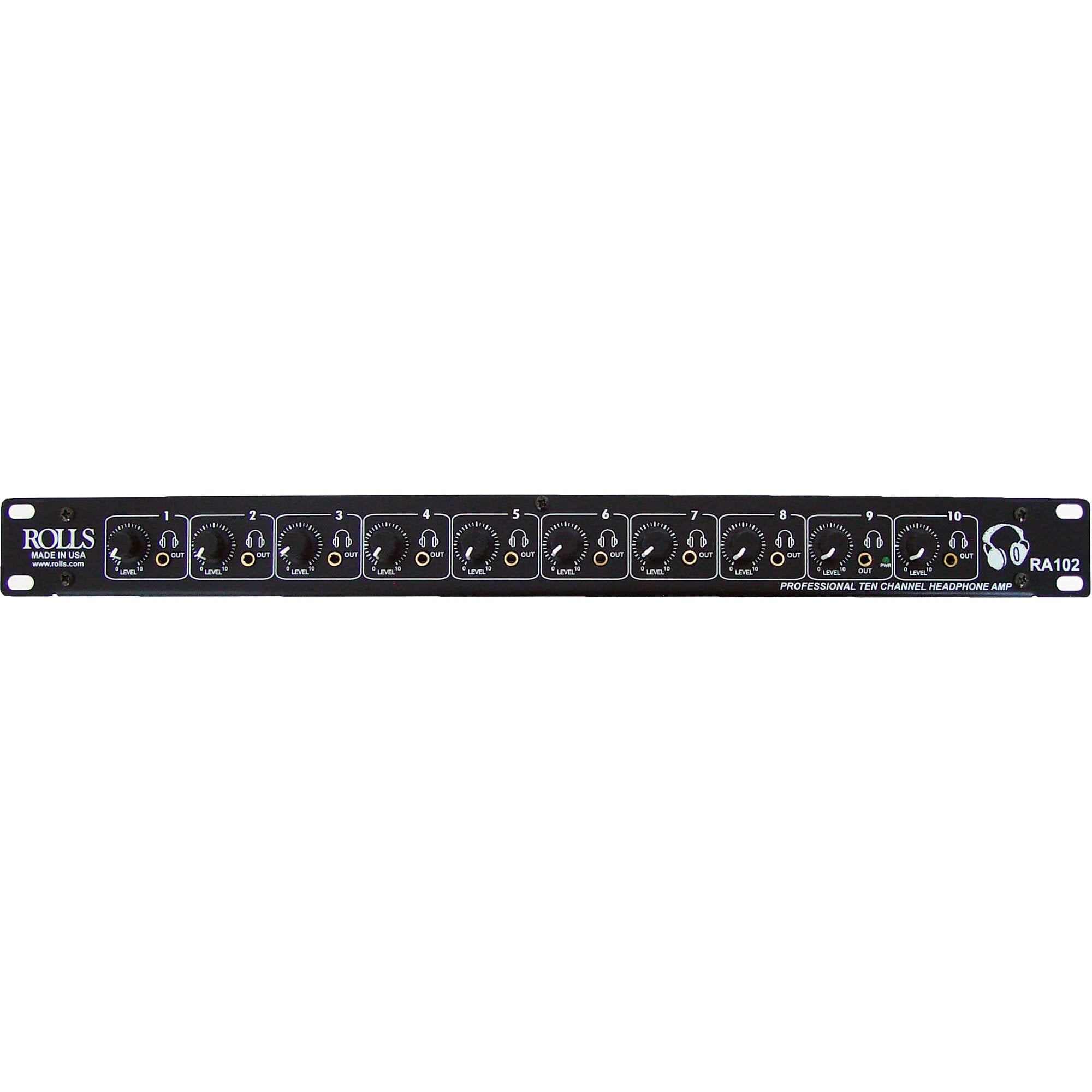

The RA102 is 10ch headphone amplifier that can be ganged together for as asmany channels as desired. It has 1/8" stereo outputs on the front and 1/4" outs on the rear for installations all in a 1U space.
Features:
- 1U Chassis to maximize your rack space
- Strain releif for AC adapter
- Both bal XLR and unbal RCA inputs
- Suitable for very wide range of headphones
- Join in and join out jacks for expanding to all the channels you want
Specifications:
- Input Connectors: XLR & Dual RCA
- Output Connectors: 1/4" and 1/8" X 10
- Max Gain: 20 dB/Channel
- 1U X 3.5" depth
Details
- Manufacturer: Rolls
- MPN: RA102
- Model Number: RA102
- UPC: 675889010206
