Key Features
- Mono or Stereo Operation
- Selectable A/B Input Channels
- 1/4", RCA & 3.5mm Inputs
- 1/4" and 3.5mm Outputs
- Individual Level Controls
- Includes Power Adapter
- Made in USA
Description
4-Channel Studiophile Headphone Amplifier
The HA243 is a high powered headphone amplifier with four 1/4" and 1/8" (3.5mm) headphone outs. The HA243 features an A-B switch for each channel to monitor either the A or B input with the flick of a switch!
Features:

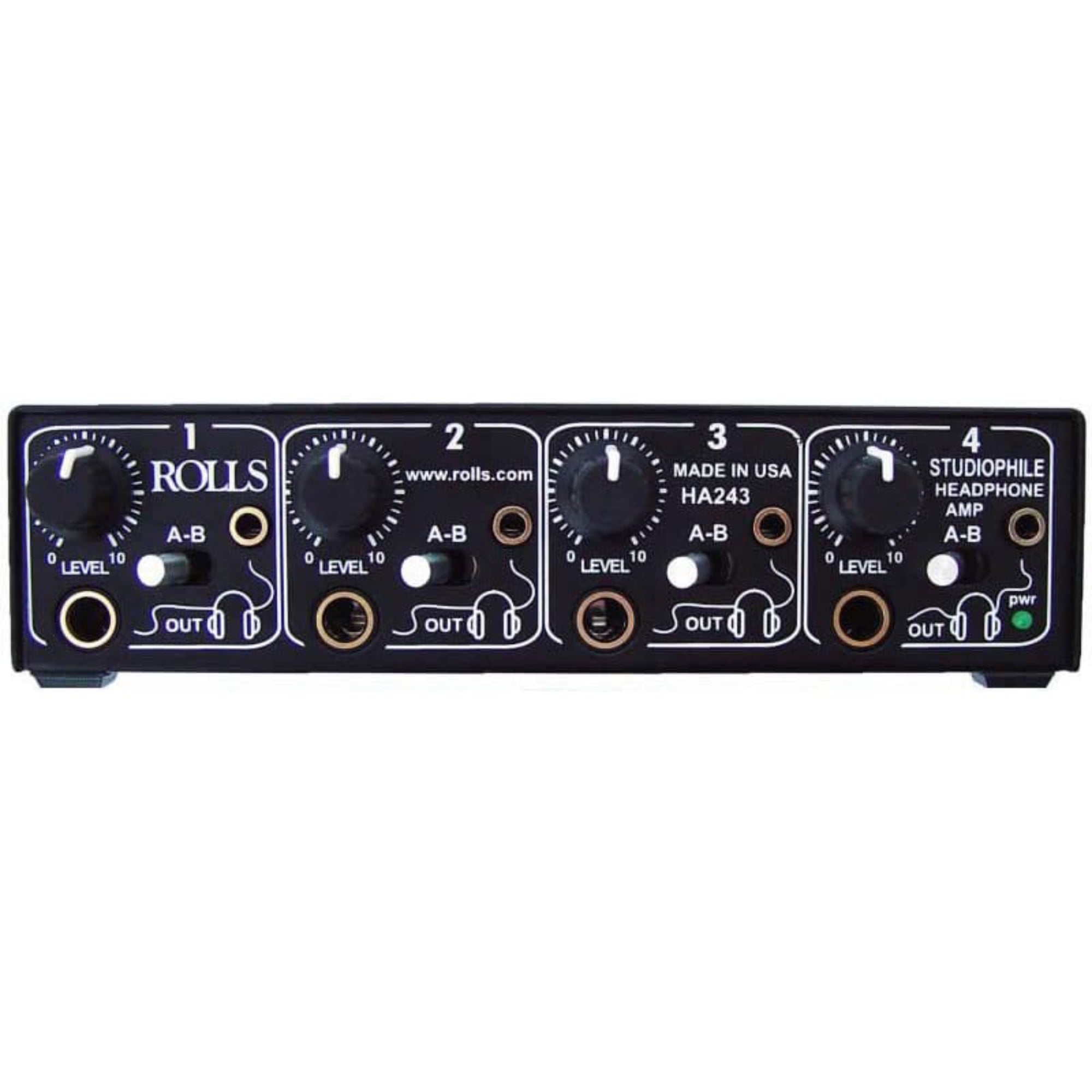

- 4: 1/4" TRS Headphone Outputs with Level Control.
- With the new JRC3414 I.C.'s it has plenty of gain!!!

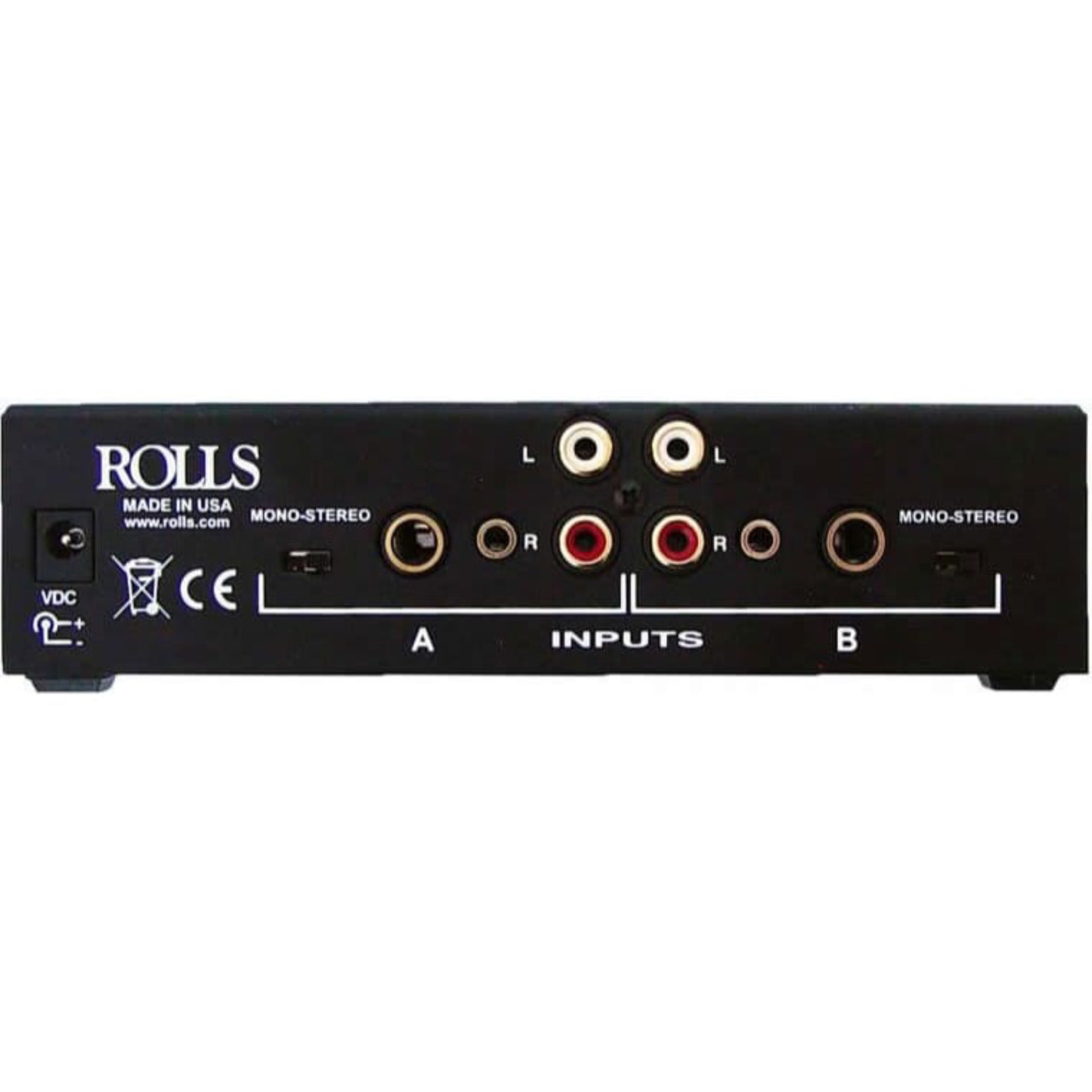

- 1/4" , 3.5mm and RCA A and B Inputs.
- Switchable mono or stereo for both A and B inputs
Specifications:
- Input Impedance: 10 K Ohms
- Maximum Input Level: +26 dBV
- Max Gain: 20 dB per channel
- Output Power: 326 mW per side, 652 mW per channel (@ 62 Ohms)
- S/N Ratio: 92 dB
- THD: <.008%
- Power: 15 VDC (Adapter included)
- Size: 6.75 x 1.75 x 4.75"
- Weight: 1.65 LBS
Details
- Manufacturer: Rolls
- MPN: HA243
- Model Number: HA243
- UPC: 675889024302
