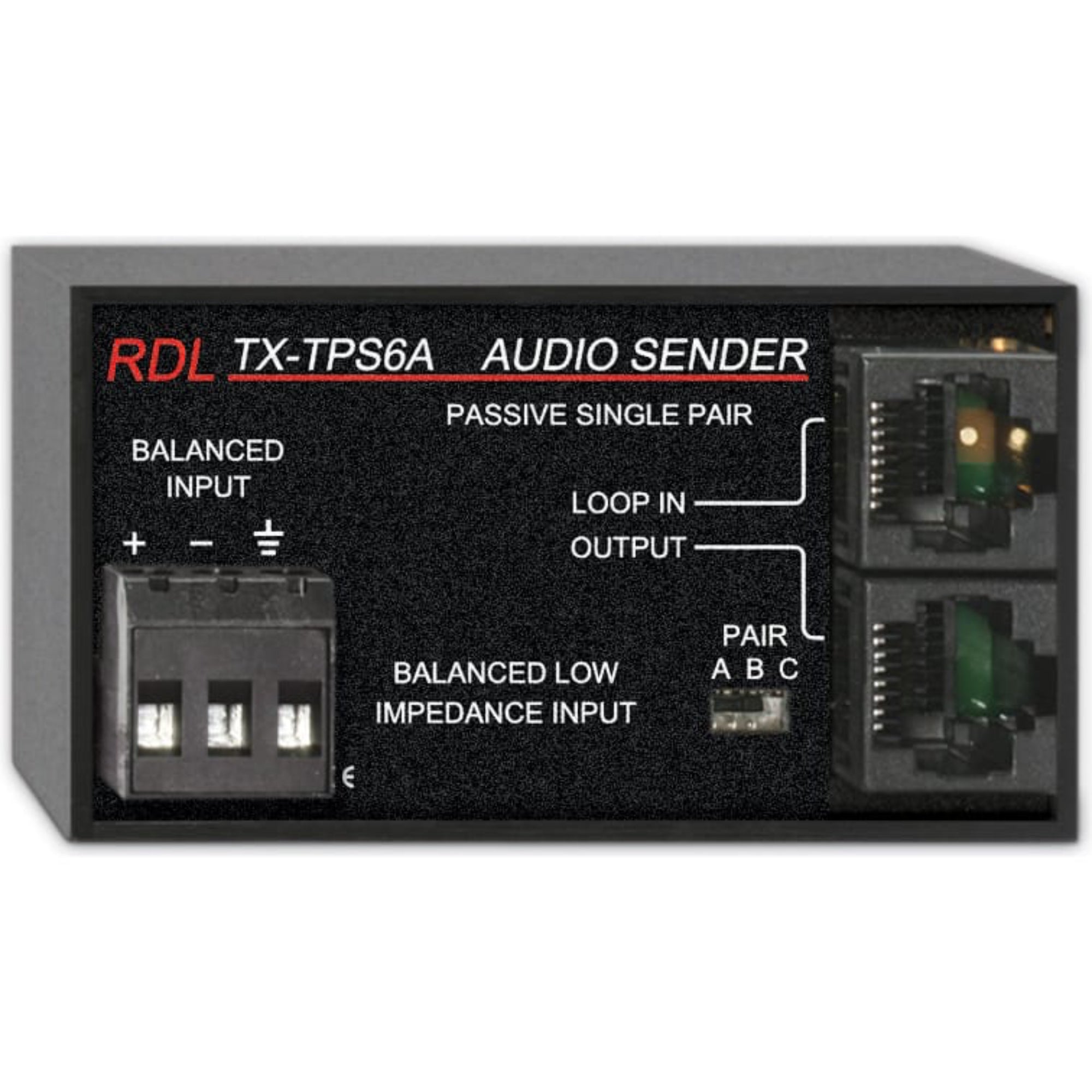

RDL TX-TPS6A Passive Single-Pair Sender Twisted Pair Format-A

Passive Single-Pair Sender - Twisted Pair Format-A - Balanced Audio Line Input

The TX-TPS6A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. One low-impedance +4 dBu balanced line-level audio source connects to the module using the detachable terminal block. A studio-quality transformer provides isolation between the audio source and the RJ45 OUTPUT.

The TX-TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a LOOP IN RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to the LOOP IN jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The TX-TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.

The TX-TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to the LOOP IN jack, that power is passed through to the modules connected to the OUTPUT jack.

Features:

• Single +4 dBu Low-Impedance Balanced Audio Input
• Input on Detachable Terminal Block
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through from LOOP IN Jack
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

Specifications:

• Input:Low-impedance Balanced;
• Recommended source impedance < 150 Ω
• Input Connection:Detachable Terminal Block (Balanced)
• Input Level:+4 dBu balanced; +22 dBu Max
• Format-A Signal Pair Used:Switch-selectable A, B, or C
• Format-A Input:RJ45 LOOP IN
• Output:RDL TP Format-A
• Output Connection:RJ45
• Frequency Response:20 Hz to 20 kHz (+/- 0.1 dB)
• THD+N:< 0.035% (50 Hz to 20 kHz, +4 dBu);
• < 0.1% (20 Hz to 20 kHz, +4 dBu)
• Headroom above +4 dBu:> 18 dB
• CMRR:> 85 dB (50 Hz to 150 Hz)
• Power Requirement:Passive
• Dimensions:3.0" (7.6 cm) W; 1.6" (4.08 cm) H; 2.09" (5.3 cm) D
• Ambient Operating Environment:0 C to 50 C
