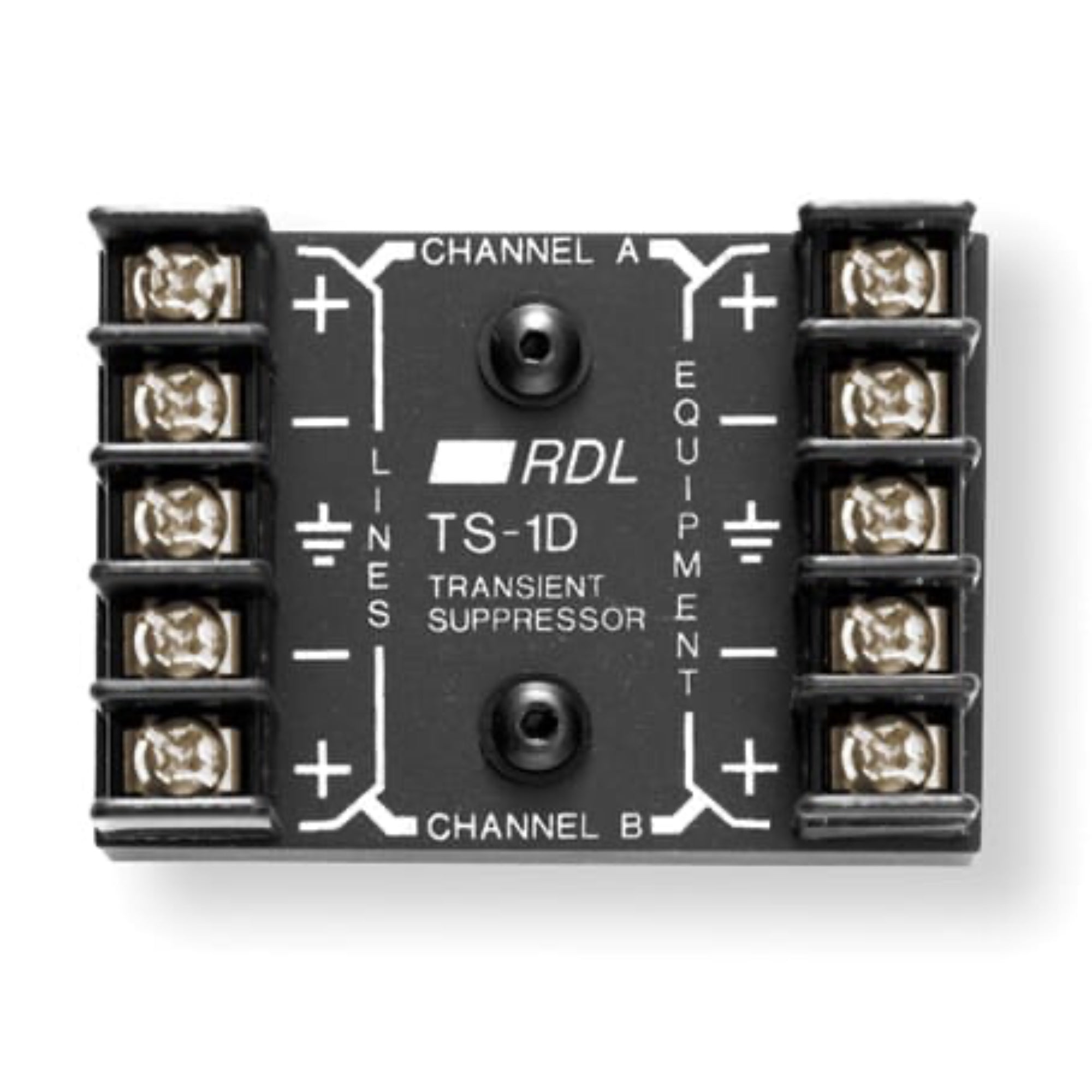

RDL TS-1D Transient Suppressor

Transient Suppressor

The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.

Features:

• Immunity from Electrostatic Discharge
• Immunity from Induced Transient Voltage
• Immunity from RF Interference
• Immunity from Electromagnetic Pulse
• CE Compliance

Specifications:

• AUDIO
• Frequency Response: 10 Hz to 50 kHz (+/- 0.25 dB)
• Insertion Loss: <0.3 dB (into balanced bridging input)
• <1.0 dB (into 150 Ω or 600 Ω balanced< input)
• < 6 dB (600 Ω balanced source into 600 Ω load)
• ELECTRICAL
• Number of Circuits: 4, independent (for connection as 4 unbalanced or 2 balanced audio lines)
• Equivalent Series Resistance, Input to Output: 20 Ω
• Equivalent Circuit: 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch
• Maximum Working Signal: 30 Vp, 60 V p-p
• HV Switch Clamp: 24 V actuation; 48 V maximum
• Transient Energy: 0.1 joule
• PHYSICAL
• Case Material: Electromagnetically inert plastic composition
• Size: 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip)
• Ground Bus (integral): 110 alloy copper, 0.25" W x 1.6" L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included
• Input/Output Termination: #6 (.35 cm) captive screw terminals
• GB6 GROUND BAR
• Size: 1.5 in. W x 11.87 in. L x .378 in. H (3.81 cm x 30.2 cm x .96 cm)
• Material: 110 Alloy Copper
• EMC Suppression: IEC 1000-4-2 levels 1 through 3 < 1 V
• IEC 1000-4-3 levels 1 through 3 < 1 V
• IEC 1000-4-4 levels 1 through 4 < 1 V
• Ambient Operating Environment:-10 C to 55 C
