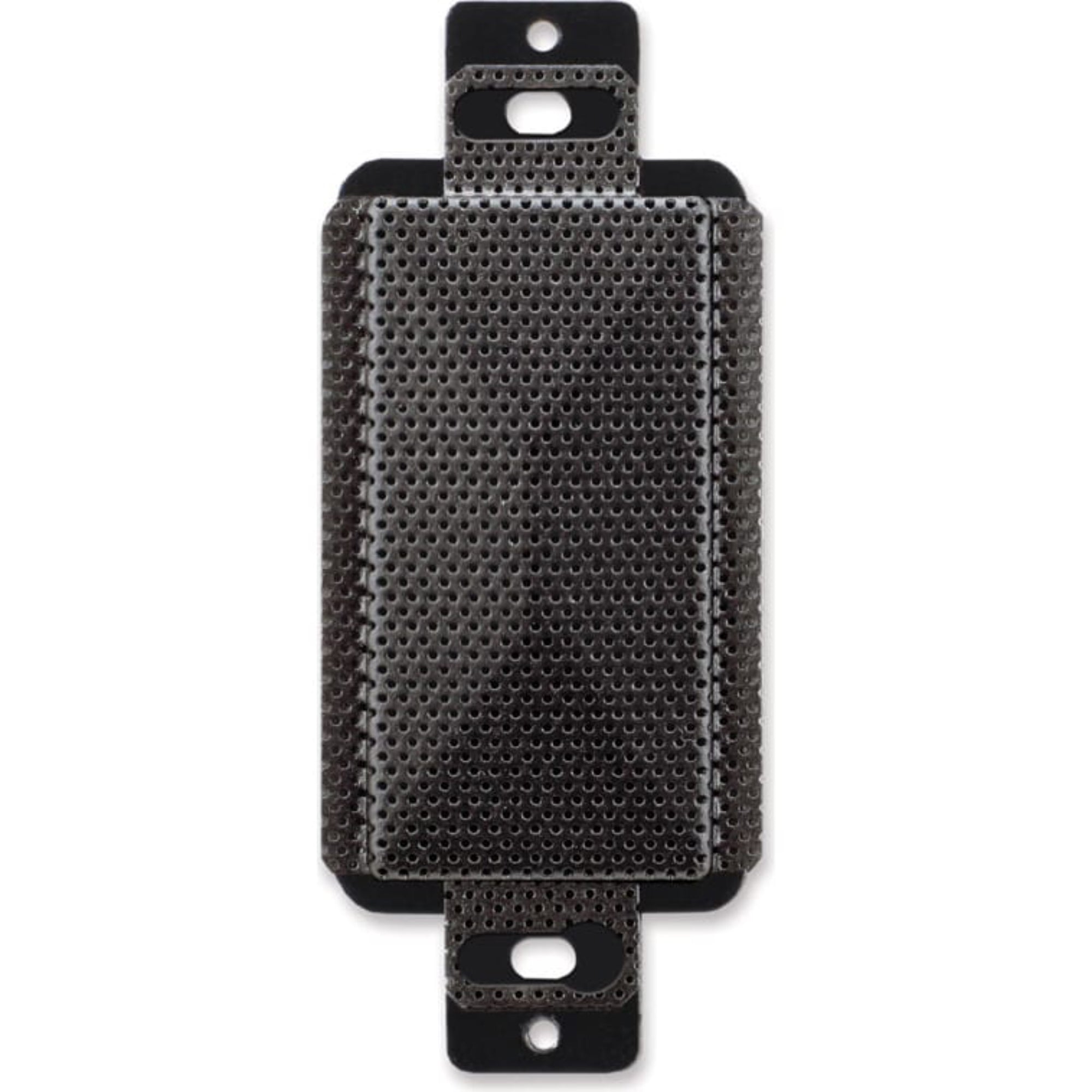

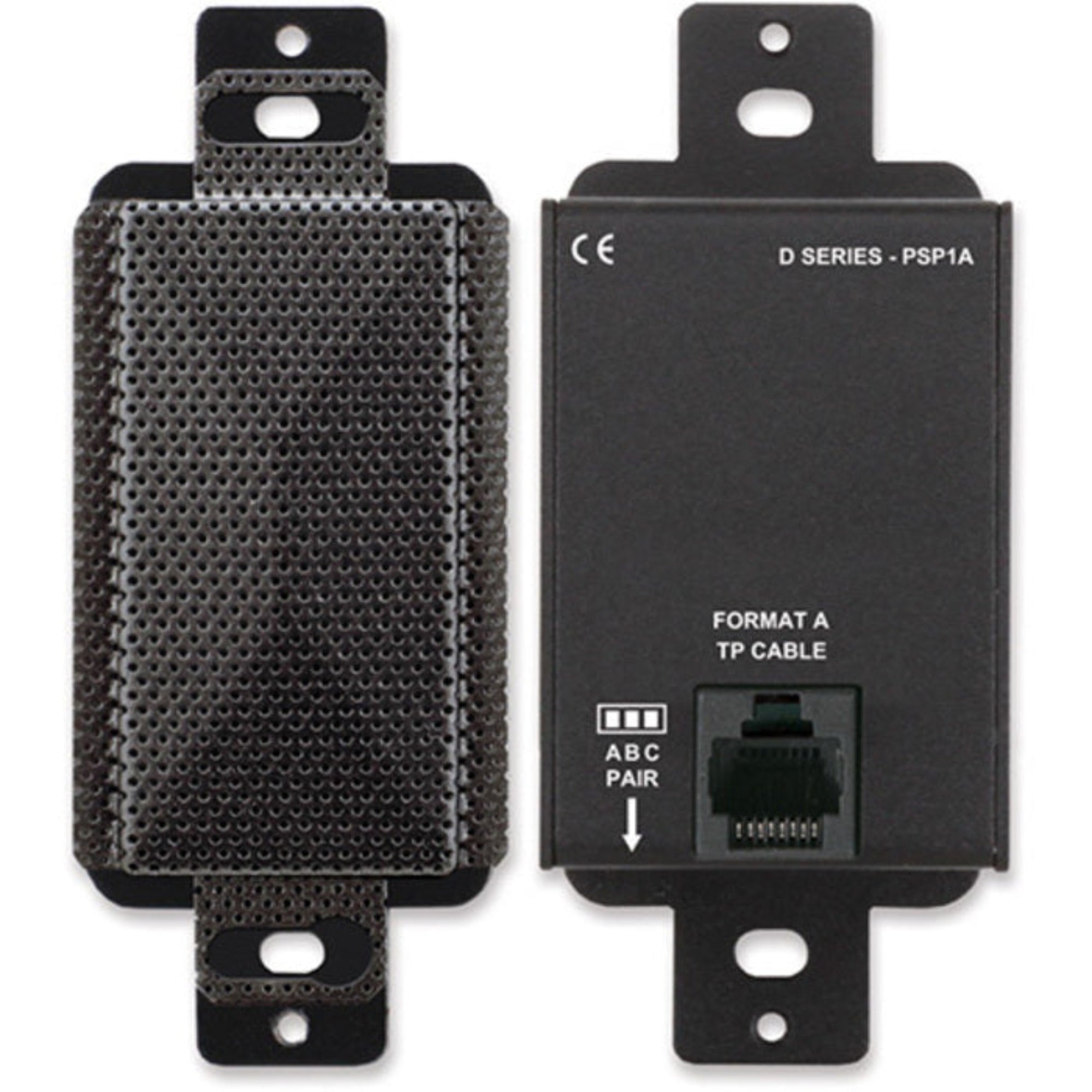

RDL DB-PSP1AF Active Loudspeaker on Decora Plate (Black)

Decora-Style Active Loudspeaker - Format-A - Black - Installer Level Adjust

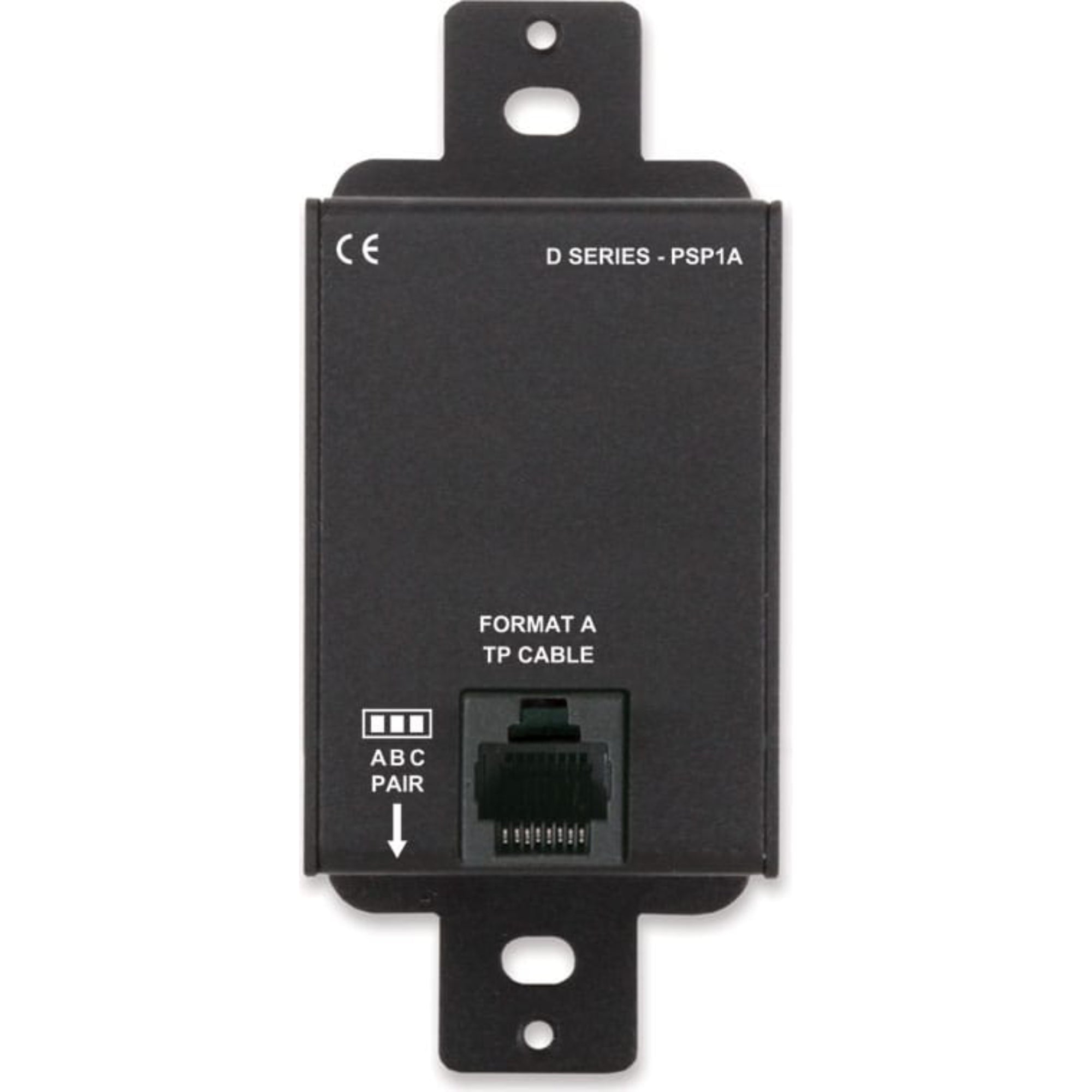

The D SERIES-PSP1AF is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1AF receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is set by the installer using a volume control located behind the speaker grill. The PSP1AF includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

Models are available with grills in black (DB-PSP1AF), white (D-PSP1AF), gray (DG-PSP1AF) or stainless steel (DS-PSP1A).

Features:

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface

Specifications:

• Input: RDL Format-A
• Input Connection: RJ45
• Format-A Signal Pair Used: Switch-selectable A, B, or C (Rear-panel)
• Gain Adjustment: Single-turn audio taper (set by installer)
• Maximum SPL: 81 dB
• Frequency Range: 150 Hz to 20 kHz, nominal
• CMRR: > 80 dB (50 Hz to 120 Hz)
• Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
• Ambient Operating Environment: 0° C to 40° C Maximum; 20° C Recommended
• Dimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm
• Package Type: Cardboard Box
• Package Dimensions: 3.625 x 4.625 x 2.125 in.
• Shipping Weight: .562 lbs.
• WEEE weight: 0.418 lbs.
• Tariff code: 8518.40.2000
