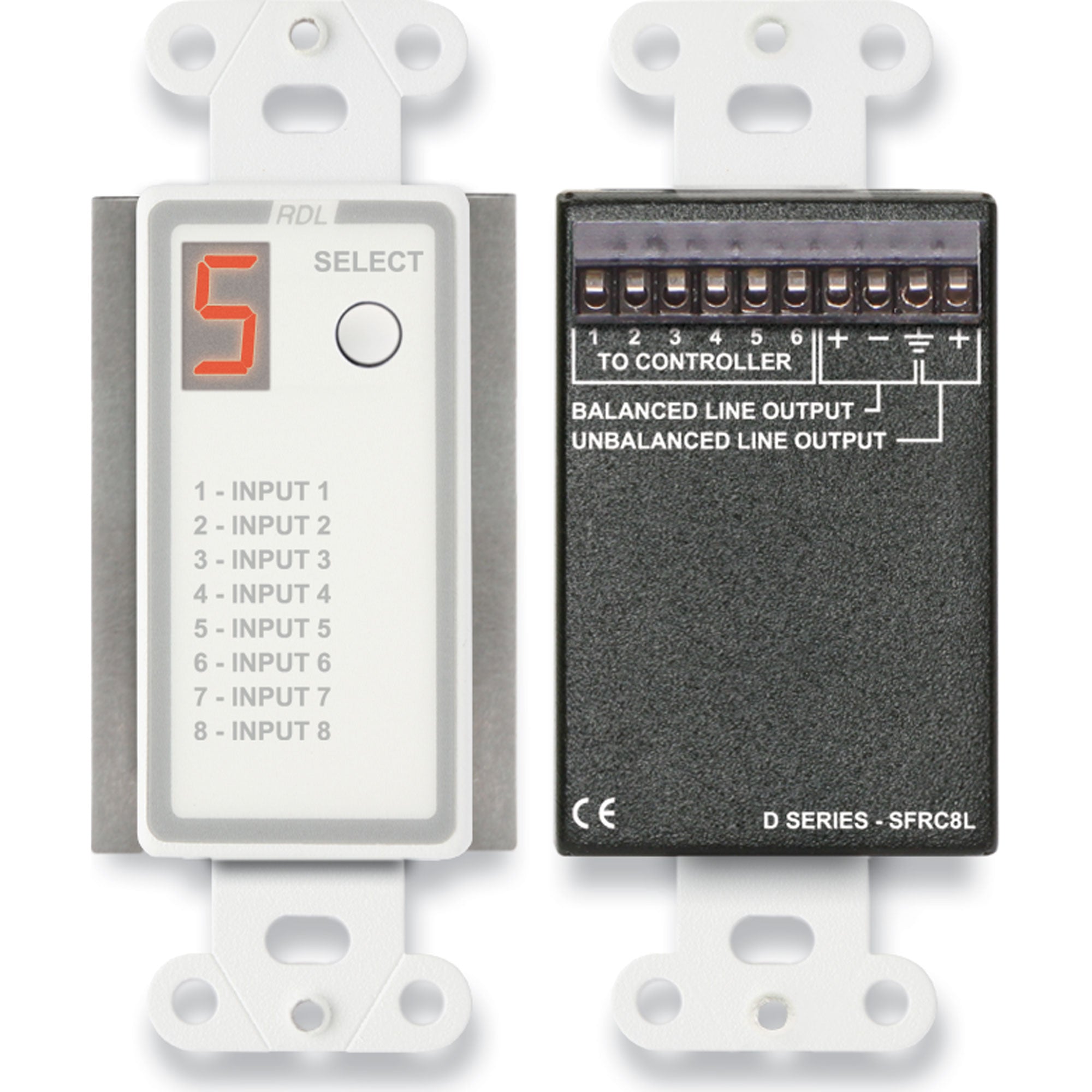

RDL D-SFRC8L Audio Selector for SourceFlex on Decora Plate (White)

Audio Selector for SourceFlex Distributed Audio System - White/Gray Finish

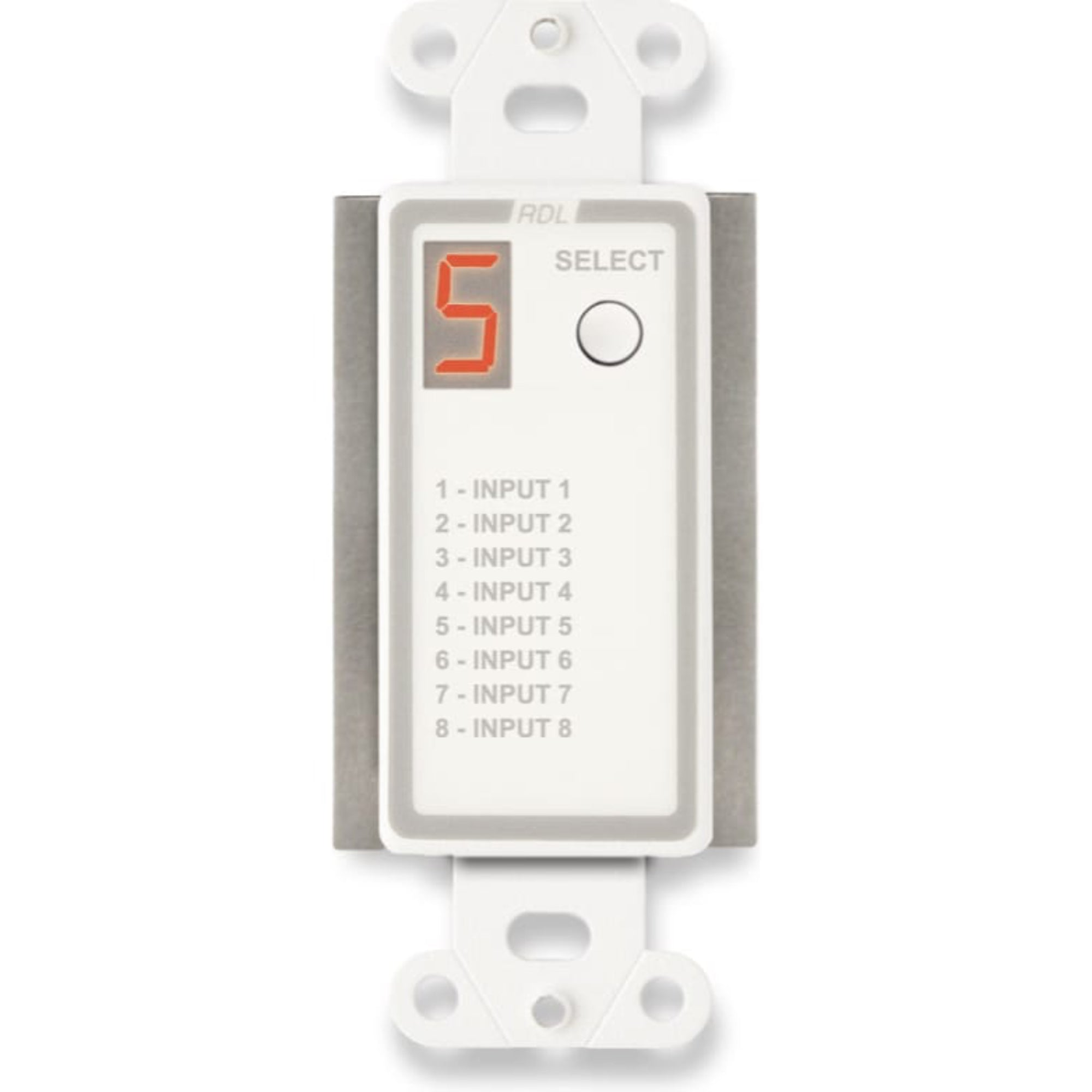

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.

The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.

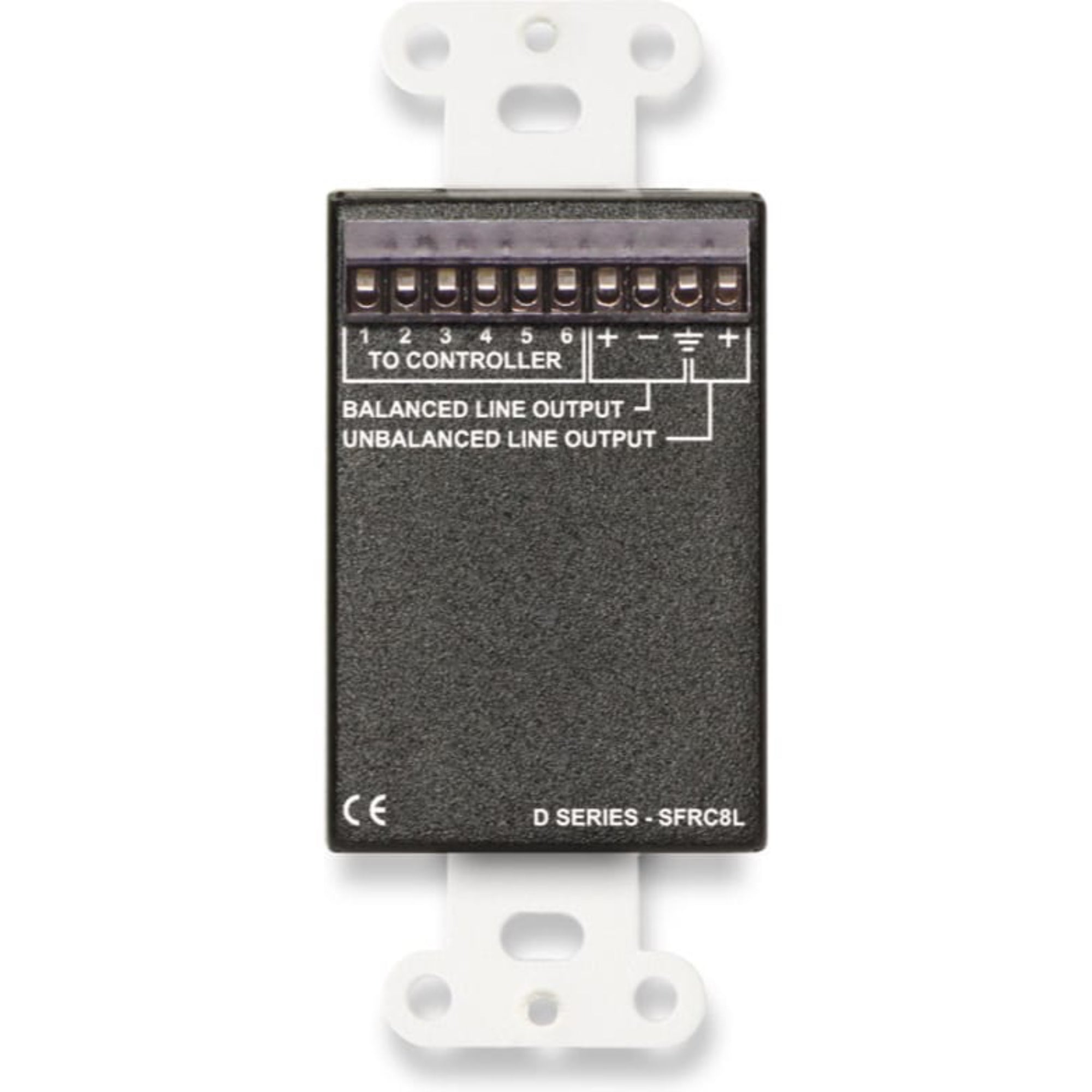

The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

Features:

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

Specifications:

• Input: 10-position detachable terminal block
• Display: 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
• Selector: Momentary button channel SELECT
• Frequency Response: 20 Hz to 20 kHz (±0.1 dB)
• THD+N< 0.1% (20 Hz to 20 kHz)
• Noise: < -85 dB (Below +4 dBu)
• Control Signals: dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
• Line Outputs (2): +4 dBu balanced, -10 dBV unbalanced, nominal
• Power Requirement: 24 Vdc @ 30 mA, Supplied from SourceFlex controller
• Ambient Operating Environment: 0° C to 50° C Maximum; 20° C Recommended
• Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
• Package Type: Cardboard Box
• Package Dimensions: 3.625 x 4.625 x 2.125 in.
• Shipping Weight: .44 lbs.
• WEEE weight: 0.305 lbs.
• Tariff code: 8518.40.2000
