RDL D-RC2ST 2 Channel Remote Control for STICK-ON on Decora Plate (White)

2 Channel Remote Control for STICK-ON - Remote Selection of Audio or Video Sources - White/Gray Finish

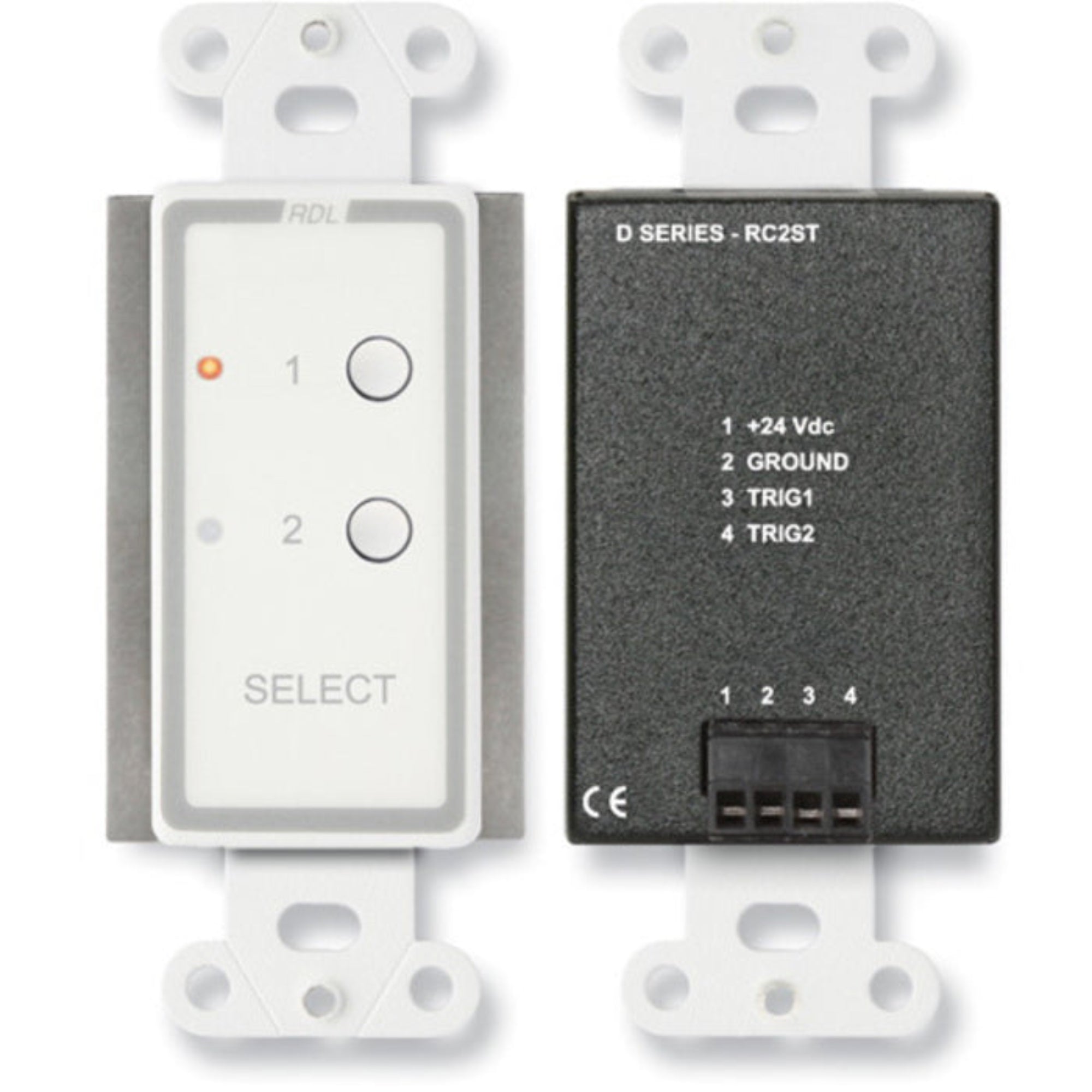

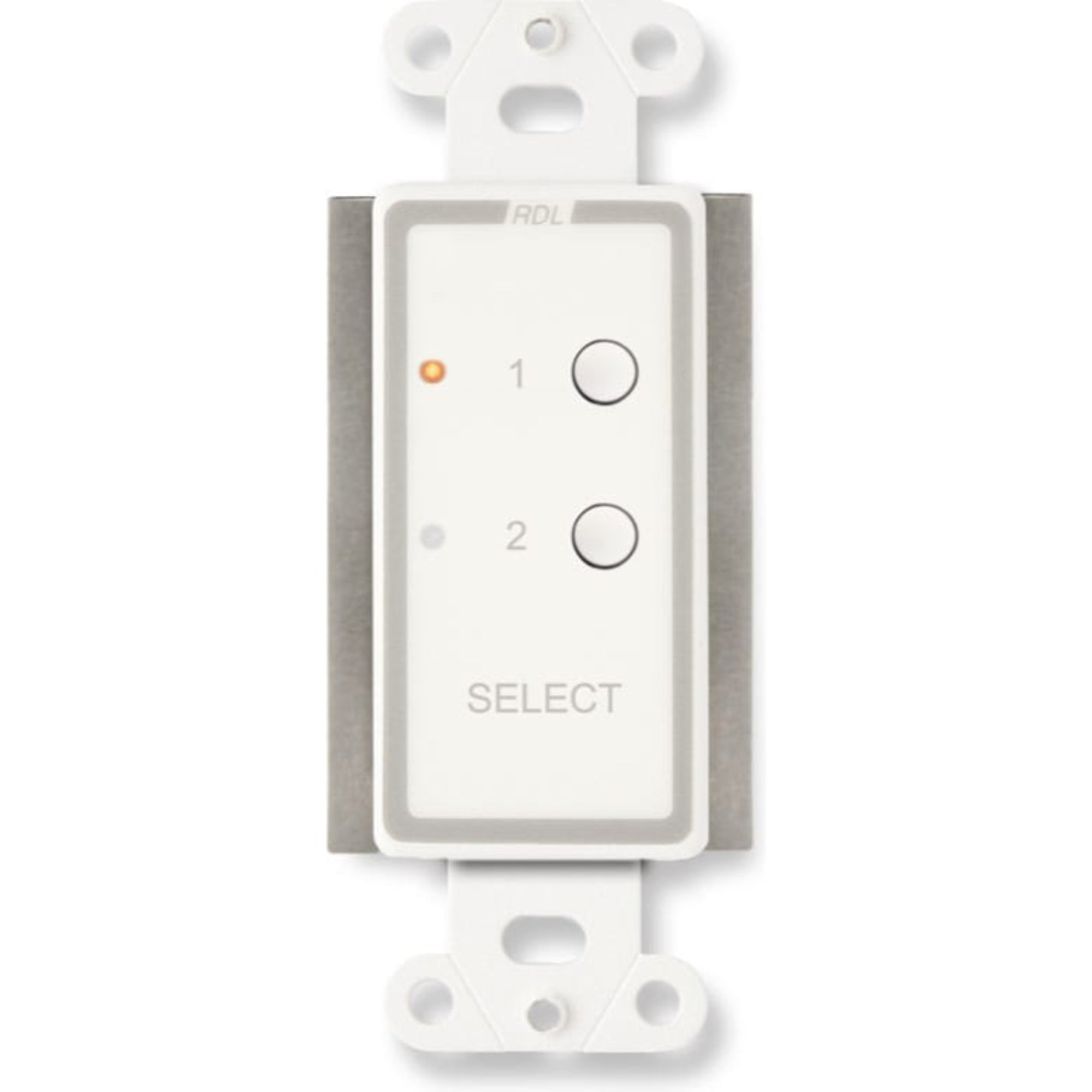

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote Control.

Features:

• Features:
• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls

Specifications:

• Selectors (2): Momentary pushbuttons, (1 for each channel)
• Indicators (2): Red LEDs, (indicates channel selected)

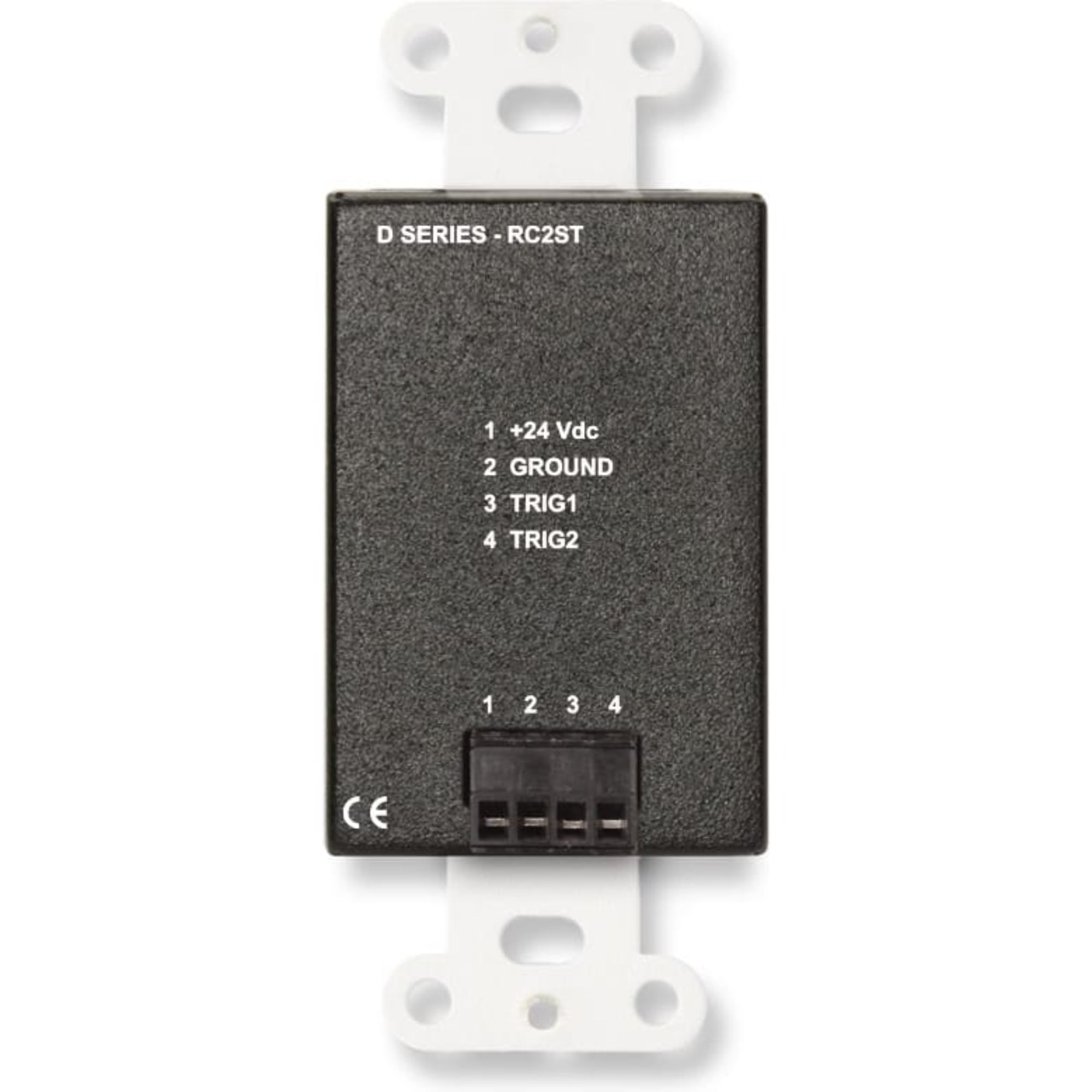

• Connections: Detachable terminal block; Power input; open-collector outputs (25 mA current limited)
• Ambient Operating Environment:-10 C to 55 C
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
• Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
• Package Type: Cardboard Box
• Package Dimensions: 3.625 x 4.625 x 2.125 in.
• Shipping Weight: .365 lbs.
• WEEE weight: 0.215 lbs.
• Tariff code: 8517.62.0050
