Radial Engineering SW8 Eight-Channel Auto-Switcher

8-Channel Backing Track Switcher with D-Subs & 1/4" Inputs and Isolated DI Outs

Radial SW8 Auto-Switcher
The Radial SW8 auto-switcher provides redundant backup by automatically switching between two 8-channel sources such as a pair of digital recorders. Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, backing chorals and sound effects, the SW8 can detect a machine malfunction and automatically switch to a second backup machine to ensure a seamless performance.

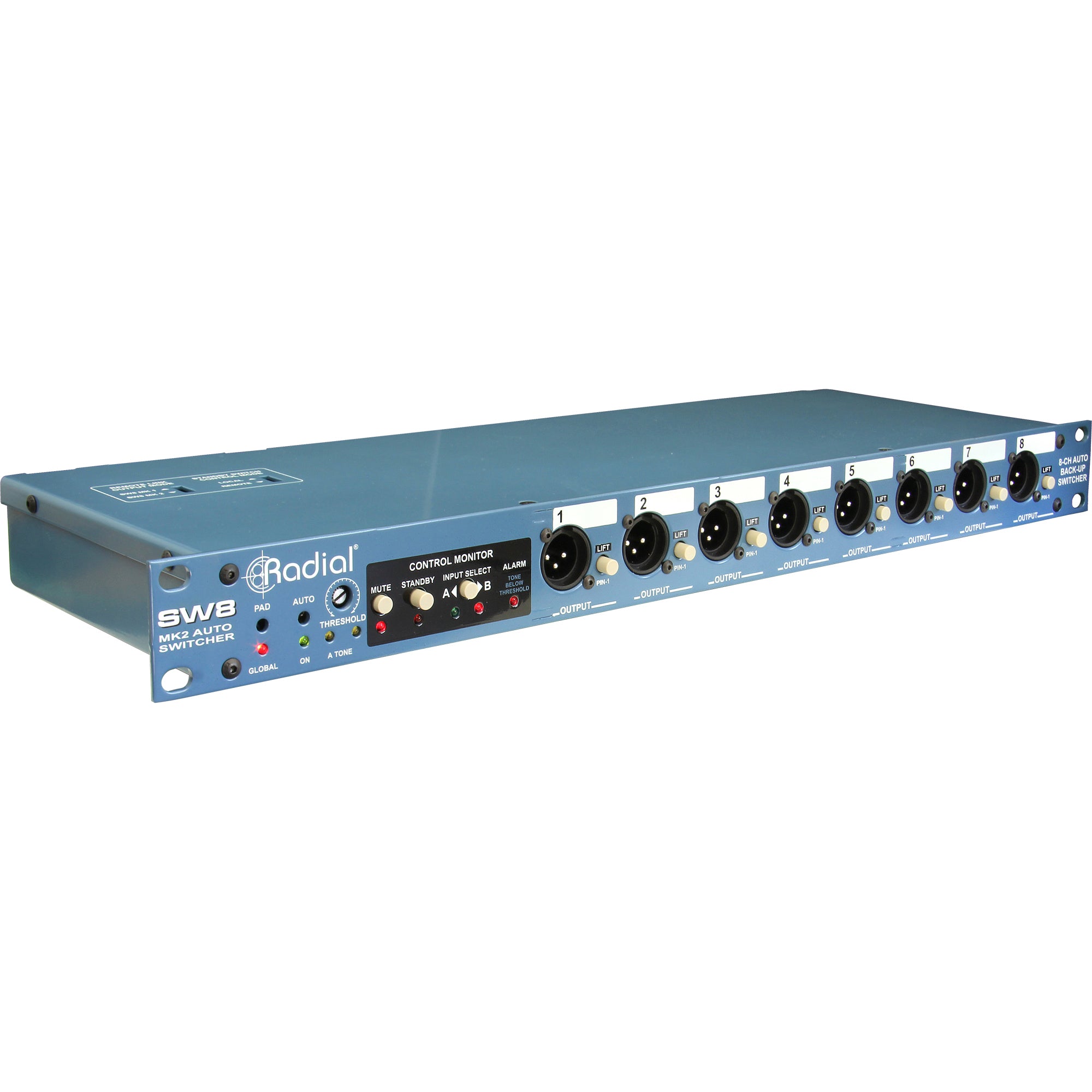

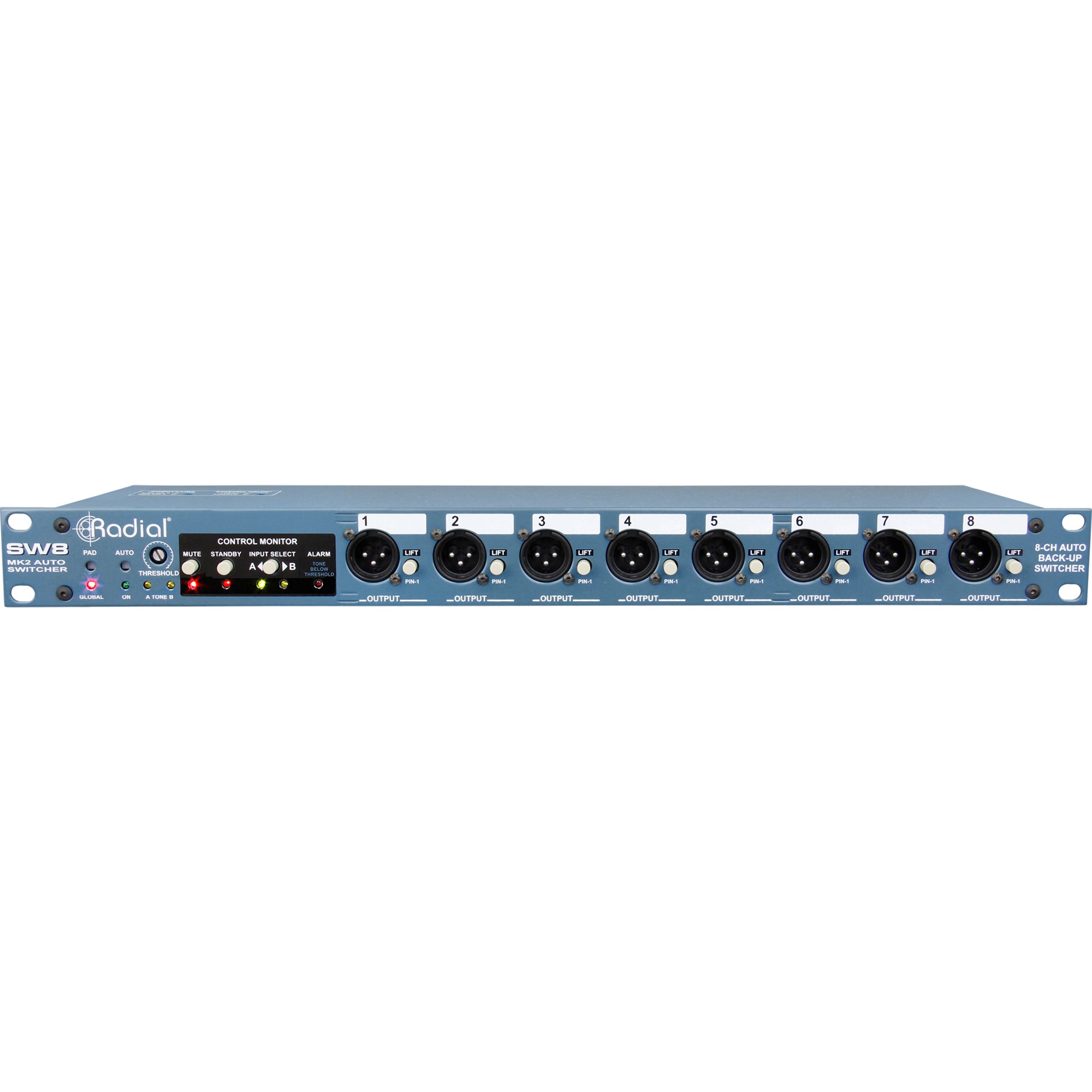

Using the SW8 is easy! Connect your two sync'd playback systems and record a steady drone on track-1. If the tone disappears, the SW8's front panel red LED will illuminate to let you know trouble is at hand. If you like, have the SW8 trigger an alarm, trip a contact closure or have it automatically switch to your second machine. For larger systems, the SW8 may be expanded by linking machines together using a simple 1/4" instrument cable.

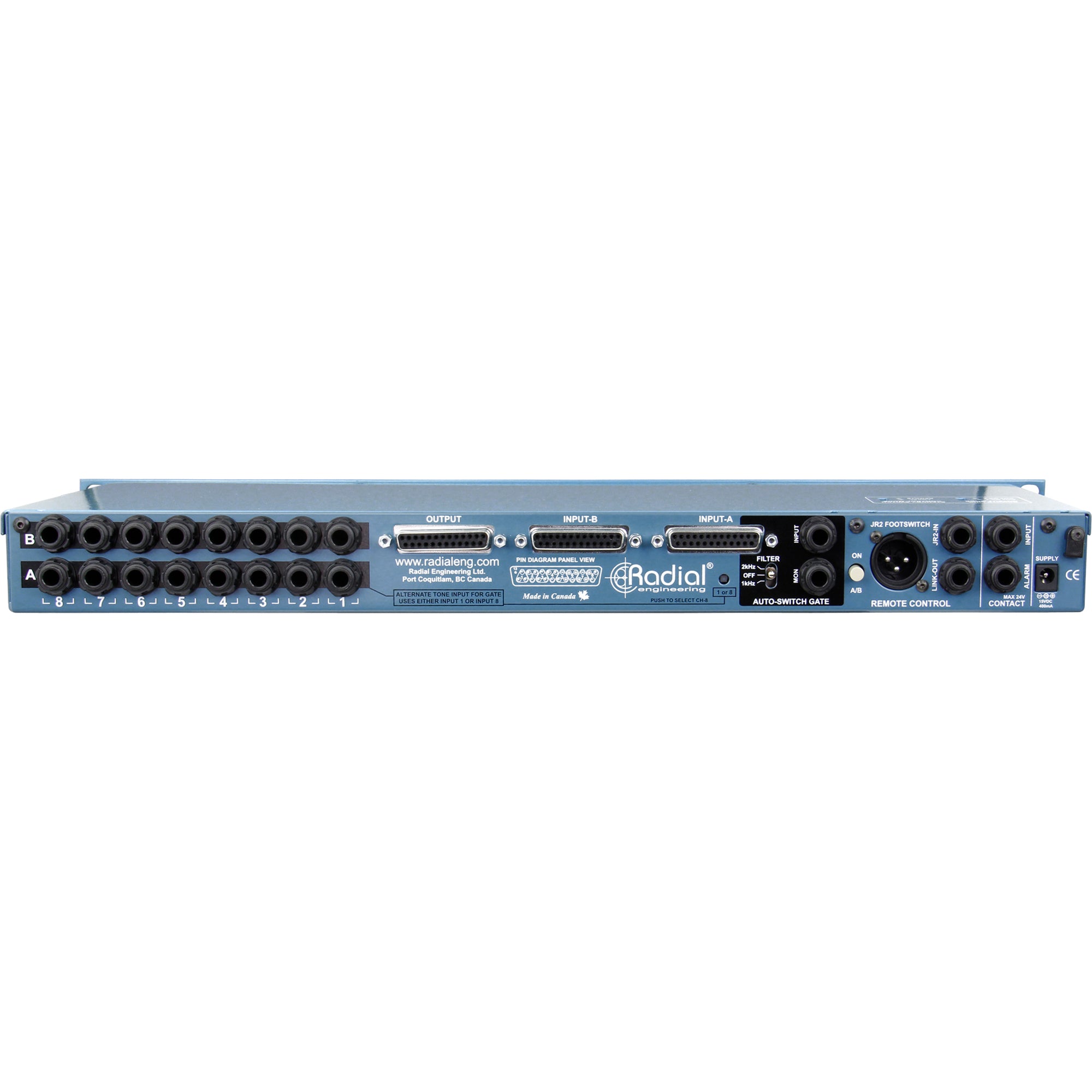

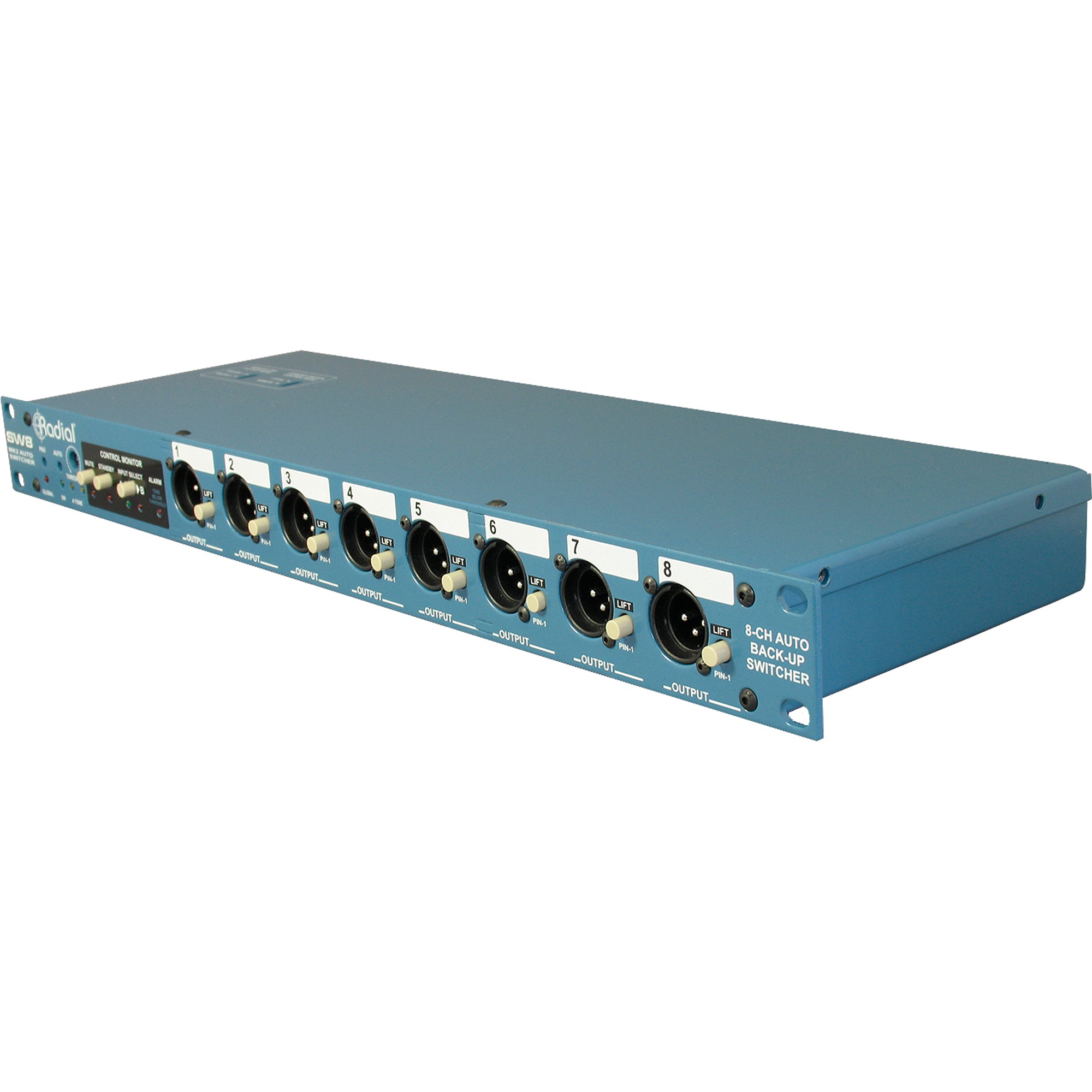

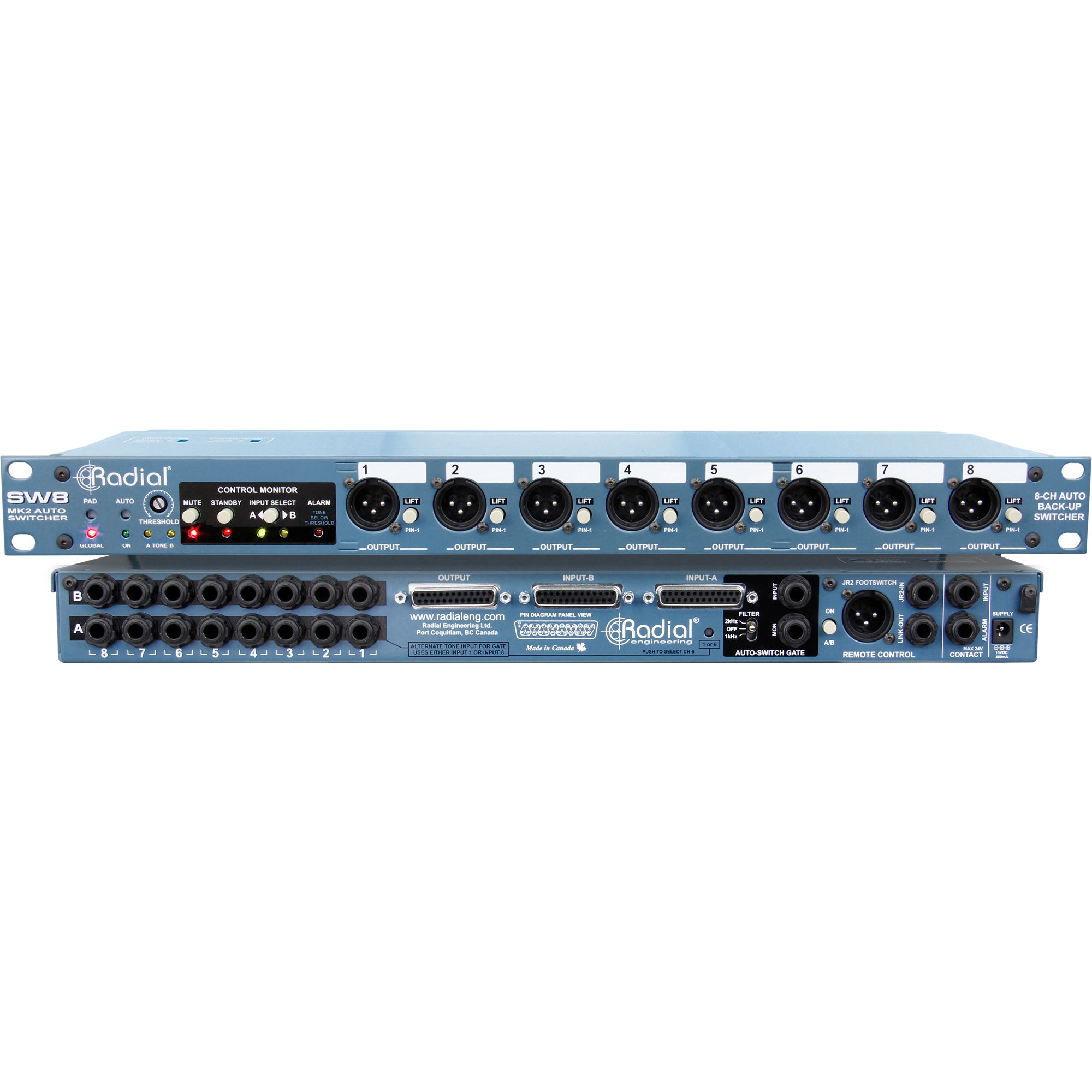

Housed in a heavy duty 14-gauge steel 19" enclosure, the Radial SW8 is equipped with choice of 1/4" TRS or 25 pin D-Sub inputs and XLR or D-Sub outputs to handle just about any audio challenge, wardrobe malfunction or backing tape failure.

Features:

• Auto-switch between two 8 channel systems
• Expandable and remote controllable
• Mic and line level operation
• Transformer isolated XLR mic outputs
• Full manual override with foot control
