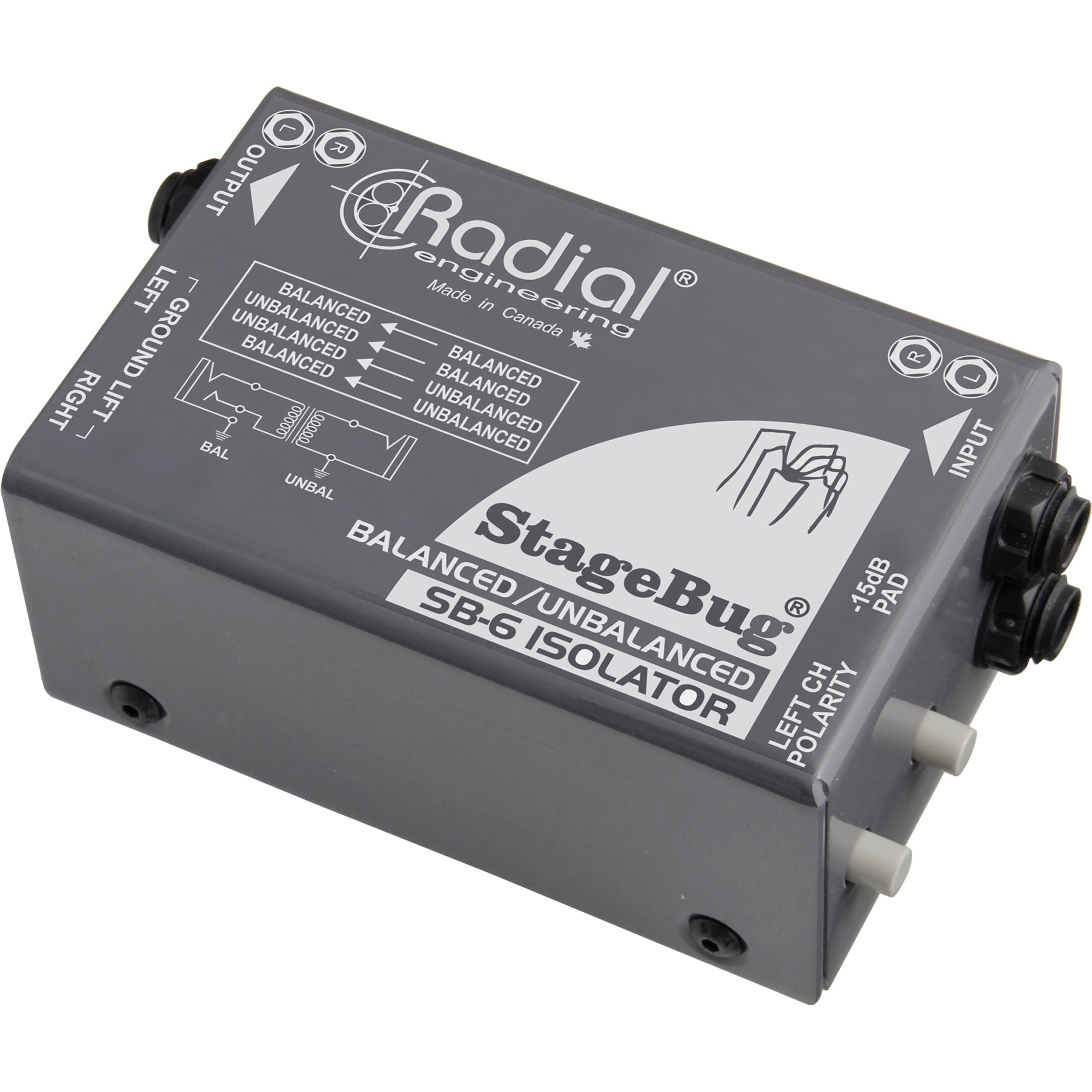

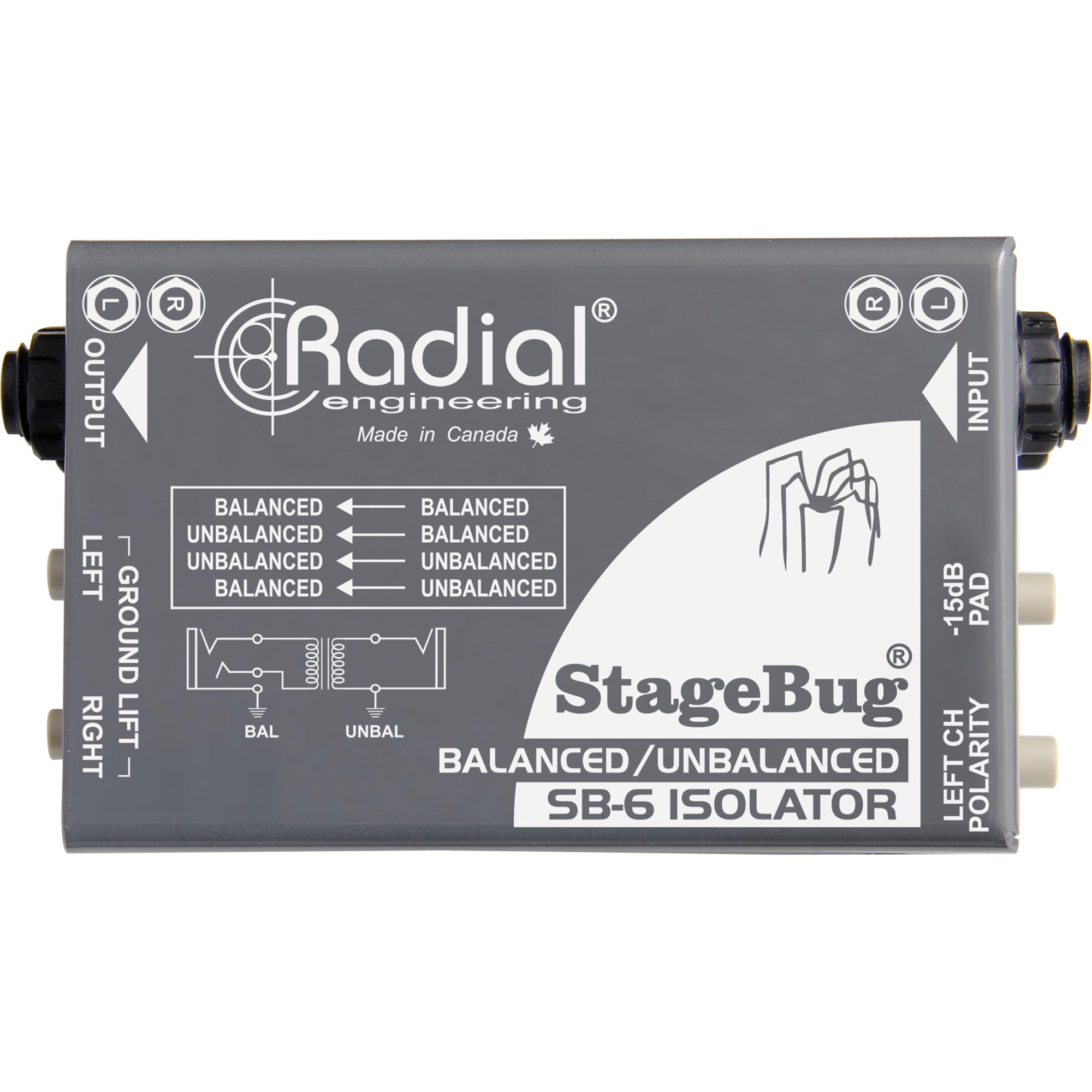

Radial Engineering StageBug SB-6 Isolator

Compact Stereo Isolator for Balanced/Unbalanced Signals, Passive

The Radial StageBug SB-6 is a high performance 2-channel passive audio isolator designed to accommodate both balanced and unbalanced signals and work effectively at eliminating noise when used with instruments, consumer electronics as well as professional line-level devices.

The design begins with -" TRS inputs and outputs to accommodate both TRS and mono type connectors. The unique circuit retains the balanced signals or automatically converts them from hi-Z to lo-Z (-" mono to TRS) or lo-Z to hi-Z (1/4"TRS to mono) depending on the connector in use. You simply connect and the SB-6 does the work for you! Inside are two ultra-linear Eclipse transformers that sound great as they deliver ruler flat performance from 20Hz to 20kHz. This is augmented with a -10dB input pad to handle extra loud source devices and a polarity reverse on output B for phase aligning stereo signals. As the circuit is passive, no power is required - simply plug in and play. As with all Radial products, the SB-6 is made in Canada and features 16 gauge steel construction for use on the road and finished in a durable powder coat finish.

These features combine to make the SB-6 Isolator a wonderful solution to help rid system noise in two channel audio systems, stereo guitar racks and pedalboards.

Features:

• Isolator for balanced and unbalanced signals
• Eliminates hum and buzz caused by ground loops
• Exceptionally linear from 20Hz to 20kHz
• Automatically configures for hi-Z or lo-Z signal chains

Specifications:

• Audio Circuit Type: Passive transformers
• Frequency Response: 20 Hz to 20 kHz +/-1 db
• Dynamic Range: >140 dB
• Maximum Input: >+25 dBu
• Gain: -2 dB
• Total Harmonic Distortion: <0.0008% @ 1 kHz
• Phase Deviation: >5° @ 30 Hz
• Input Impedance: Varies with load 47 KΩ
• Output Impedance: 600 Ω
• Features:
  Transformer: Eclipse custom
  Input Pad: -15 dB
  Polarity: 180° reverse
  Ground Lift: Disconnects TRS sleeve at output

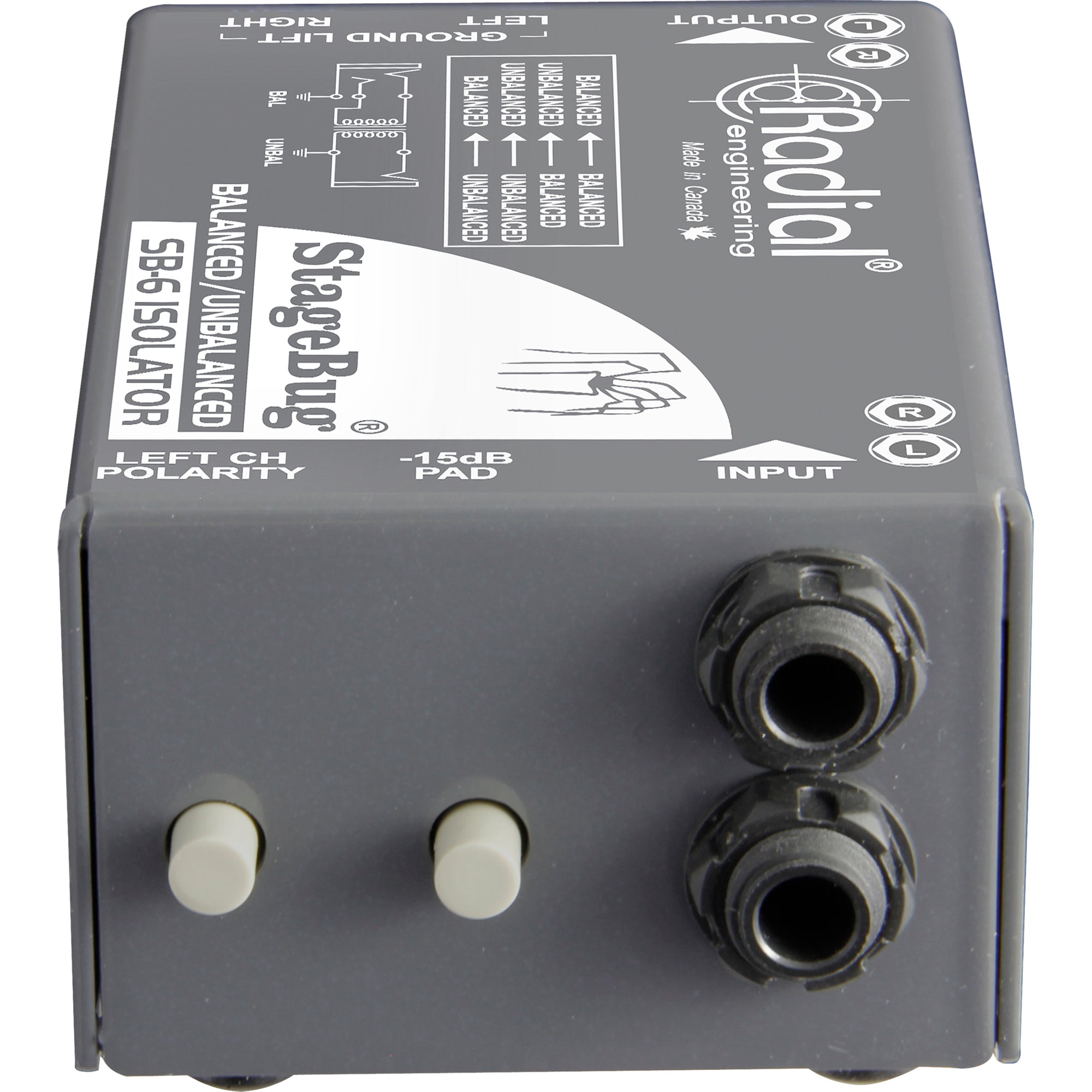

• Input Connector: 1/4" (6.3 mm) TRS phone

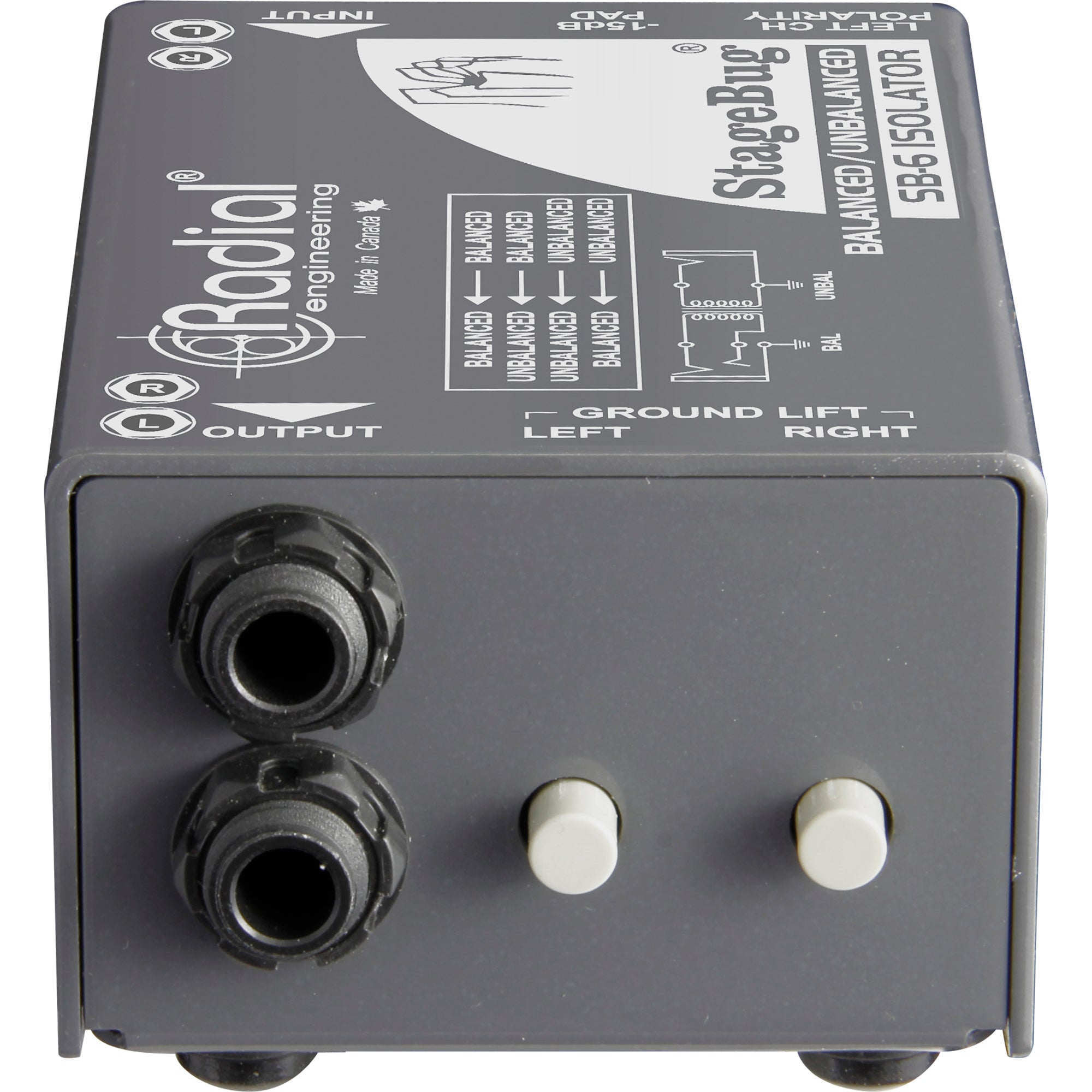

• Output Connector: 1/4" (6.3 mm) TRS phone
• Construction: 14 gauge steel chassis & outer shell
• Power: Passive, no power required
• Operating Conditions: For use in dry locations only between 41 to 104°F (5 to 40°)
• Dimensions (L x W x D): 4.50 x 1.85 x 1.35" (114 x 47 x 34 mm)
• Weight: 0.9 lb (408 g)
