Radial Engineering JD7 1x7 Guitar Signal Distribution Amplifier

Guitar Signal Splitter & Distro with 7 Outputs, DI Box and X-Amp Reamper

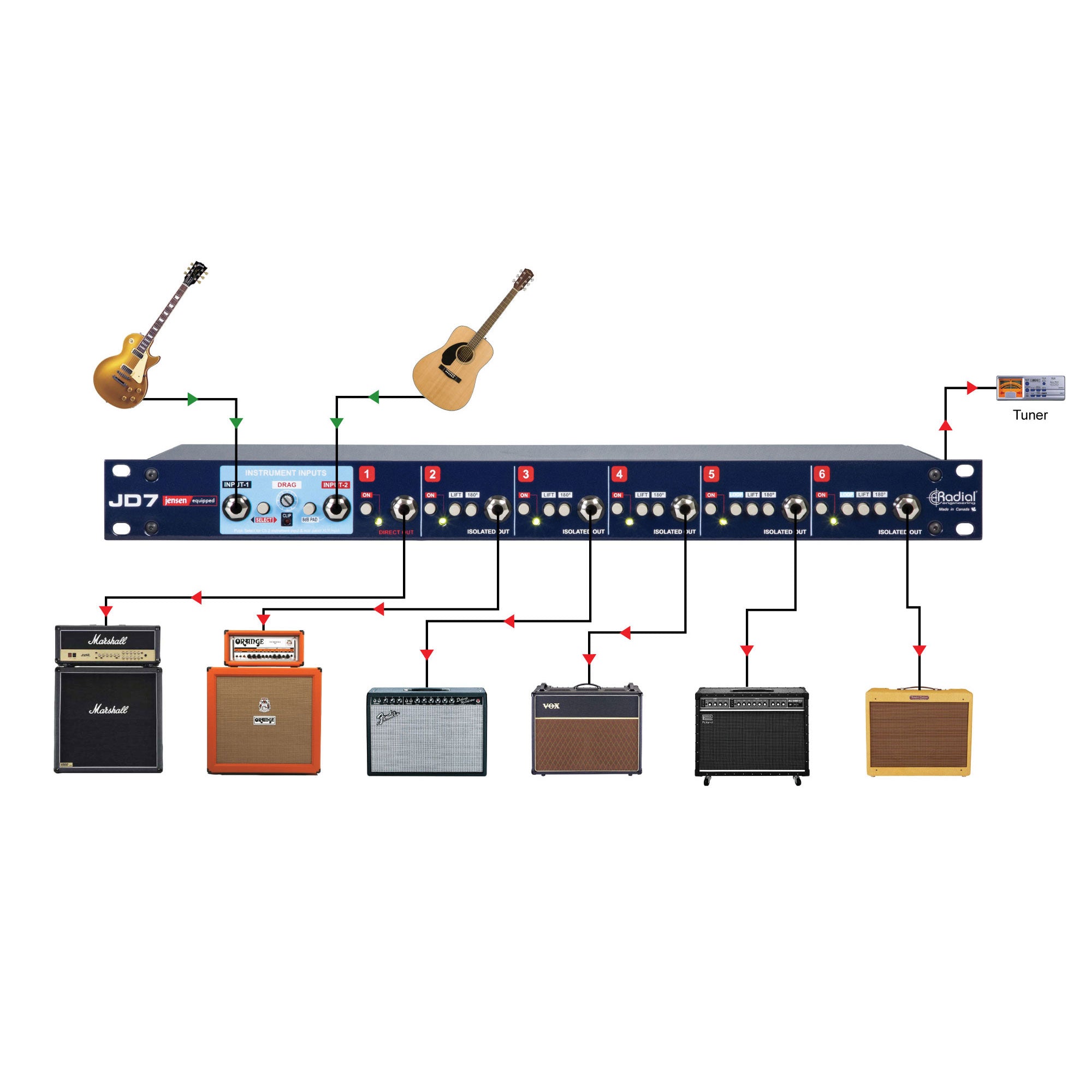

The Radial JD7 Injector is a creative recording tool disguised as a guitar signal distribution amplifier that allows a guitar signal to drive as many as seven amplifiers simultaneously without loss or coloration.

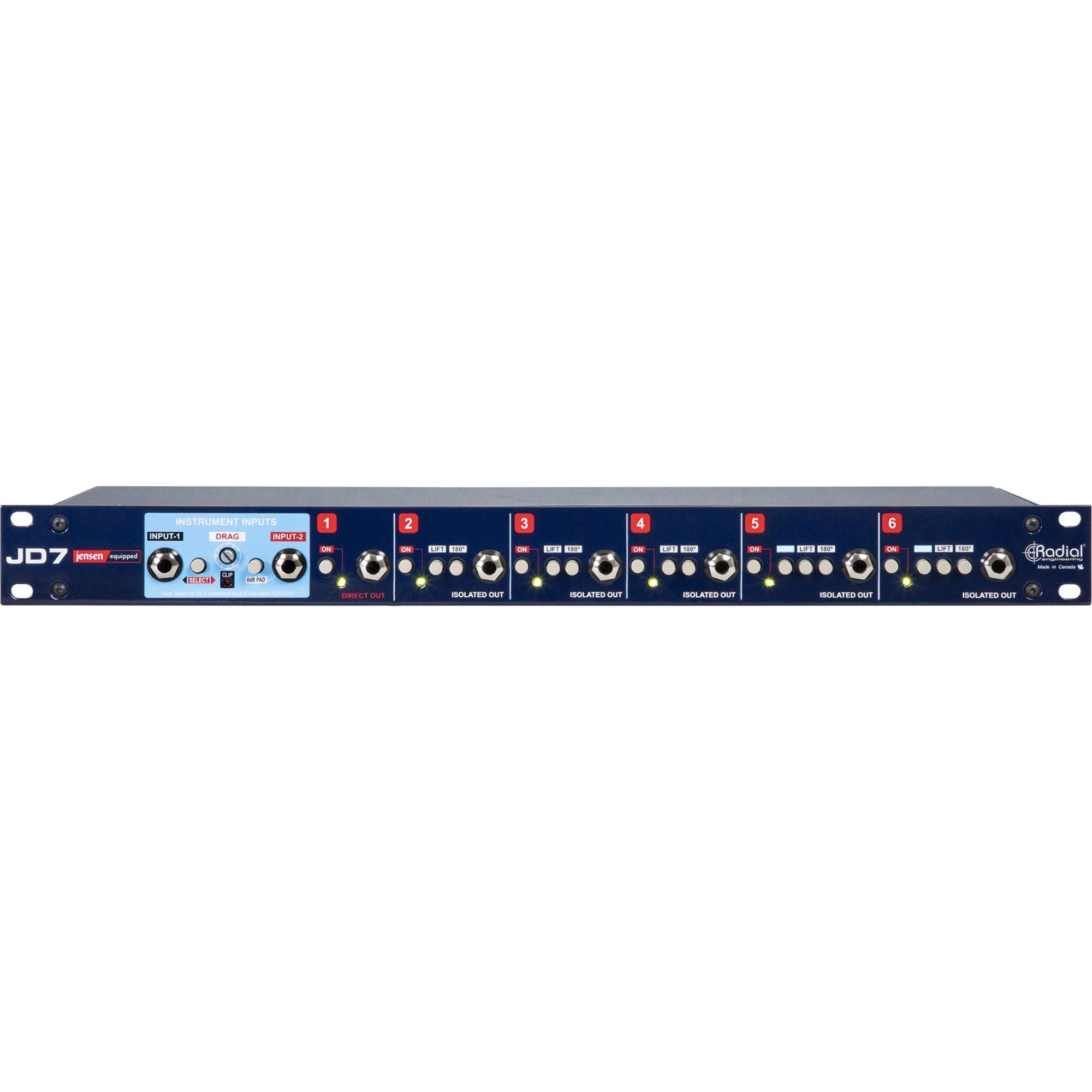

Front panel control makes selecting amplifiers, ground paths and polarity (phase reversal) easy. The JD7 utilizes a newly developed Class-A audio signal path that has been optimized for use with electric guitars and is 100% discreet (no opamps or chips) producing the most accurate and faithful signal at each output. To eliminate such problems as 60 cycle hum caused by ground loops without signal degradation, the world's finest audio transformers by Jensen are employed.

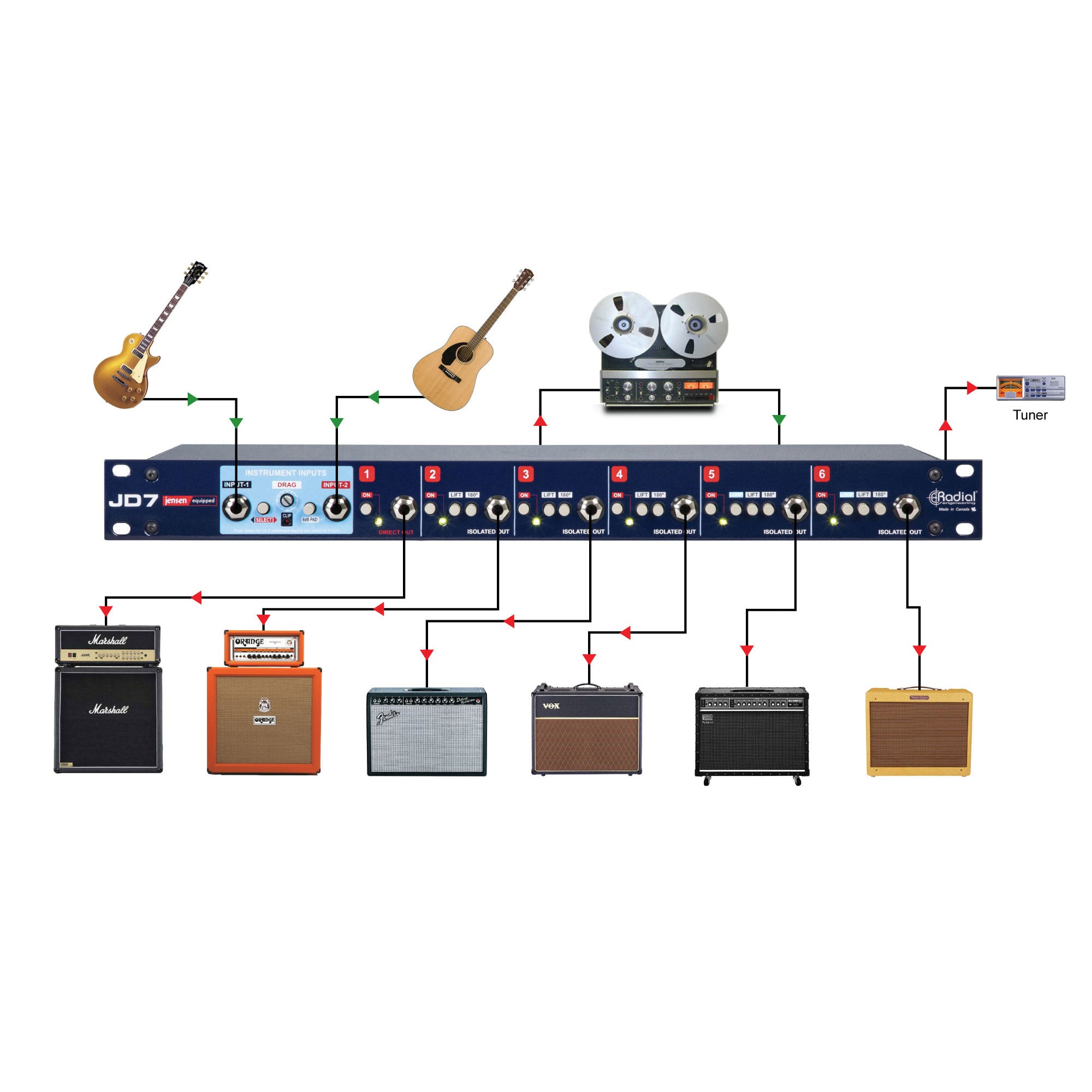

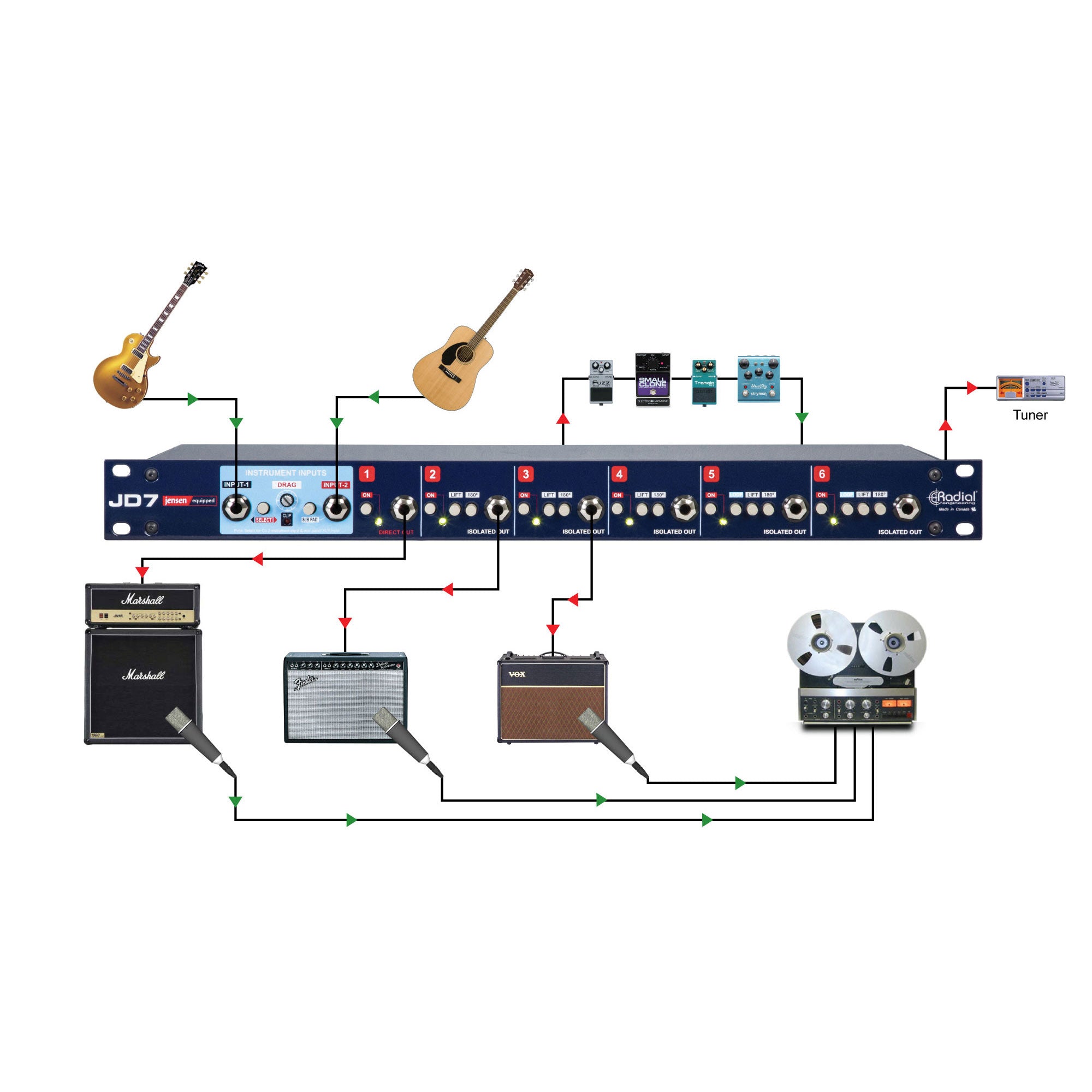

The Radial JD7 also features a 600-Ohm balanced direct output to allow the engineer to record a dry guitar track or to use the JD7 as a direct box. A balanced input allows a pre-recorded track to be sent back into the JD7 which can then drive amplifiers, effect pedals and other devices.

Features:

• Drive up to 7 amps and effects at the same time
• 100% discrete class-A buffers with Jensen Transformer isolation
• Built-in Radial DI with multi-out Reamping capabilities
• Drag control load correction for natural sound

Specifications:

• Specifications
• Specifications are subject to change without notice.
• Audio circuit type: 100% discrete class-A with transformer isolation
• Frequency response: 20Hz ~ 20kHz (+/- 1dB)
• Signal to noise ratio: -115dB (0dBu input)
• Dynamic range: 125dB (unbalanced input to unbalanced output)
• Noise floor: -115dBu (direct output-1)
• -115dBu (isolated outputs)
• Maximum input: +13dBu (unbalanced 1/4" instrument inputs-A & B)
• +23dBu (balanced line-level reamping input)
• Total harmonic distortion: 0.05% @ 1k (direct output-1)
• 0.05% @ 1k (isolated outputs)
• 0.1% @ 1k (balanced DI mic-level output)
• Inter-modulation distortion: 0.2% @ -20dBu
• Input impedance: Variable from 10k Ohms ~ 1megaOhm
• Output impedance: 1/4" unbalanced: 10k Ohms; XLR balanced: 150 Ohms
• Features
• Input select: A or B selectable inputs
• Input pad: -8dB (input B)
• Phase reverse: 180(0) polarity reverse (isolated outputs)
• XLR output: Transformer isolated DI out with phase rev. & gnd lift
• XLR input: Balanced line-level Reamp input with gnd lift
• Ground lift: Isolated channels 2 thru 6; Bal XLR I/O
• XLR configuration: AES standard (pin-2 hot)
• General
• Power: +15VDC/400mA adapter included
• Construction: 14 gauge steel chassis & outer shell, baked enamel finish
• Size: 17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm)
• Weight: 7.5 lb (3.4 kg)
• Shipping size 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm)
• Shipping weight 8lbs (3.63kg)
• Warranty: Radial 3-year, transferable
