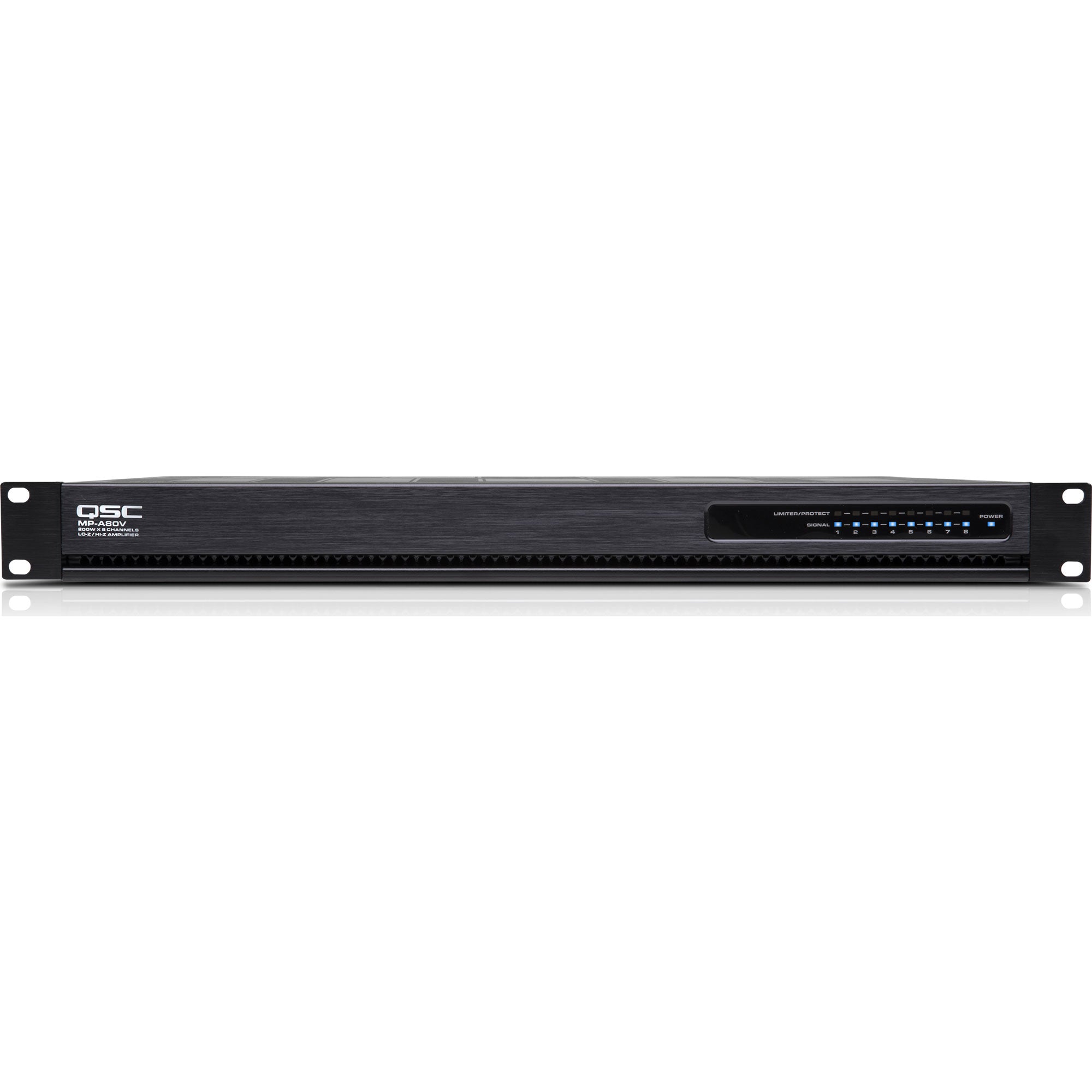

QSC MP-A80V FlexAmp Music and Paging Amplifier (8-Channel)

MP-A Series Eight-Channel Background Music & Paging Amplifier with FlexAmp Technology

The MP-A Series music and paging amplifiers build on a 50-year legacy of amplifier dependability and quality. The MP-A Series offers an incredible amount of flexibility for business music and paging applications, while maintaining high efficiency and low total cost of ownership.

Features:

• FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
• Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
• 1RU amplifier design for rack space savings
• Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
• Selectable 80 Hz highpass filter offered on each channel
• Power saving features - Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
• Amp status remote output

Specifications:

• Channels:
  MP-A20V: 2
  MP-A40V: 4
  MP-A80V: 8
• Power (all channels driven):
  8 Ω: 200 W
  4 Ω: 200 W
  70 V: 200 W
  100 V: 200 W
• FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
• Frequency response at 8 Ω: 20 Hz - 20 kHz +/- 0.5 dB
• Signal to Noise: > 103 dB
• Input sensitivity: 1.23 V (+4 dBu)
• Gain at 8 Ω: 30.0 dB
• Output circuitry: Class D
• Input impedance: >10k, balanced or unbalanced
• Maximum input level: 12.3 V (+24 dBu)
• Cooling:
• Type: Forced air cooling, thermally regulated fan speed, side/rear-to-front airflow
• Operating temperature range: Maximum: -10° - 50° C, recommended: 0° - 35° C, reduced performance above 40° C

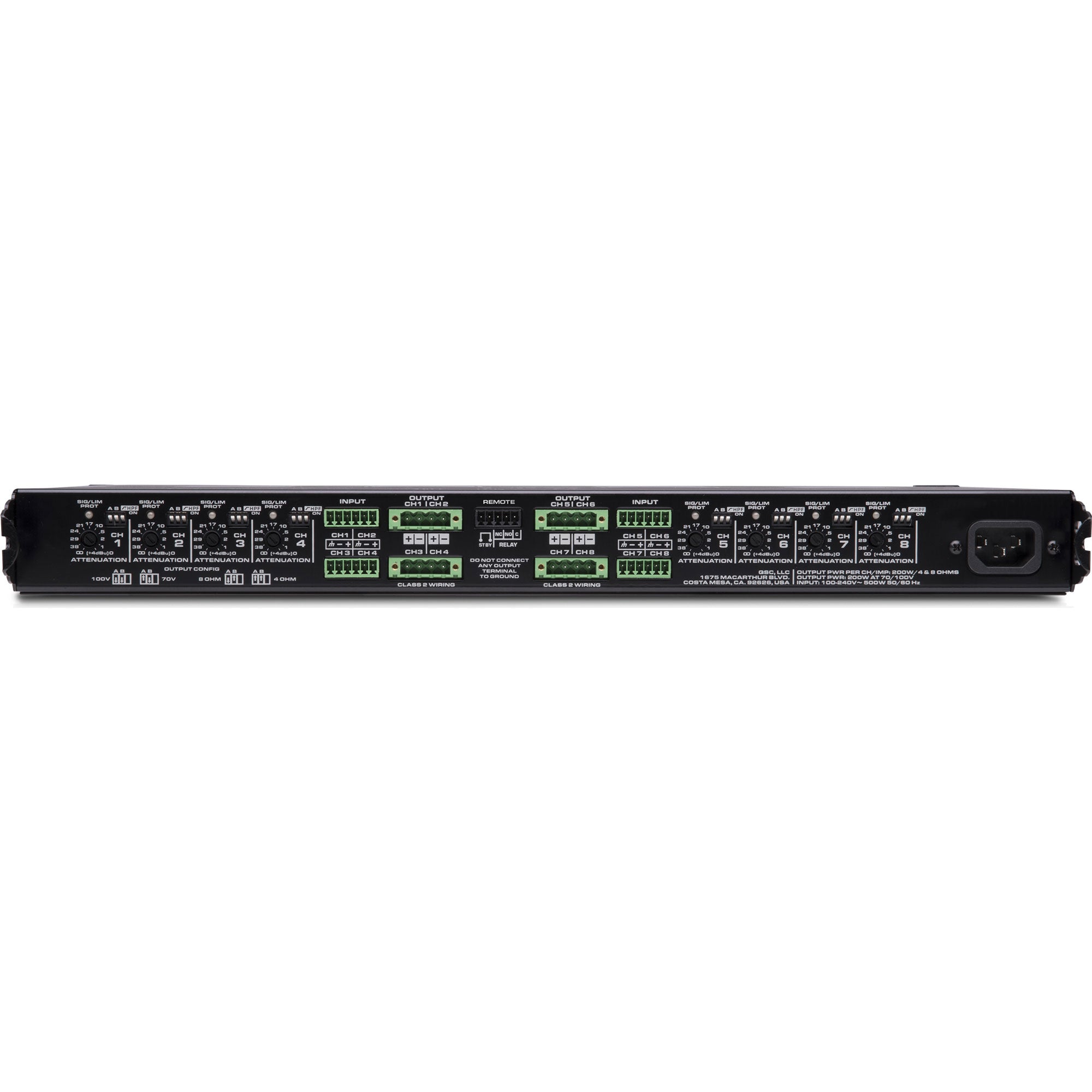

• Connectors:
• Input connectors:
  MP-A20V: Two 3.5mm Euro, 3-pin (green)
  MP-A40V: Four 3.5mm Euro, 3-pin (green)
  MP-A80V: Eight 3.5mm Euro, 3-pin (green)
• Remote connectors:
  MP-A20V: One 3.5mm Euro, 5-pin (black)
  MP-A40V: One 3.5mm Euro, 5-pin (black)
  MP-A80V: One 3.5mm Euro, 5-pin (black)
• Output connectors:
  MP-A20V: One 5.0mm Euro, 4-pin (green)
  MP-A40V: Two 5.0mm Euro, 4-pin (green)
  MP-A80V: Four 5.0mm Euro, 4-pin (green)
• Front panel indicators: Power, signal (per channel), limit / mute / protect (per channel)
• Rear panel indicators: Bi-Color LED signal / limit/ mute/ protect
• User-configurable operating modes (per channel): DIP switch selectable, low impedance 4 Ω or 8 Ω, high impedance direct drive 70 V or 100 V
• Remote I/O: Remote standby, amplifier status enunciation on 3.5 mm connectors
• Highpass filter: 80 Hz DIP switch engaged per channel
• Dimensions: 1.75 in x 19 in x 14.8 in (44 mm x 483 mm x 377 mm)
• Net weight:
  MP-A20V: 7.7 lb (3.5 kg)
  MP-A40V: 9.3 lb (4.2 kg)
  MP-A80V: 12.8 lb (5.8 kg)
• Shipping weight:
  MP-A20V: 12.3 lb (5.6 kg)
  MP-A40V: 13.9 lb (6.3 kg)
  MP-A80V: 17.4 lb (7.9 kg)
• Power requirements:
  Universal power supply (with active power factor correction),
  100 - 240 VAC, 50 -60 Hz
• Agency approvals:
  UL, CE, RoHS/WEEE compliant,
  FCC class B (conducted and radiated emissions)
• Carton contents: IEC cable, quick start guide, connector pack
