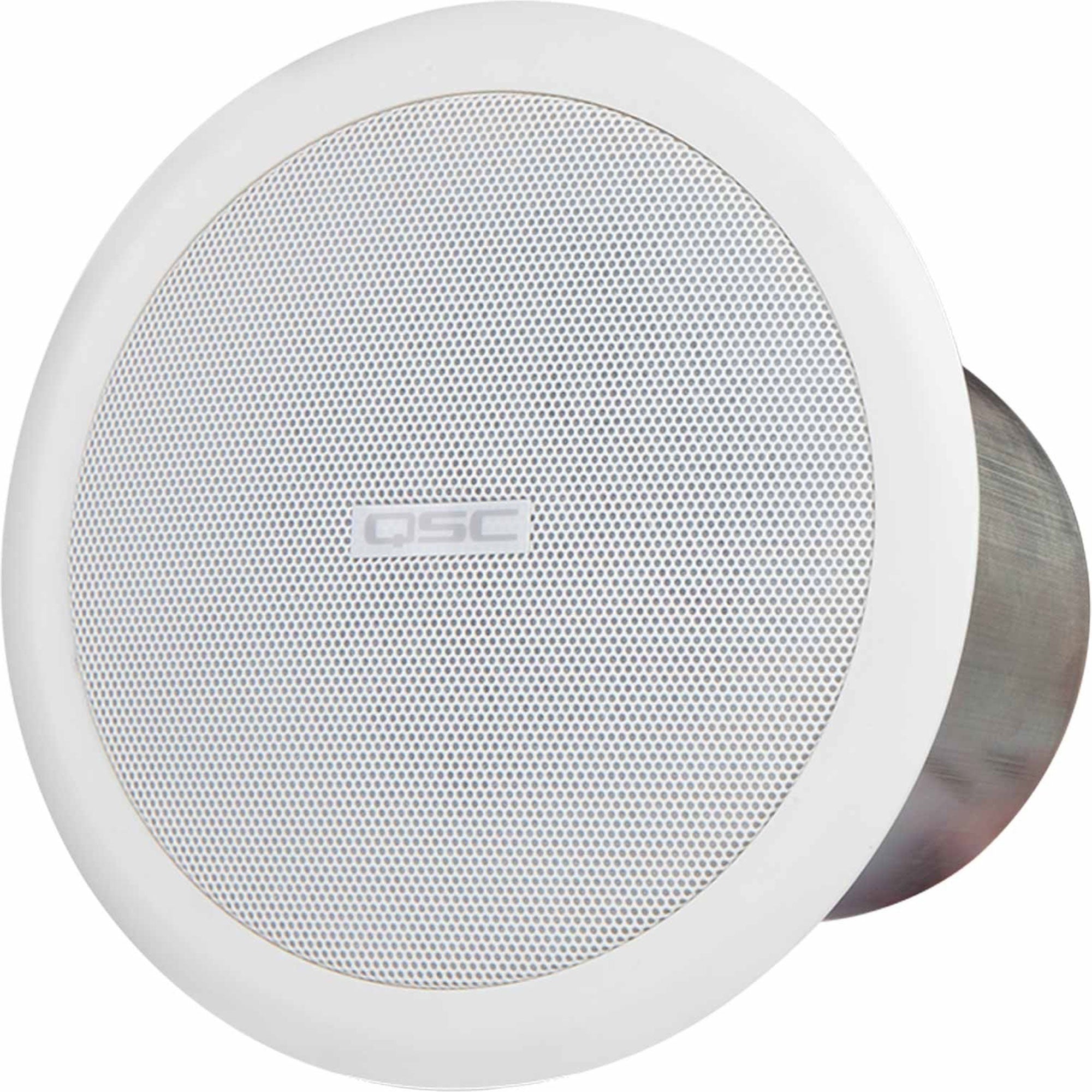

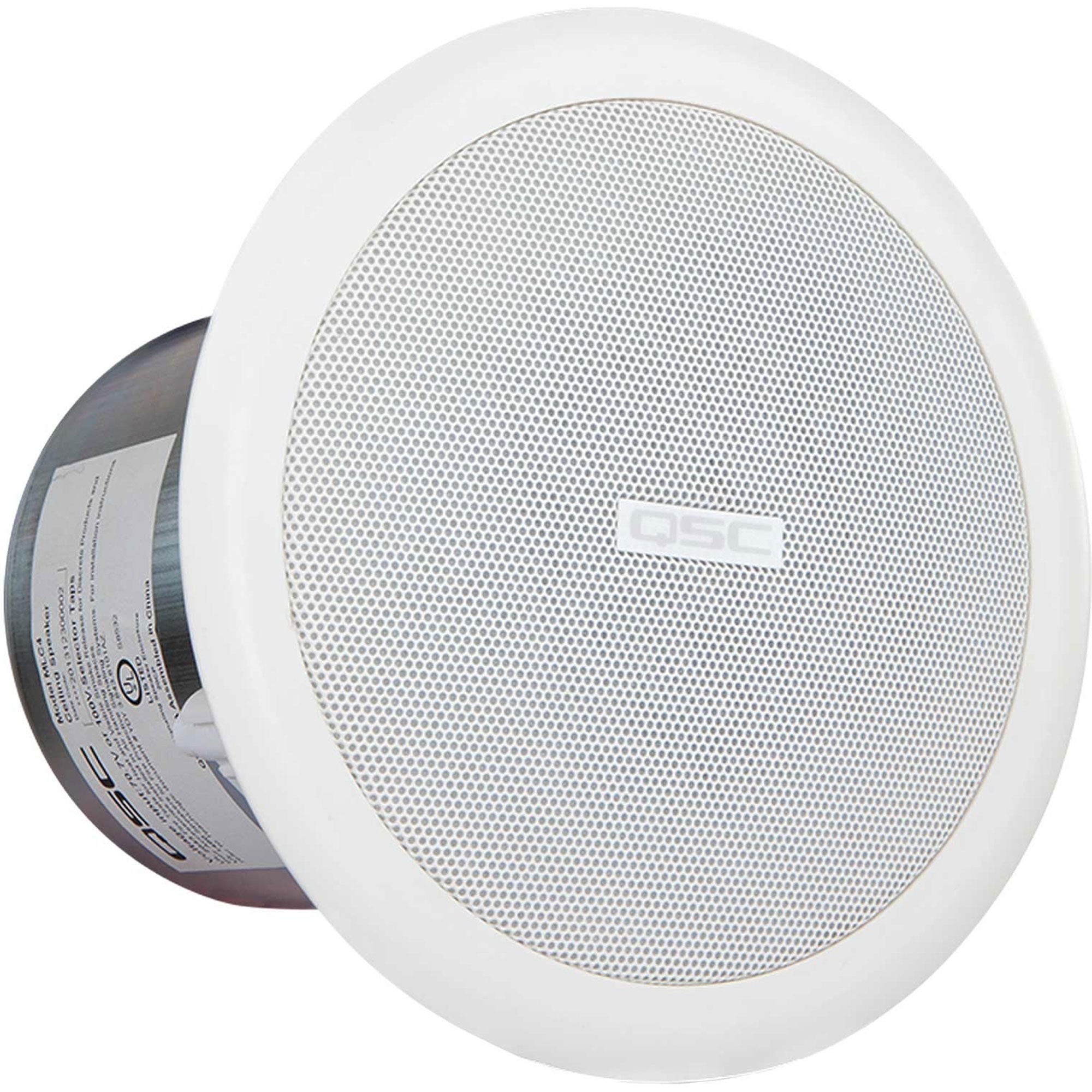

QSC AC-C4T AcousticCoverage 4.5" Full-Range Ceiling Loudspeaker (Each, White)

4.5" Full-Range Ceiling Speaker Ideal for Foreground Audio, POTS, Airports, Public address

The QSC AcousticCoverage Series AC-C4T is a ceiling mounted 4" full-range loudspeaker with 70/100V transformer, suitable for a wide variety of audio/video conferencing reinforcement, voice paging and background music applications.

AcousticCoverage Series is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

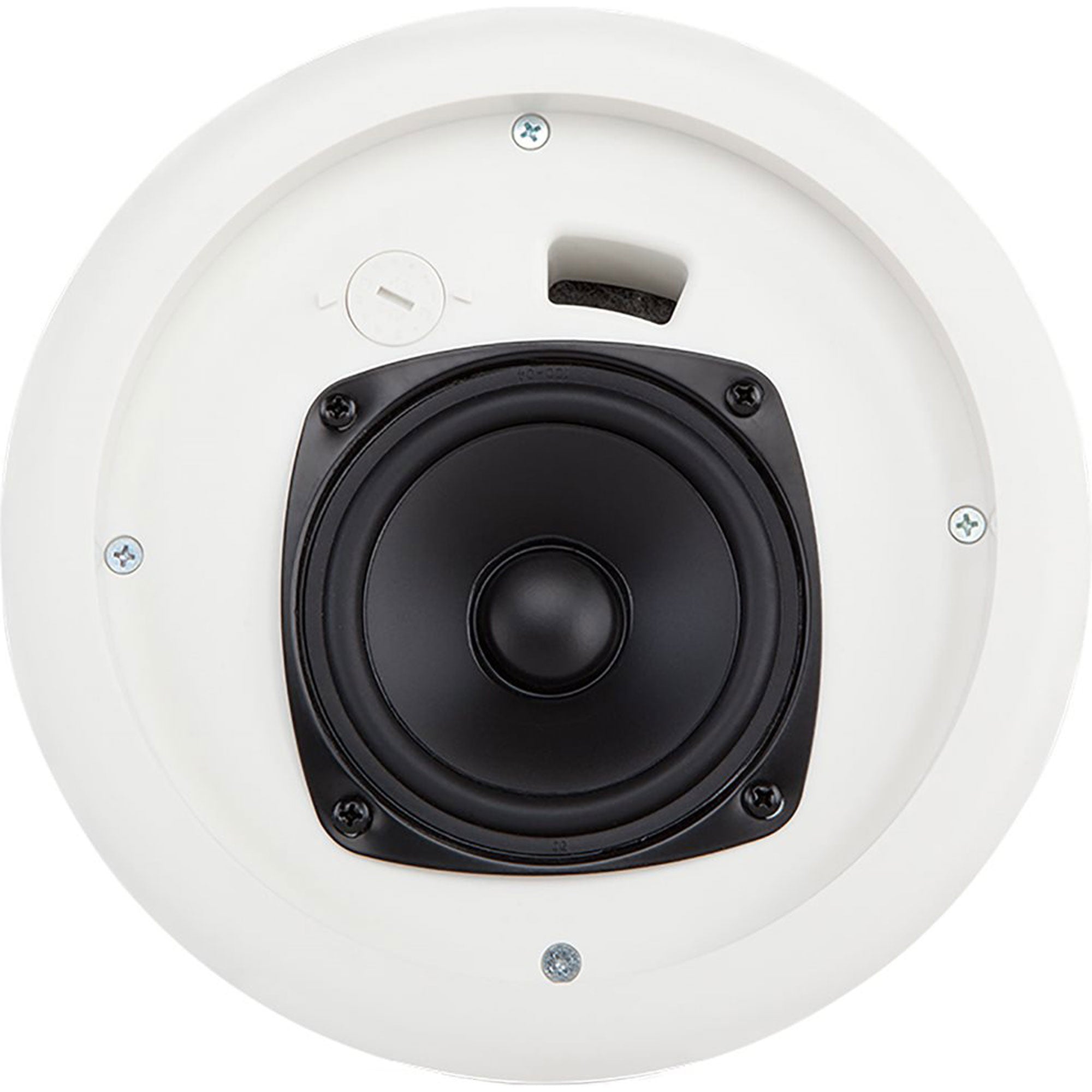

A high quality 4 inch polypropylene cone transducer with butyl rubber surround offers pristine clarity through the critical vocal range for increased speech intelligibilty. With 140 degrees of conical coverage, the AC-C4T reduces the number of loudspeakers required for even coverage in low ceiling applications.

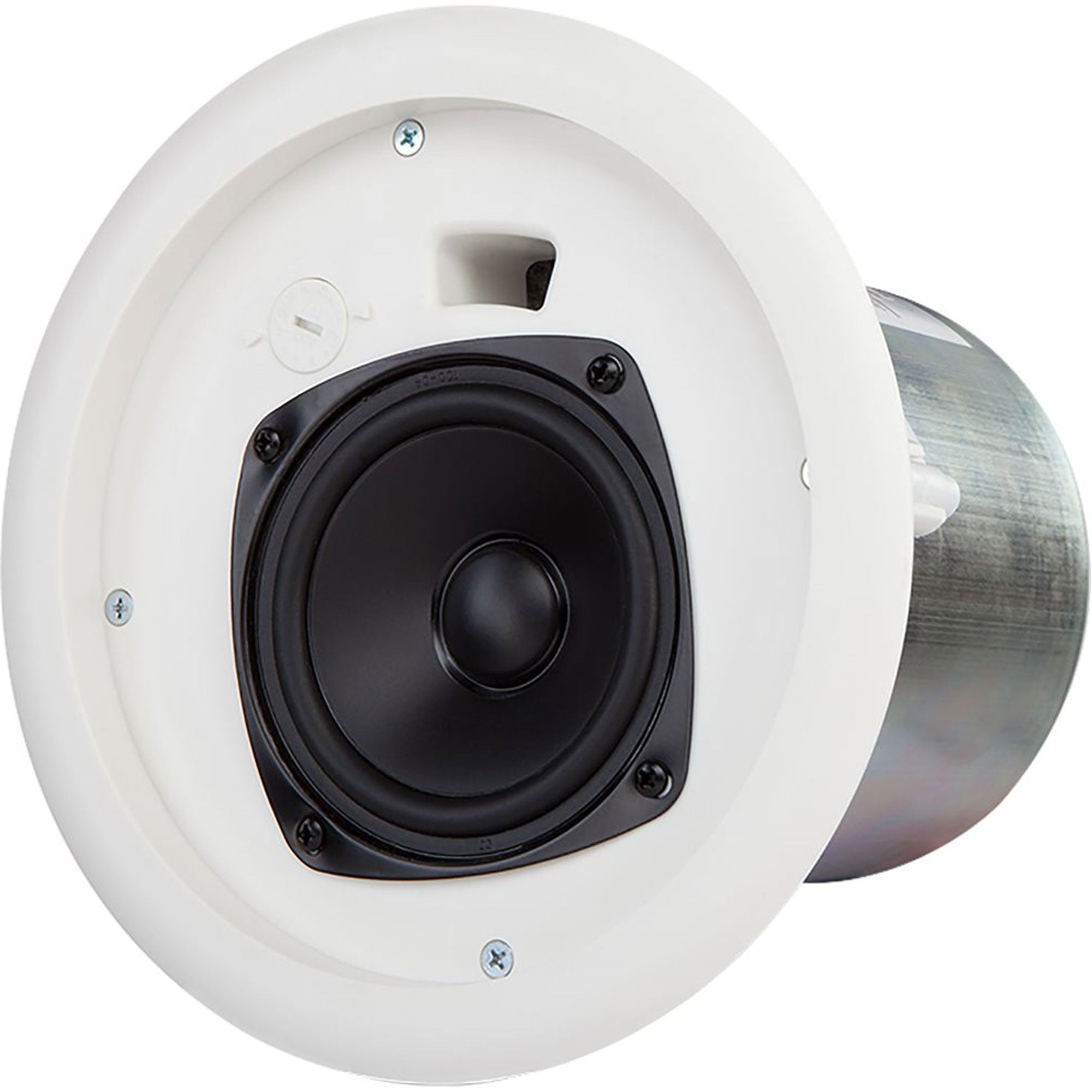

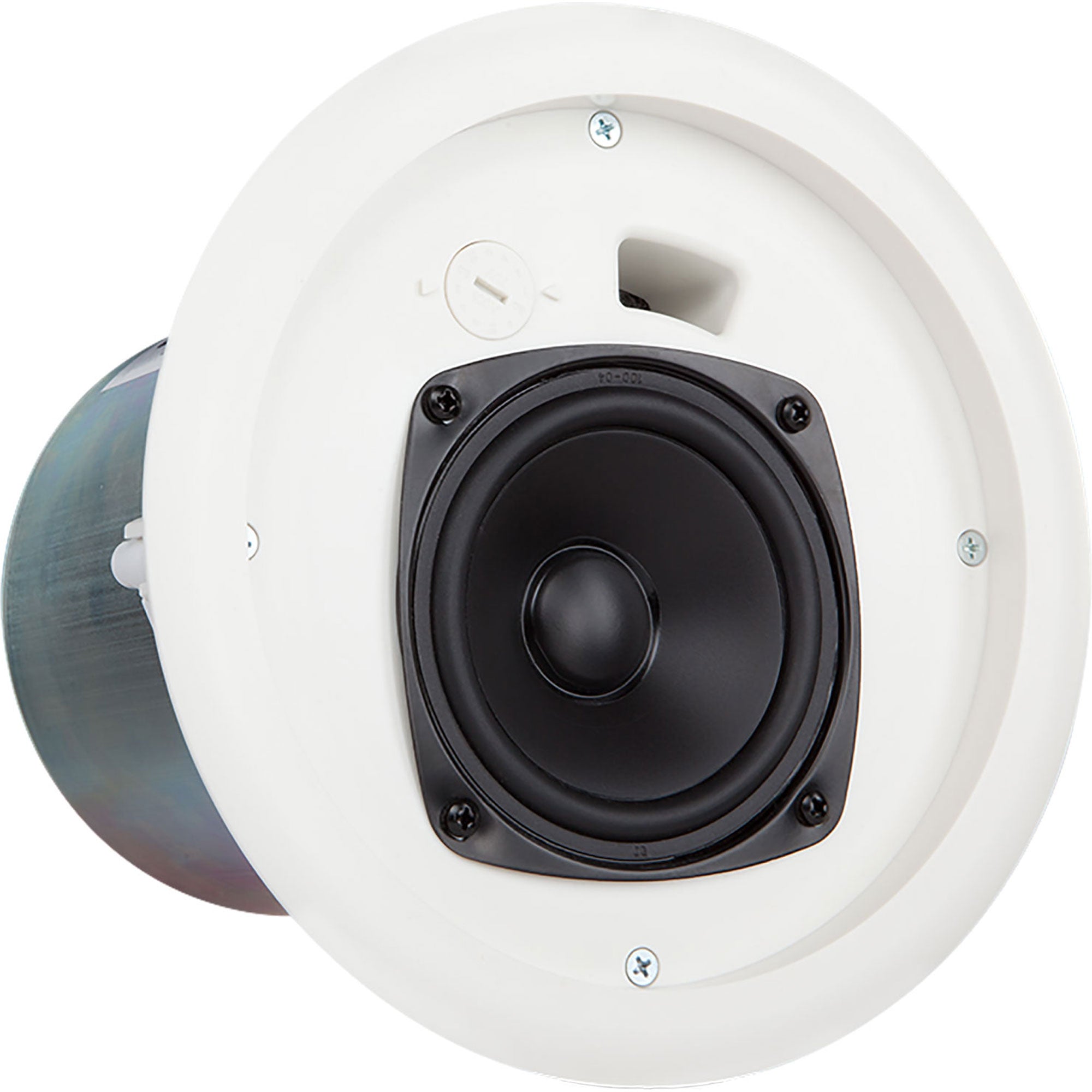

The easy to install blind mount assembly features a ported baffle which optimally tunes the galvanized steel backcan for added musicality, creating low frequency extension down to 70 Hz. To maintain this frequency response, the AC-C4T utilizes a variable tap 16 watt low saturation and low loss 70/100V transformer, accessible under the powder coated steel grill via a rotary selector which also includes an 8 ohm bypass setting.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using the Q-SYSTM Platform, including CXD Series amplifiers for a complete QSC systems solution.

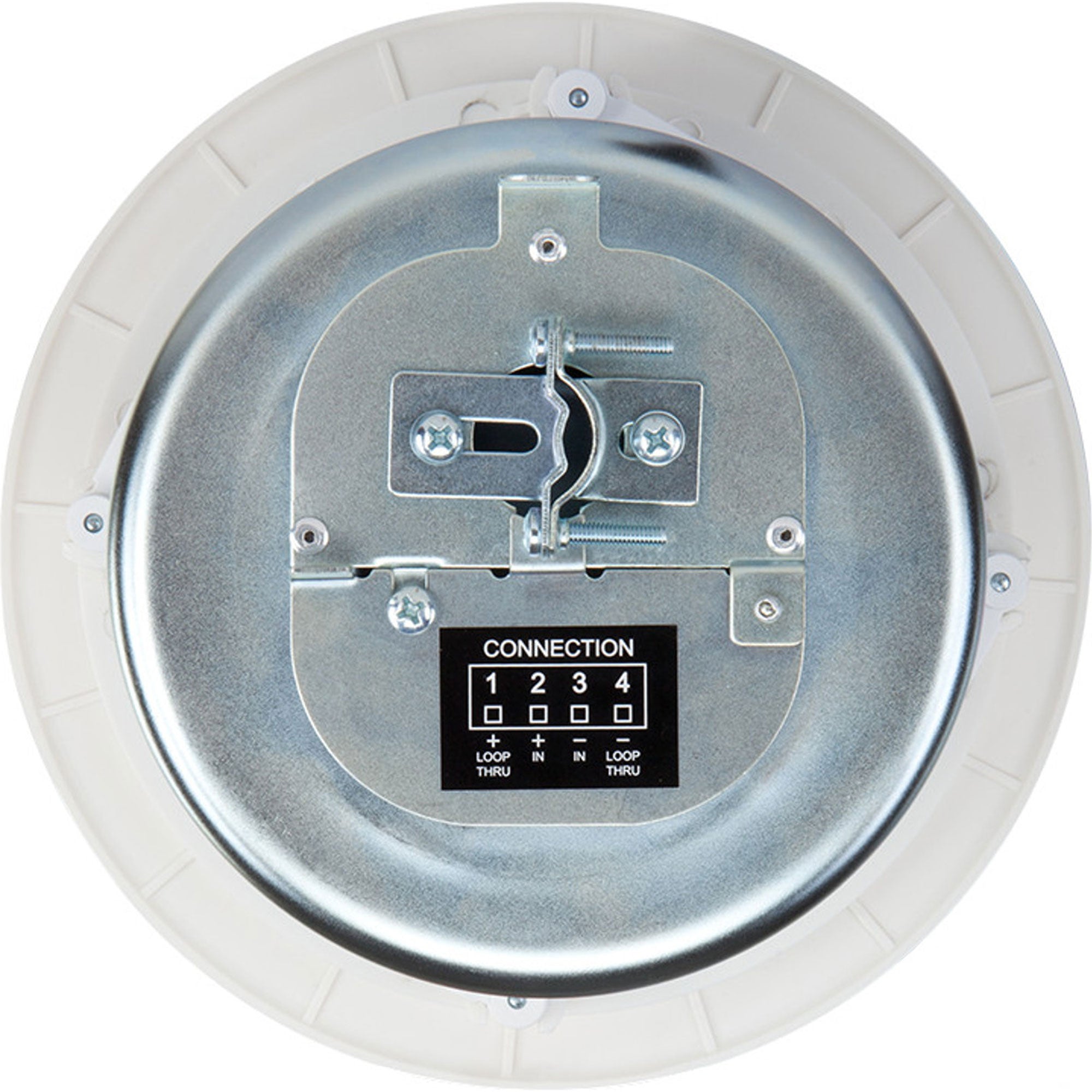

Installers will appreciate the 4 pole Euroblock connector for loop thru wiring, located under a quick access swivel plate. Eliminating the termination hassles of star topology wiring designs, the generous Euroblock of the AC-C4T can accept four 18AWG pairs.

A safety tether tab is affixed to the adjustable conduit clasp plate for seismic sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and cut-out template.

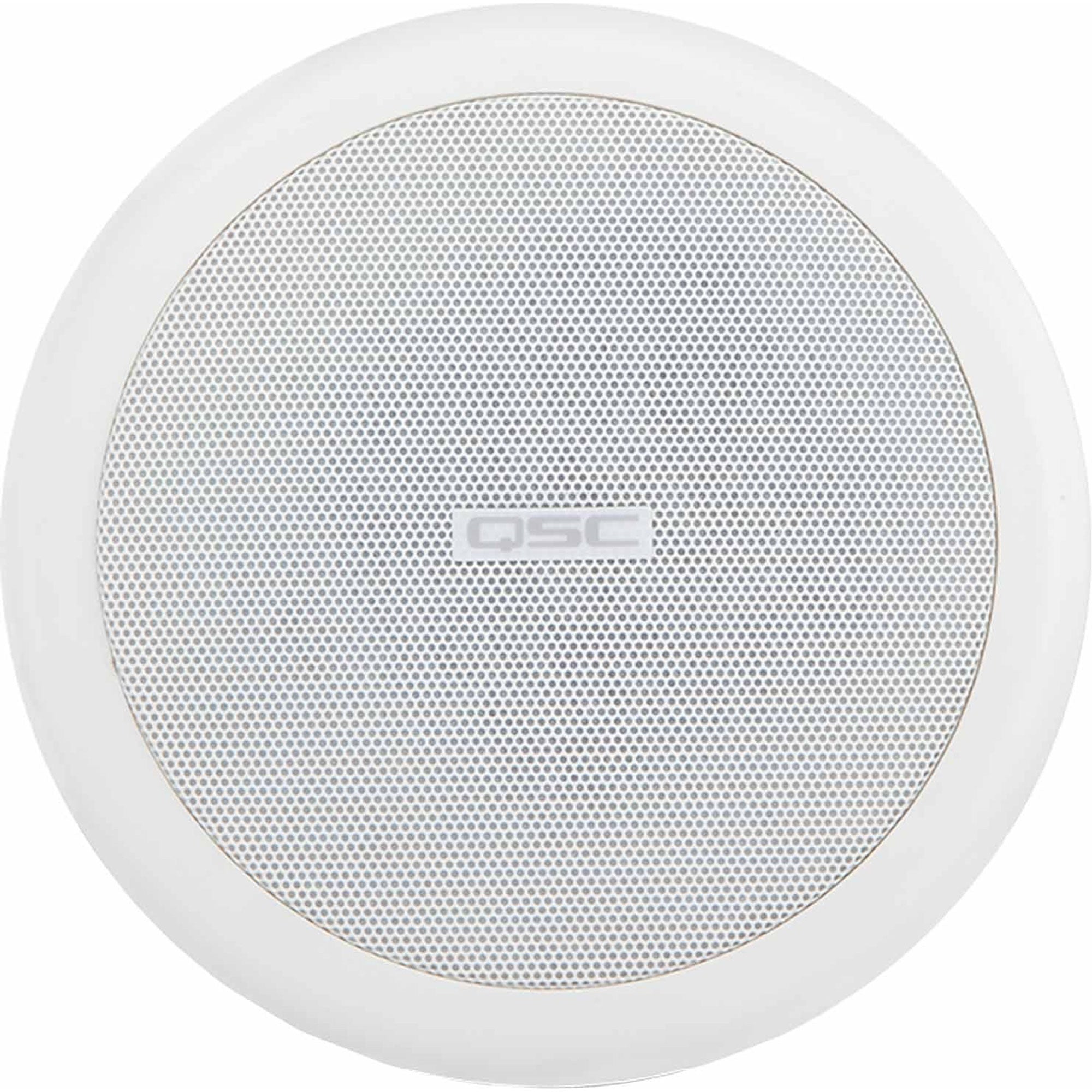

The AC-C4T baffle and grill are QSC standard white (RAL 9010) to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C4T may also be painted to match any décor.

To assist in successful systems integration, complete EASE, CAD, and BIM files are available for download online.

Features:

• High quality 4.5" full-range transducer provides exceptional clarity through the critical voice range.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low-saturation 70V/100V transformers with 8-ohm bypass.
• 4-pole Euroblock connector for easy system wiring.
• Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-SYS processing or CXD amplifier platforms.
• White (RAL 9010) with UV inhibitors to match complementing QSC product families.
• Complete EASE, CAD, and BIM information available online

Specifications:

• Effective frequency range: 70 Hz to 16 kHz
• Rated noise power / voltage: 16 watts / 11.3 volts (rms)
• Broad-band sensitivity: 89 dB SPL
• Coverage angle (-6 dB): 140° (500 Hz to 5 kHz)
• Maximum continuous SPL: 101 dB
• Maximum peak SPL: 107 dB
• Rated impedance: 8 ohms
• Transformer taps:
• 70 V: 16, 8, 4, 2, 1 watts and 8-ohm bypass
• 100V: 16, 8, 4, 2, watts and 8-ohm bypass
• Transducer: 4.5" Polypropylene cone with butyl rubber surround
• Input connector type: Euroblock connector with parallel output terminals
• Baffle material: Painted ABS polymer
• Grille material: Powder coated steel
• Back can material: Galvanized steel
• Testing: Listed UL1480, UL2043 safe for use in air handling space
• Net weight: 4.9 lb / 2.22 kg
• Product dimensions: 8.4" x 7.9" (214 x 201 mm)
• Cut-out Dimensions: 7.31" (185.67mm)
• Ceiling Capture Thickness: 0.25" to 1.5" (6.35 to 38.1mm)
• Shipping weight: 15.1 lb / 6.86 kg
• Shipping dimensions: 10.75" x 24" x 10.5" (273.1 x 609.6 x 266.7 mm)
• Included accessories: Rails and C-ring for ceiling tile installation
• Optional accessories: AC-MR4 mud ring for sheet rock installation

Includes:

• Rails and C-ring for ceiling tile installation
