Key Features
- Male RCA Phono Plug
- White Color Coding Ring
- Rubber Boot
- Solder Cups
- Black Metal Housing
- Gold Contacts
Description

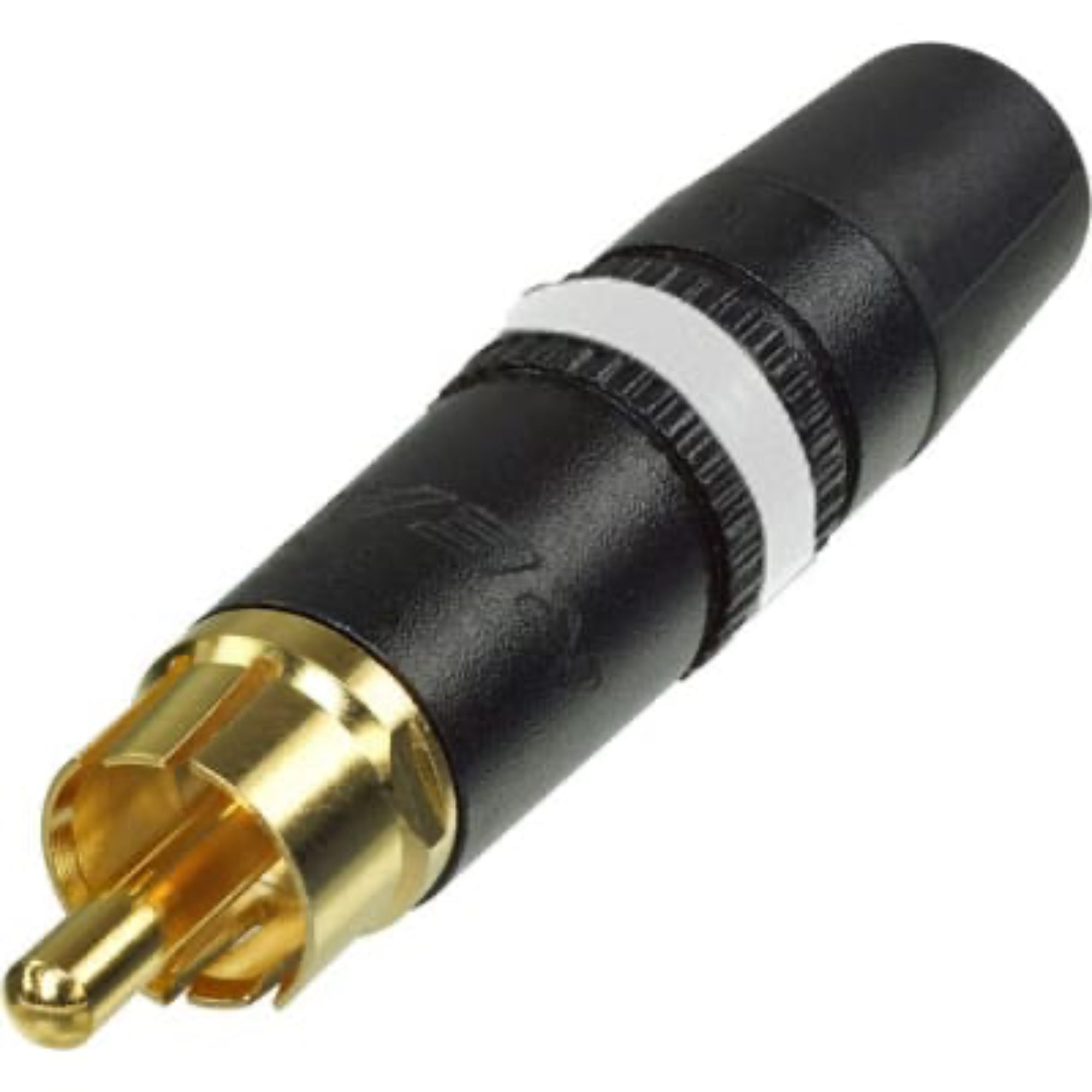

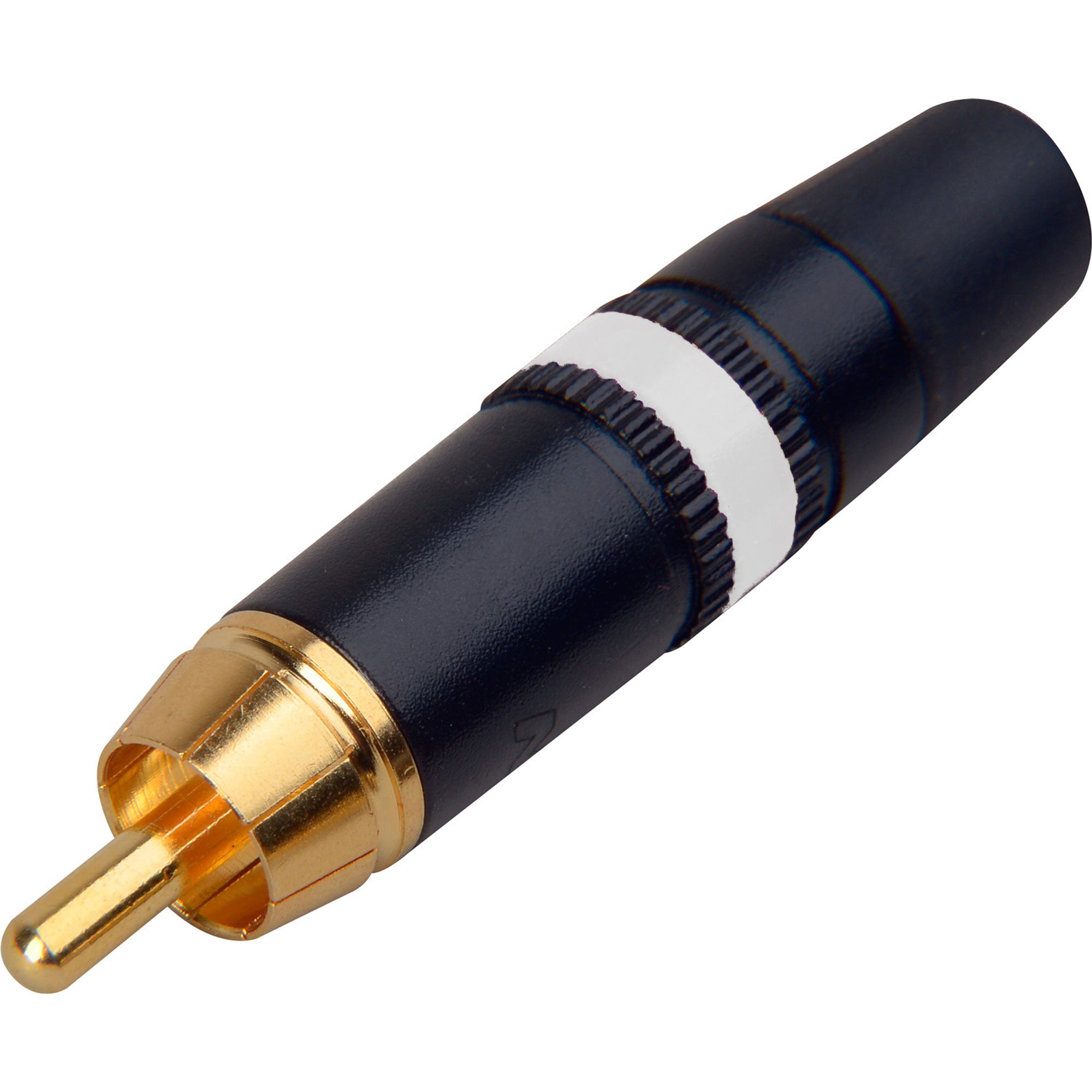

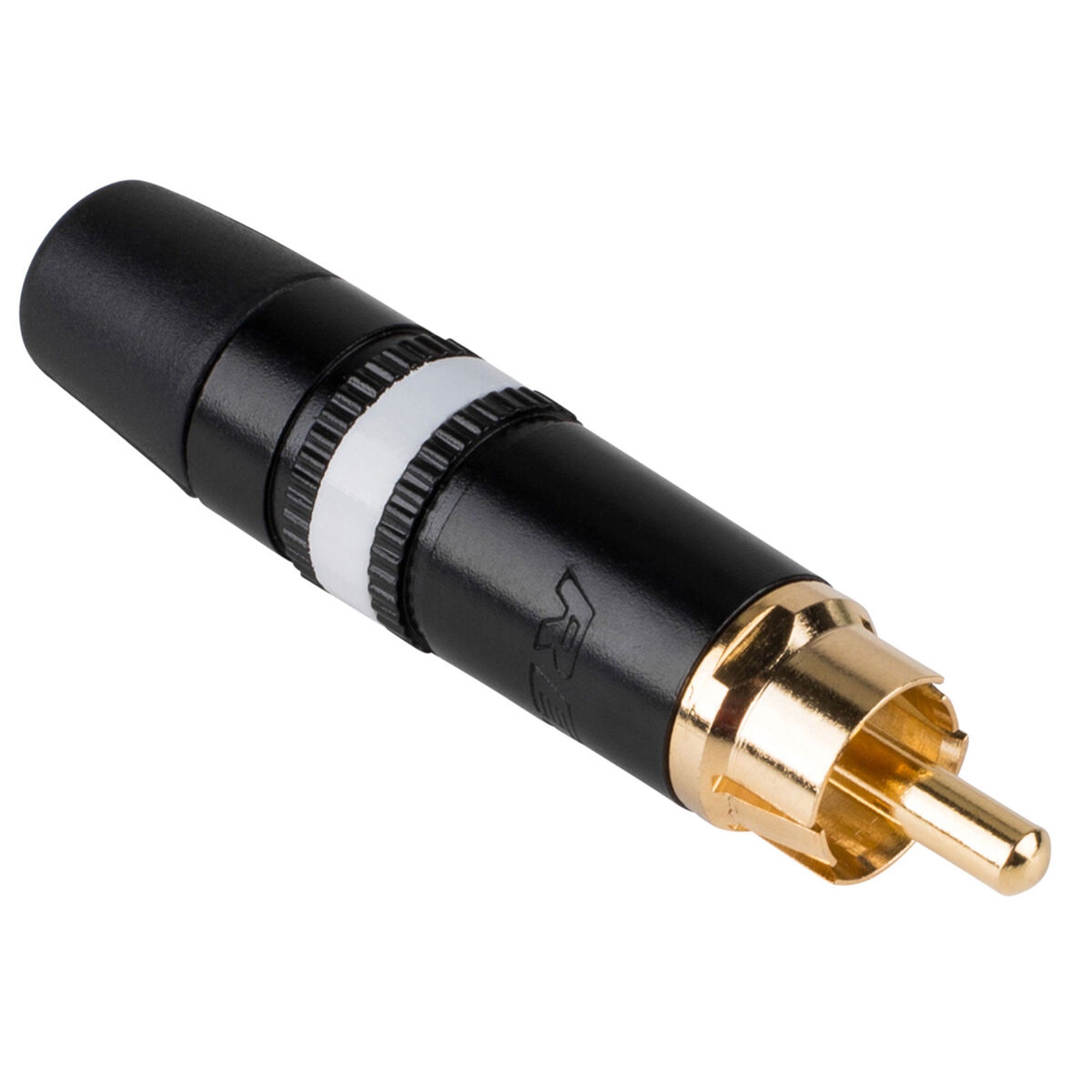

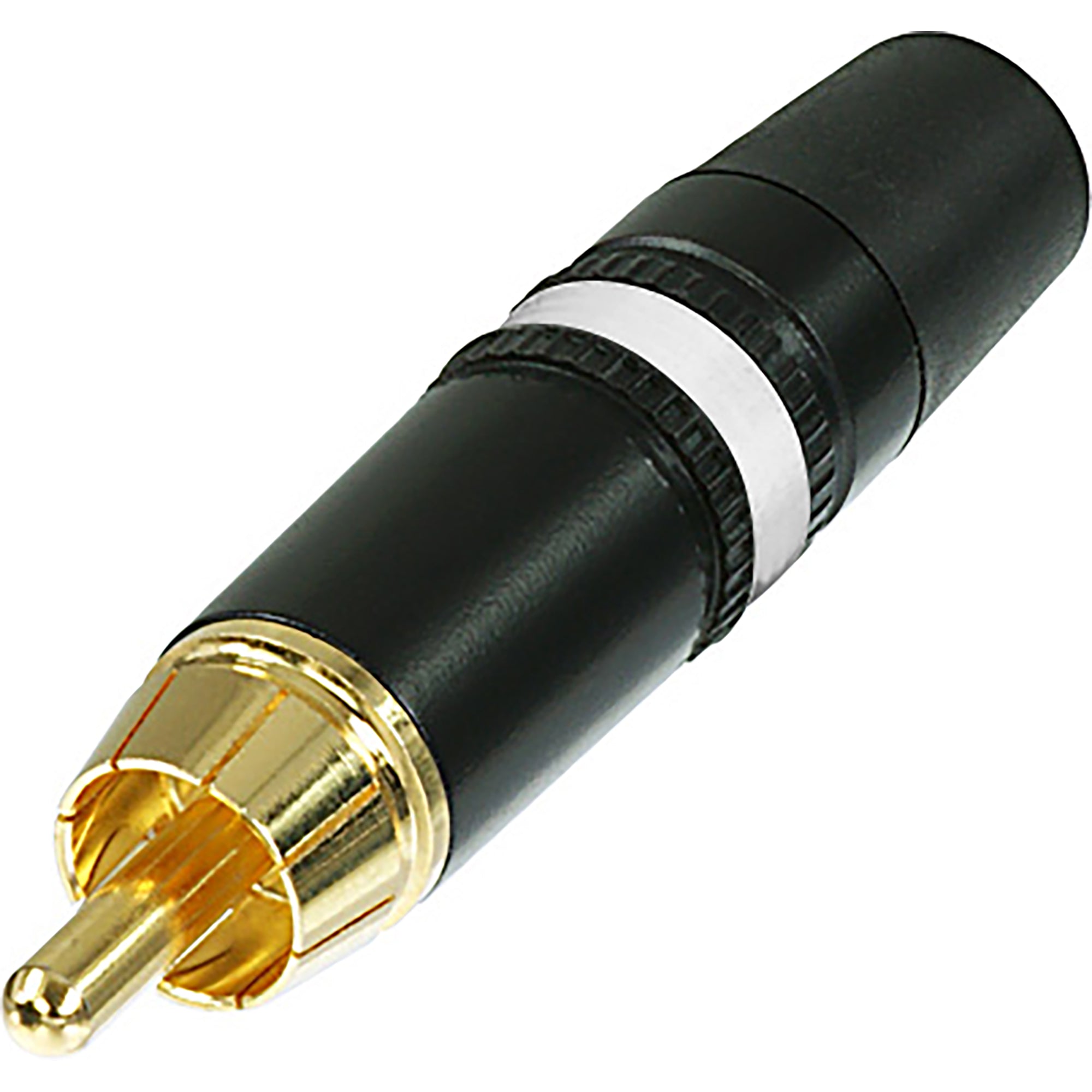

Male RCA Phono Plug with White Color Coding Ring, Cable End, Black Housing, Gold Contacts

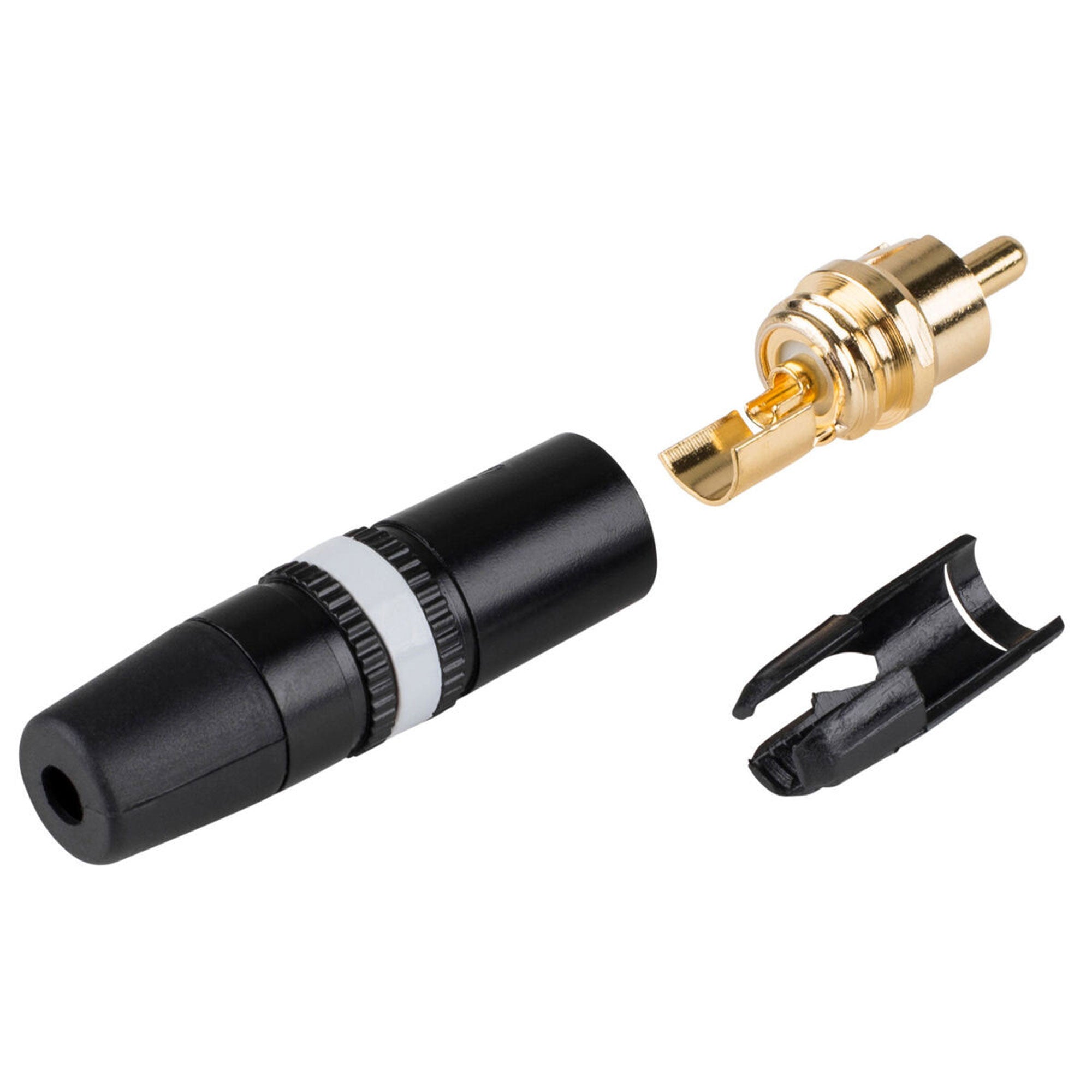

Phono plug, black shell, gold plated contacts, rubber boot for best antikink protection, chuck type strain relief for cable O.D. 3.5 to 6.1 mm, color coding ring
Available Options:
NYS373-0 Black
NYS373-2 Red
NYS373-4 Yellow
NYS373-5 Green
NYS373-6 Blue
NYS373-9 White
Specifications:
- Product
- Title: NYS373-*
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Cable O.D.: 3.5 - 6.1 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 24 AWG
- Material
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief: Internal plastic chuck
- Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS373-9
- Model Number: NYS373-9
- UPC: 844632004513
