Key Features
- Female RCA Jack
- Solder Cups
- Black Metal Housing
- Gold Contacts

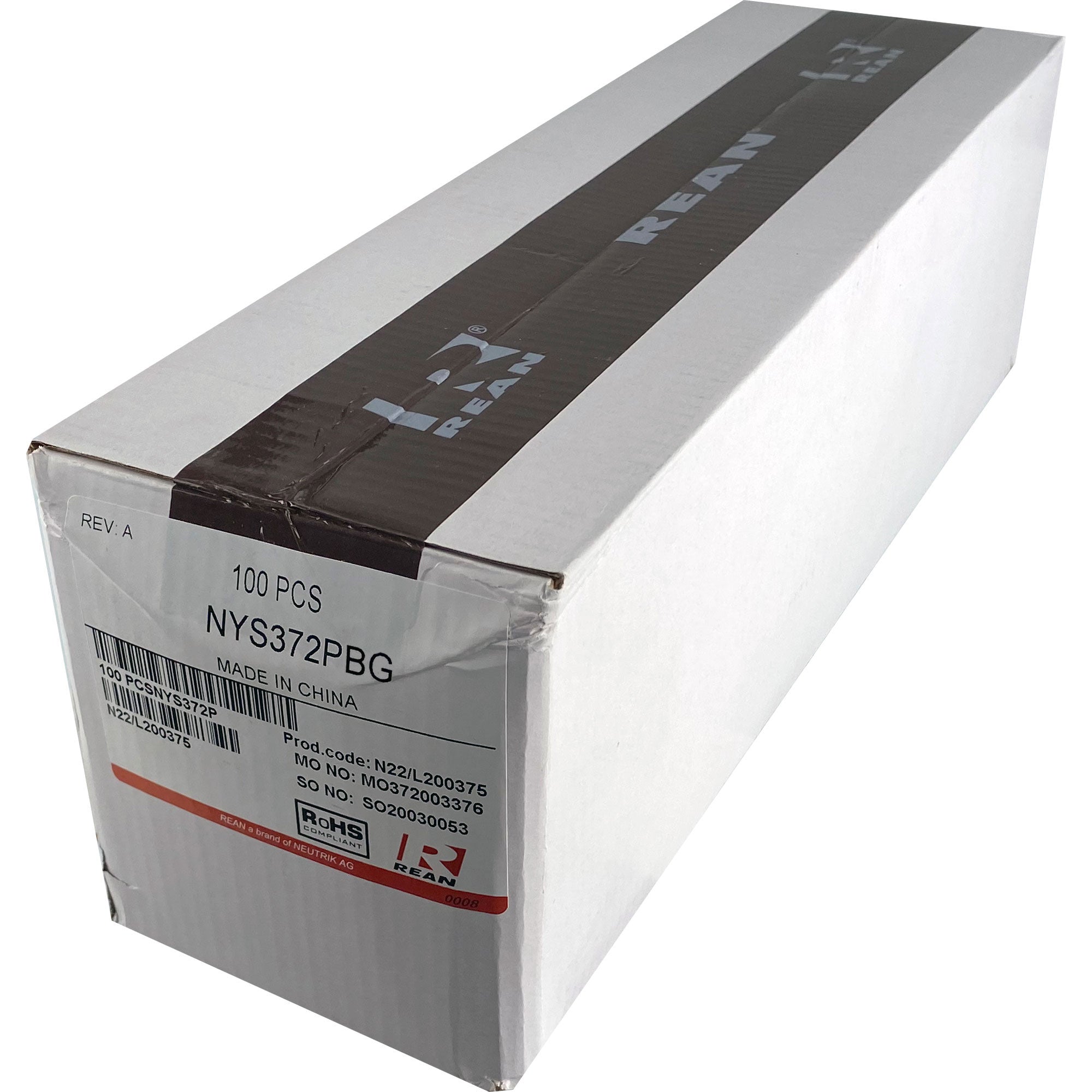

- Full Box of 100 Connectors
Description

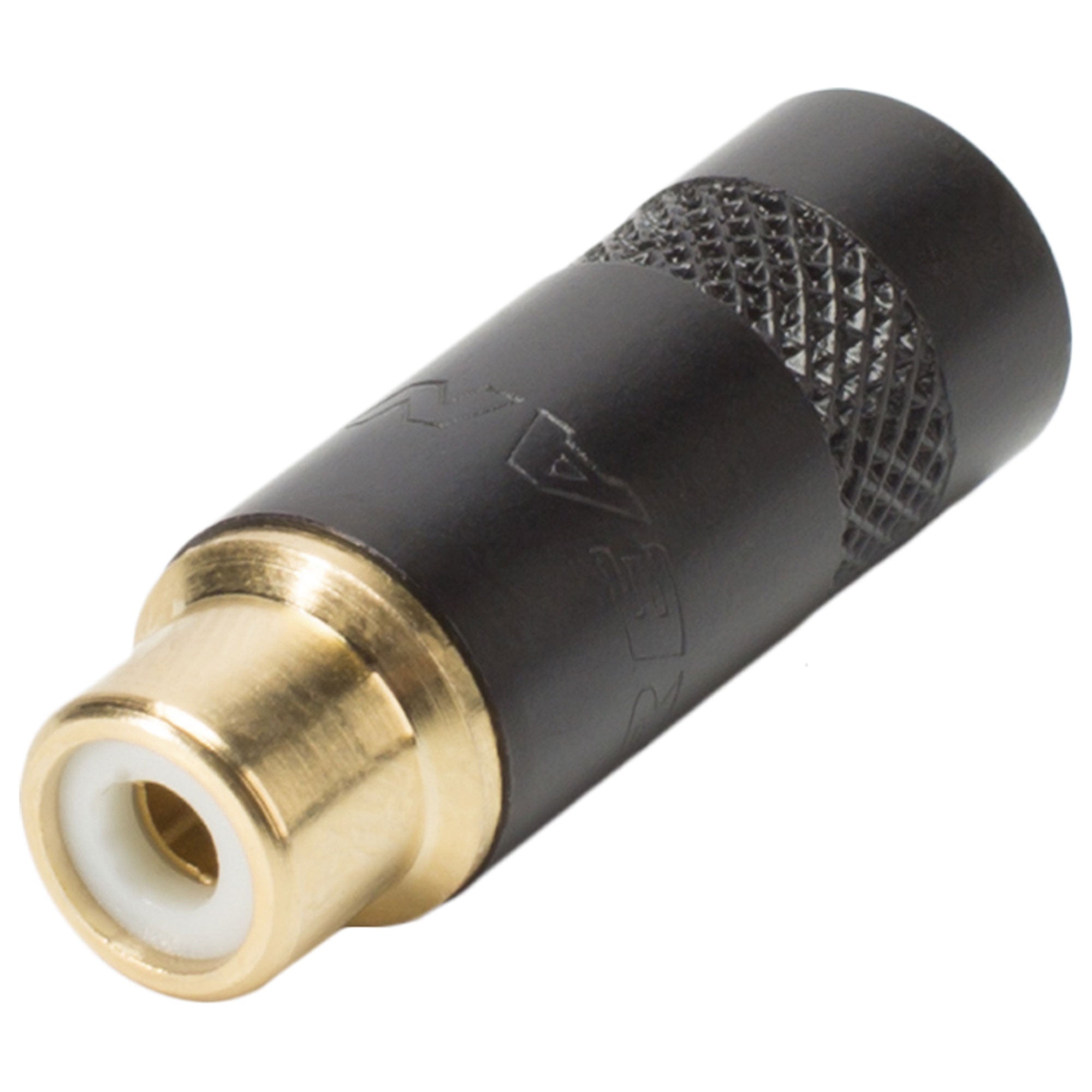

Female RCA Phono Jack, Cable End, Black Housing, Gold Contacts - Full Box of 100 Connectors
Phono cable jack, gold plated contacts, black plated shell
Specifications:
- Product
- Title: NYS372P
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Cable O.D.: 7.2 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 26 AWG
- Material
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Shell: Brass (CuZn39Pb3)
- Shell plating: Black
- Strain relief: SnCe plated, crimp type
- Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS372PBG
- Model Number: NYS372PBG
