Key Features
- Male RCA Phono Plug
- Solder Cups
- Black Metal Housing
- Silver Contacts

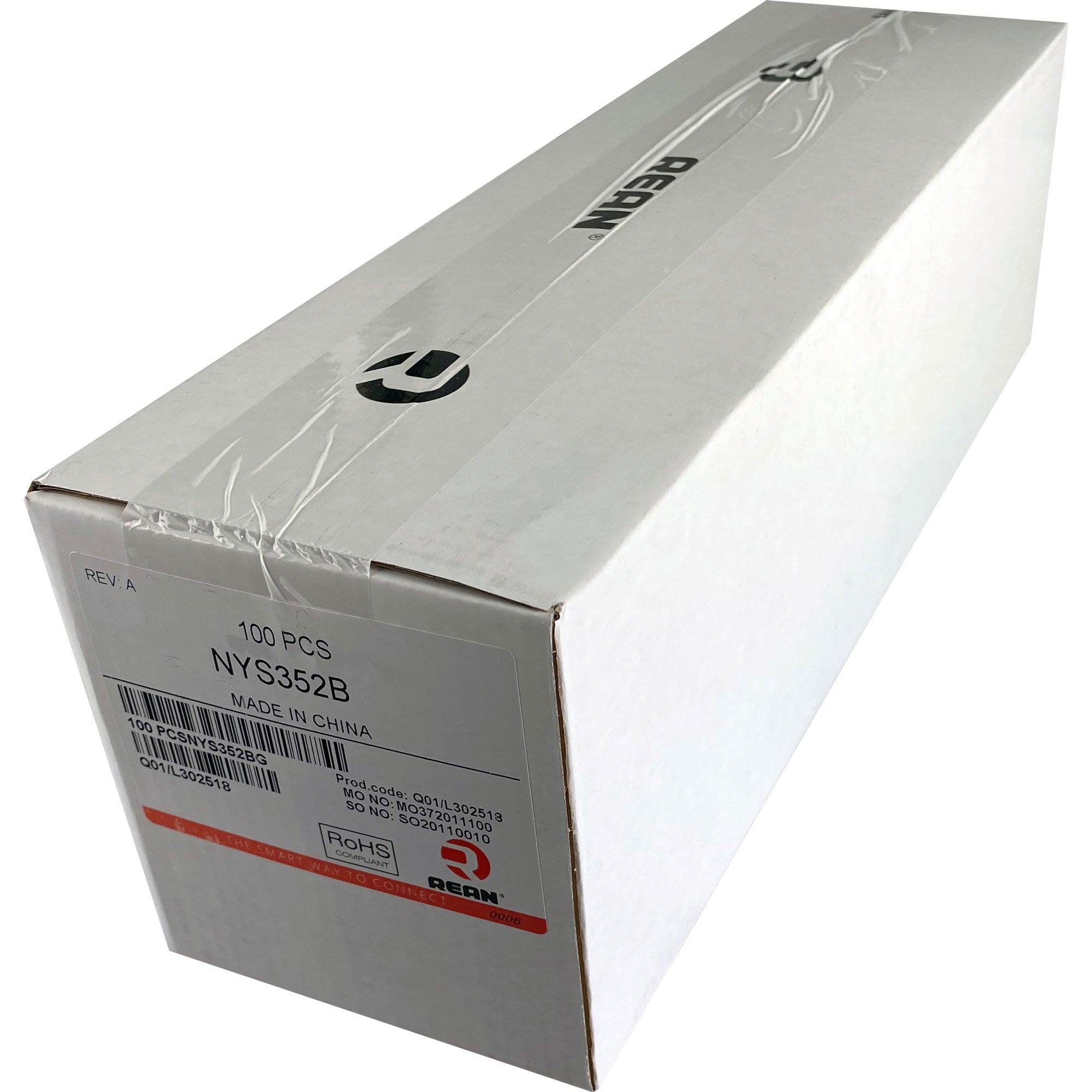

- Full Box of 100 Connectors
Description

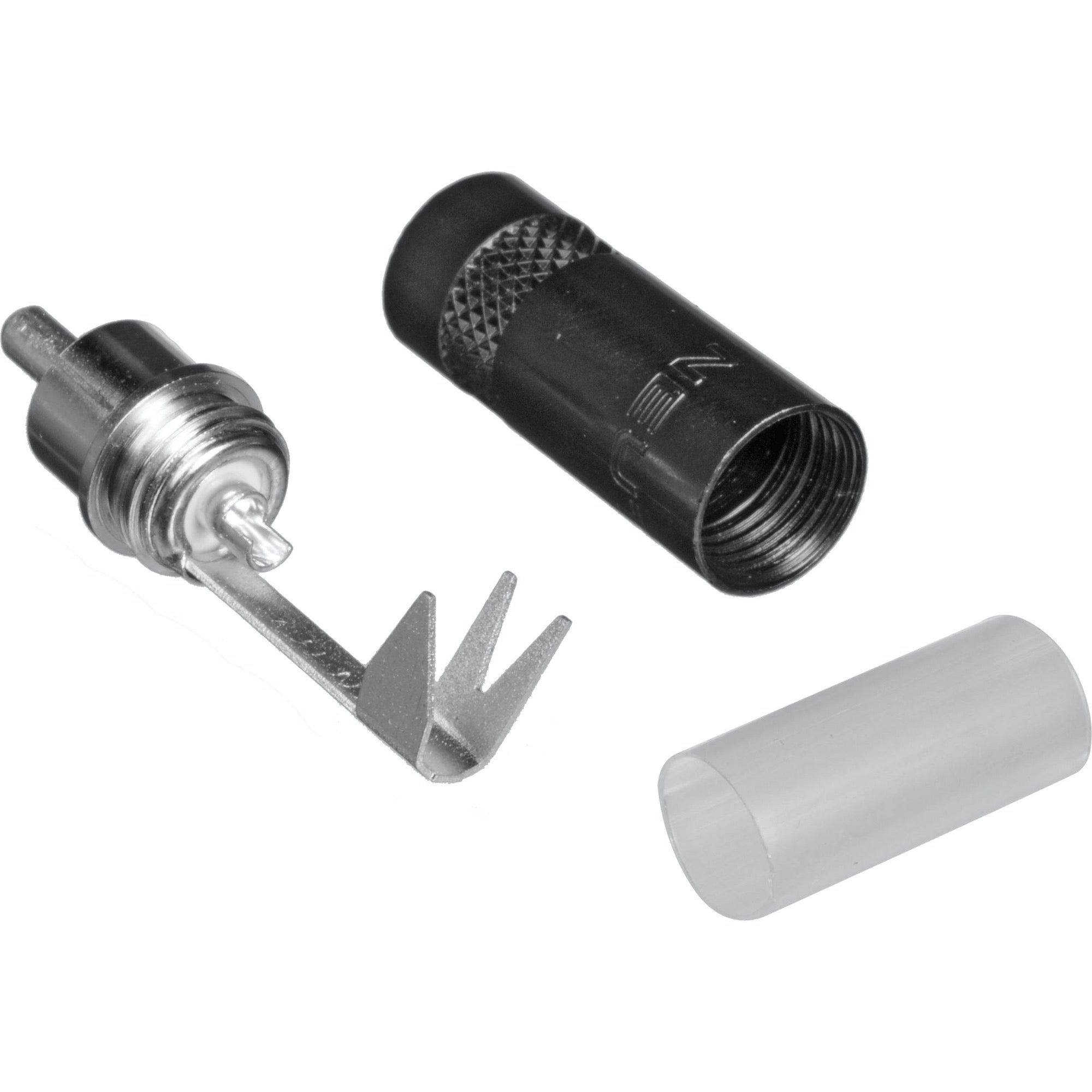

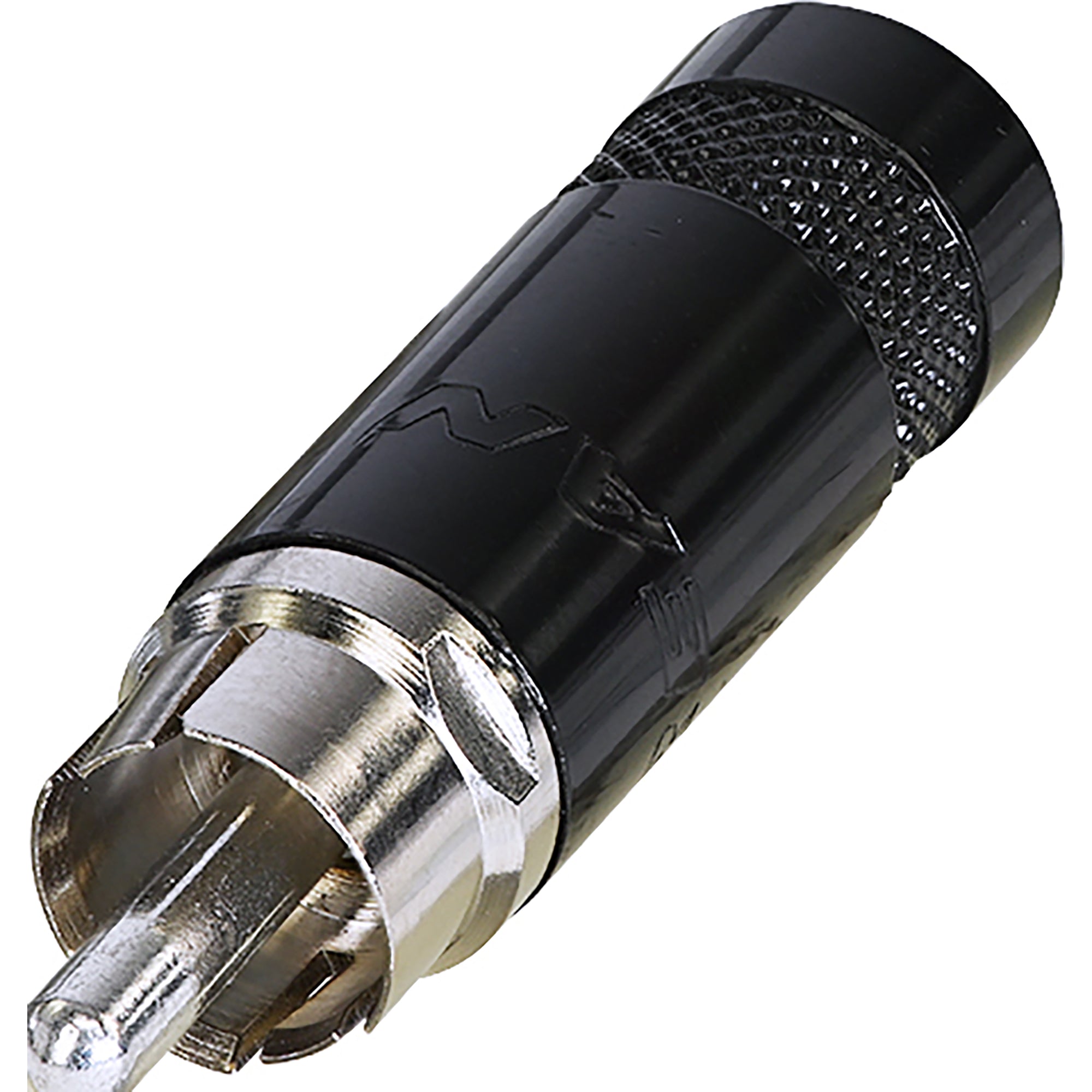

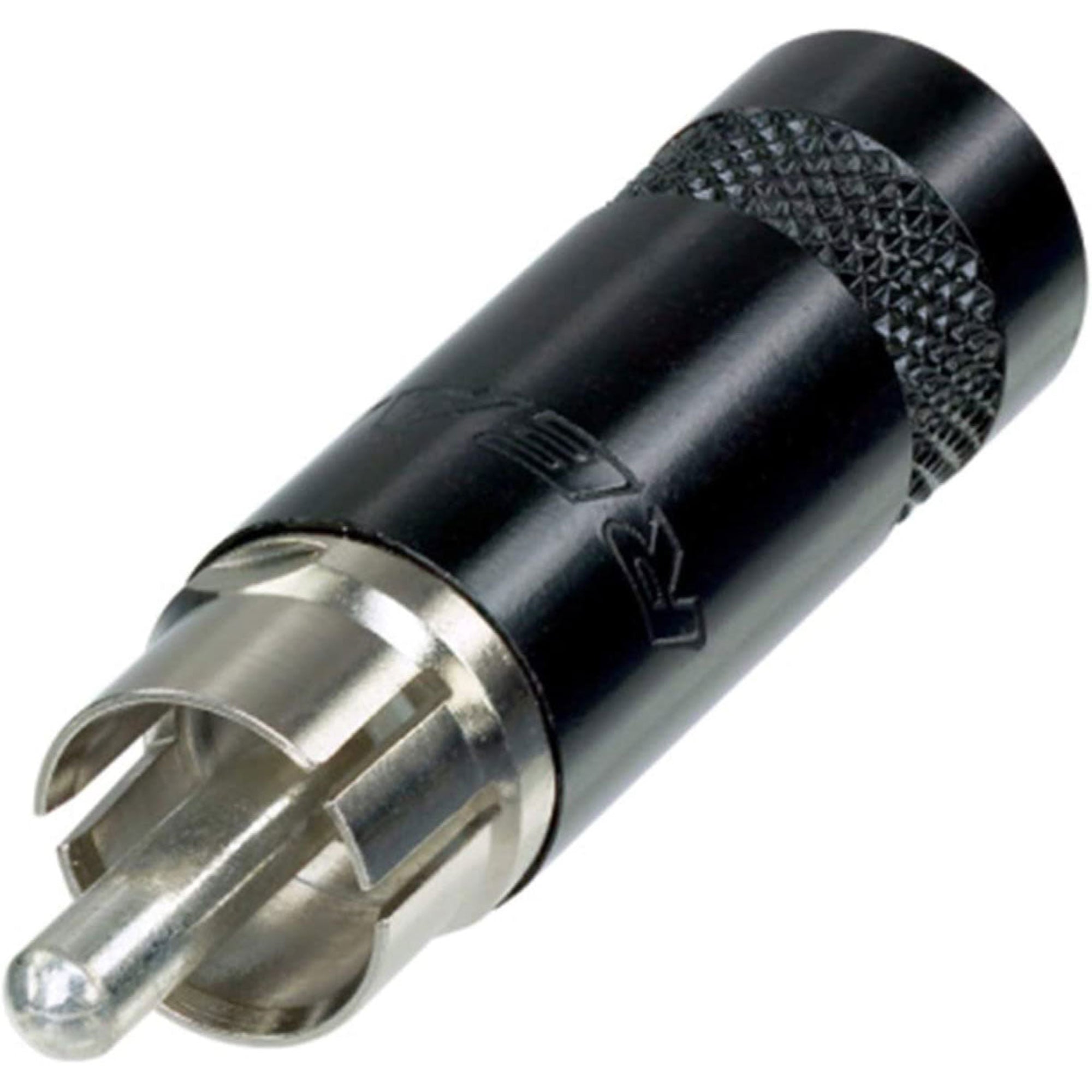

Male RCA Phono Plug, Cable End, Black Housing, Nickel Contacts - Full Box of 100 Connectors
RCA Phono plug, black plated shell and nickel contacts
Feature heavy-duty machined brass construction with nickel plated shell and contacts. Accepts cable O.D. up to 6 mm (0.25").
Features:
- Heavy duty phono plug
- All metal construction
- Cable O.D. up to 6 mm (0.25")
- Cable clamp strain relief
Specifications:
- Product
- Title: NYS352B
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Cable O.D.: 7.2 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 24 AWG
- Material
- Contact plating: Nickel
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief: SnCe plated, crimp type
- Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS352B
- Model Number: NYS352B
