Key Features
- Male 5-Pin DIN Connector
- Great for MIDI
- Solder Cups
- Nickel Metal Housing
- Gold Contacts

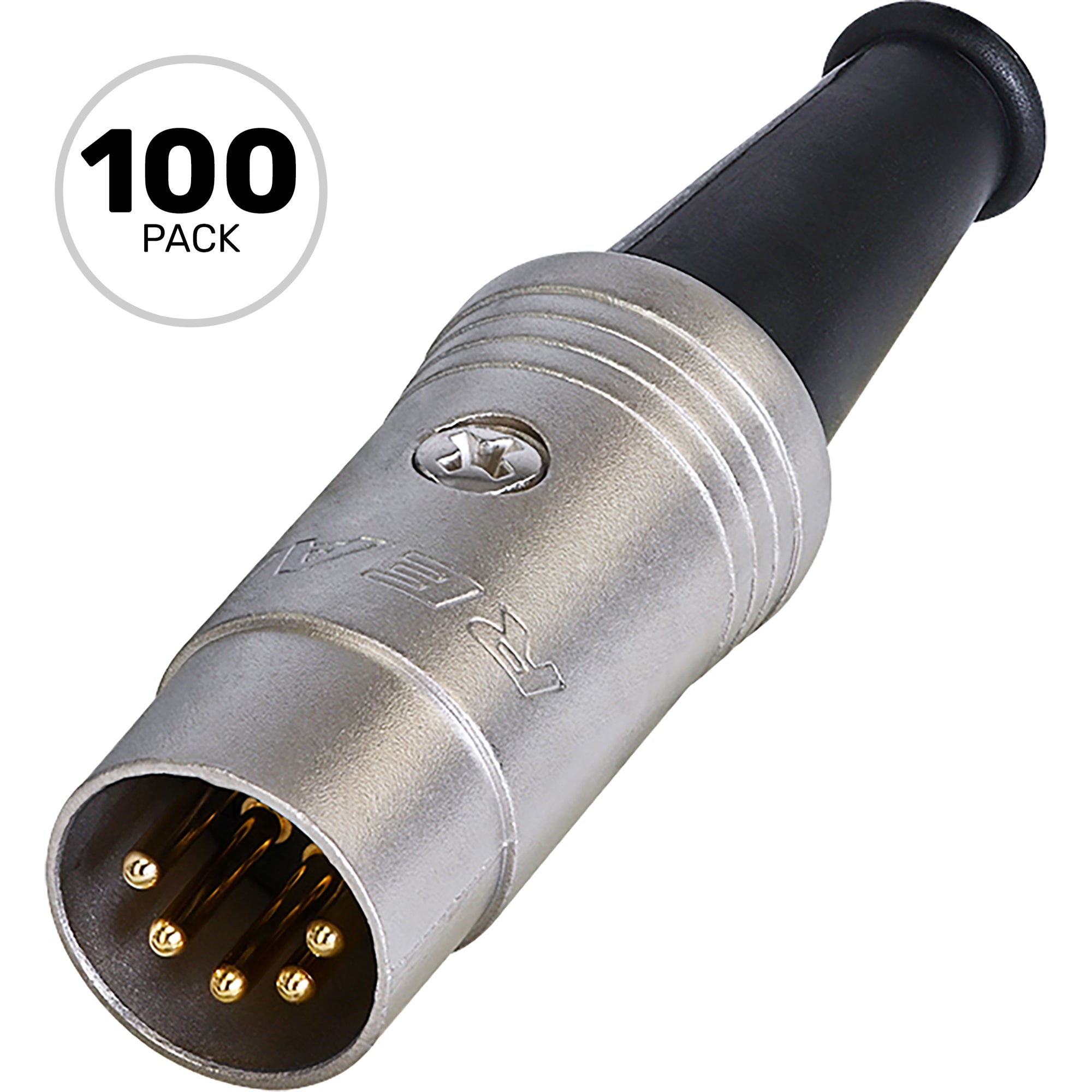

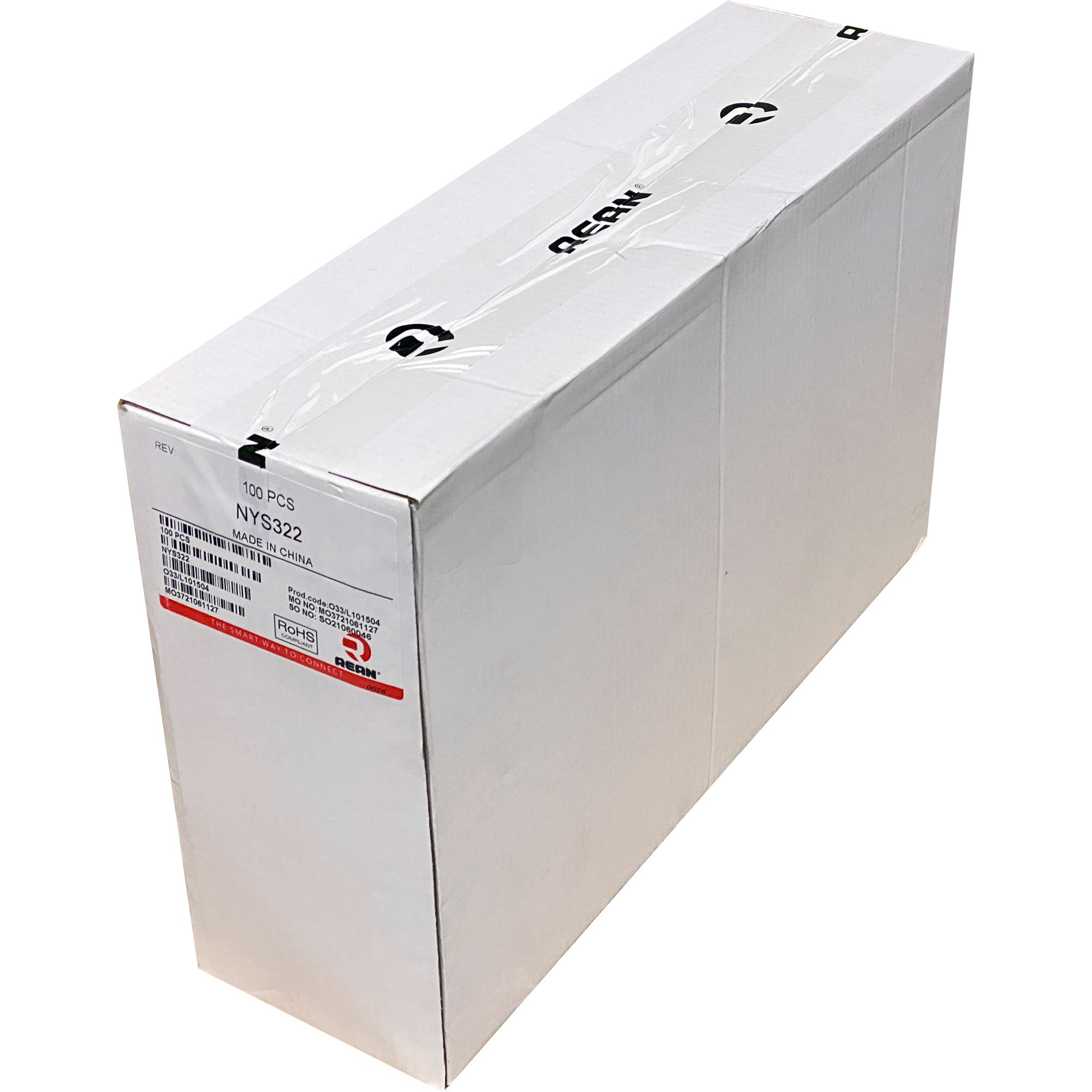

- Full Box of 100 Connectors
Description

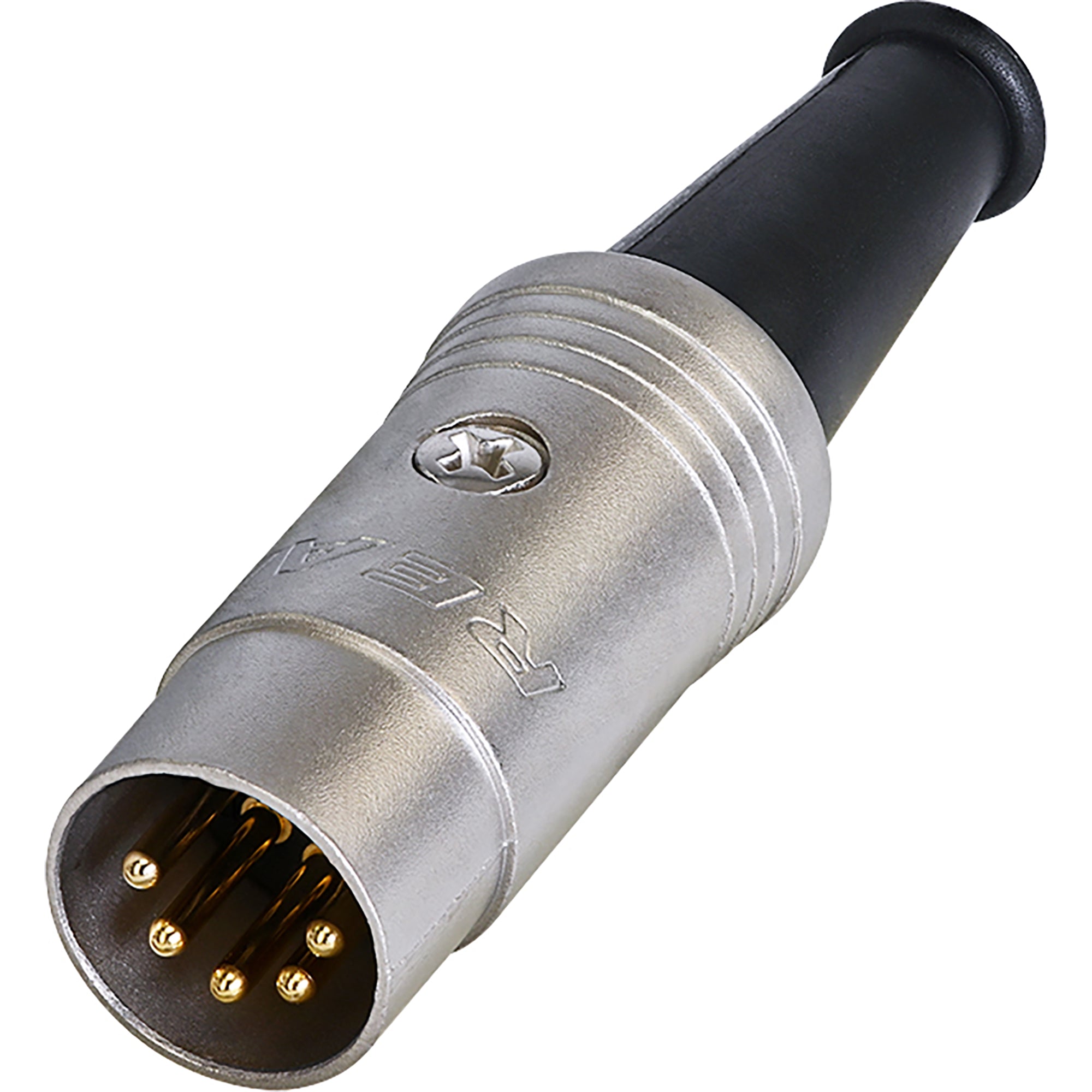

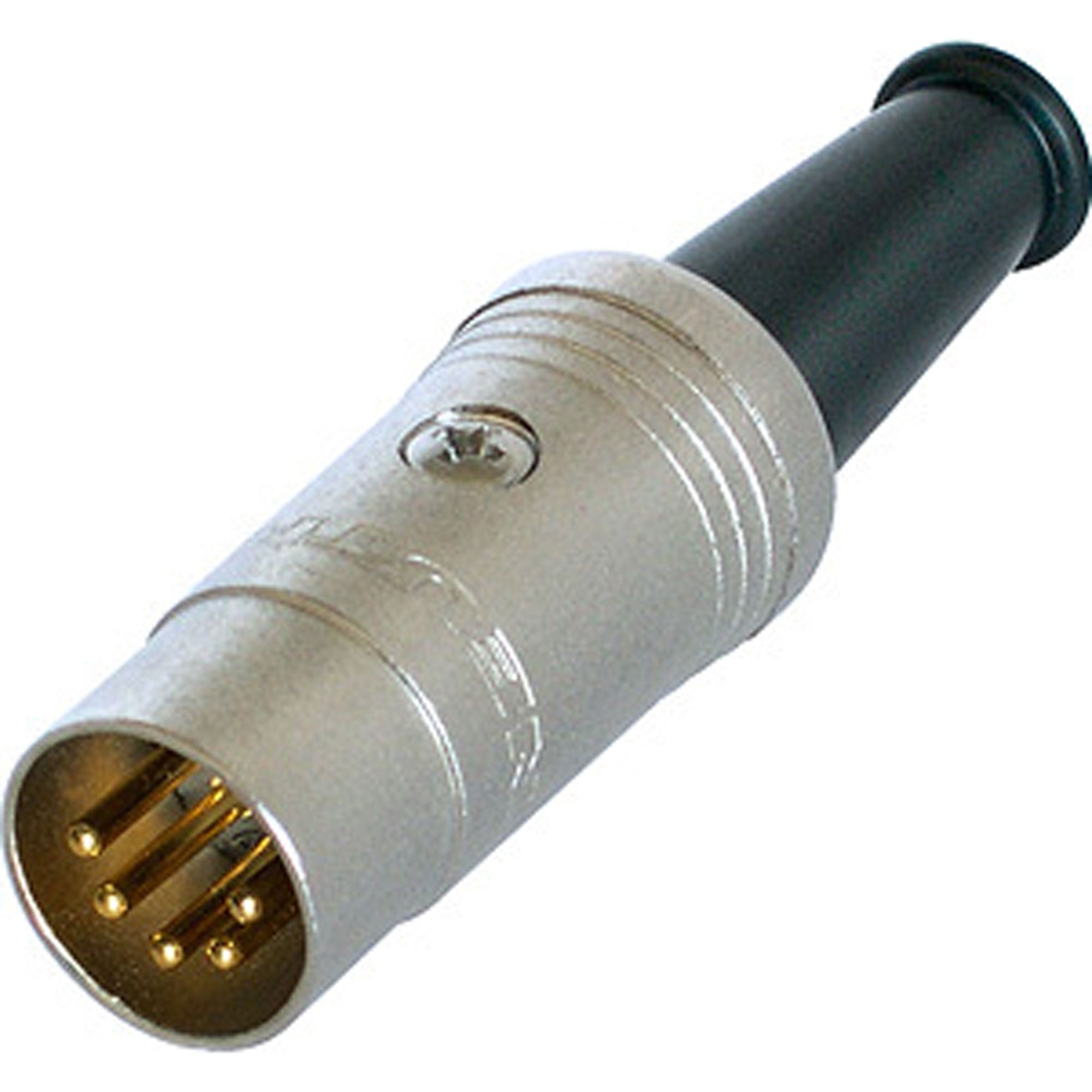

5-Pin DIN Cable Connector, Gold Plated Contacts - Full Box of 100 Connectors
5 pole DIN cable connector, gold plated contacts
Specifications:
- Product
- Title: NYS322
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Cable O.D.: 5 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 26 mm-
- Material
- Contact plating: Ag
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Insulation: Thermoplastic
- Bushing: PVC, crimp type Zn plated strain relief
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS322G
- Model Number: NYS322G
