Key Features
- Female 1/4" Stereo Phone Jack
- Tip, Ring, Sleeve (TRS) Connections
- Open Panel Mount Jack

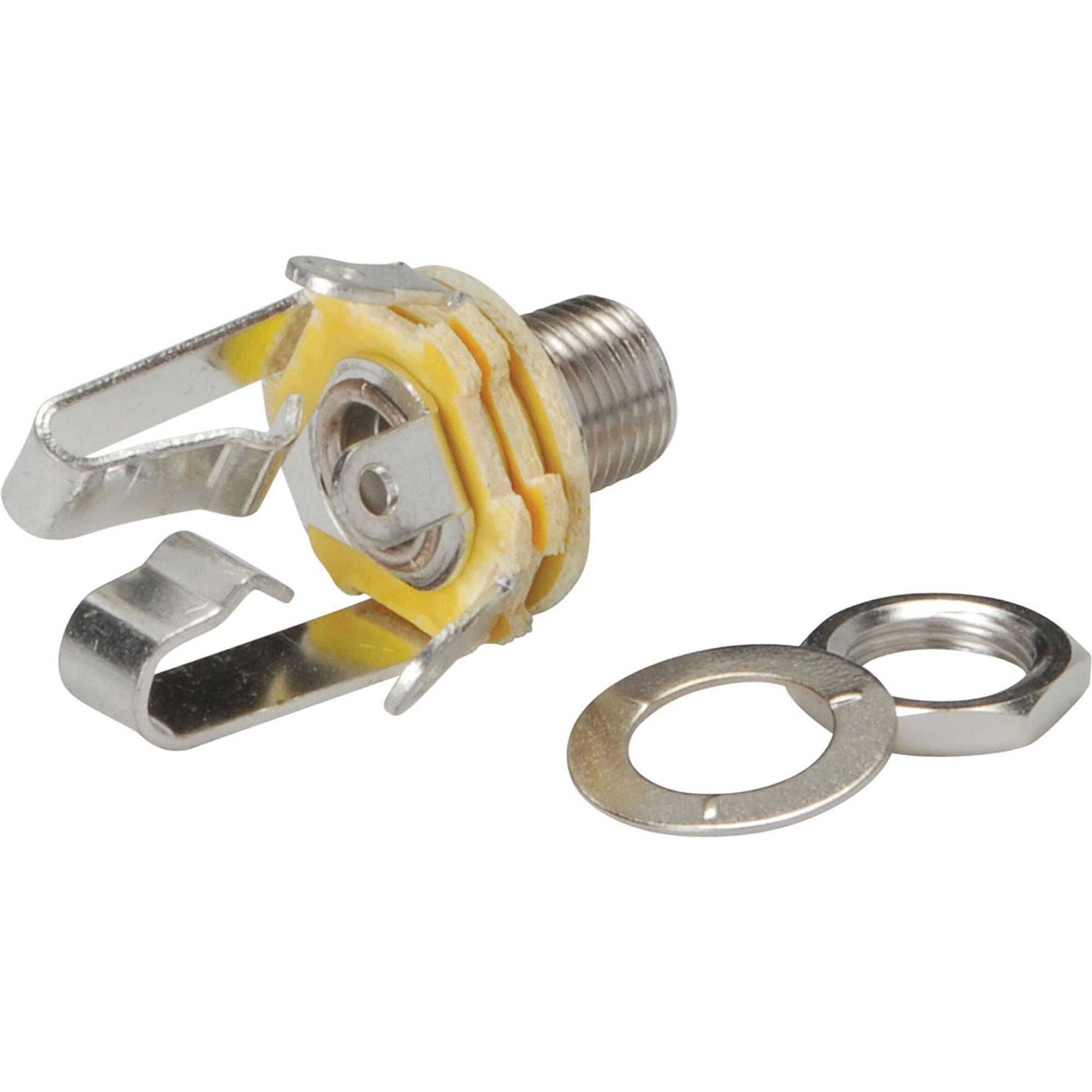

- Includes Washer & Nut
- Solder Cups
- Nickel Metal Housing
- Silver Contacts
- Full Box of 100 Connectors
Description

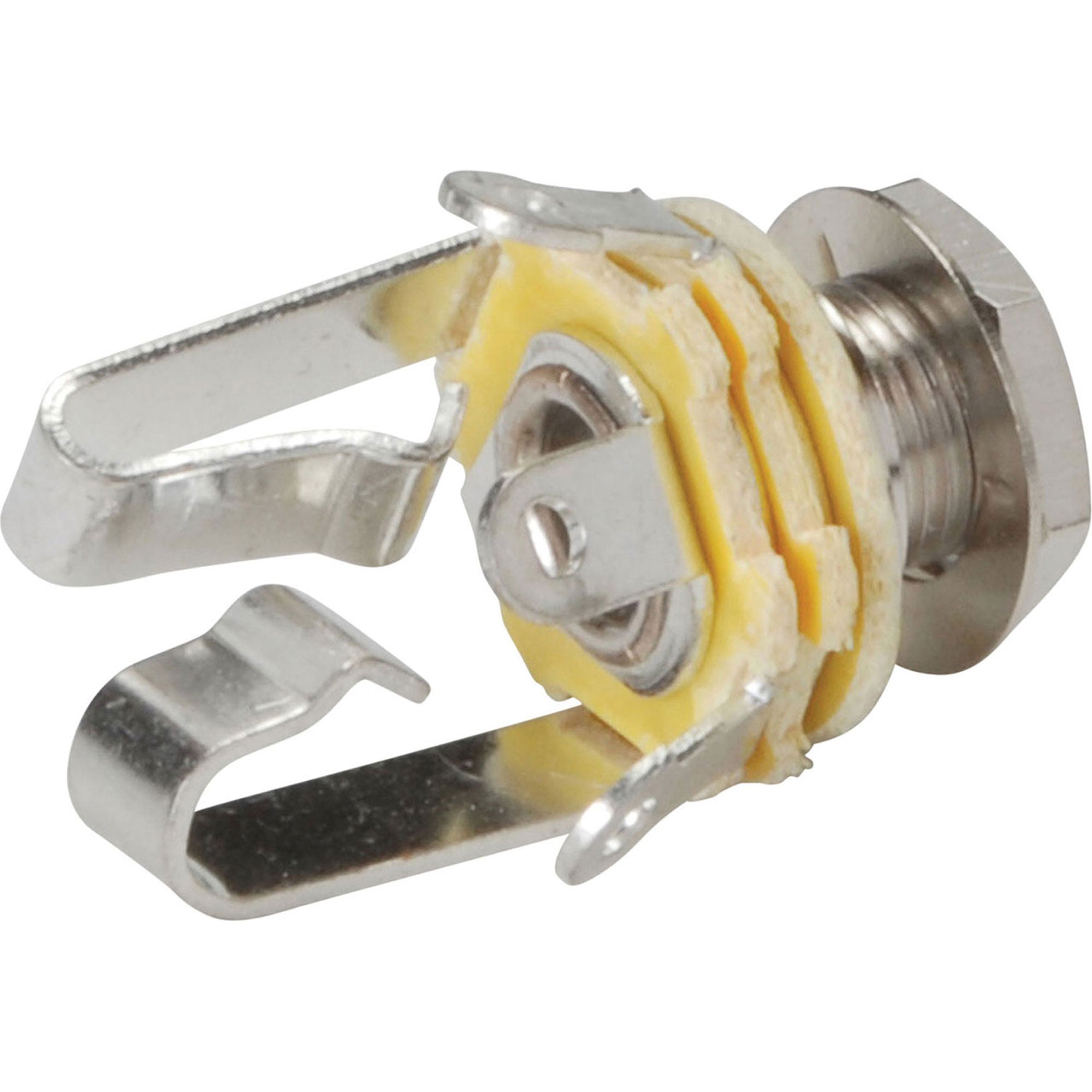

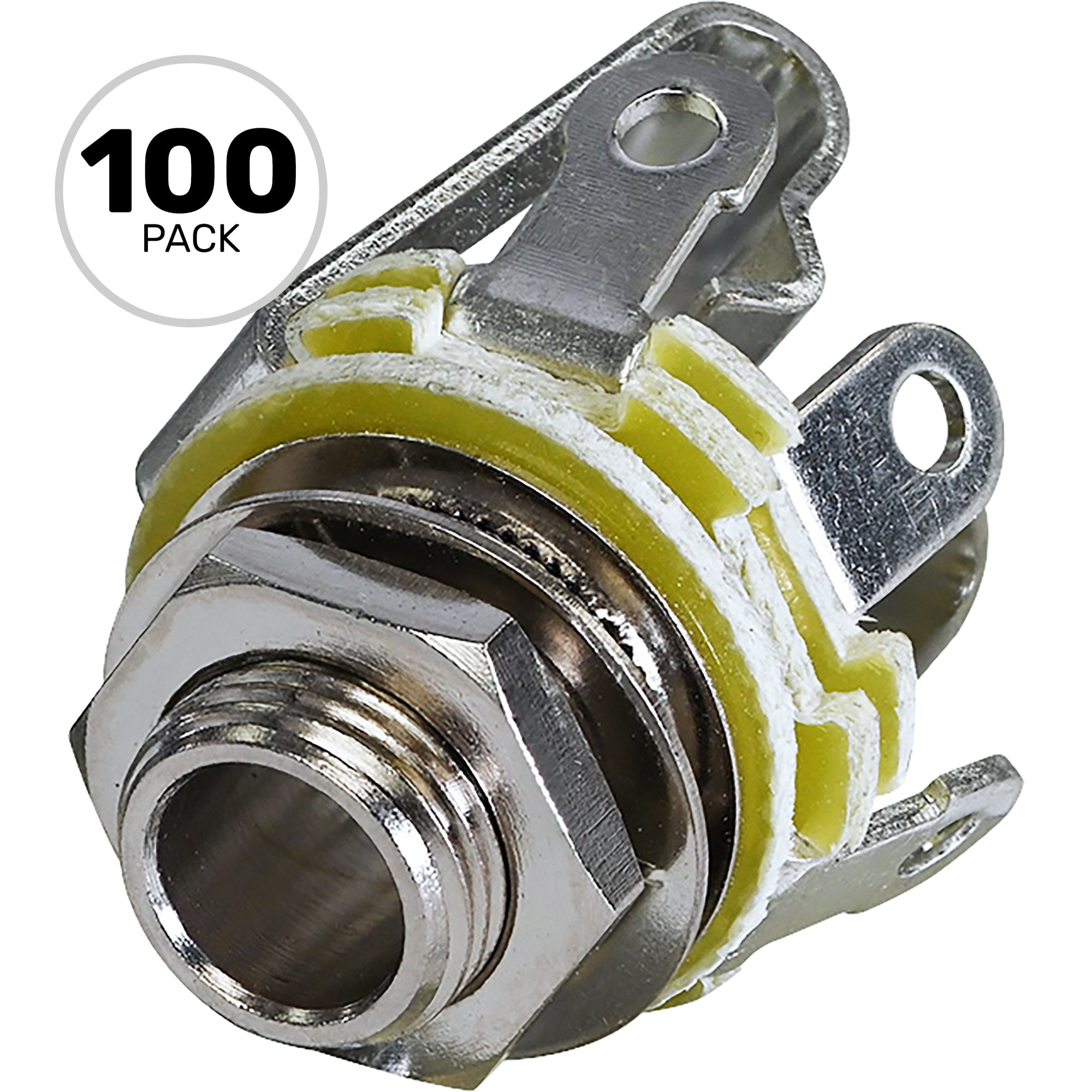

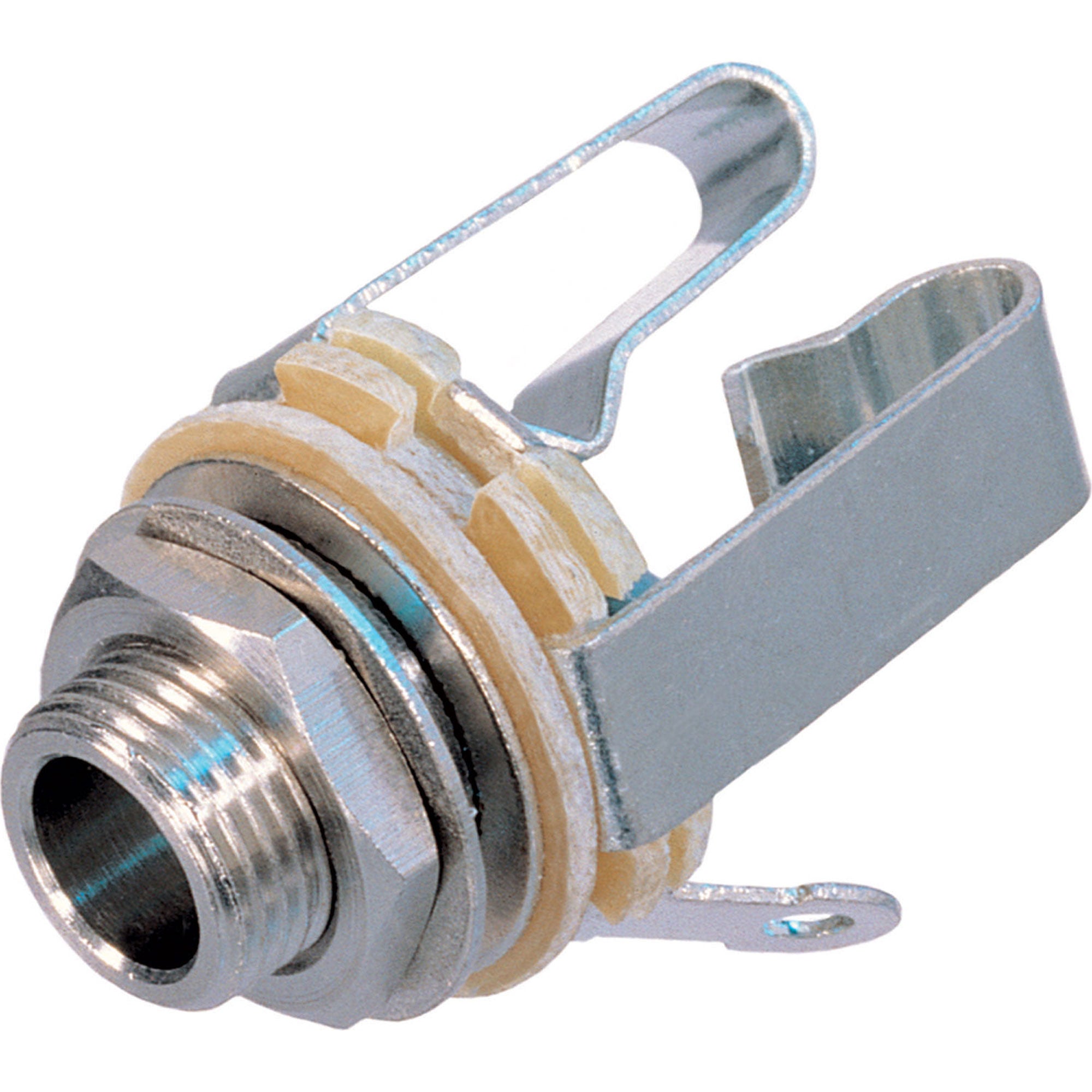

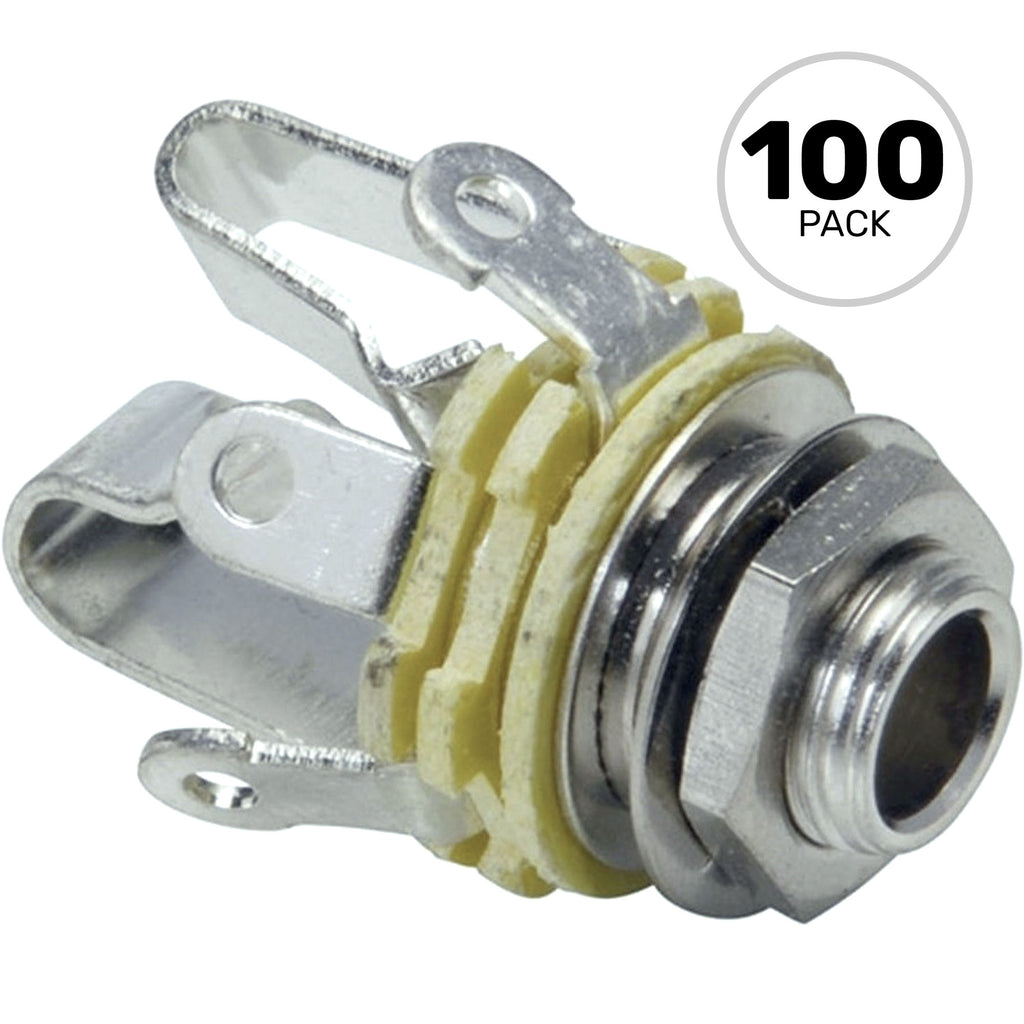

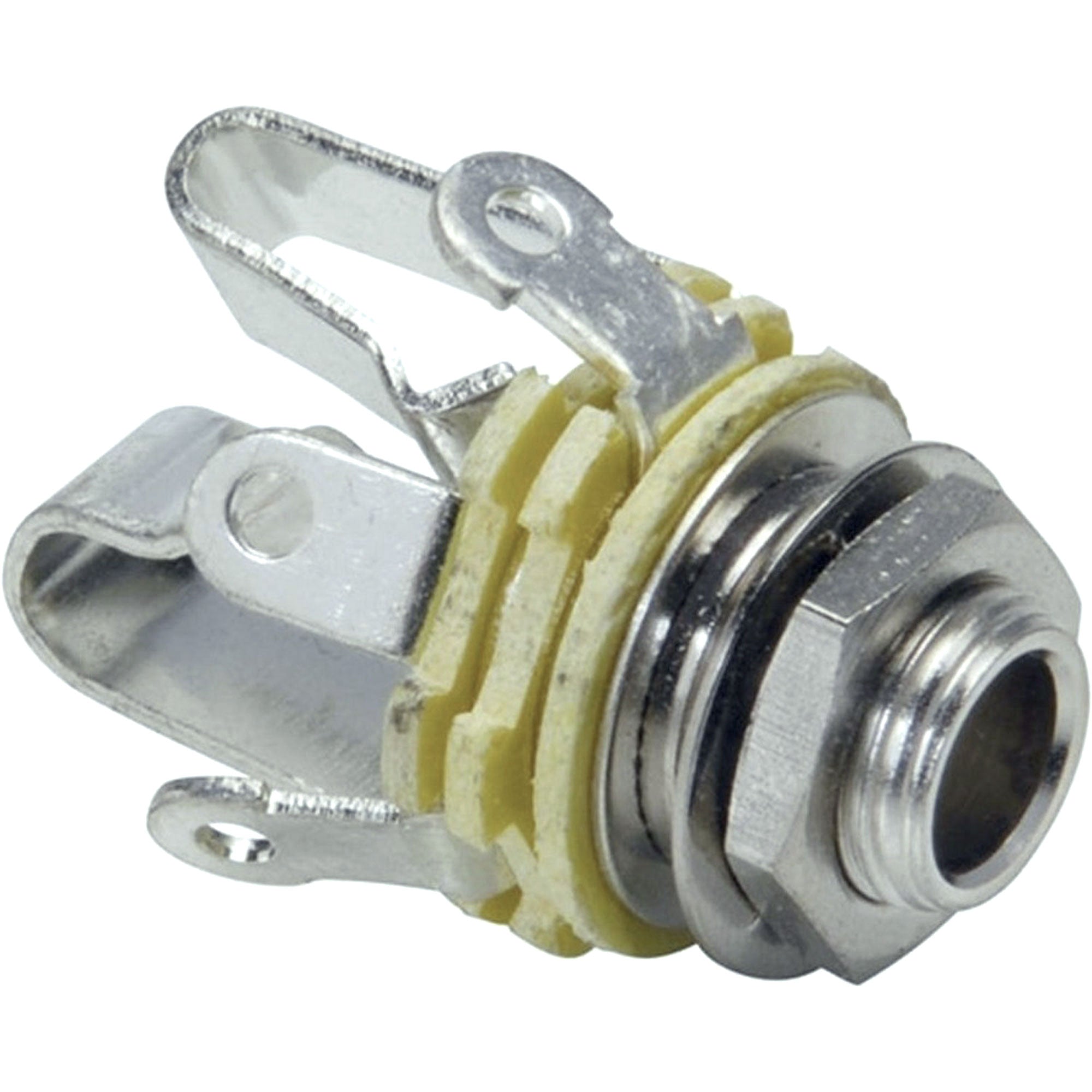

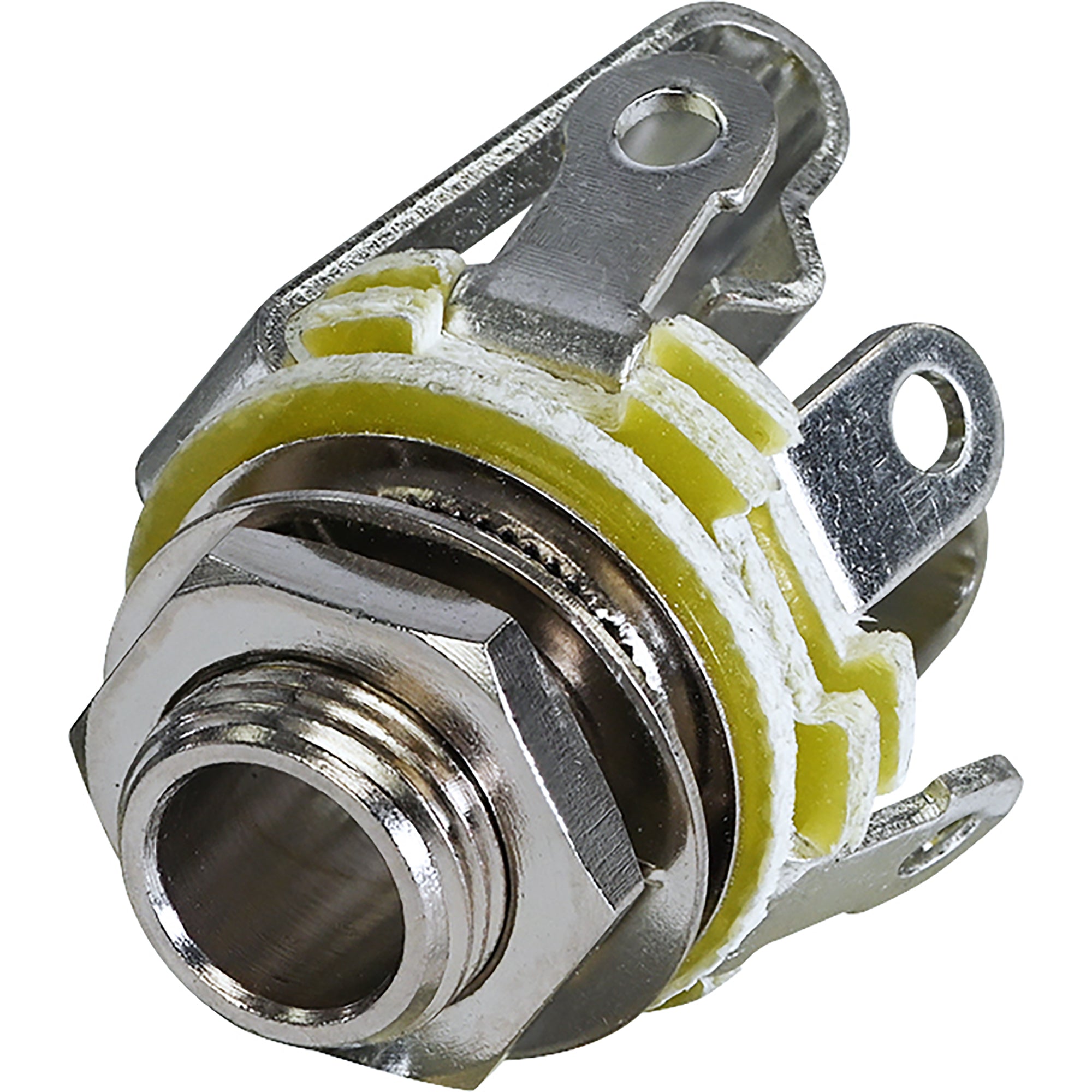

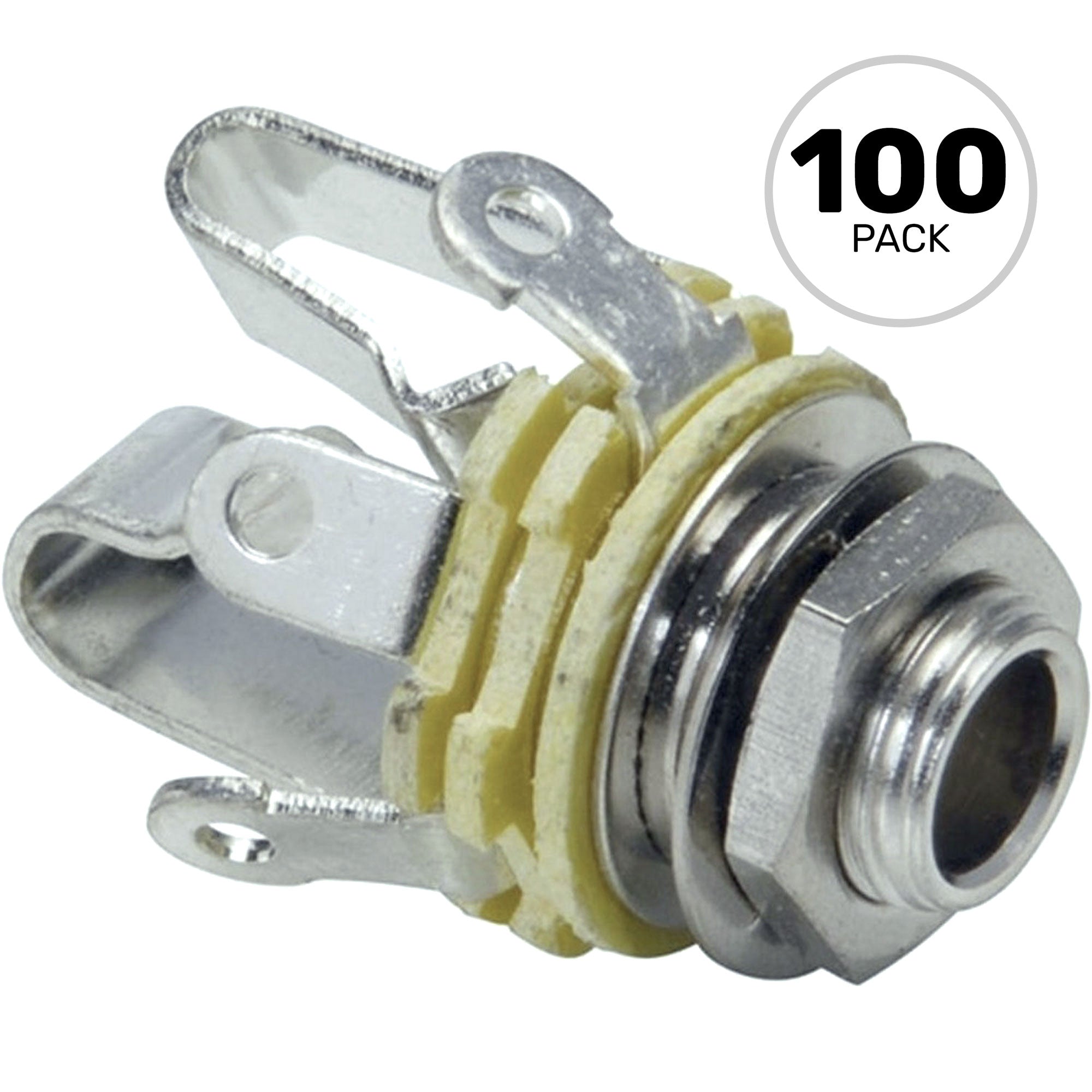

Female 1/4" TRS Stereo Open Frame Jack with Washer and Nut, Nickel Housing, Silver Contacts - Full Box of 100 Connectors
3 pole open 1/4" jack, 3 contacts, with washer and nut, panel thickness 3.5 mm, with 0.205" fasten tabs
Commercial open frame 1/4" stereo phone jack, 3-pole, 3 contacts. Includes washer and nut. Designed for a panel thickness up to 4.0 mm. 0.205" faston/solder tabs. Non-switched.
Features:
- 1/4" stereo (TRS) panel mount jack
- Non-switched
- Durable construction
- Nickel finish
Specifications:
- Product
- Title: NYS230
- Connection Type: Jack
- Gender: female
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≥ 10 N
- Lifetime: 1000 mating cycles
- Panel thickness: 3.5 mm
- Material
- Contact plating: SnCe
- Contacts: Brass (CuZn39Pb3)
- Shell: Brass (CuZn39Pb3)
- Shell plating: Nickel
- Insulation: Insulation board
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS230
- Model Number: NYS230
