Key Features
- Male 1/8" (3.5mm) Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Solder Cups
- Nickel Metal Housing
- Gold Contacts

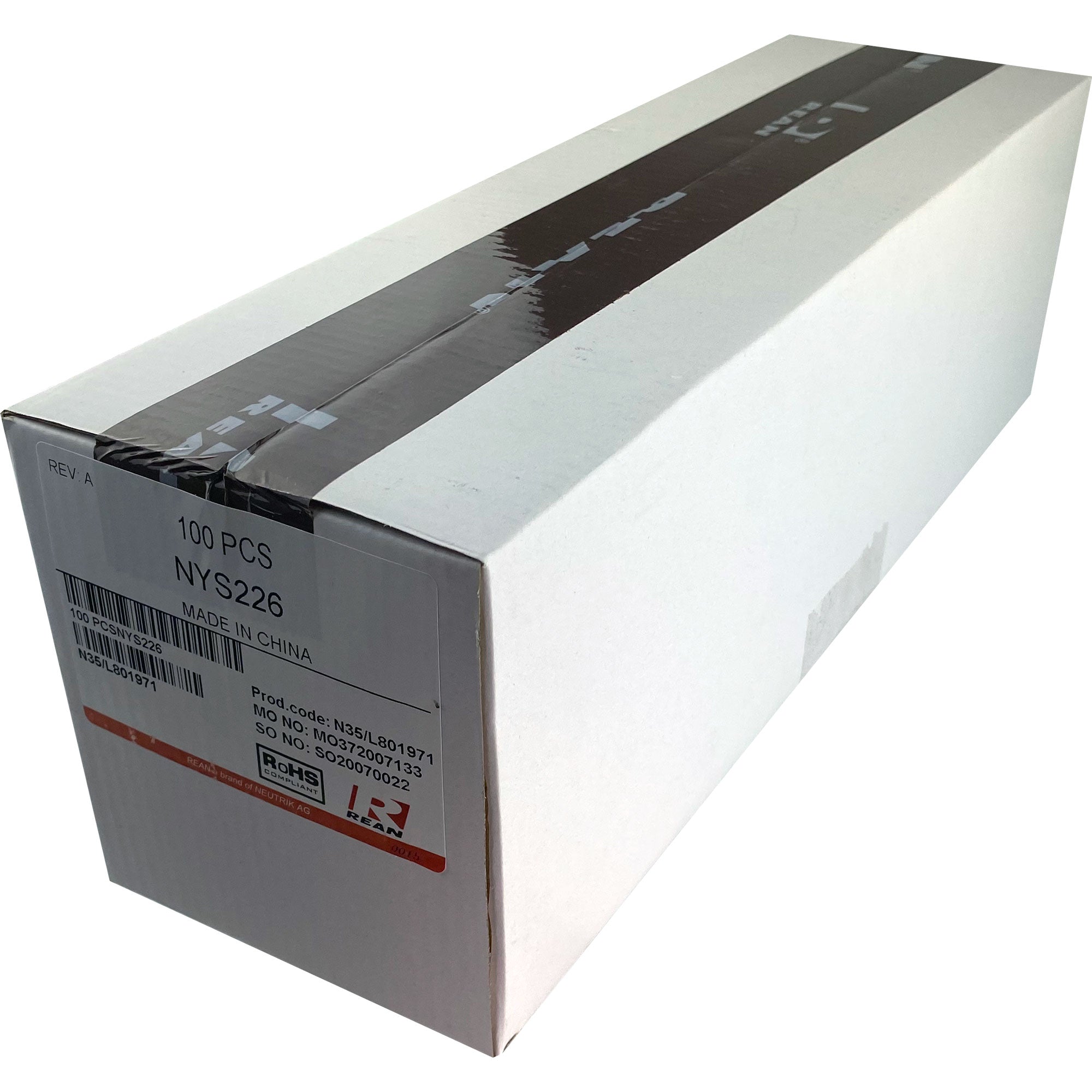

- Full Box of 100 Connectors
Description

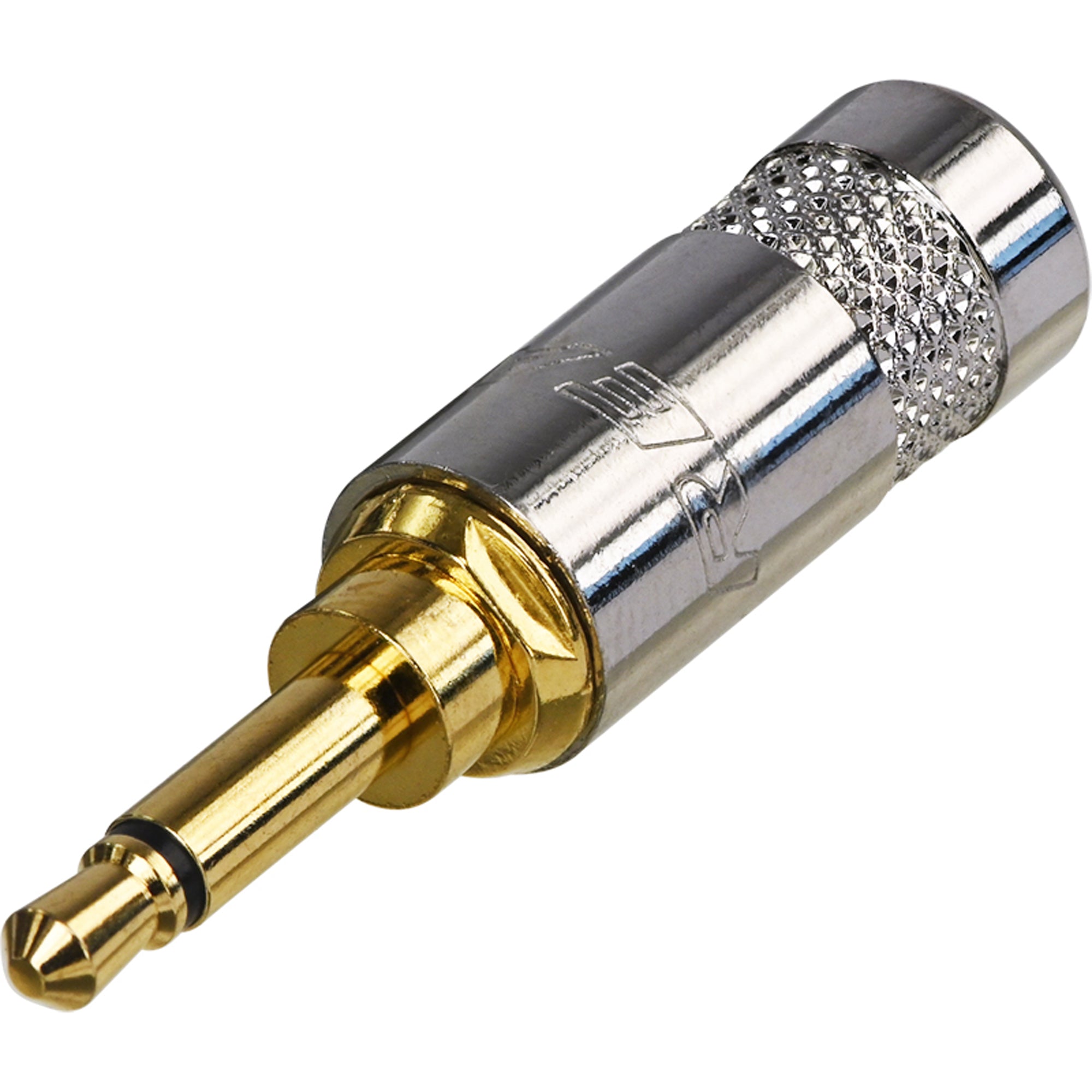

Male 1/8" (3.5mm) TS Mono Plug, Cable End, Nickel Housing, Gold Contacts - Full Box of 100 Connectors
3.5mm mono plug, crimp strain relief, metal handle, gold plated contacts
Features & Benefits
- Ergonomic space saving design
- Full metal rugged shell, reliable quality
- Easy to assemble and use
- Optional mono 2 pole and stereo 3 pole
- Precision machined one piece contacts - no rivets
Technical Information
- Product
- Title: NYS226G
- Connection Type: 3.5mm plug
- Gender: Mono
- Electrical
- Contact resistance: Depends on mating connector
- Dielectric strength: 1kV dc
- Insulation resistance: ≥1.5 GΩ
- Mechanical
- Lifetime: > 1000 mating cycles
- Insertion force: ≤60 N
- Withdrawal force: ≤60 N
- Wiresize: 2 - 8.5 mm
- Material
- Contact plating: Gold
- Shell: Zinc alloy
- Shell plating: Nickel
- Sleeve & Inner: Brass
- Tube: Polyamides
- Sleeve Plating: Gold
- Inner Plating: Gold
- Cable Clamp: Steel
- Environmental
- Flammability: UL94 HB
- Solderability: IEC68-2-20
- Temperature range: -20 °C to +70 °C
