Key Features
- Male 1/8" (3.5mm) Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Solder Cups
- Black Metal Housing
- Gold Contacts
Description

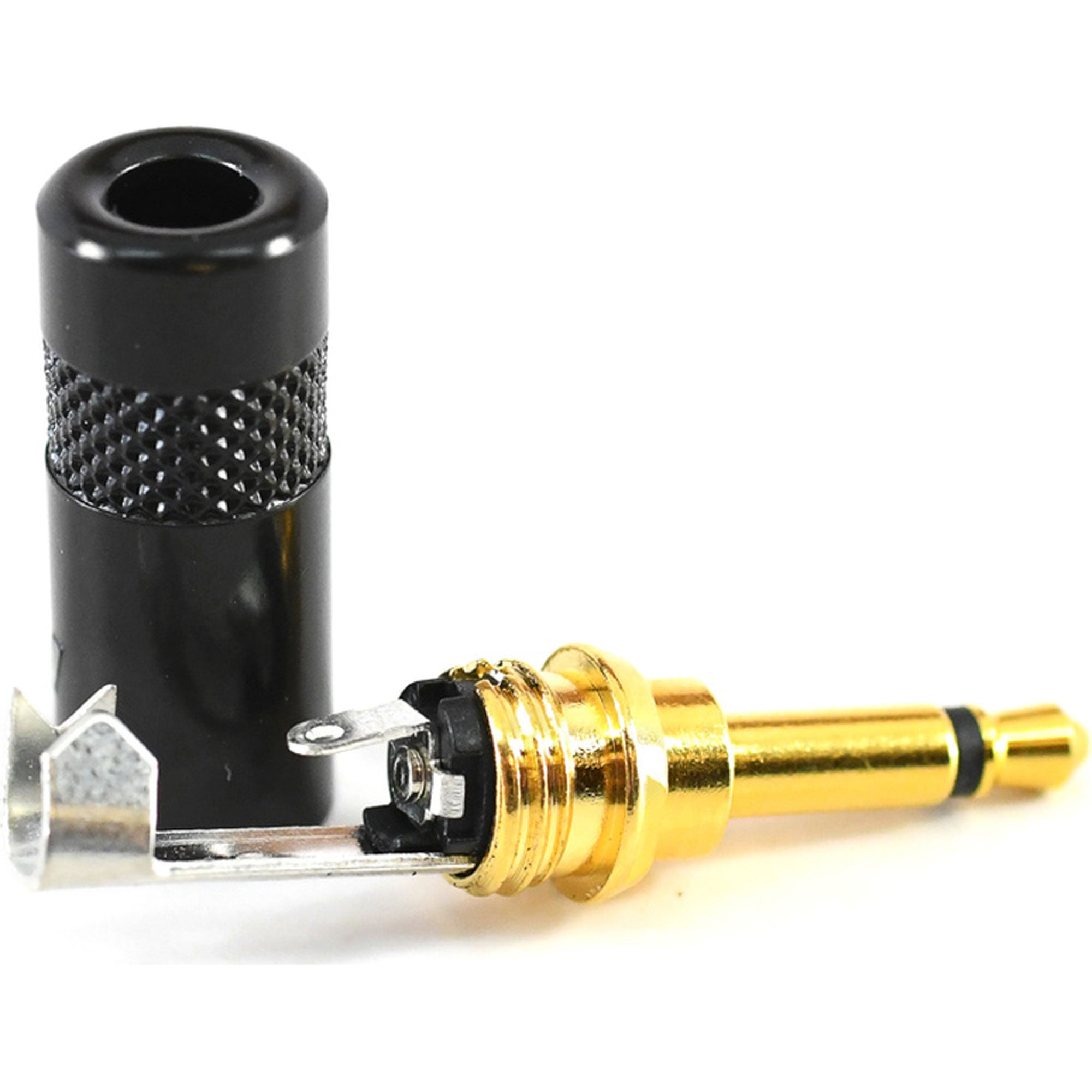

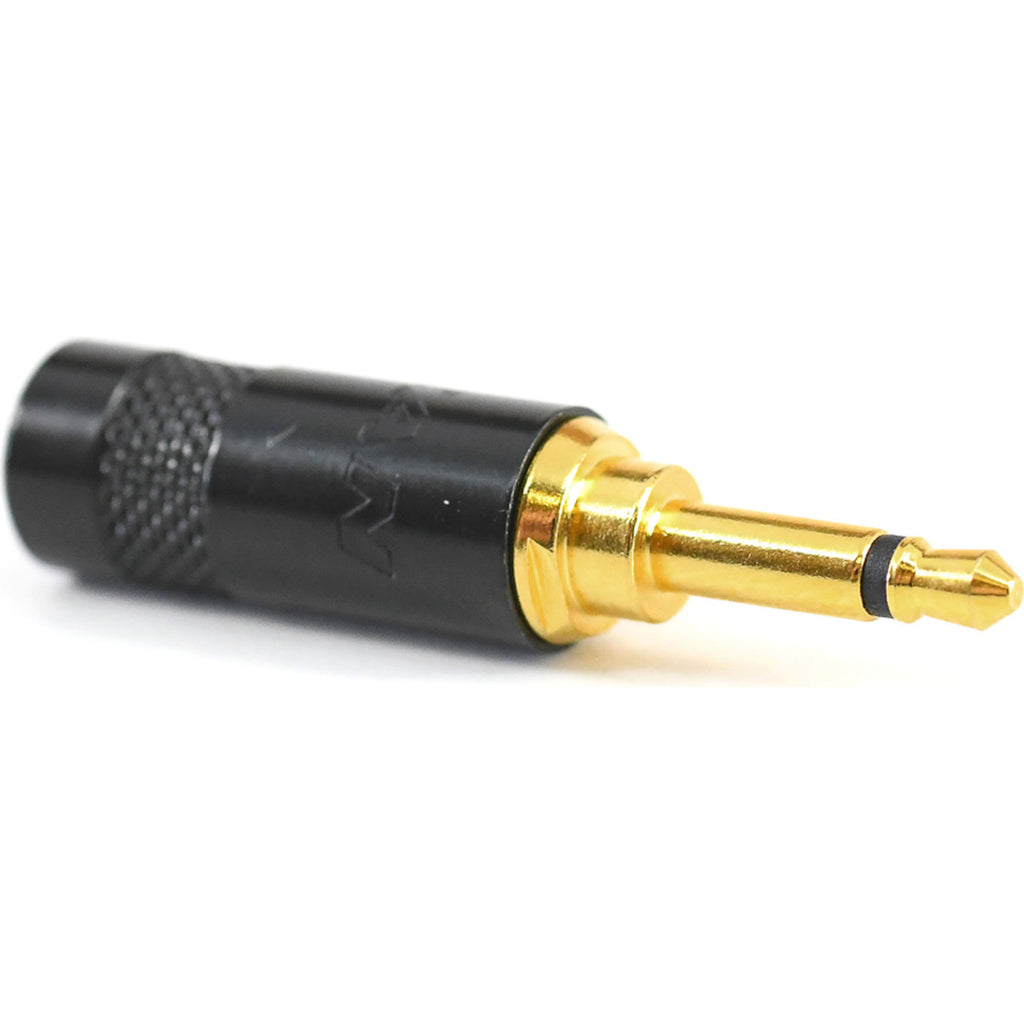

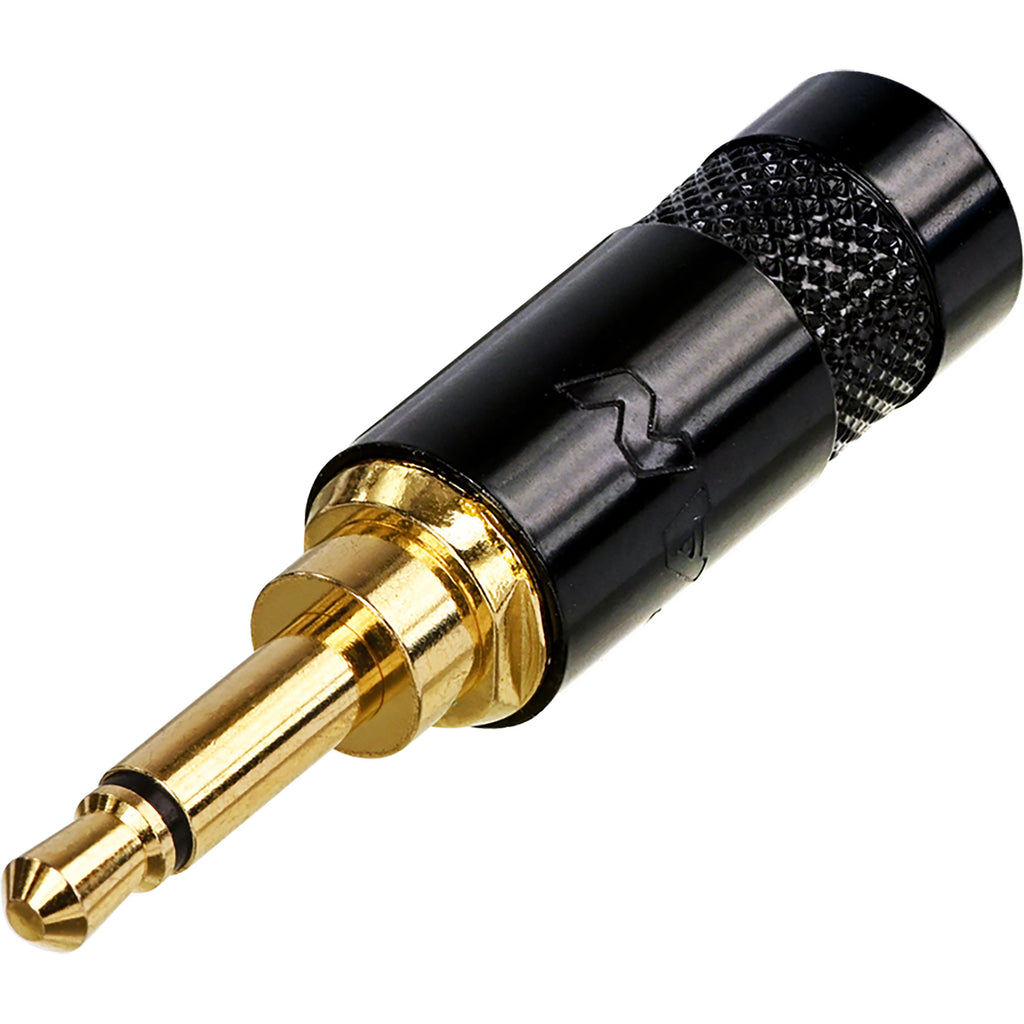

Male 1/8" (3.5mm) TS Mono Plug, Cable End, Black Housing, Gold Contacts
2 pole 3.5 mm plug, black plated metal handle handle, gold plated contacts
Excellent cost-performance ratio, attractive design, and reliable functionality are the strengths of REAN.
Features:
- 1/8" mono (TS) mini plug
- Make your own cables to the perfect length
- Repair your own cables and save money
- Rugged construction
- Black finish
Specifications:
- Product
- Title: NYS226BG
- Connection Type: Plug
- Gender: male
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Cable O.D.: 4 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≥ 10 N
- Lifetime: 1000 mating cycles
- Material
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief: SnCe plated, crimp type
- Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS226BG
- Model Number: NYS226BG
- UPC: 844632004759
