Key Features
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Long Barrel
- Solder Cups
- Black Metal Housing
- Gold Contacts
Description

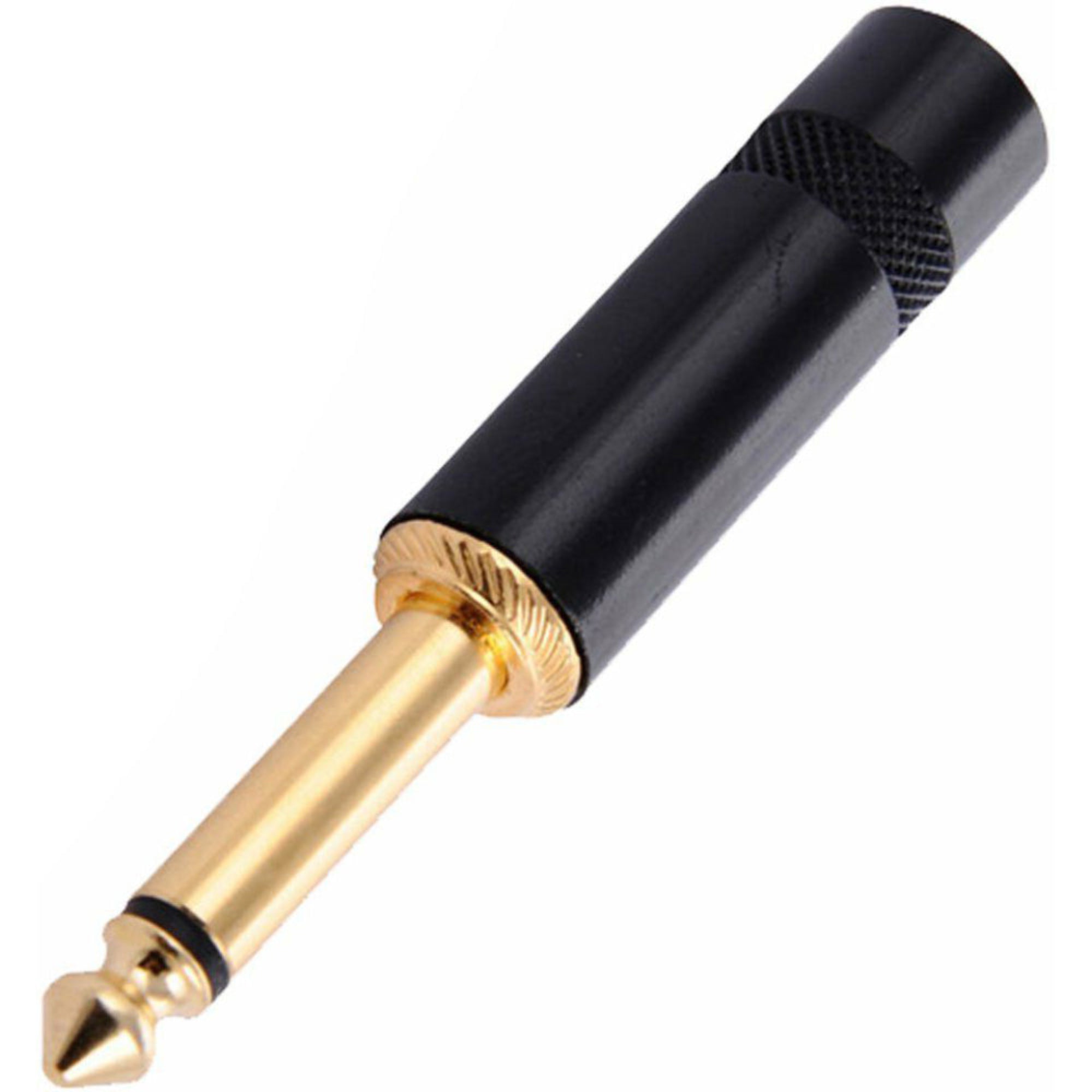

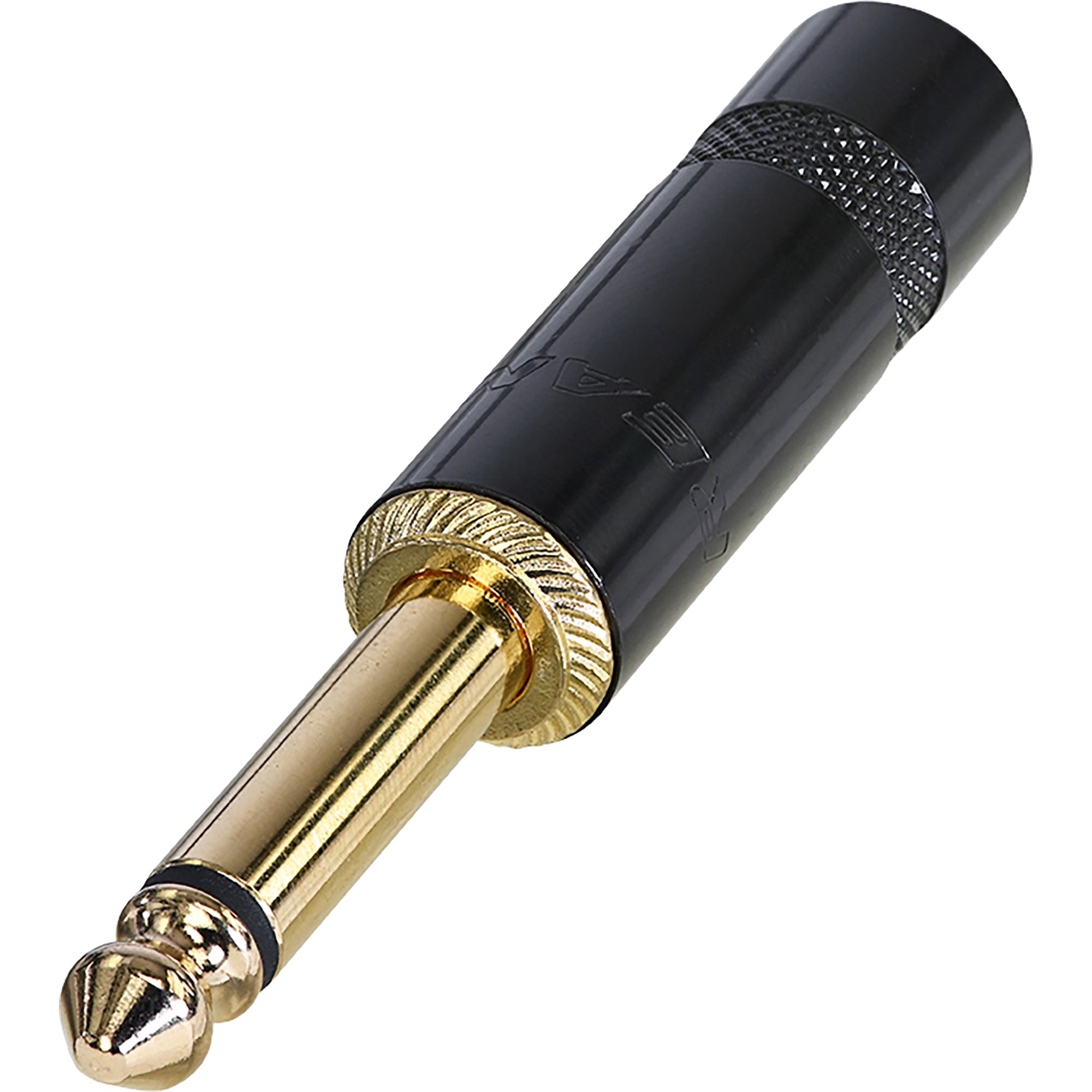

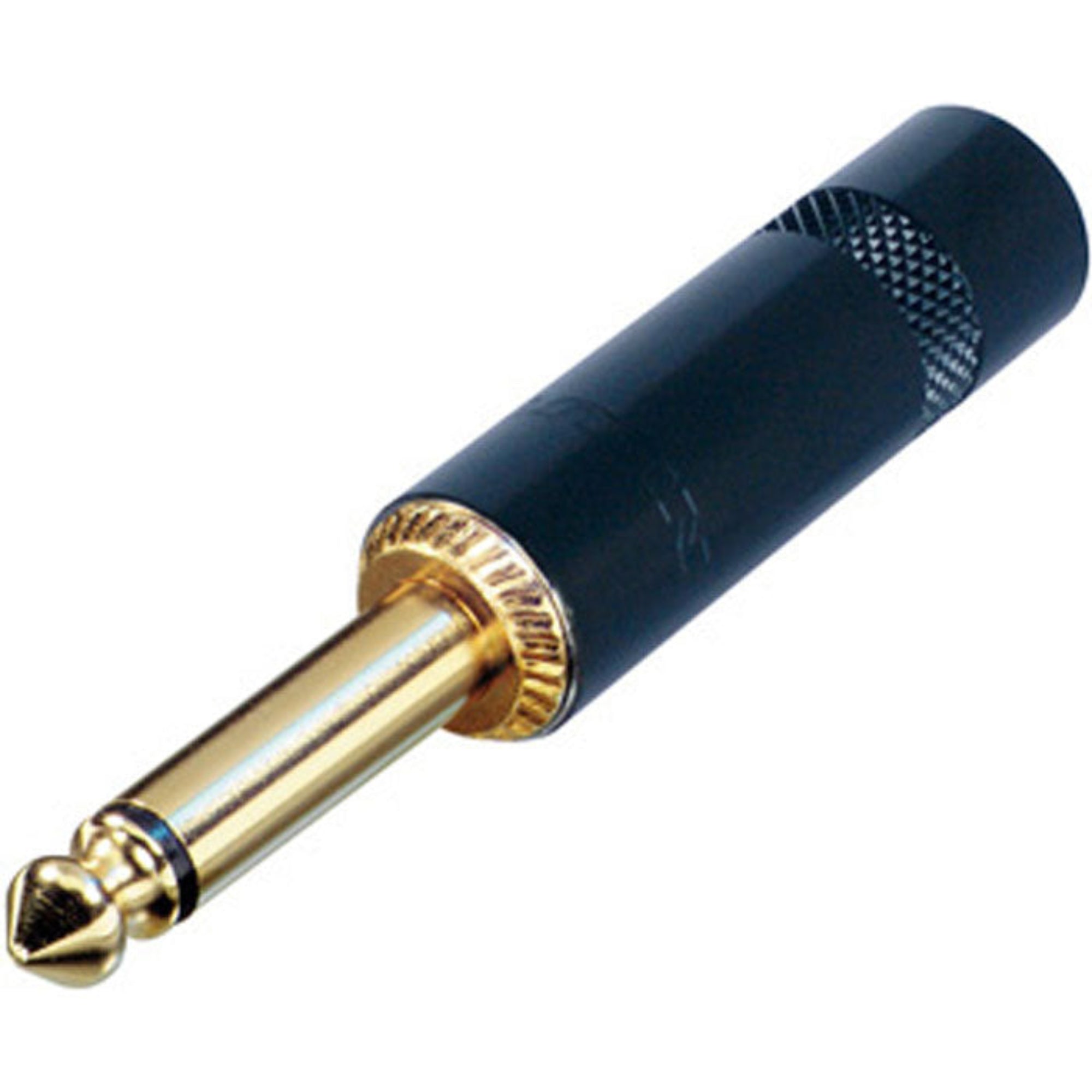

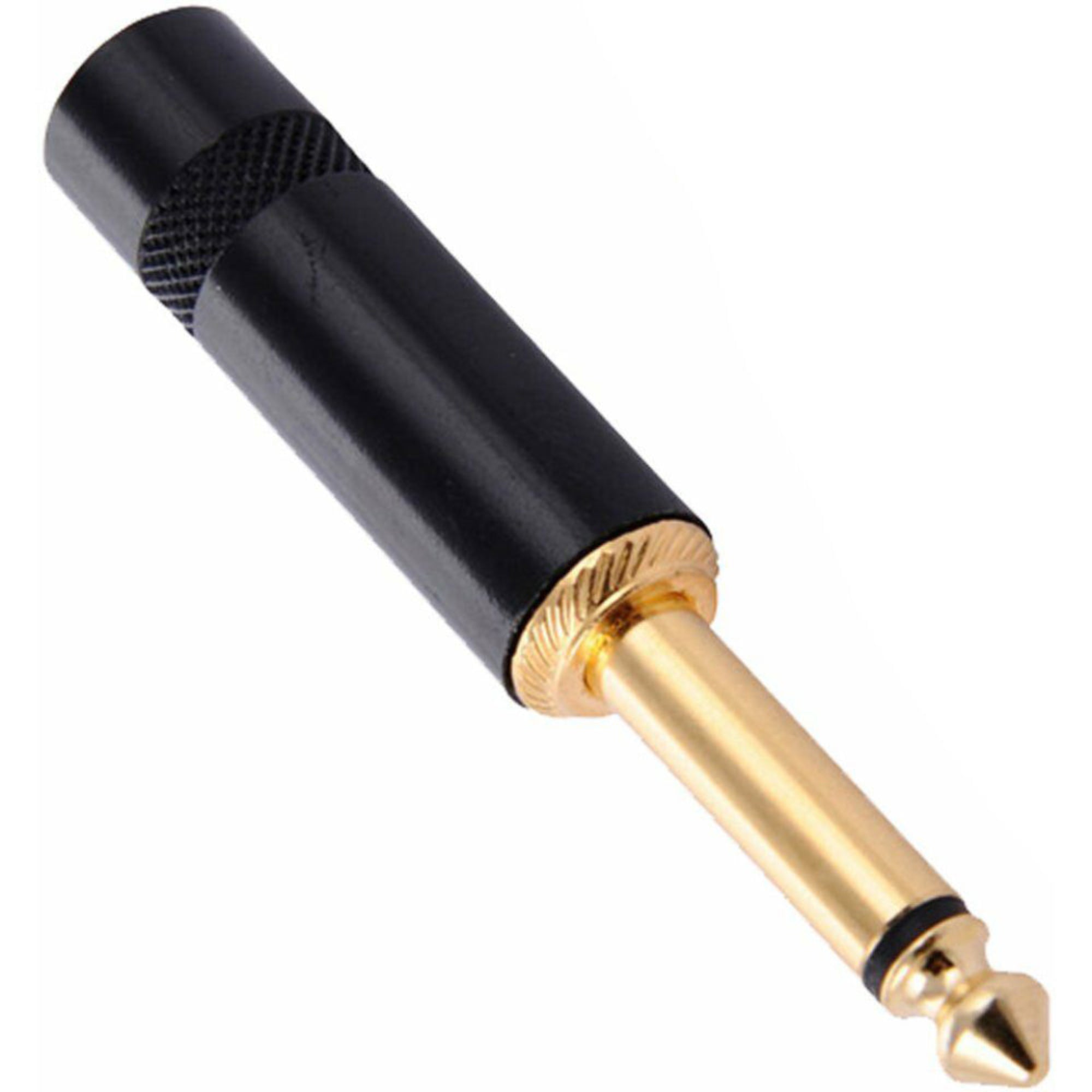

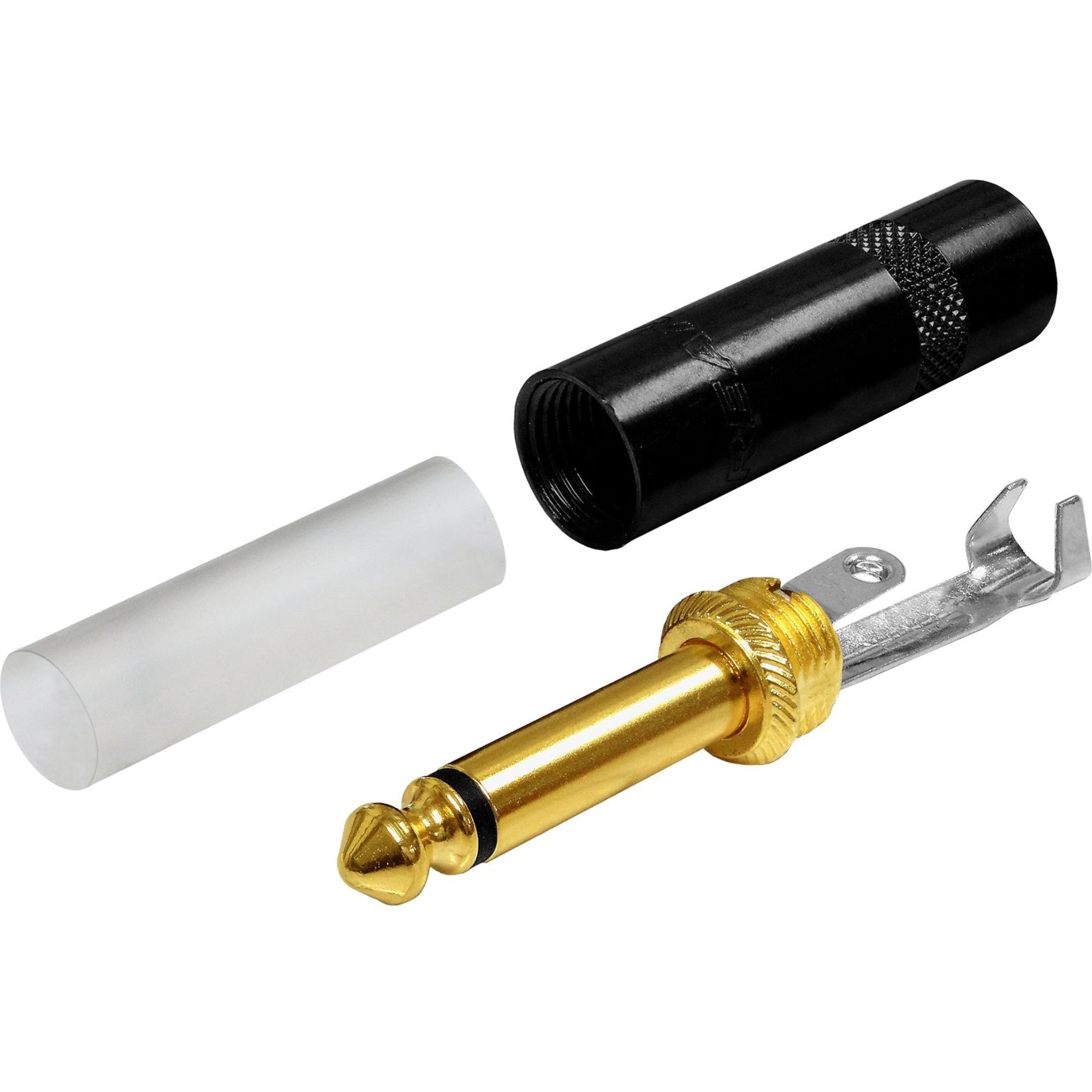

Male 1/4" TS Mono Long Barrel Plug, Cable End, Black Housing, Gold Contacts
2 pole 1/4" plug, black plated long diecast handle, gold plated contacts
Features:
- 1/4" mono (TS) phono plug
- Make your own cables to the perfect length
- Repair your own cables and save money
- Rugged construction
- Nickel finish
Specifications:
- Product
- Title: NYS224BG
- Connection Type: Plug
- Gender: male
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance: >200 MΩ (Initial)
- Contact resistance: depends on mating connector
- Rated current: depends on mating connector
- Transmission Performance: null
- Mechanical
- Cable O.D.: ≤ 6 mm
- Lifetime: 1000 mating cycles
- Wiresize
- Wiresize: 24 AWG
- Material
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Insulation: Thermoplastic
- Strain relief: Crimp type SnCe plated
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20-C to +70-C
Details
- Manufacturer: Neutrik
- MPN: NYS224BG
- Model Number: NYS224BG
- UPC:
