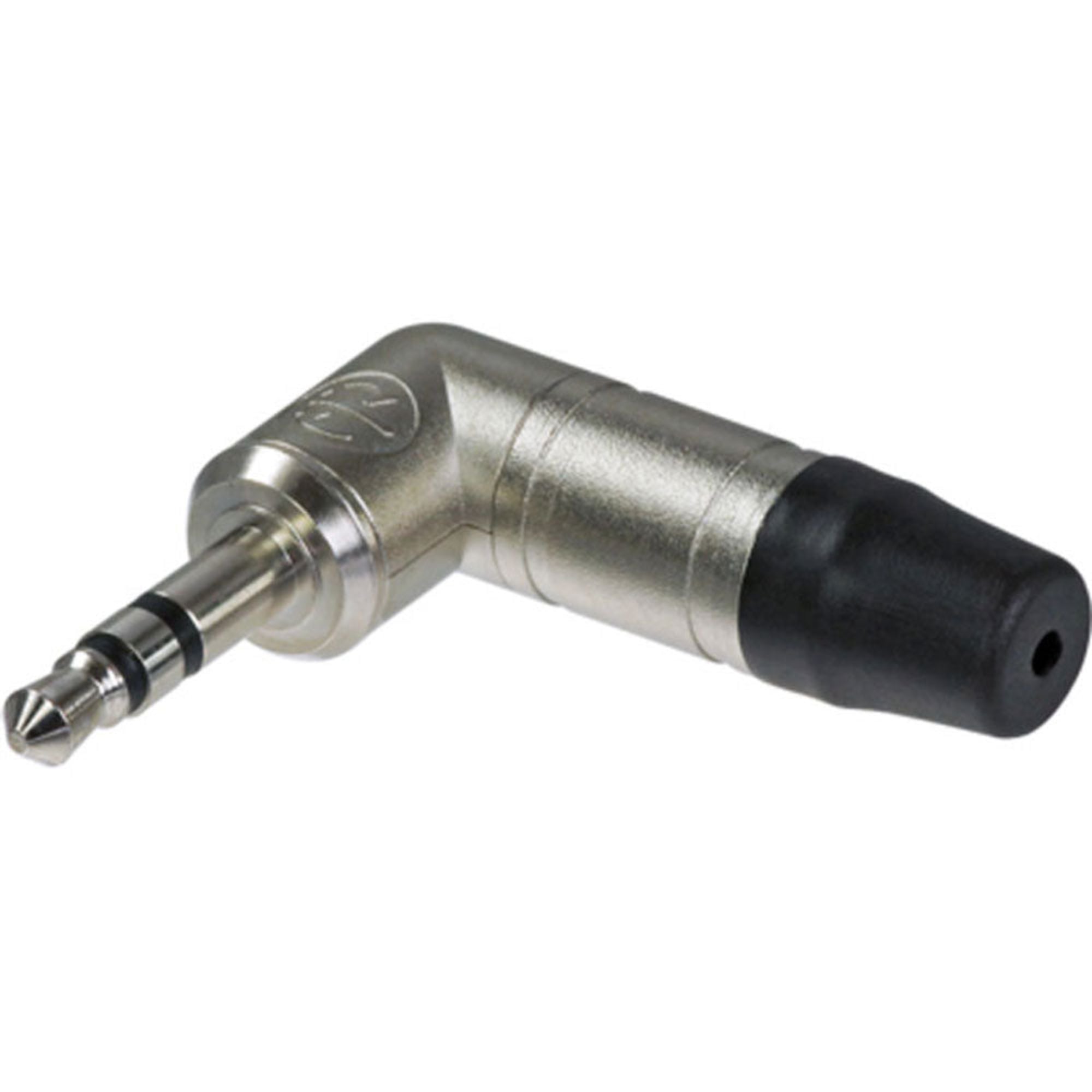

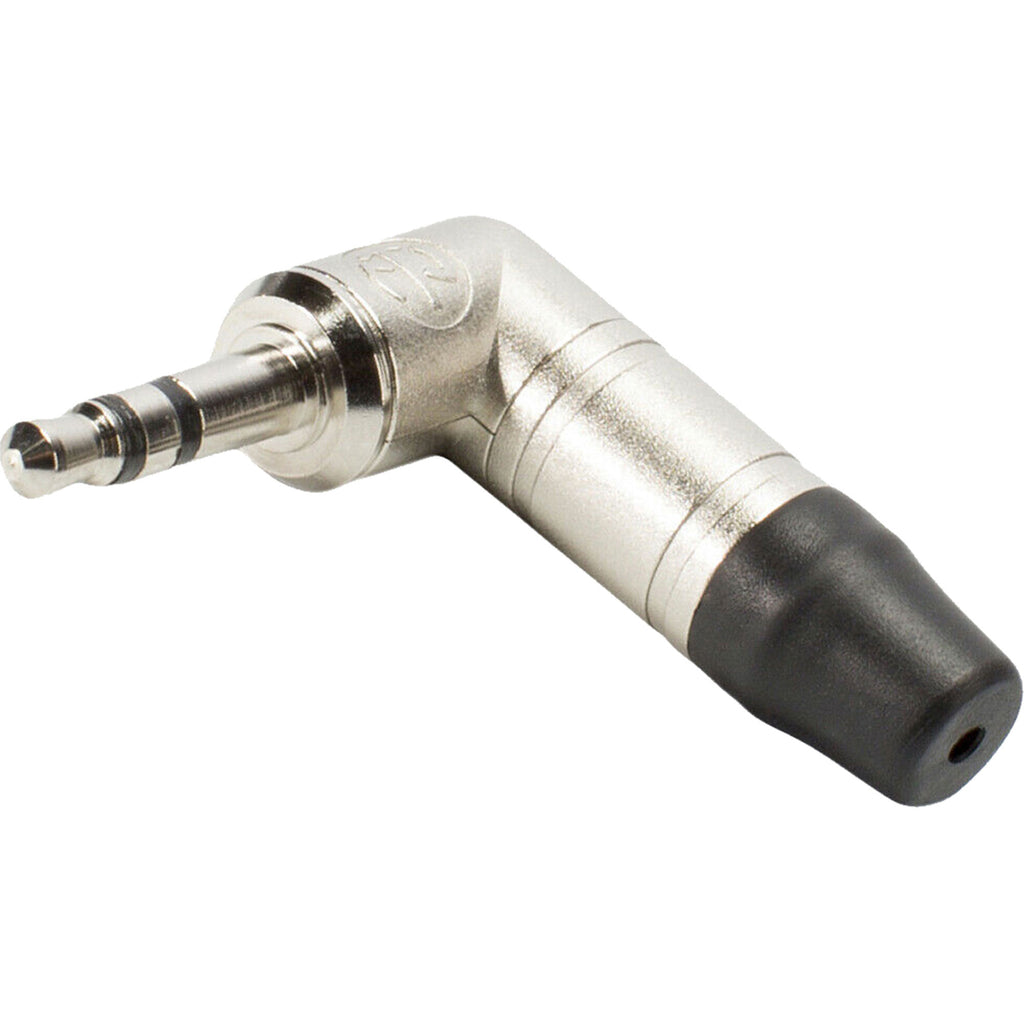

Neutrik NTP3RC Right-Angle 3.5mm Stereo Phone Plug (Nickel/Silver)

Right-Angle Male 1/8" (3.5mm) TRS Stereo Plug, Cable End, Nickel Housing, Silver Contacts

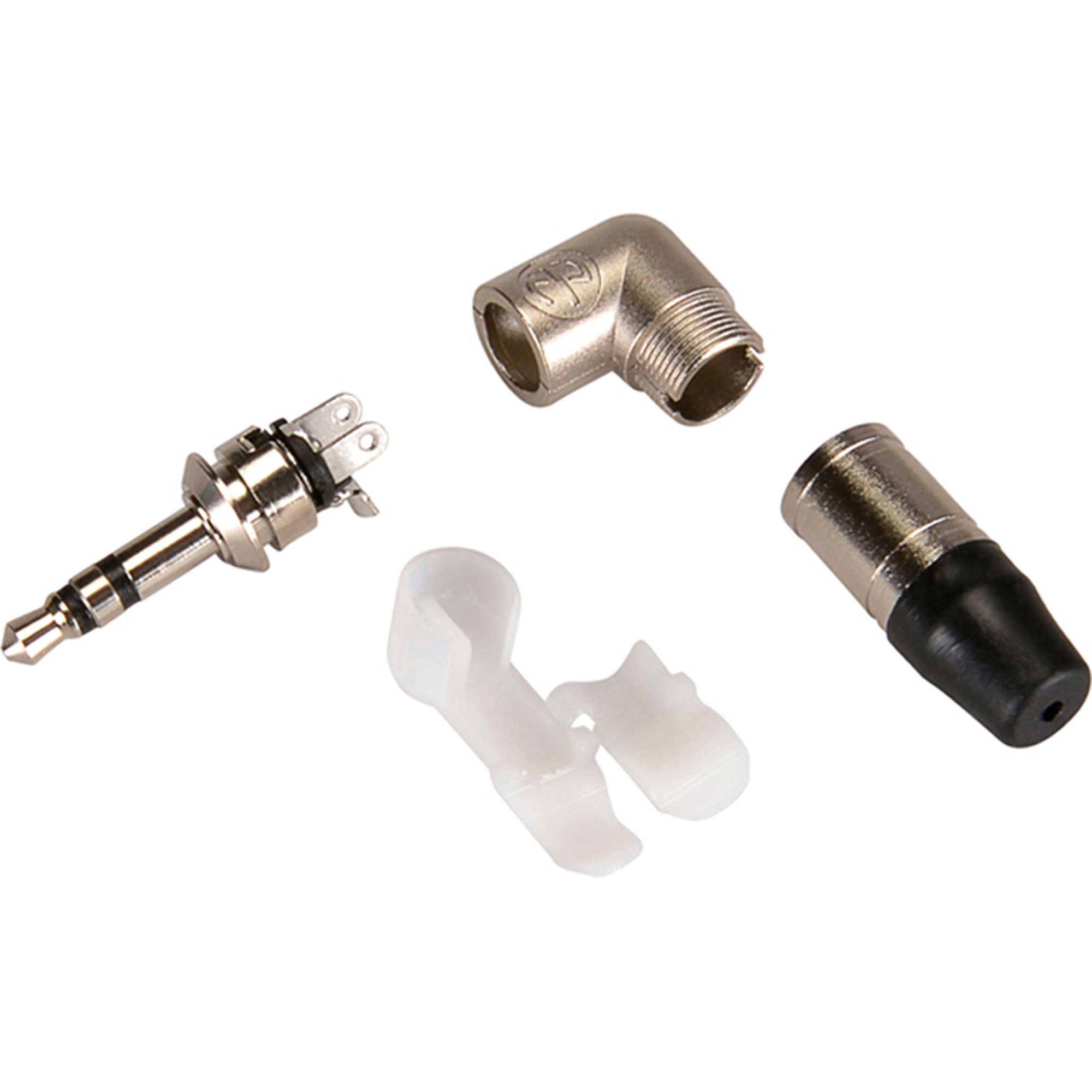

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Features:

• All metal housing - robust and reliable
• Chuck type cable clamp and rubber gland - excellent cable protection
• Slim design - space saving

Specifications:

• Product:
• Title: NTP3RC
• Connection Type: Plug
• Gender: male
• Electrical:
• Contact resistance: depends on mating connector m
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 G (initial)
• Rated voltage: <50 V
• Mechanical:
• Cable O.D.: 2 - 4.5 mm
• Wiresize: 0,22 mm-
• Wiresize: 24 AWG
• Wiring: Solder contacts
• Material:
• Bushing: Brass (CuZn39Pb3) + PU, Ni
• Contact plating: 2 -m Ni (Su)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 15 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Environmental:
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20-C to +65-C
