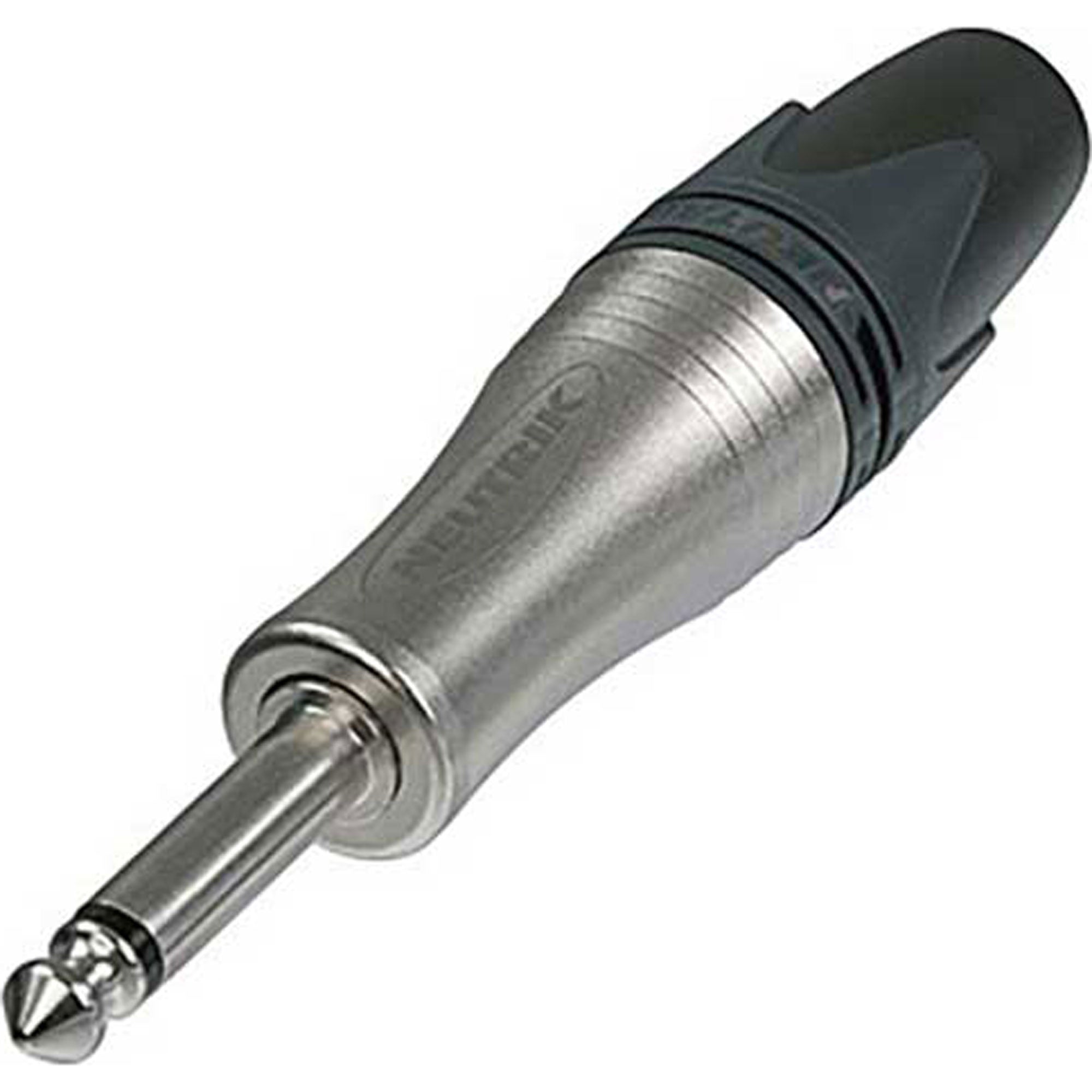

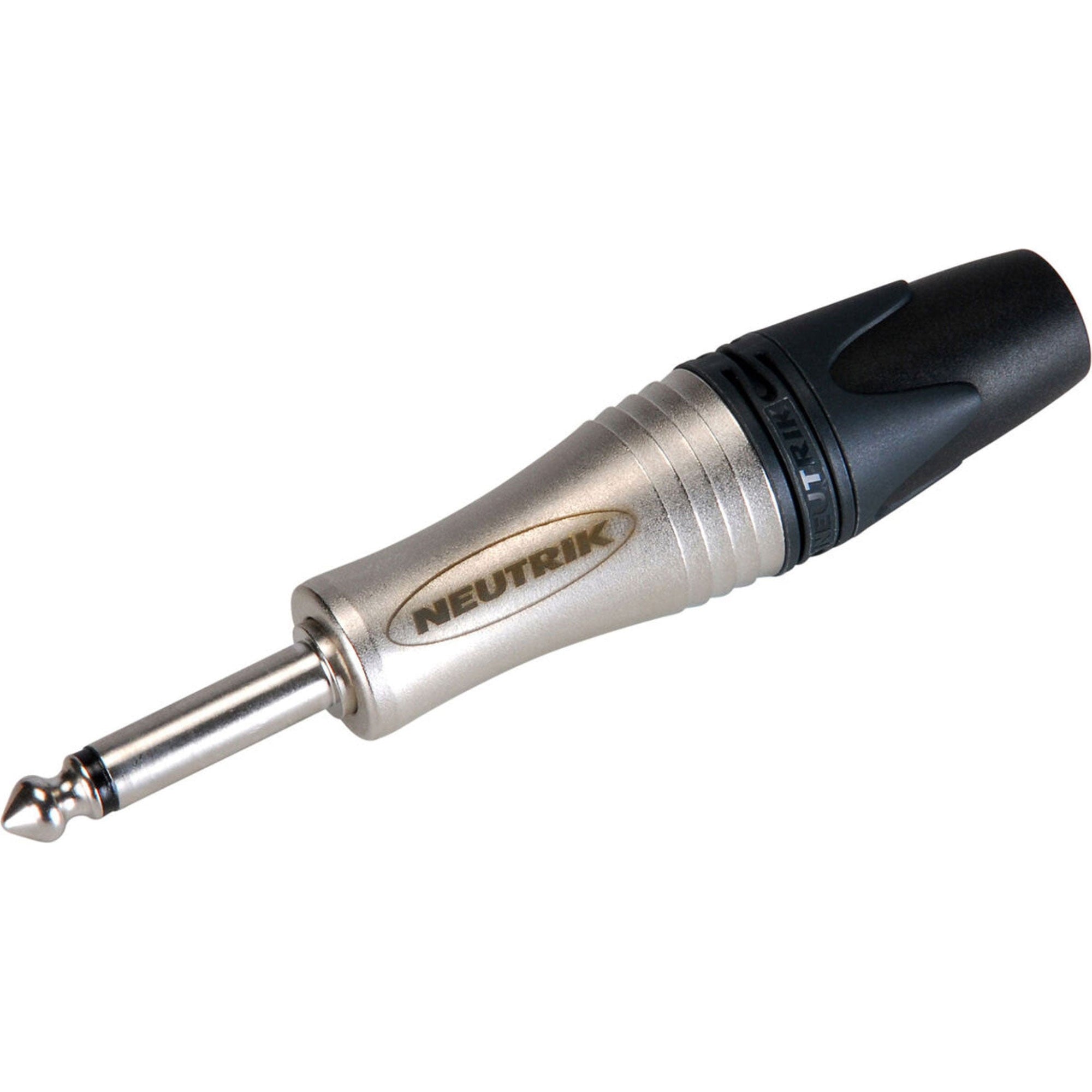

Neutrik NP2XL jumboPLUG Professional 1/4" TS Mono Phone Plug (Nickel/Silver)

jumboPLUG Male 1/4" TS Mono Phone Plug for Cables Up to 10mm, Cable End, Nickel Housing, Silver Contacts

2 pole 1/4" professional phone plug, up to 10 mm cable O.D.

The professional 1/4" jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.

Features:

• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Ergonomic design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Specifications:

• Product:
• Title: NP2XL
• Electrical:
• Contact resistance: ? mΩ depends on mating connector
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
• Rated current per contact: ? A depends on mating connector
• Rated voltage: < 50 V
• Mechanical:
• Cable O.D.: ≤ 10 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm²
• Wiresize: 18 AWG
• Environmental:
• Standard compliance: IEC 60603-11 / EIA RS-453
• Temperature range: -20°C to +65°C
