Key Features
- Female 1/4" TRS Stereo
- Locking Cable Mount Jack
- Solder Terminals
- Accommodates Cable up to 8mm O.D.
- Black Metal Housing
- Silver Contacts
- Full Box of 50 Connectors
Description

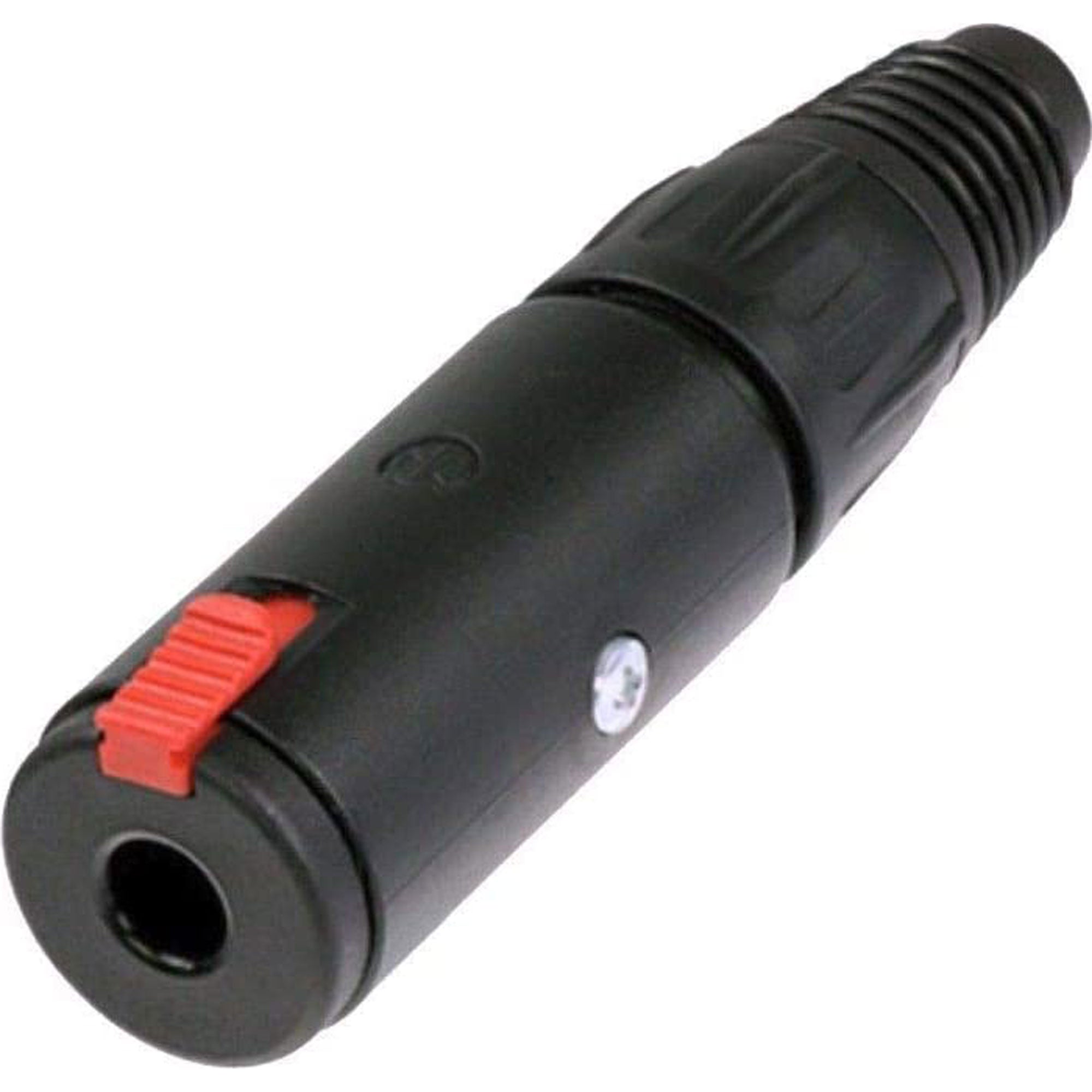

Female 1/4" TRS Stereo Locking Cable End Connector, Black Housing, Silver Contacts - Full Box of 50 Connectors
Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protection

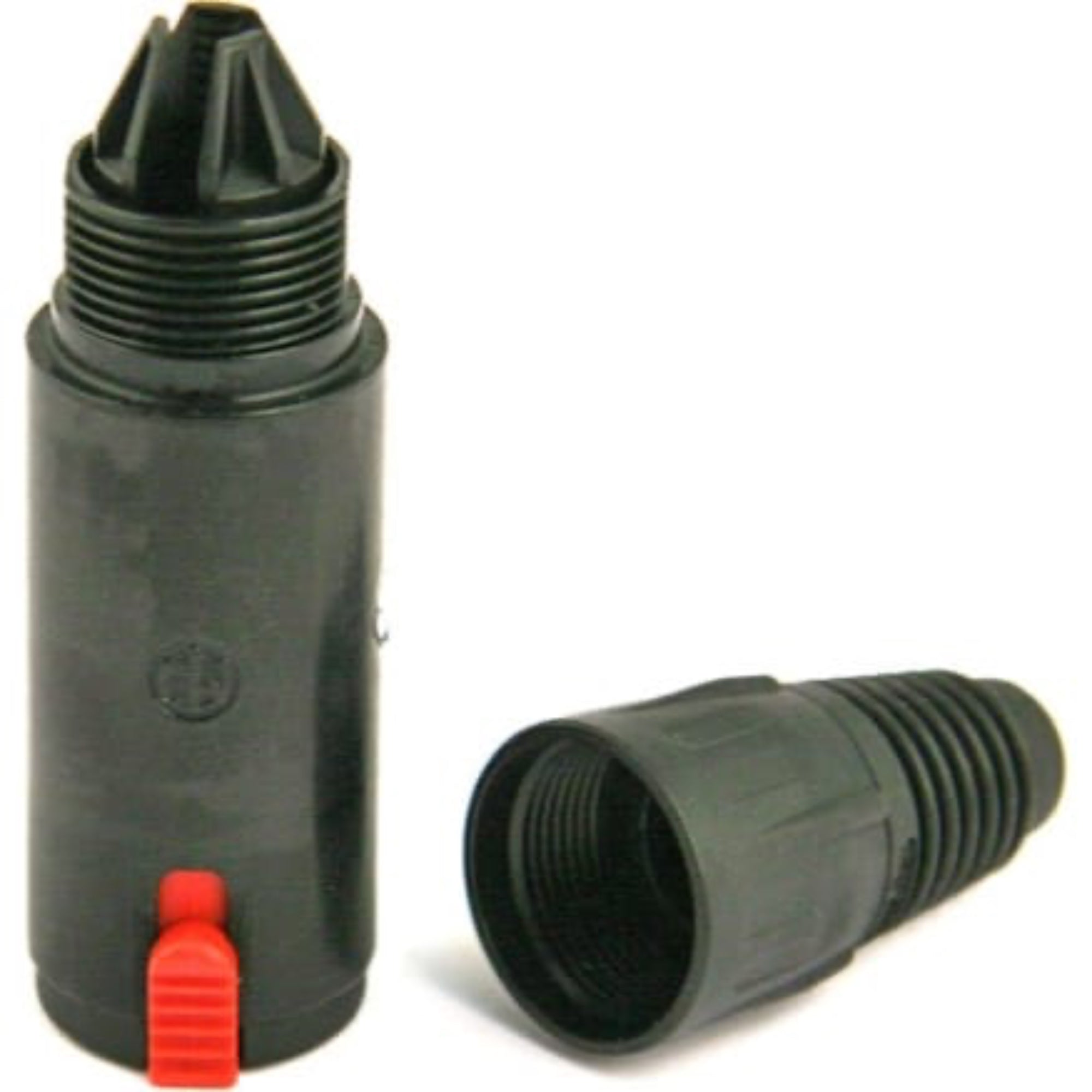

The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Features:
- Securely locking cable jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Metal shell makes it extremely robust and reliable
- Neutrik cable retention and boot as on XLR connectors
- Solder terminals
- Colored boots available in 10 colors for color coding and marking
Specifications:
- Product
- Title: NJ3FC6-BAG
- Connection Type: Jack
- Gender: female
- Electrical
- Contact resistance: < 6 mΩ (inner) (initial)
- Dielectric strength: 1 kVdc
- Insulation resistance: >= 1 GΩ @ 500 V dc
- Rated current per contact: 10 A
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: < 20 N
- Withdrawal force: < 20 N
- Lifetime: > 10000 mating cycles
- Locking force: > 80 N
- Wiresize: 1 mm-
- Wiresize: 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material
- Boot: Polyurethan
- Contact plating: 2 -m Ag
- Contacts: Brass (CuZn37) (Ground)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Environmental
- Standard compliance: EIA RS 453, IEC 60603-11
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NJ3FC6-BAG
- Model Number: NJ3FC6-BAG
