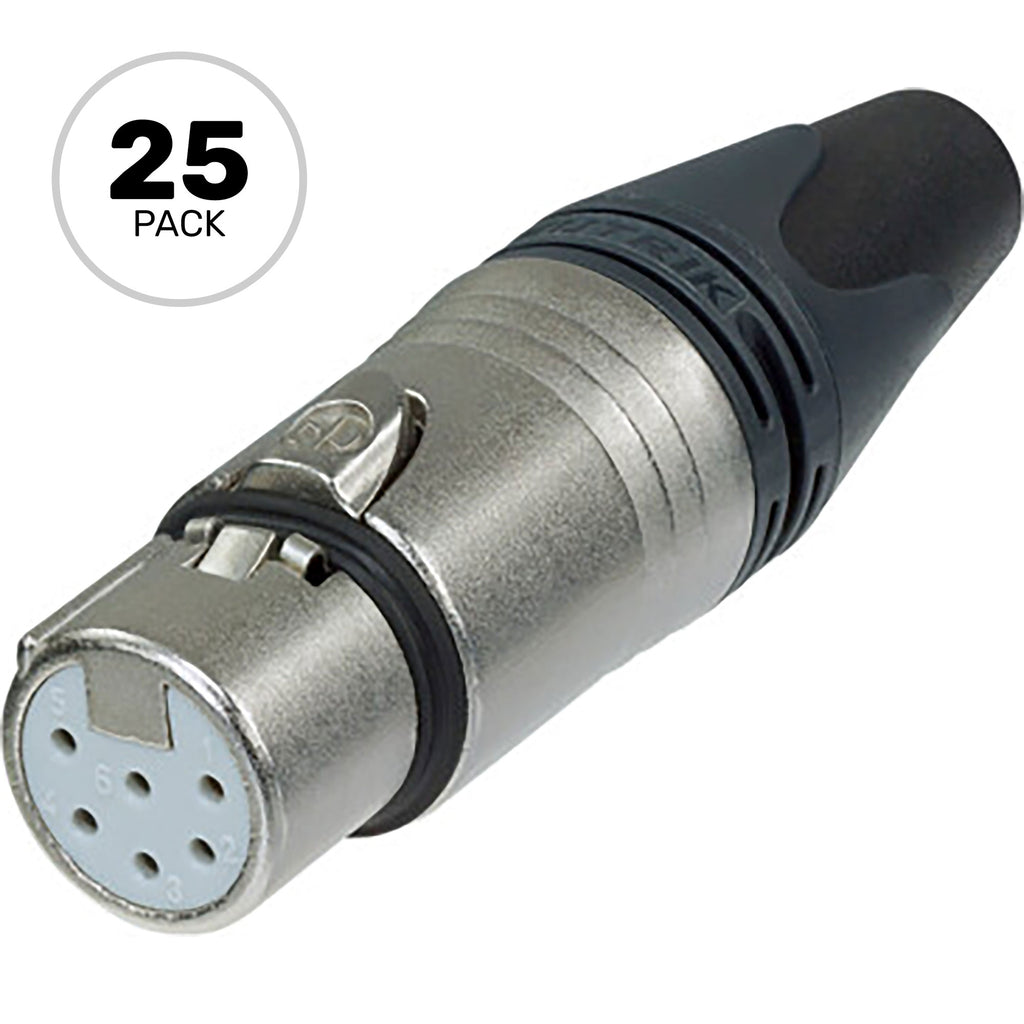

Neutrik NC6FSXX Female 6-Pin XLR Cable Connector with Switchcraft Pin Layout (Nickel/Silver, Box of 25)

Female 6-Pin XLR Cable End Connector with Switchcraft Pin Layout, X Series, Nickel Housing, Silver Contacts - Full Box of 25 Connectors

6 pole female cable connector with Nickel housing and silver contacts. Equivalent to switchcraft pin layout.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features:

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well proteced against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications:

• Product
• Connector Type: XLR
• Gender: female
• Electrical
• Capacitance between contacts: <= 7 pF
• Contact resistance: <= 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Insulation resistance: > 1 GΩ (after damp heat test)
• Rated current per contact: 7,5 A
• Rated voltage: 50 V
• Mechanical
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: <= 20 N
• Withdrawal force: <= 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 1.0 mm(2)
• Wire size: max. 18 AWG
• Wiring: Solder contacts
• Locking device: latch lock
• Equivalent: Switchcraft pin arrangement
• Material
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 2 m Ag over 2 m Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 C to +80 C
