Neutrik NC5MXX Male 5-Pin XLR Cable Connector (Nickel/Silver, Box of 100)

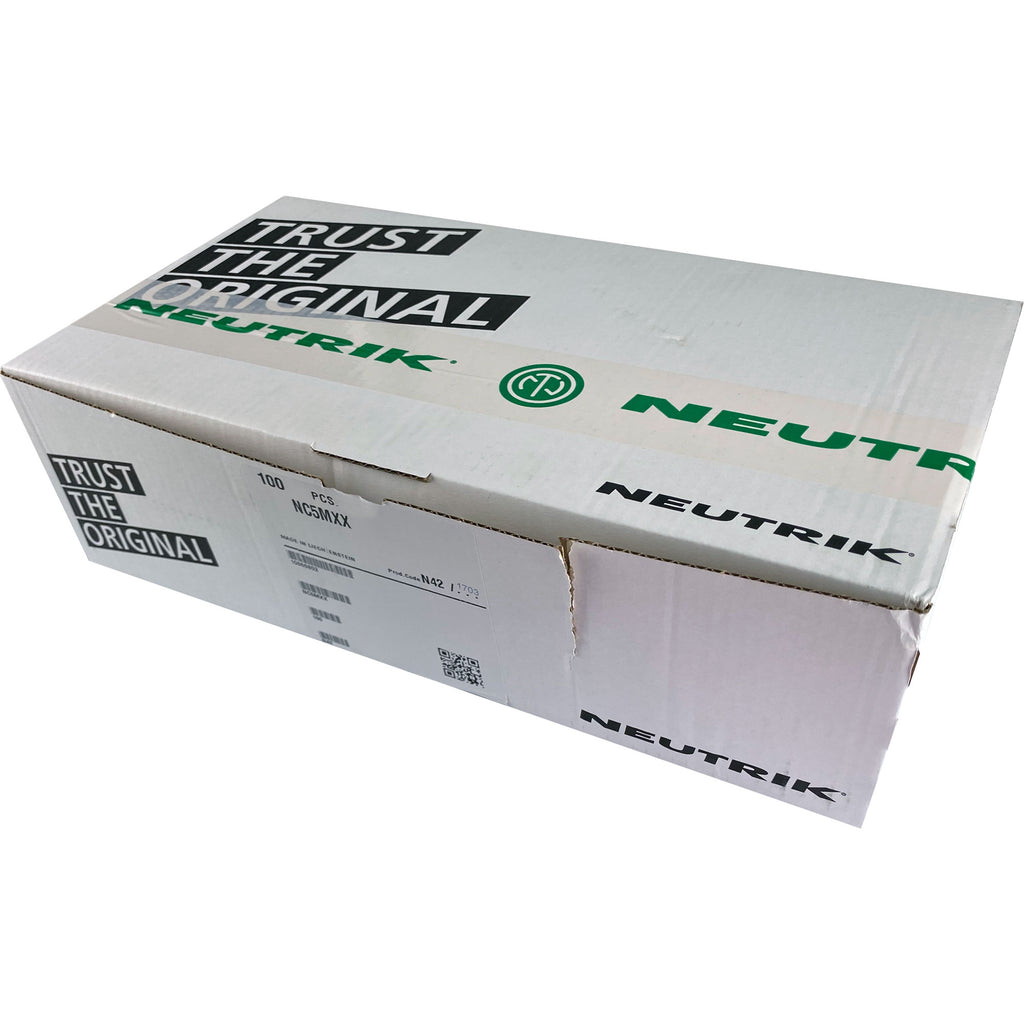

Male 5-Pin XLR Cable End Connector, XX Series, Nickel Housing, Silver Contacts - Full Box of 100 Connectors

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

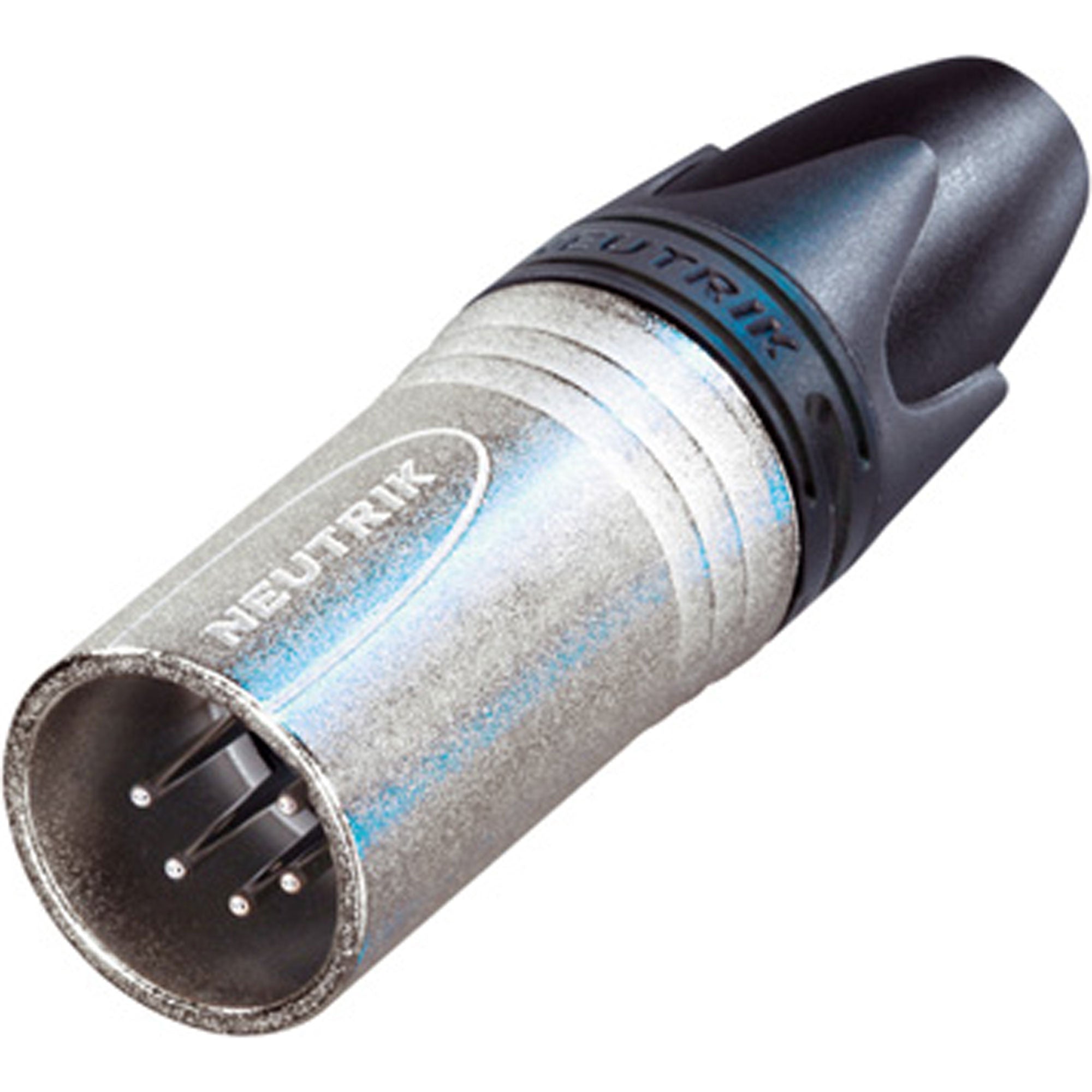

5 pole male cable connector with Nickel housing and silver contacts.

Features:

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well proteced against any damage

Specifications:

• Product
• Connector Type: XLR
• Gender: male
• Electrical
• Capacitance between contacts: <= 7 pF
• Contact resistance: <= 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Insulation resistance: > 1 GΩ (after damp heat test)
• Rated current per contact: 7,5 A
• Rated voltage: 50 V
• Mechanical
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: <= 20 N
• Withdrawal force: <= 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 1.0 mm(2)
• Wire size: max. 18 AWG
• Wiring: Solder contacts
• Locking device: latch lock
• Material
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 2 m Ag over 2 m Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 C to +80 C
