Key Features
- Male 4-Pin XLR Receptacle
- Sealed Chassis
- Fastening Nut Included
- Nickel Metal Housing
- Gold Contacts
- Full Box of 100 Connectors
Description

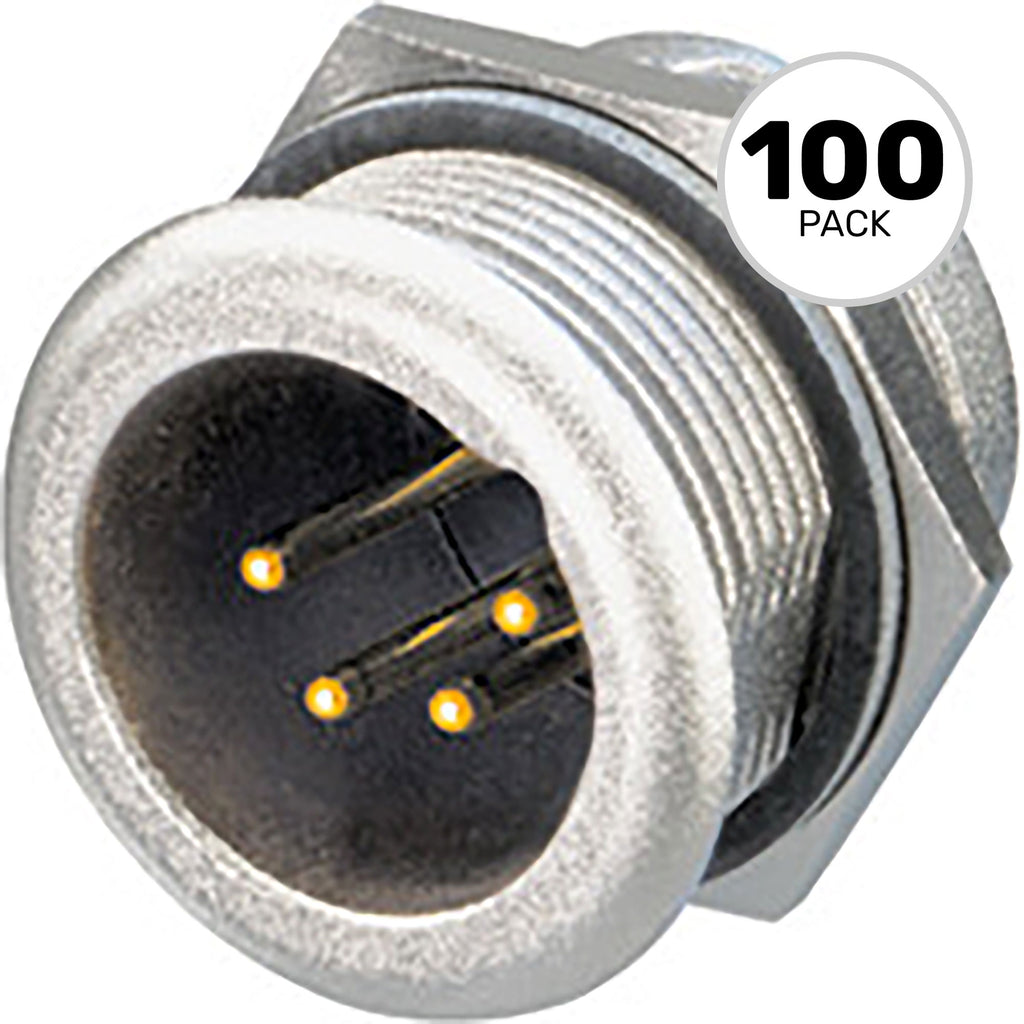

Male 4-Pin XLR Outdoor Use Receptacle, MPR-HD Series, Solder Cups, Nickel Housing, Silver Contacts - Full Box of 100 Connectors

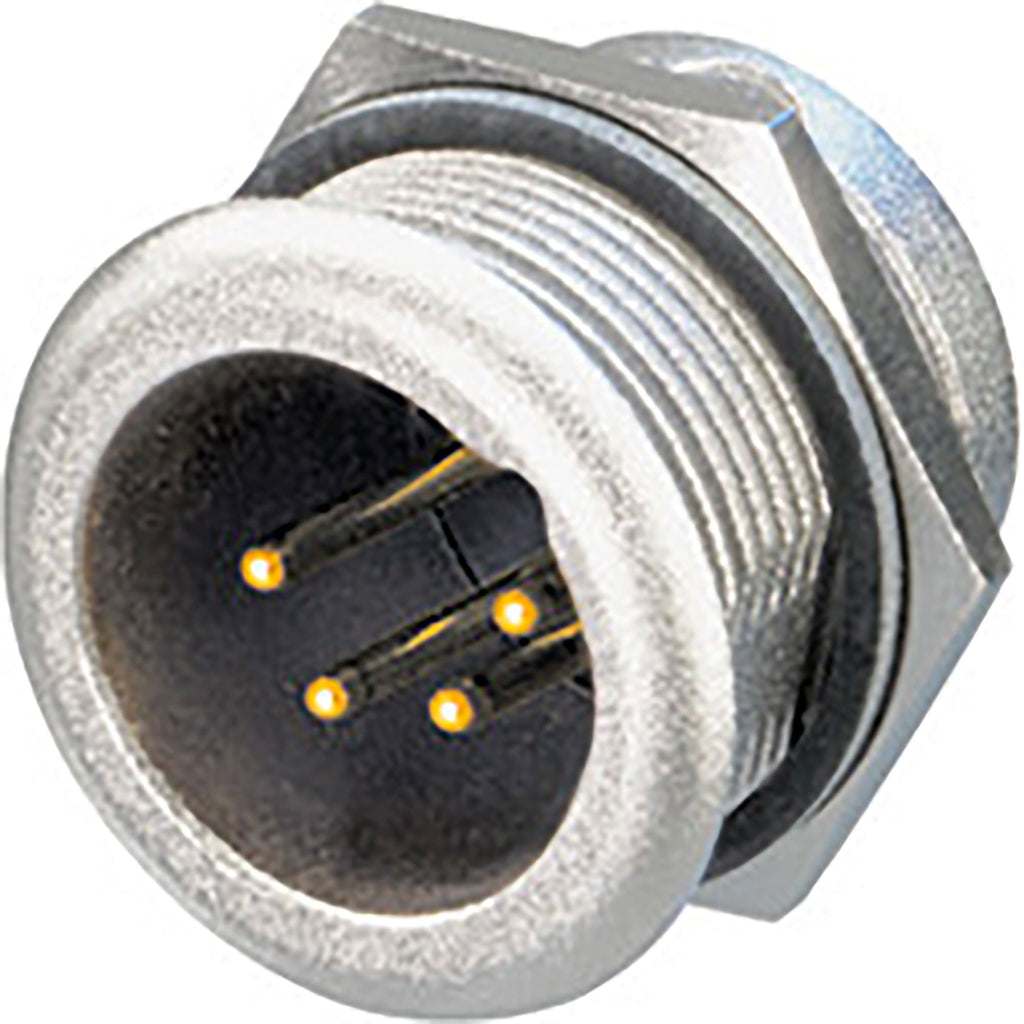

Heavy duty sealed male 4-pole XLR chassis connector for outdoor use. Dust and water ingress sealing to IP65 rating is achieved by using HD cable connector (NC4FX-HD).
These chassis connectors can be used perfectly for outdoor and weatherproof applications as well as in a wide range of industrial applications.
Features:
- IP 65 - in combination with NC4FX-HD cable connector
- Perfect for outdoor applications
- Sealing gasket for water tight panel mount
- Gold plated contacts
- Fastening nut included
Specifications:
- Product
- Title: NC4MPR-HD
- Connection Type: XLR
- Gender: male
- Electrical
- Capacitance between contacts:
- Contact resistance:
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 G (initial)
- Rated current per contact: 16 A
- Rated voltage: 50 V
- Mechanical
- Insertion force:
- Withdrawal force:
- Lifetime: > 1000 mating cycles
- Wiring: Solder contacts
- Locking device: Latch lock
- Mounting direction: front
- Chassis shape: P
- Material
- Contact plating: 0.2 -m Au over 2 -m Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Gasket: Tesnit
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 65
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Details
- Manufacturer: Neutrik
- MPN: NC4MPR-HD
- Model Number: NC4MPR-HD
