Key Features
- World's First Unisex XLR
- Male/Female XLR in One Connector
- Easy Selectable Gender
- Solder Cups
- Black Metal Housing
- Gold Contacts
- Full Box of 50 Connectors
Description

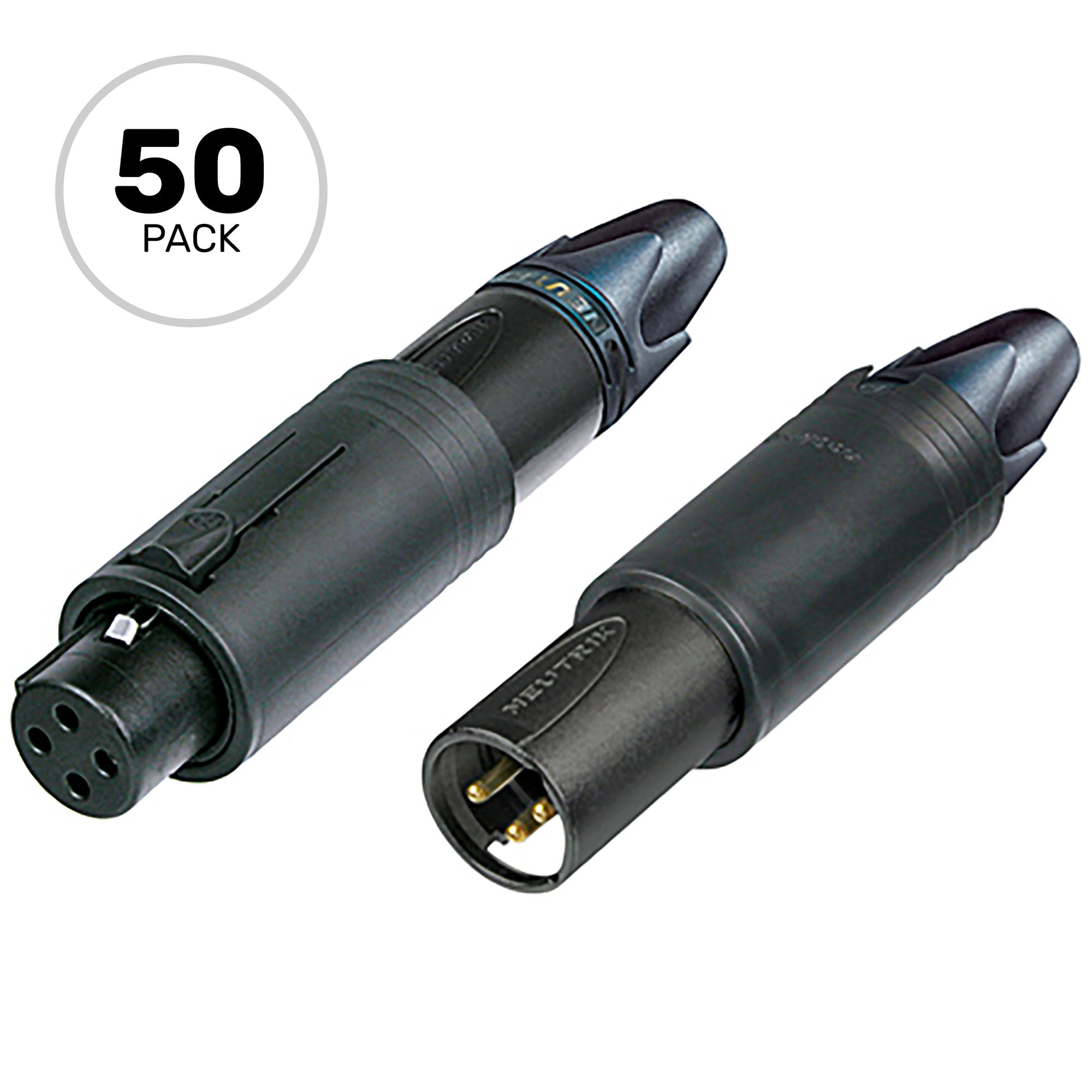

Female/Male Unisex 3-Pin XLR Cable End Connector, convertCON Series, Black Metal Housing, Gold Contacts - Full Box of 50 Connectors

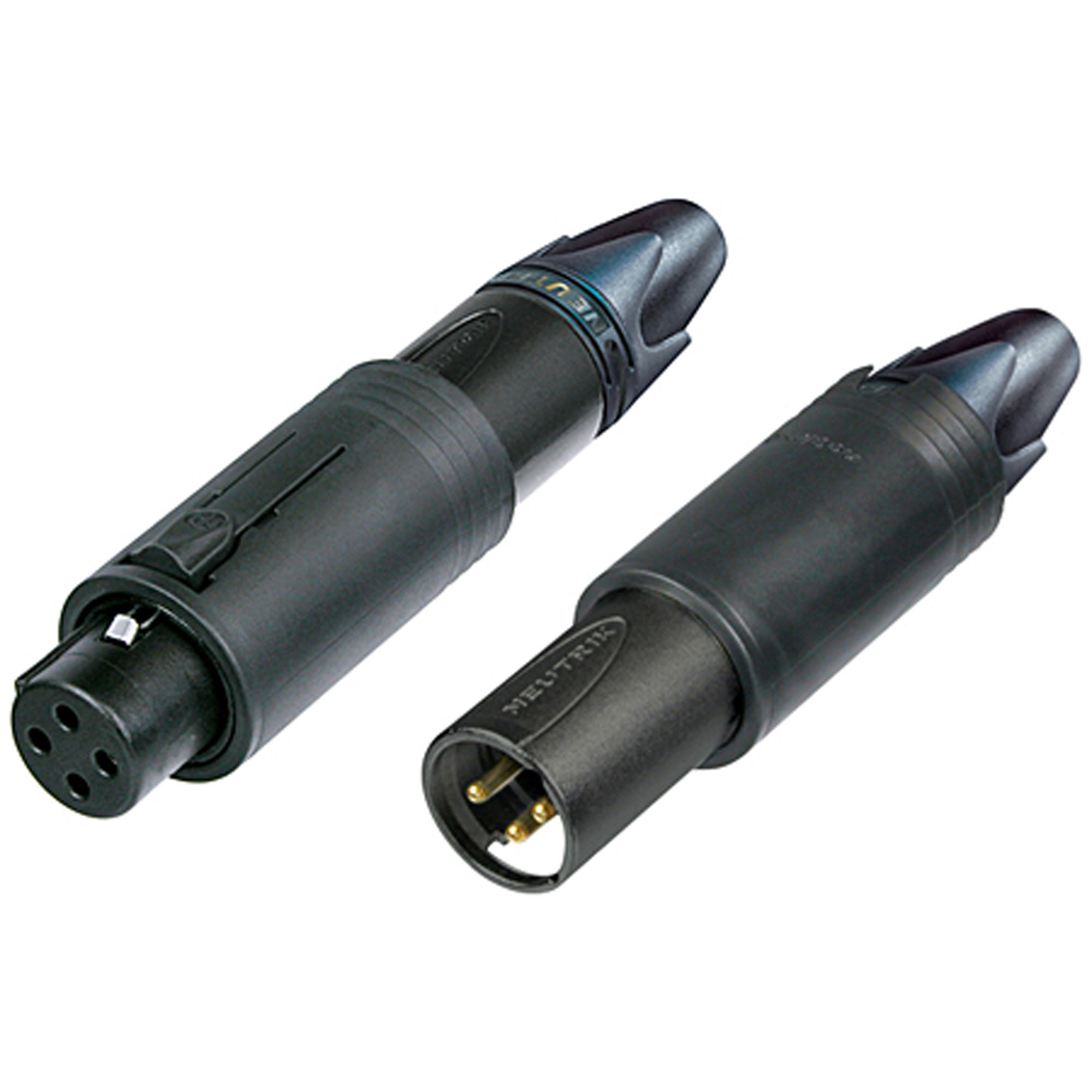

The Neutrik NC3FM-C convertCON Male/Female Connector is a unisex XLR cable connector. It consists of 3 pole male and female cable connectors in one housing.
Features:
- World's first unisex XLR
- 3 pole male and female cable connector in one housing
- Easy selectable gender - converted by sliding housing back and forth
- Substitute adapters, ideal as an emergency kit
- With all benefits of the XLR XX series
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Specifications:
- Product
- Title: NC3FM-C-B
- Connection Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 3 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: 50 V
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material
- Boot: Polyurethan
- Contact plating: 0.2 µm Au
- Contacts: Brass (CuZn39Pb3) male
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Black chromium
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Details
- Manufacturer: Neutrik
- MPN: NC3FM-C-B
- Model Number: NC3FM-C-B
