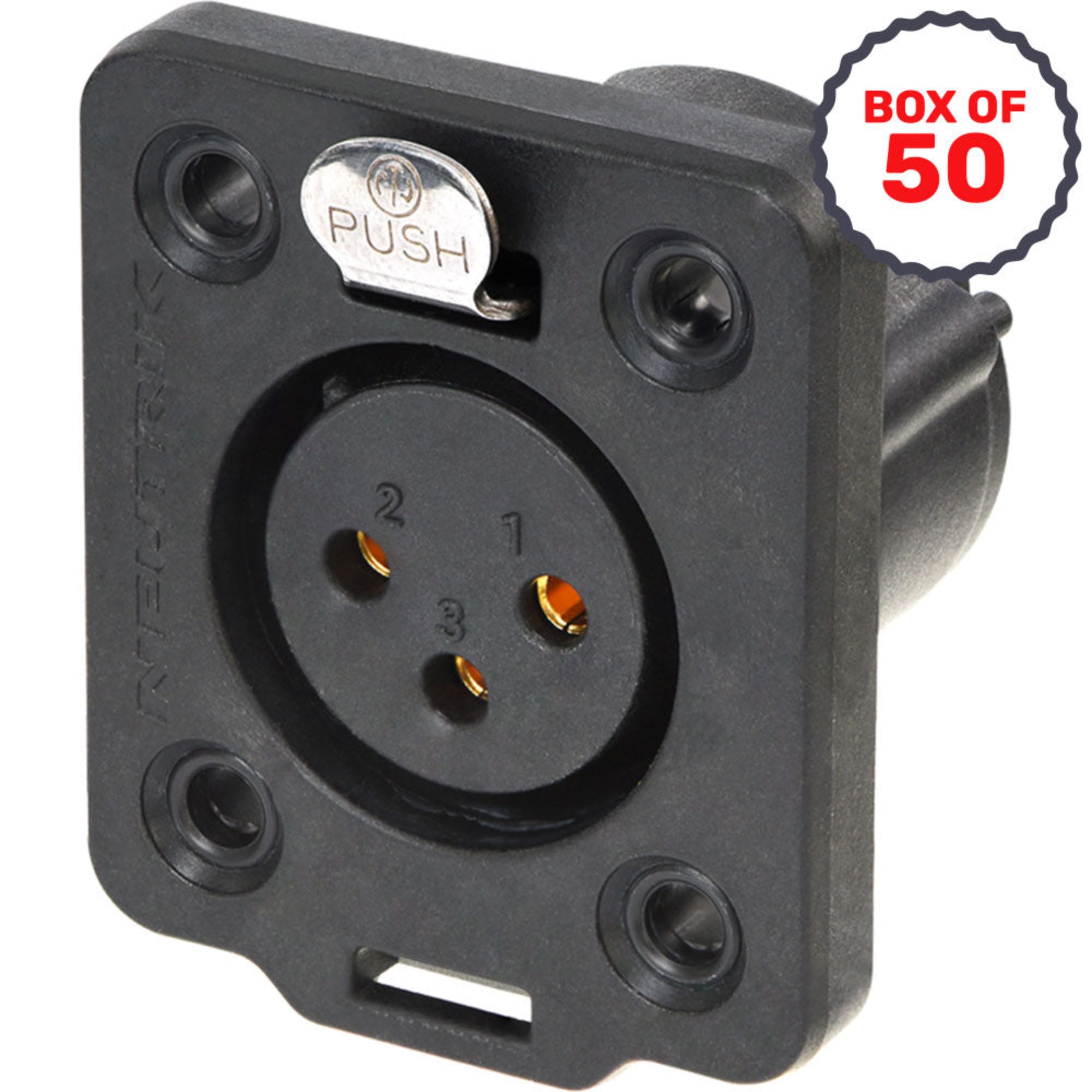

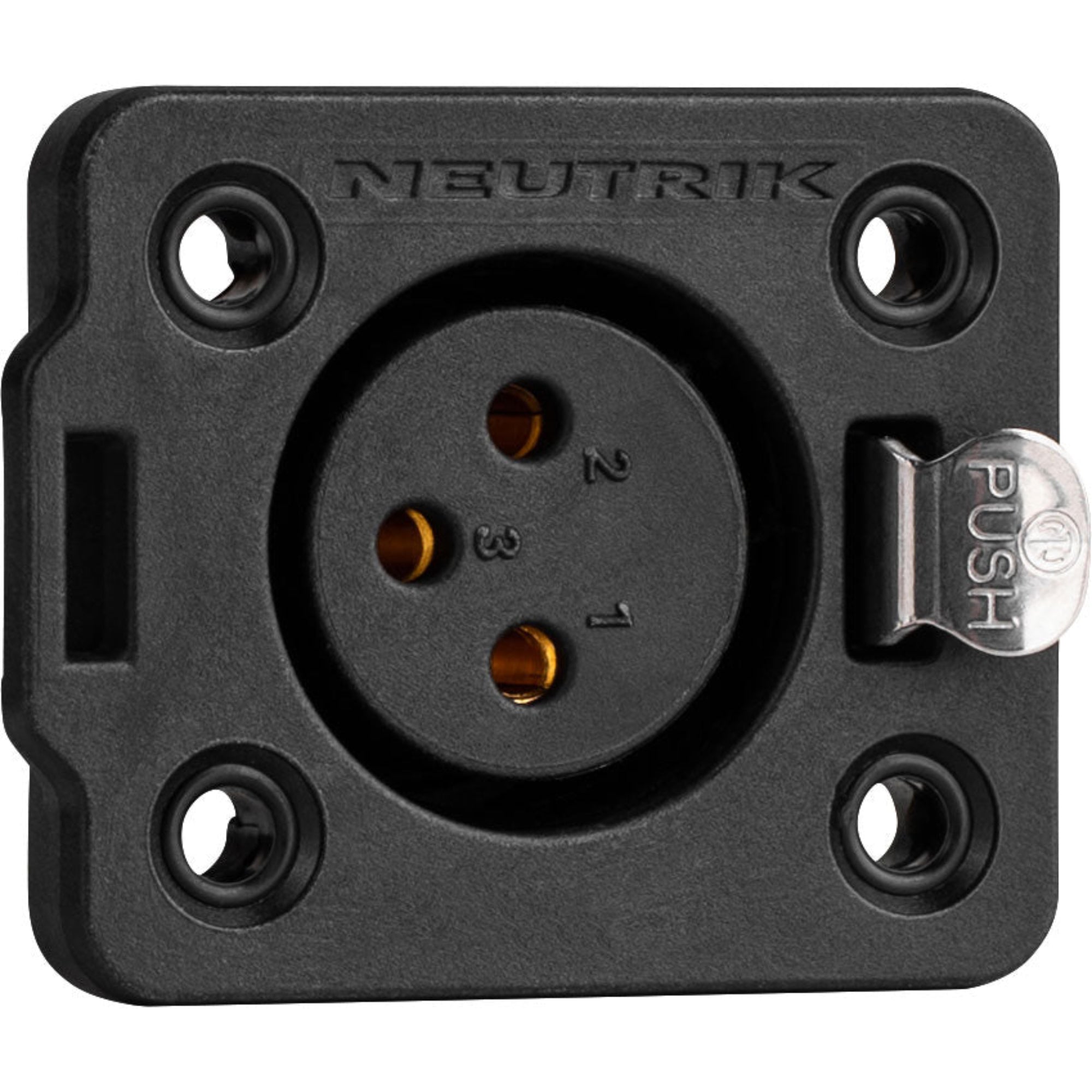

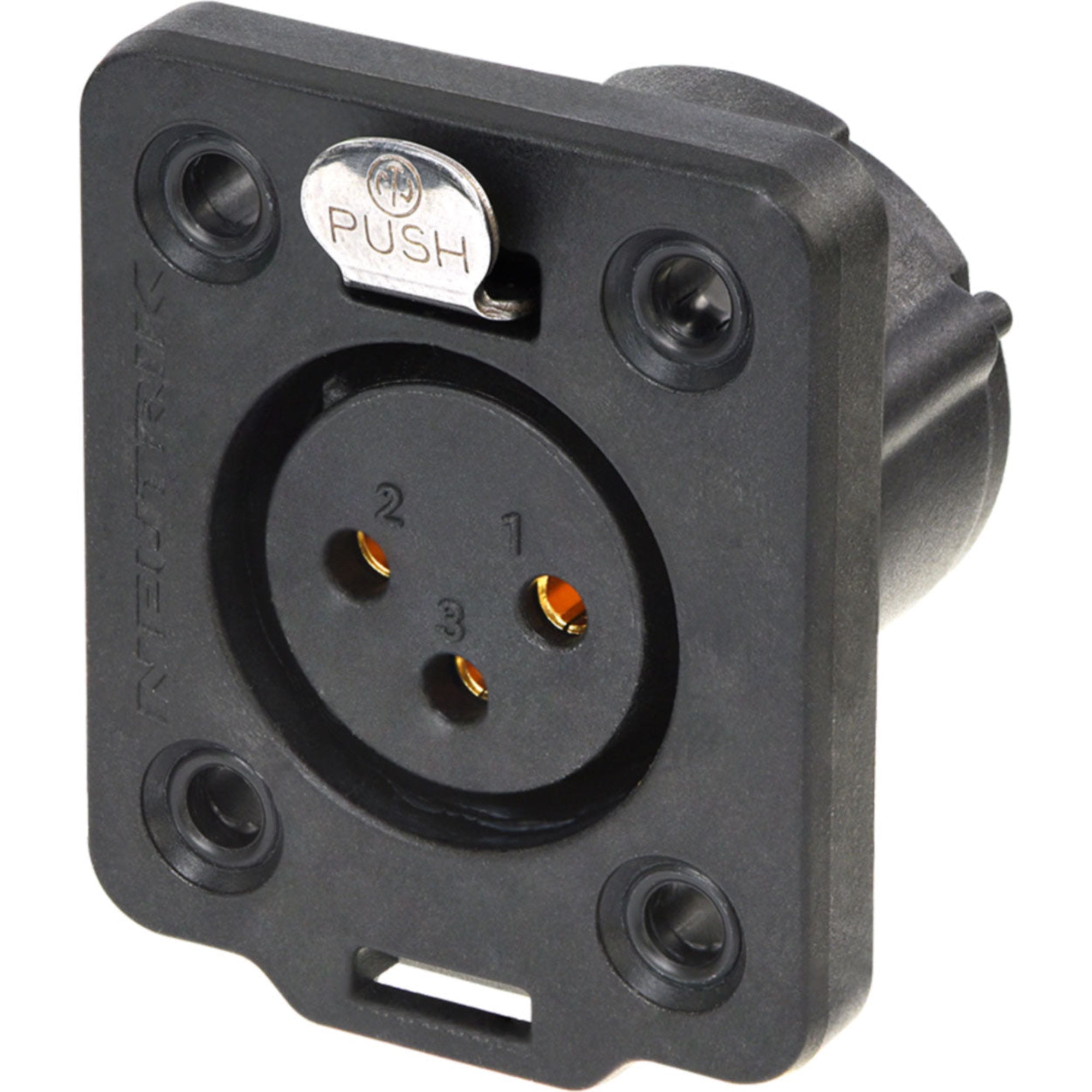

Neutrik NC3FDX-TOP Heavy-Duty Female 3-Pin XLR Chassis Connector IP65 and UV Rated (Box of 50)

3 Pole Female Chassis Connector, True Outdoor Protection (TOP) - Full Box of 50 Connectors

The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Features:

• Heavy-duty sealed XLR connector range for harsh and demanding environment
• Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
• Uses high impact UV-resistant materials
• Maintains sealing when in use and when disconnected

Specifications:

• Product:
• Title: NC3FDX-TOP
• Connection Type: XLR
• Gender: female
• Electrical:
• Capacitance between contacts: <= 4 pF
• Contact resistance: <= 5 m
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 G&ohm; (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V
• Mechanical:
• Insertion force: <= 20 N
• Withdrawal force: <= 20 N
• Lifetime: > 5000 mating cycles

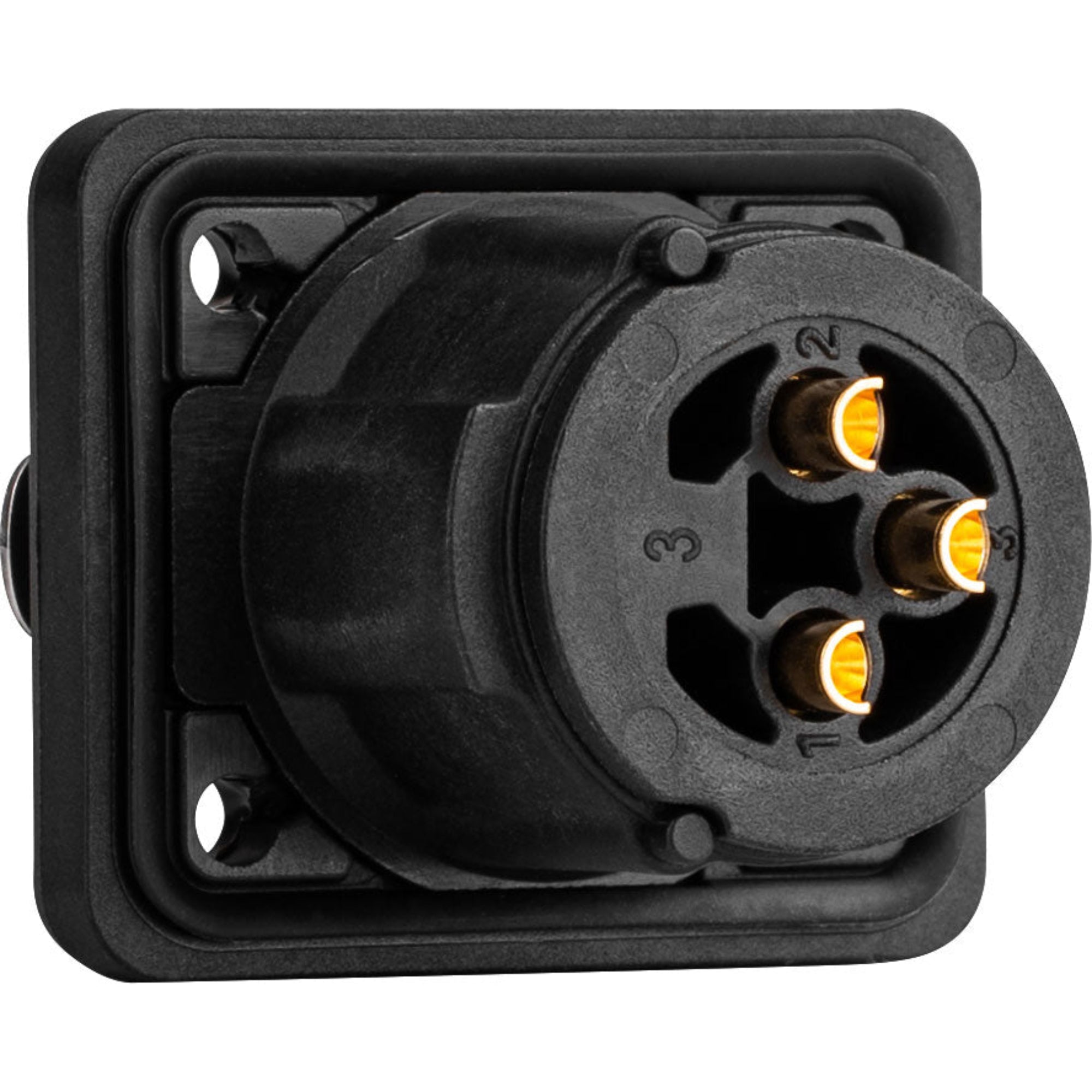

• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: Front mounting
• Chassis shape: D
• Material:
• Contact plating: 0.2 µm Au over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Stainless steel
• Gasket: TPE
• Shell: Polyamide (PA 6.6 30 % GR)
• Environmental:
• Flammability: UL94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP65, UL50E
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30°C to +80°C
