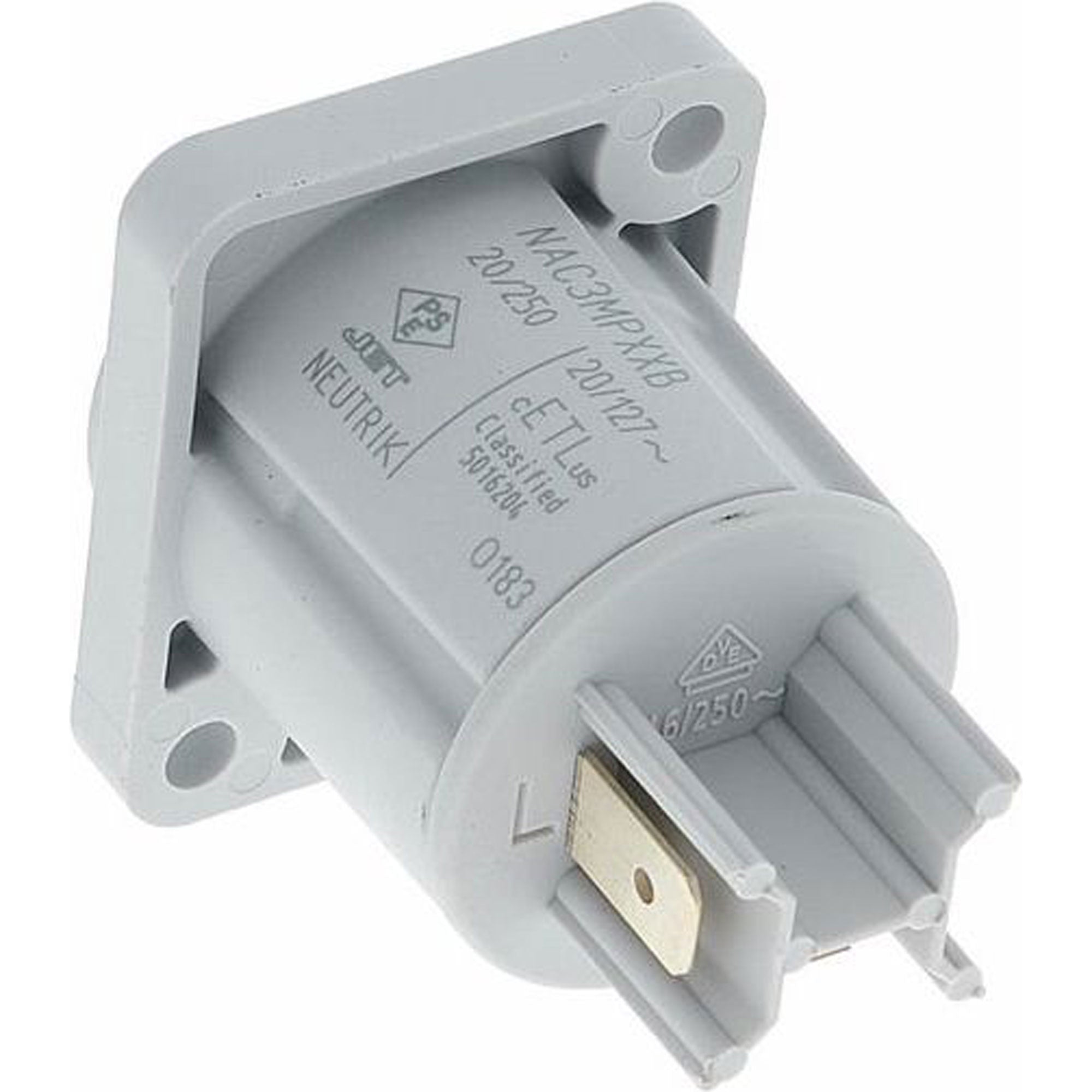

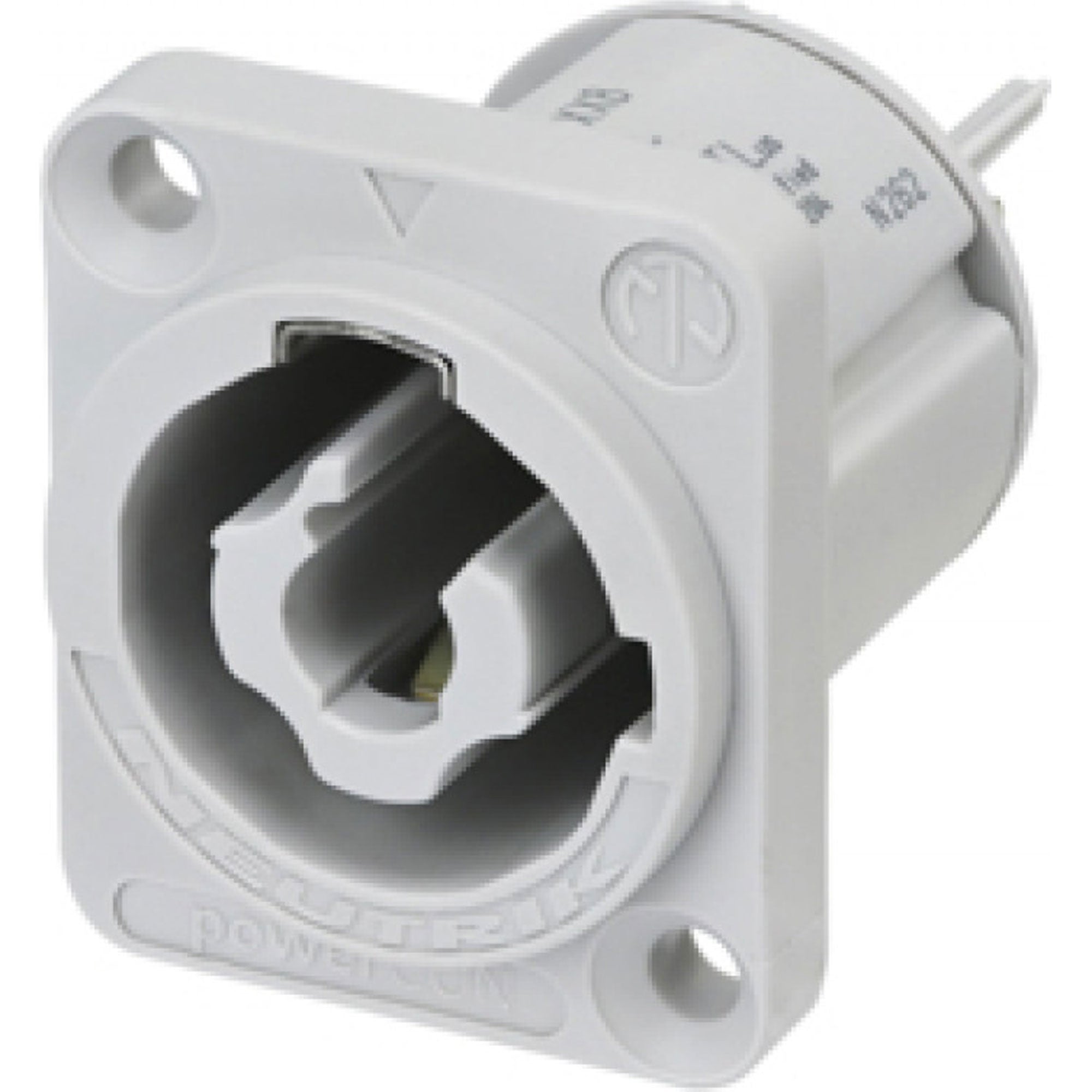

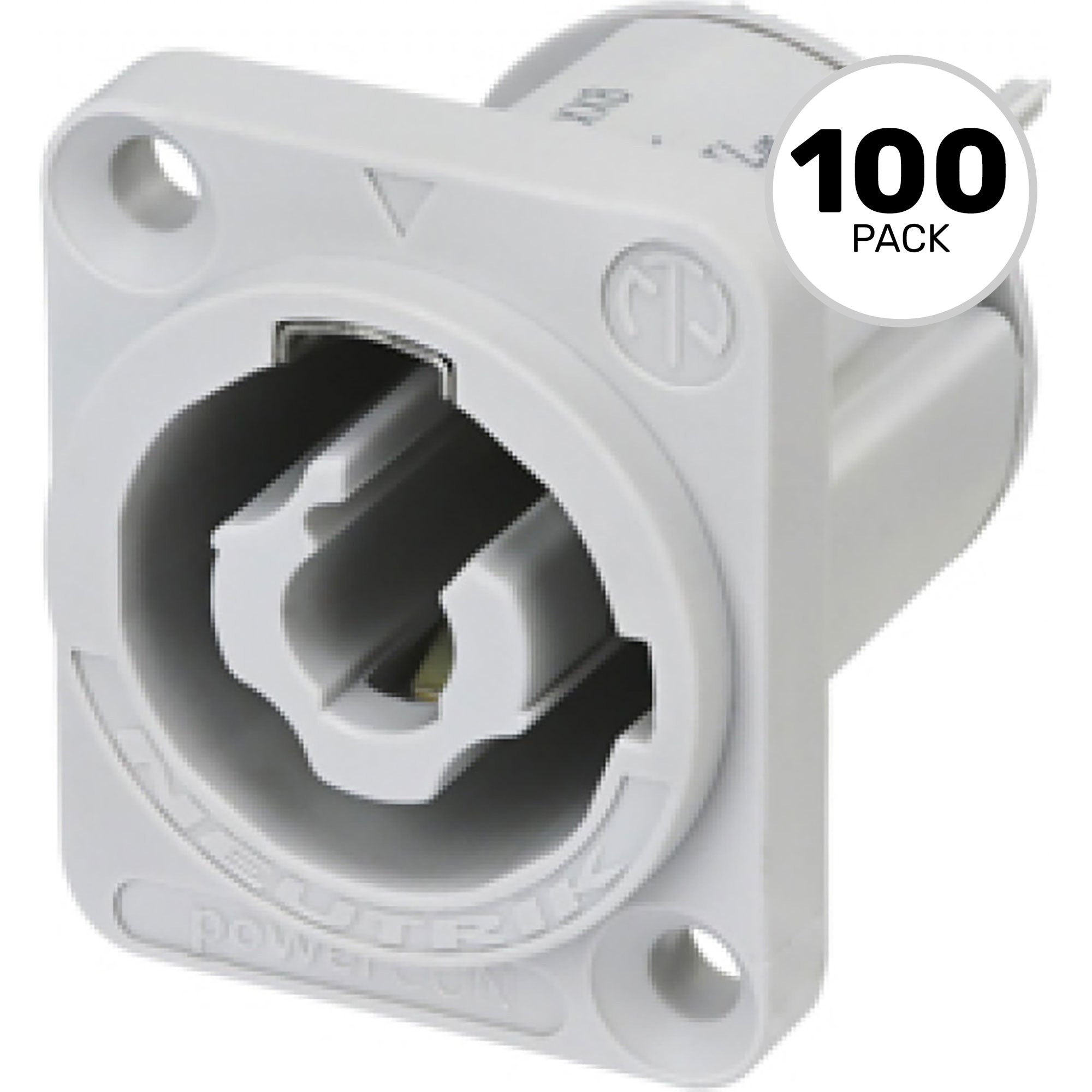

Neutrik NAC3MPXXB powerCON Chassis Connector with 3/16" Flat Tabs (Grey, Power Out, Box of 100)

Panel Mount Chassis powerCON XX Connector with 3/16" Flat Tab Terminals - Power Outlet - Grey - Full Box of 100 Connectors

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.

Appliance outlet connector, 3/16" flat tab terminals, grey

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features:

• Lockable single phase connector
• Certified according to IEC 60320-1 & UL 60320-1
• 3 contacts for line, neutral and premating safety ground
• Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
• Drop-in replacement for NAC3MPA-1; mates to NAC3FCA and NAC3FCA-1 cable connectors
• Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Extremely robust and reliable
• IEC 62368-1 compliant
• UL94 V-0 materials

Specifications:

• Product:
• Title: NAC3MPXXB
• Gender: male
• Electrical:
• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 10 GΩ (initial)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• EN 61984: 20 A 250 V AC
• Rating USA: UL 60320-1:20 A 127 V AC
• UL 1977: 20 A 250 V AC
• Mechanical:
• Lifetime: > 5000 mating cycles
• Wiresize: 2,5 mm²
• Wiresize: 12 AWG
• Material:
• Contact plating: Ag
• Locking element: Stainless steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy
• Environmental:
• Flammability: UL 94 V-0
• Protection class: IP 20
• Temperature range: -30 °C to +80 °C
