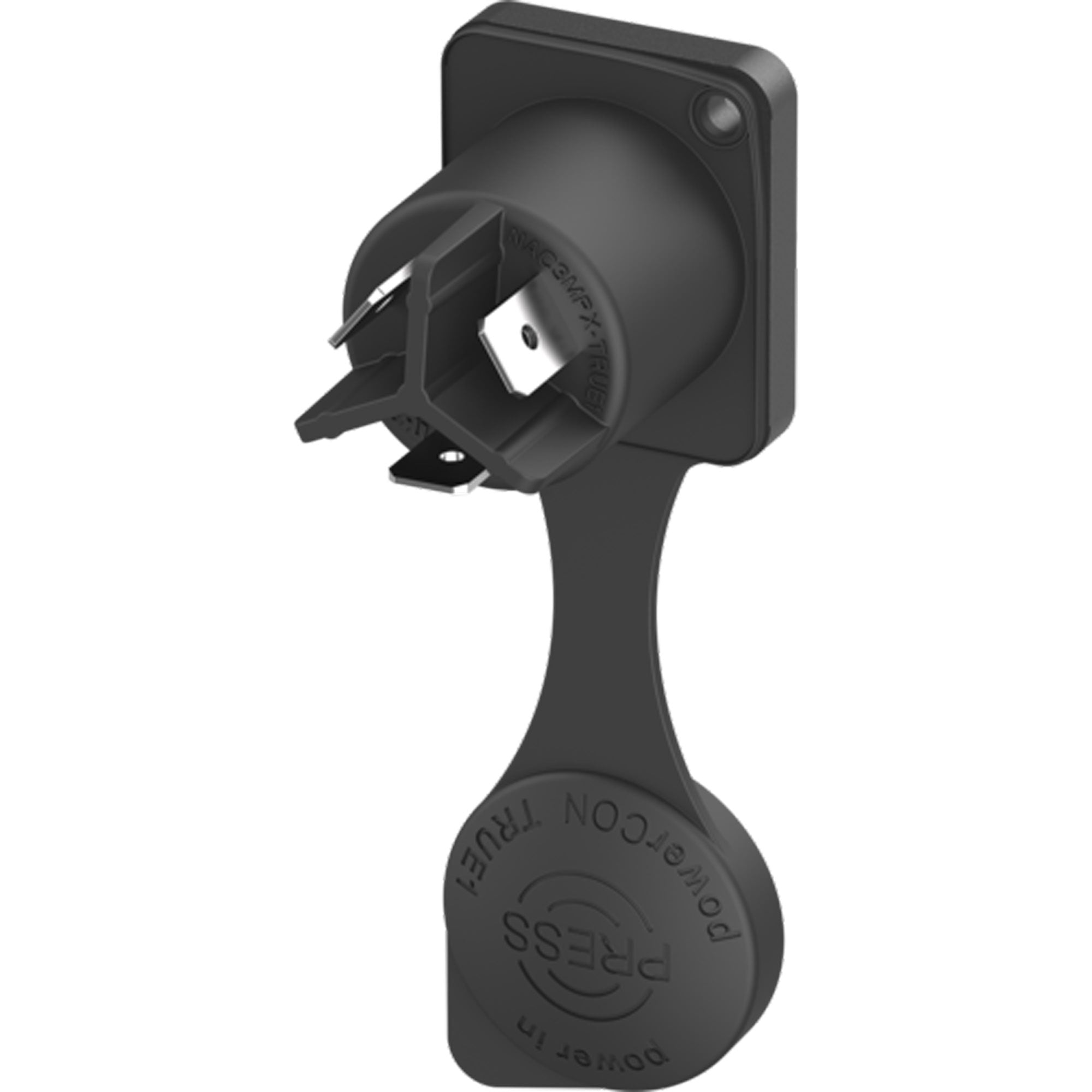

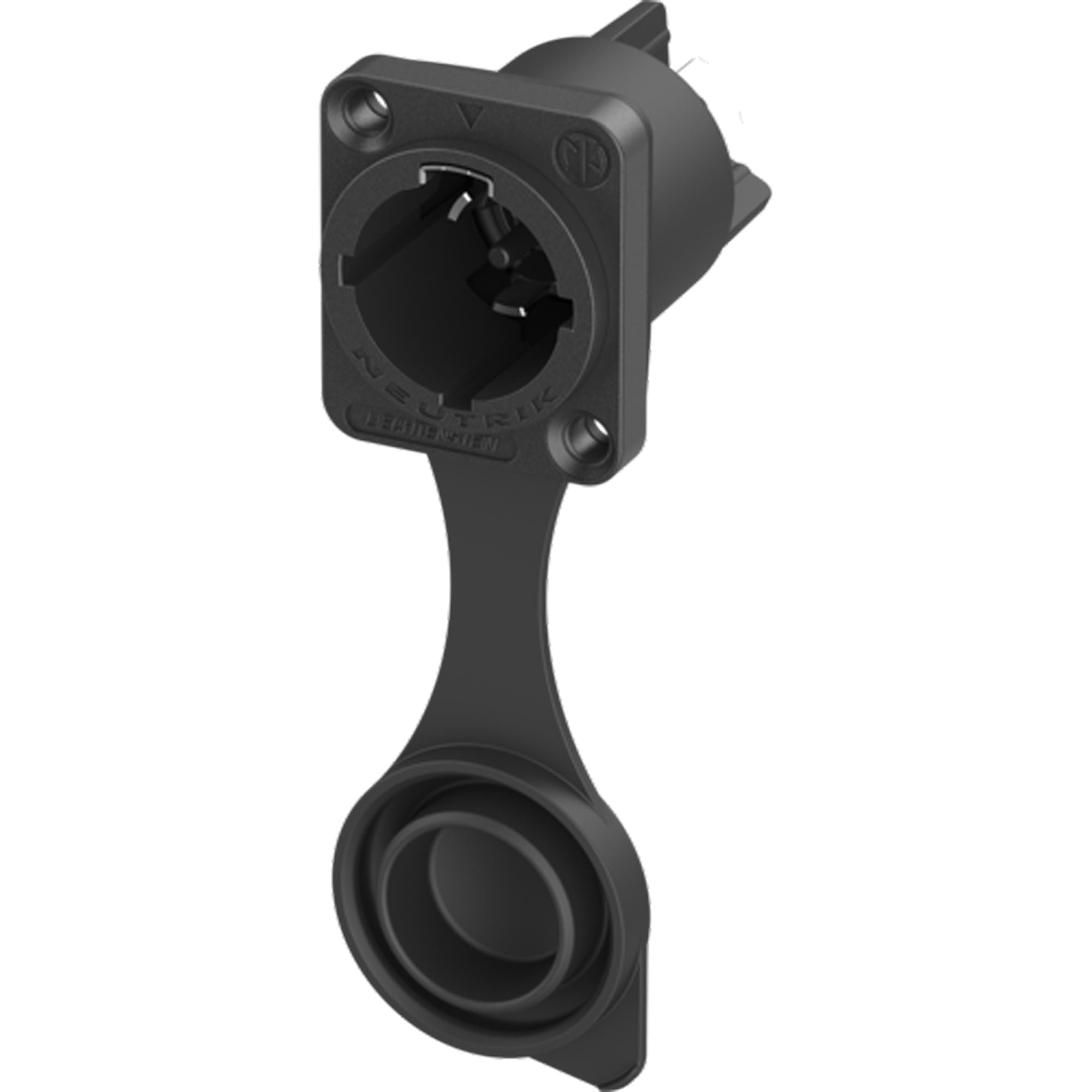

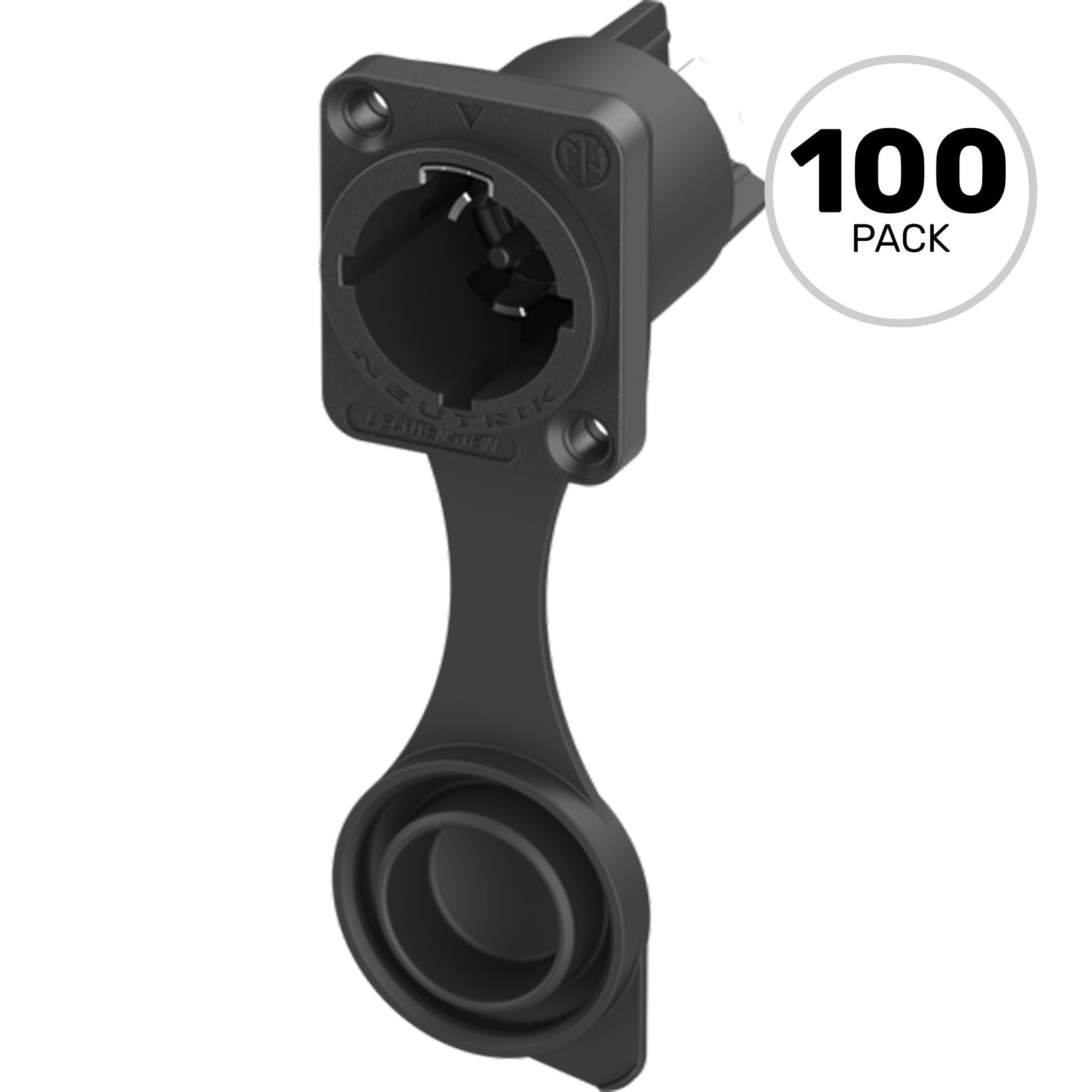

Neutrik NAC3MPX-TRUE1 powerCON TRUE1 TOP Appliance Inlet (1/4" Flat Tabs, Box of 100)

Appliance Inlet Connector Airtight with 1/4" Flat Tab Terminals - Full Box of 100 Connectors

The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features:

• Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Extremely robust and reliable
• ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
• UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
• IP65, IP66 and IP67 (mated or with closed cap)
• True mains connector with breaking capacity (CBC)
• Easy and reliable twist lock system

Specifications:

• Product:
• Title: NAC3MPX-TRUE1
• Product family: powerCON TRUE1
• Electrical:
• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 1 GΩ (after damp and heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
• Rating America:
  20 A / 250 V AC according to UL 60320-1
  20 A / 250 V AC according to CSA C22.2 No. 60320-1
• Mechanical:
• Lifetime: > 5000 mating cycles
• Wiresize (mm²): 2.5 mm²
• Wiresize (AWG): 12 AWG
• Material:
• Contact plating: 2 μm Ag
• Locking element: Stainless steel
• Contacts: Copper Alloy
• Shell: Polyamide (PA 66)
• Environmental:
• Flammability: UL 94 V-0
• Protection class: IP 65 / 66 / 67 (mated or with closed caps)
• UV resistance: F1 rated material withstands UV exposure
• Operating temperature range:
  -30°C to +80°C
  (-5°C to +40°C according to IEC 60320-1 for indoor use)
