Key Features
- For Large 10-16mm Cables
- Heavy Duty Sealed
- For Harsh & Demanding Environments
- True Mains Connector
- 16 A Single Phase Connector
- Dust & Water Resistant
- Twist Lock Latching System
- Power Out (Male)
Description

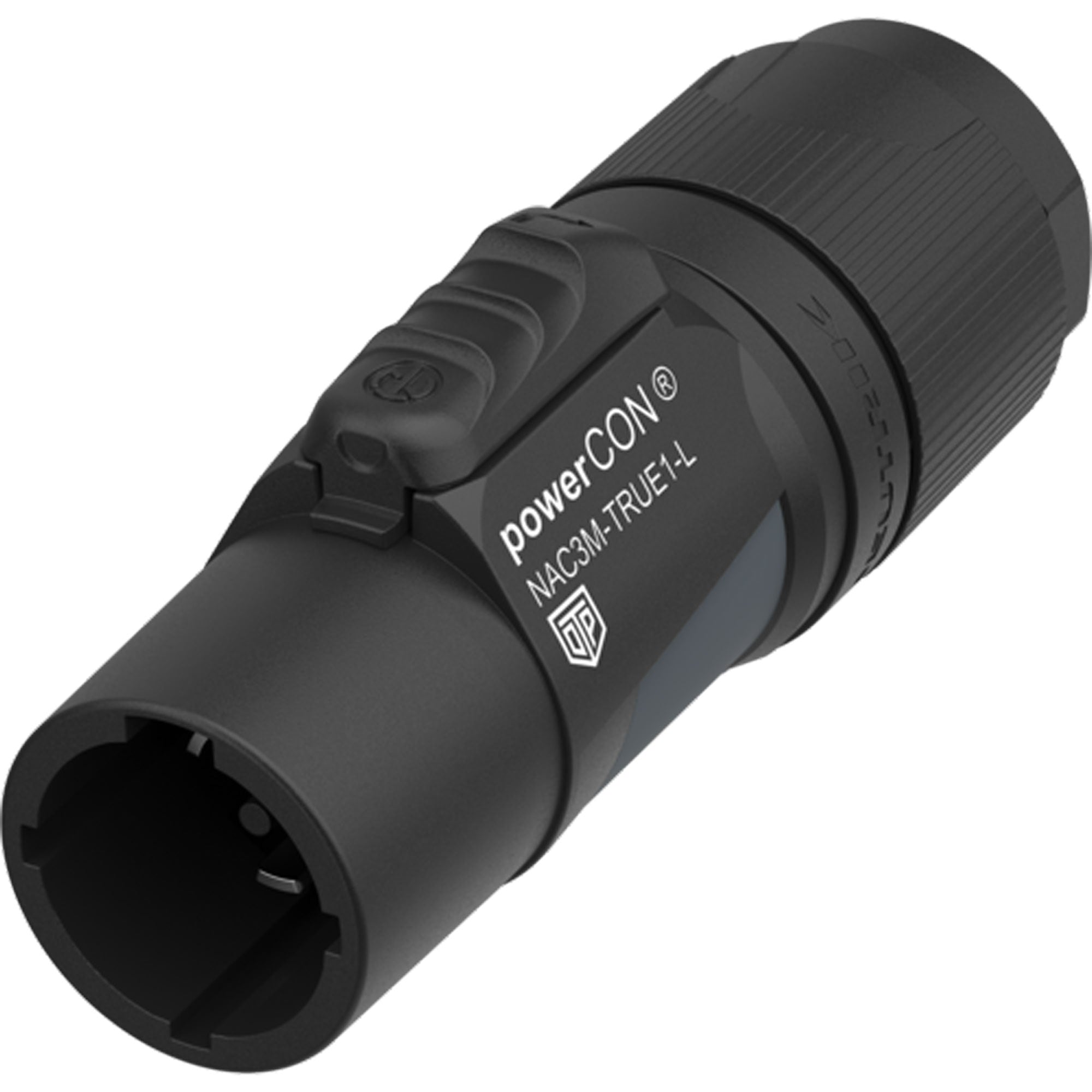

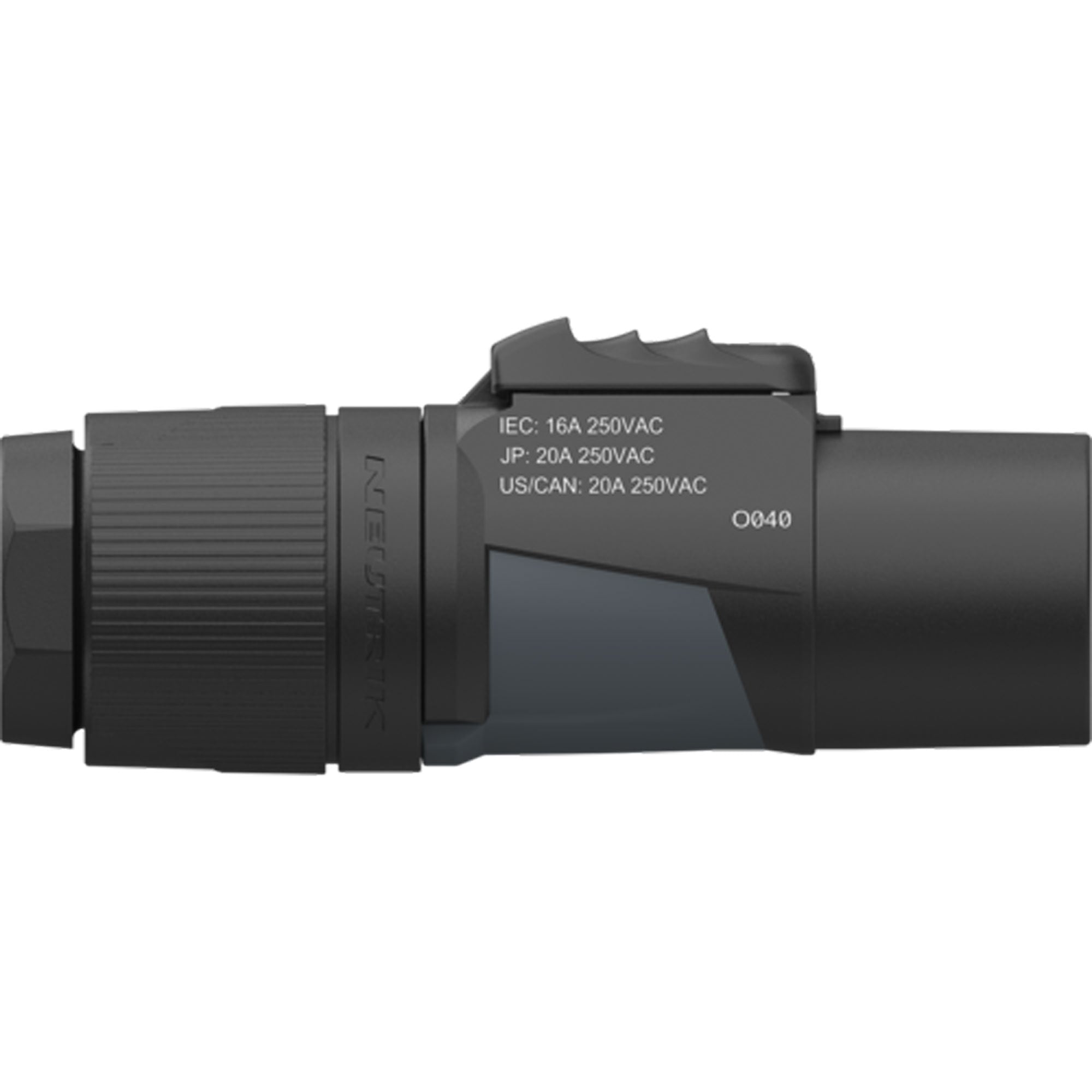

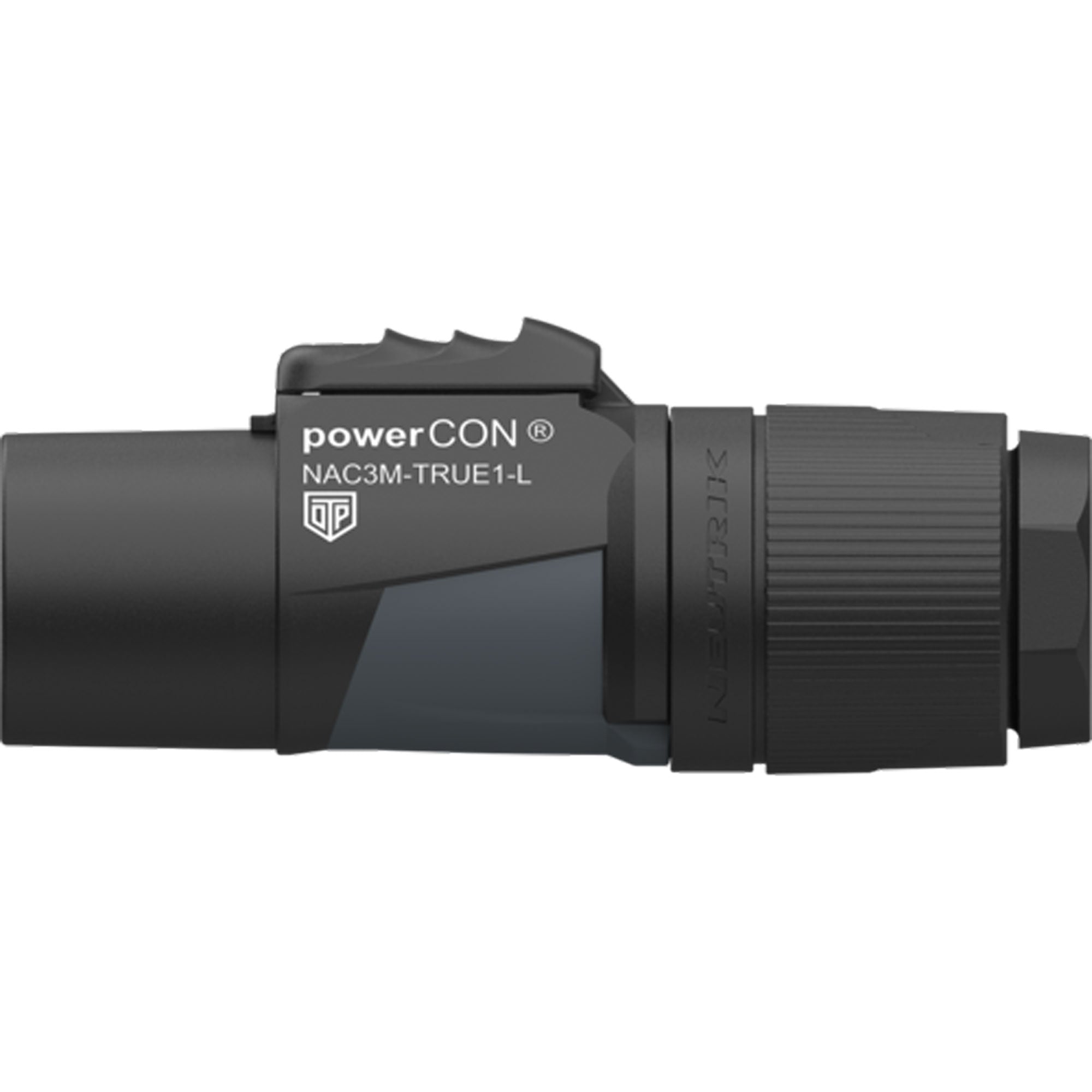

Locking Male Cable Connector for 10 mm to 16 mm Cables, Screw Terminals
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system

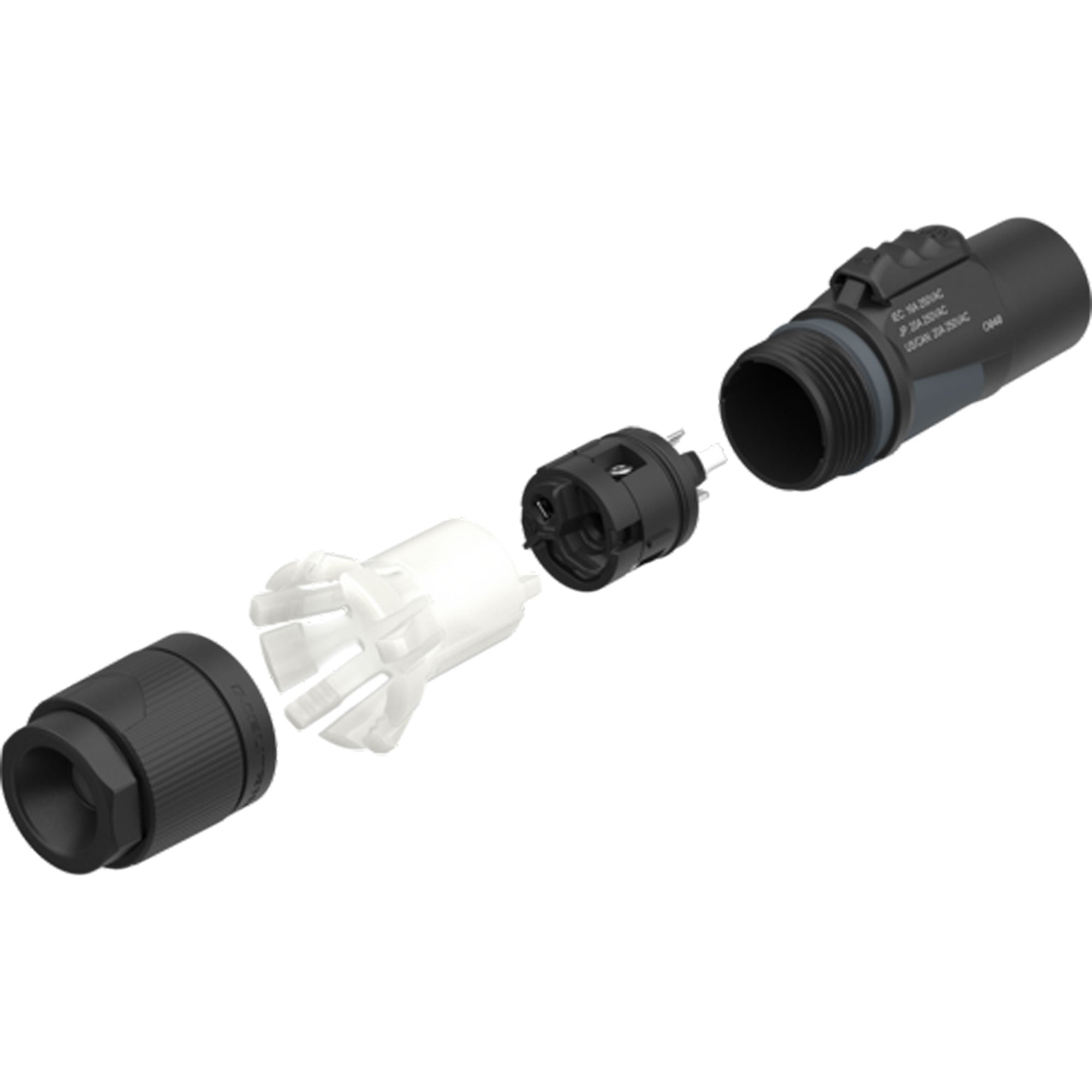

- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 - 0.63 inches)
Specifications:
- Product:
- Title: NAC3M-TRUE1-L
- Product Family: powerCON TRUE1
- Electrical:
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: > 1 GΩ (after damp and heat test IEC 68-2-30)
- Number of electrical contacts: 2 + PE
- Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
- Rating America:
20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1 - Mechanical:
- Cable O.D.: 10 - 16 mm (0.39 - 0.63 inches)
- Lifetime: > 5000 mating cycles
- Wiresize (mm²): 2.5 mm²
- Wiresize (AWG): 14 - 12 AWG
- Material:
- Contact plating: 2 μm Ag
- Locking element: Polyamide (PA 66)
- Contacts: Copper Alloy
- Insert: Polyamide (PA 66)
- Shell: Polyamide (PA 66)
- Strain relief: Polyketon
- Environmental:
- Flammability: UL 94 V-0
- Protection class: IP 65 / 67 (mated or with closed caps)
- UV resistance: F1 rated material withstands UV exposure
- Operating temperature range:
-30°C to +80°C
(-5°C to +40°C according to IEC 60320-1 for indoor use)
Details
- Manufacturer: Neutrik
- MPN: NAC3M-TRUE1-L
- Model Number: NAC3M-TRUE1-L
- UPC:
