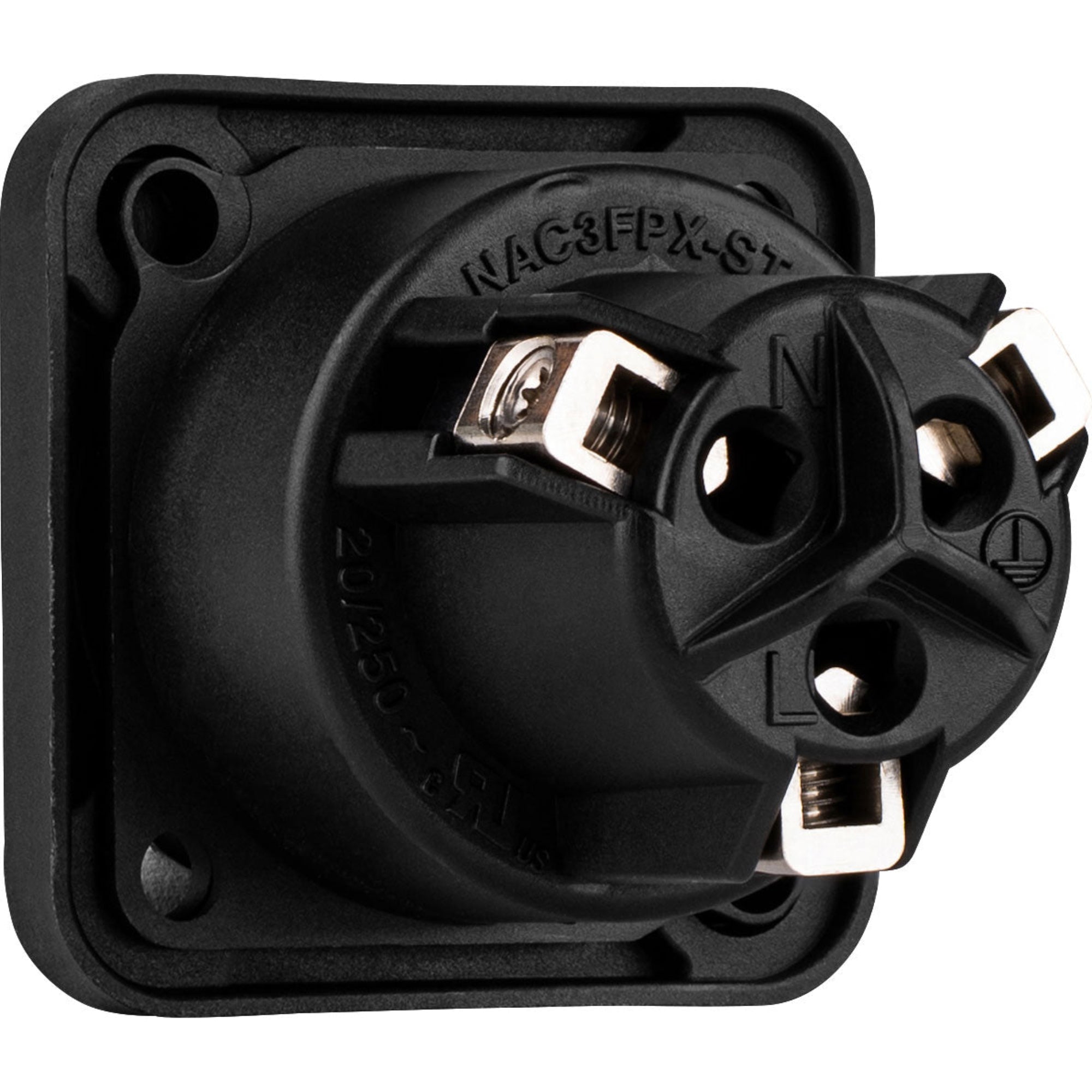

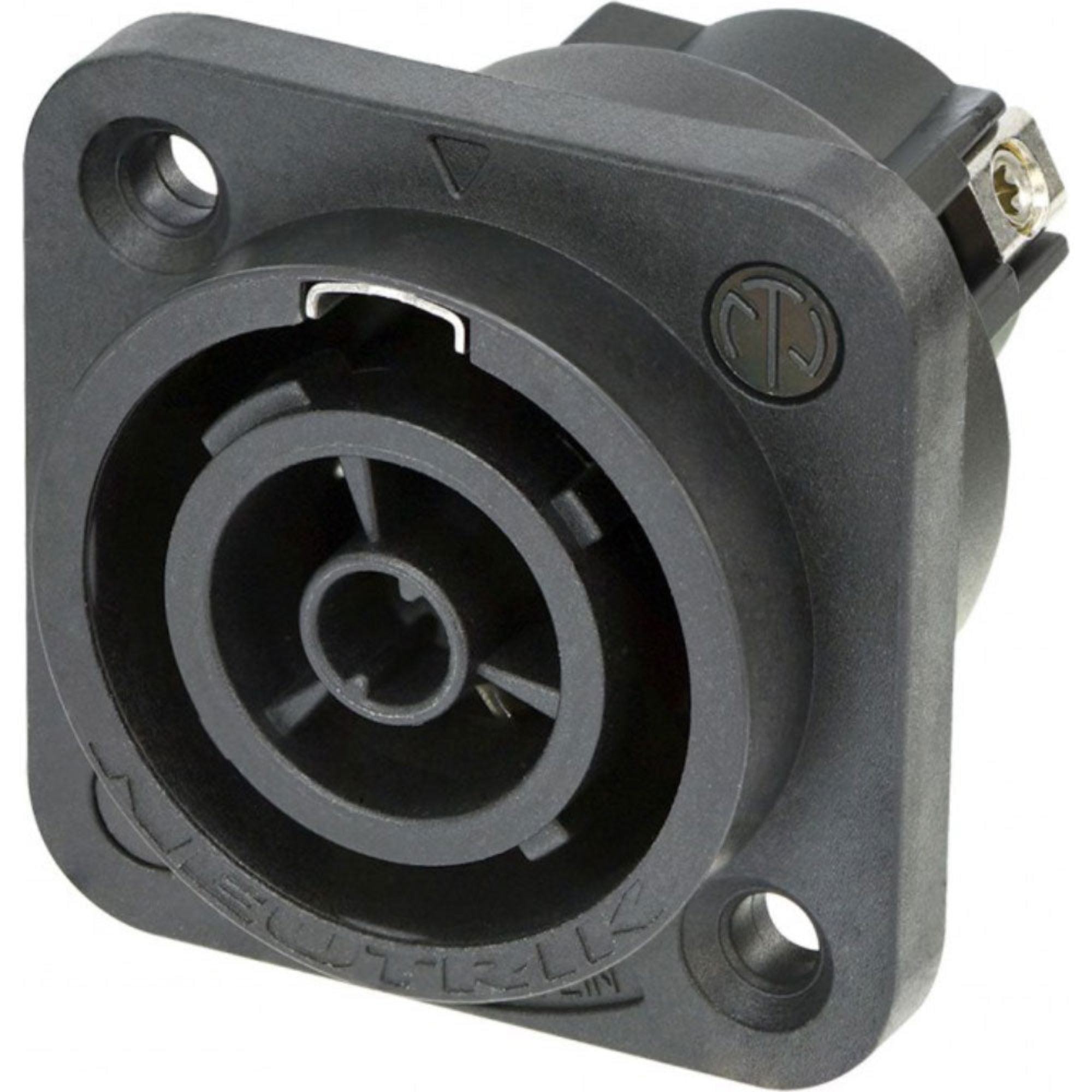

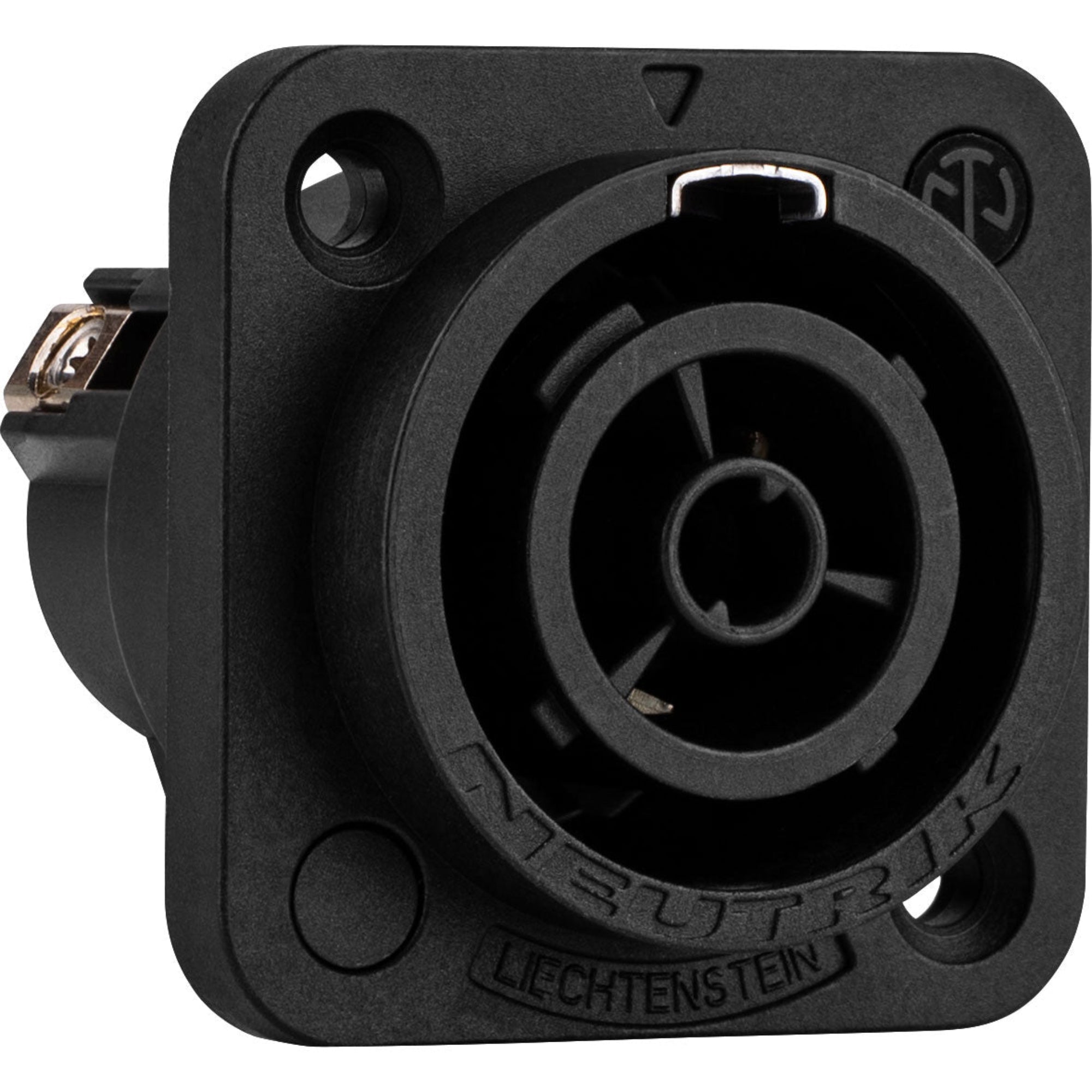

Neutrik NAC3FPX-ST-TOP powerCON TRUE1 TOP Appliance Outlet (Screw Terminals)

Appliance Outlet Connector, Screw Terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features:

• Heavy duty sealed power connector for harsh and demanding environment
• IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 16 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Extremely robust and reliable
• Unique Neutrik cable retention
• ENEC certified according to IEC 60320
• UL498 certified

Specifications:

• Product:
• Title: NAC3FPX-ST-TOP
• Electrical:
• Contact resistance: <= 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 1 G&ohm; (after damp heat test)
• Number of electronical contacts: 2 + PE
• Rated current per contact: 16 A rms (USA: 20 A)
• Rated voltage: 250 V ac
• Mechanical:
• Lifetime: > 5000 mating cycles
• Wiresize: 2.5 mm °
• Wiresize: 14 AWG
• Wiring: screw terminals
• Material:
• Contact plating: 2 °m Ag
• Locking element: Stainless steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)
• Environmental:
• Flammability: UL 94 V-0
• Protection class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
• Temperature range: - 30 °C - +80 °C
